Packing List
In addition to this guide, the package includes the following items:

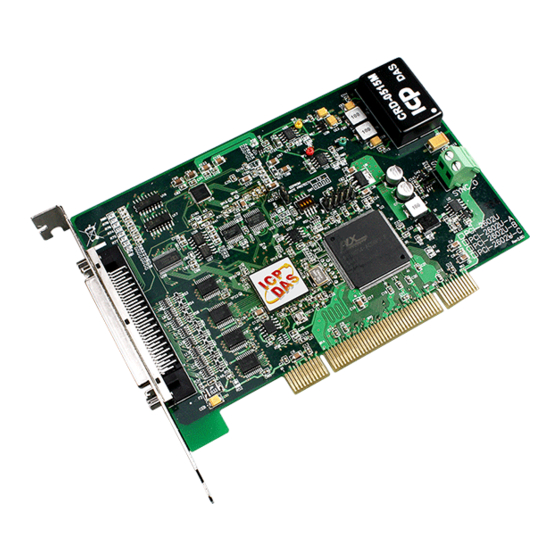

PCI-2602U
Technical Support
service@icpdas.com
www.icpdas.com
For Desktop Web
Related Information
For more detailed information related to the software manual, hardware
manual, PCI-2602U Driver & SDK and sample program:
http://www.icpdas.com/en/download/index.php?model=PCI-2602U

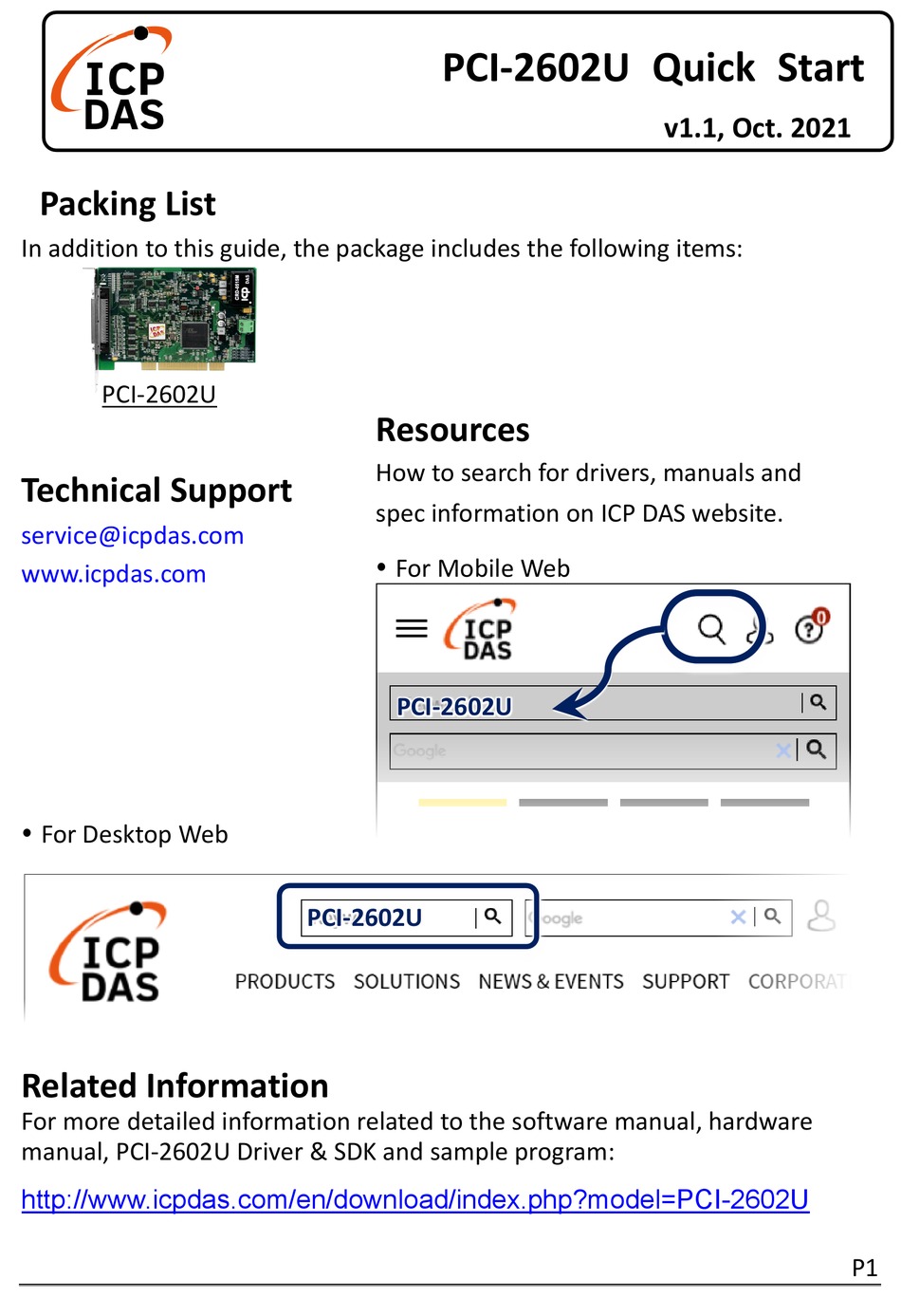

PCI-2602U Quick Start
Resources
How to search for drivers, manuals and
spec information on ICP DAS website.
For Mobile Web
PCI-2602U
PCI-2602U
v1.1, Oct. 2021
P1
Advertisement
Related Manuals for ICP DAS USA PCI-2602U
Summary of Contents for ICP DAS USA PCI-2602U
- Page 1 Technical Support spec information on ICP DAS website. service@icpdas.com For Mobile Web www.icpdas.com PCI-2602U For Desktop Web PCI-2602U Related Information For more detailed information related to the software manual, hardware manual, PCI-2602U Driver & SDK and sample program: http://www.icpdas.com/en/download/index.php?model=PCI-2602U...
-
Page 2: Installing Windows Driver
7) Click the “Next>” button on the Download Information window. 8) Select “No, I will restart my computer later” and then click the “Finish” button. NOTE: For more detailed information related to driver installation, refer to Chapter 5 “Starting” in the PCI-2602U user manual. - Page 3 7) The operating system will automatically detect the new hardware and install the necessary drivers after reboot the PC. 8) Open the “Device Manager” to verify that the PCI-2602U Card has been correctly installed and is in the Device Manager, as illustrated on below.
-
Page 4: Pin Assignments
Pin Assignments... -
Page 5: Advanced Configuration
Windows Device Manager to settings the Analog Input type and Digital I/O Ports, the detail configuration is illustrated in the figure below. 1) Open the Windows Device Manager, Right-click PCI-2602U and select the Properties on popup menu. 2) Click the Advanced tab to open the advanced configuration tool. In the Analog Input Type section, select the Single Ended options for execute a self- test. - Page 6 Testing Board Prepare for device CA-SCSI-15 (optional) cable DN-68A (optional) daughter board 1) Connect the CON1 to DN-68A board using the CA-SCSI-15 cable. 2) AI functional test and wiring Connect the signal AO channel 0 to AI channel 0, and connect the signals as follows.
- Page 7 3) Launch the UniDAQ Utility program, it was installed in the default folder, it will be located at “C:\ICPDAS\UniDAQ\Driver”. 4) Click the “TEST” button to start the test. Click the “Analog Output” item Select Channel to 0, Range to 3:Bipolar +/- 10V, Voltage(V) to 4, and click “OUTPUT”...
- Page 8 5) Check the results of the Analog Input channel 0. Click the ”Analog Input” item than click “SINGLE” button to get values. Check the voltage is or not equal 4V. ...
