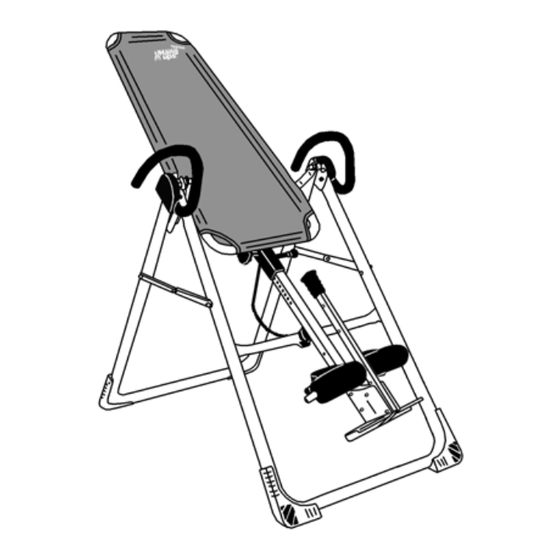

Hang ups Teeter GL9500 Series Assembly Instructions

ASSEMBLY INSTRUCTIONS
GL9500
PRE-ASSEMBLY
Before you begin: These instructions will guide you in properly assembling the unit. Please review all the steps before beginning assembly.
Carefully adhere to the Assembly Instructions and Owner's Manual to help ensure user safety and product integrity.
1. It is your responsibility to familiarize yourself with the proper use of the equipment and the inherent risks of inversion, such as falling on your
head or neck, pinching, entrapment or equipment failure.
2. This product is not designed for persons over 6ft 6in (198 cm) or 300 lbs (136 kg). Structural failure could occur or head/neck may impact floor
during inversion. Serious injury or death could result.
3. DO NOT use the equipment without a licensed physician's approval and a review of the medical contraindications, as noted in the Owner's Manual.
4. Failure to assemble and/or use the equipment as directed may void the manufacturer's warranty on this product and could result in injury or death.
5. DO NOT use the inversion table until you have thoroughly and carefully read the Owner's Manual, viewed the Instructional DVD, reviewed all
other accompanying documents, and inspected the equipment.
6. The steps in the DVD directly coincide with the steps detailed in these Assembly Instructions.
7. Choose a level surface for assembling and operating the table.
8. Follow each step in sequence. Do not skip ahead.
9. Make sure that all fasteners are secure.
10. PRIOR TO USE, test and inspect the table. Make sure the table rotates smoothly to inverted position and back.
11. Replace defective components immediately and/or keep the equipment out of use until repair.
Carefully remove the individual parts from the carton. You should have all of the items listed below. If any items are missing or damaged, contact
your retailer or customer service directly (See Pg. 4).
ITEMS FOR ASSEMBLY
A-frame base
EZ Angle Tether Strap
Main shaft
Table frame with mat
Left Handle
Right Handle
Double Threaded Bolts (4)
Shrouds
1/4" Bolts (4)
Two (2) roller hinges
Two (2) wrenches
Rear bar with ankle clamps
2" Hex Bolt / Nut / Washer F51087
(51mm)
Black Rubber Plugs
Instructional DVD*
*not included in drawings
ASSEMBLY
STEP ONE
Assemble the A-frame Base (GL9520)
• Open the A-frame and make sure that the Spreader Arms are
locked flat. (See Figure 1)
TM
U.S. and foreign patents apply. Other foreign patents pending.
WARNING
!
ITEM #'s
GL9520
F51008
GL9521
F81021
GL9520
GL9518
GL9522
GL9523
GL9524
GL9525
F51064
F51088
F51052
F51056
LD9500
DO NOT DISCARD - KEEP FOR FUTURE REFERENCE.
GL9521
F51008
F81021
Spreader Arms
F51064
GL9518
GL9522
GL9523
F51088
GL9524
GL9525
F51087
F51052
F51056
One plug may be
preassembled
into rear bar
Figure 1
