ASSEMBLY INSTRUCTIONS
Before you begin: These instructions will guide you in properly assembling the unit. Please review all the steps before beginning assembly.
Carefully adhere to the Assembly Instructions and Owner's Manual to help ensure user safety and product integrity.
1. It is your responsibility to familiarize yourself with the proper use of the equipment and the inherent risks of inversion, such as falling on your
head or neck, pinching, entrapment or equipment failure.
2. This product is not designed for persons over 6ft 6in (198 cm) or 300 lbs (136 kg). Structural failure could occur or head/neck may impact floor
during inversion. Serious injury or death could result.
3. DO NOT use the equipment without a licensed physician's approval and a review of the medical contraindications, as noted in the Owner's Manual.
4. Failure to assemble and/or use the equipment as directed may void the manufacturer's warranty on this product and could result in injury or death.
5. DO NOT use the inversion table until you have thoroughly and carefully read the Owner's Manual, reviewed all other accompanying
documents, and inspected the equipment.
6. This product requires a grounded outlet. Improper connection to a 3-prong grounded outlet can result in electrical shock.
7. Choose a level surface for assembling and operating the table.
8. Follow each step in sequence. Do not skip ahead.
9. Make sure that all fasteners are secure.
10. PRIOR TO USE, test and inspect the table. Make sure that the table rotates smoothly to the inverted position and back.
11. Replace defective components immediately and/or keep the equipment out of use until repair.
12. Refer to additional warning notices and information posted on the equipment.
Carefully remove the individual parts from the
carton. You should have all of the items listed
below. If any items are missing or damaged,
contact your retailer or customer service directly
(See reverse side).

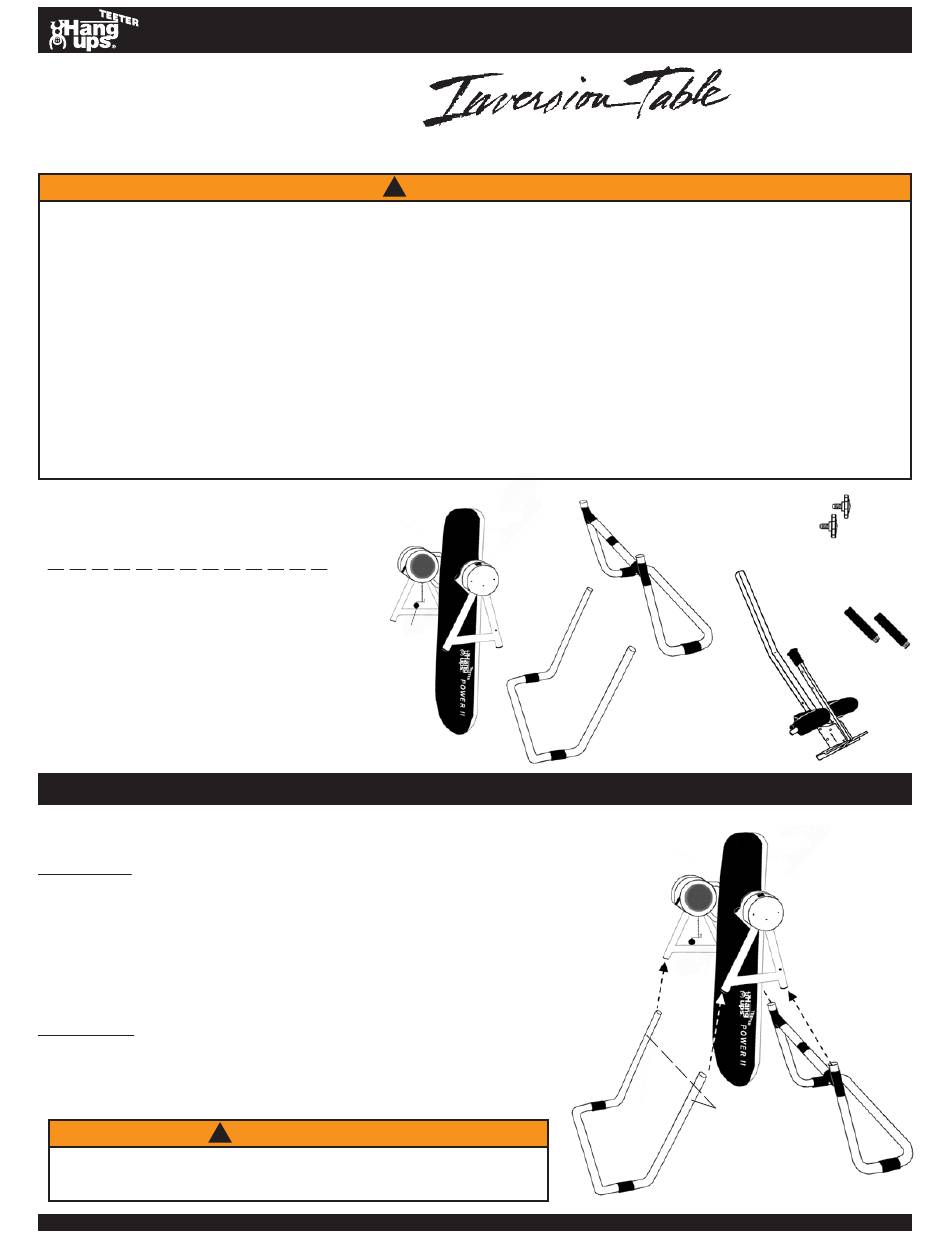

ITEMS FOR ASSEMBLY

Bed Frame
Chain with Manual Crank
Rear Frame
Front Frame
Main Shaft w/ Gravity Lock
Locking Knobs (2)
Handles (2)

ASSEMBLY

Note: The Bed Frame arrives rotated into the fully inverted position. This is the
most convenient position from which to begin the assembly process.
STEP ONE
Secure Rear Frame (P11001) to Bed Frame (P11000)
• Insert the Rear Frame into the Bed Frame (the logo on the bed will be facing
the rear). (See Figure A) Make sure the spring-loaded locking pins on each
leg pop through the holes and that the legs are attached securely.
WARNING: Bed Frame weighs 55 lbs. If you are unsure of your
ability to comfortably lift this weight, please seek assistance in
assembling this product.
STEP TWO
Secure Front Frame (P11002) to Bed Frame Assembly (P11000)
• Insert the Front Frame into the Bed Frame. Make sure the spring-loaded
locking pins on each leg pop through the holes and that the legs are
attached securely.
!
Ensure that the spring-loaded locking pins are attached securely and
that the front and rear frames sit evenly on the floor.
Improper assembly could result in serious injury or death.
TM
Power II
!
Bed Frame
P11000
ITEM #'s
P11000
P15004
P15004
P11001
Manual
Crank
P11002
P19521
P11003
P11015

WARNING

DO NOT DISCARD - KEEP FOR FUTURE REFERENCE.
WARNING
Rear Frame
P11001
Patent applies.
Front Frame
P11002
Locking Knobs
arrive assembled
in the main shaft
Gravity Lock
P19521
locking pin holes
Front Frame
Rear Frame
P11003
Handles
P11015
Figure A
