Hang ups Teeter Power V Assembly Instructions

ASSEMBLY INSTRUCTIONS
Power V

PRE-ASSEMBLY

Before you begin: These instructions will guide you in properly assembling the unit. Please review all the steps before beginning assembly.
Carefully adhere to the Assembly Instructions and Owner's Manual to help ensure user security and product integrity.
1. It is your responsibility to familiarize yourself with the proper use of the equipment and the inherent risks of inversion, such as falling on your
head or neck, pinching, entrapment or equipment failure.
2. This product is not designed for persons over 6ft 6in (198 cm) or 300 lbs (136 kg). Structural failure could occur or head/neck may impact floor
during inversion. Serious injury or death could result.
3. DO NOT use the equipment without a licensed physician's approval and a review of the medical contraindications, as noted in the Owner's Manual.
4. Failure to assemble and/or use the equipment as directed may void the manufacturer's warranty on this product and could result in injury or death.
5. DO NOT use the inversion table until you have thoroughly and carefully read the Owner's Manual, reviewed all other accompanying
documents, and inspected the equipment.
6. This product requires a grounded outlet. Improper connection to a 3-prong grounded outlet can result in electrical shock.
7. Choose a level surface for assembling and operating the table.
8. Follow each step in sequence. Do not skip ahead.
9. Make sure that all fasteners are secure.
10. PRIOR TO USE, test and inspect the table. Make sure that the table rotates smoothly to the inverted position and back.
11. Replace defective components immediately and/or keep the equipment out of use until repair.
12. Refer to additional warning notices and information posted on the equipment.
Carefully remove the individual parts from the carton. You should have all of the items listed below. If any items are missing or damaged, contact
your retailer or customer service directly (See reverse side).

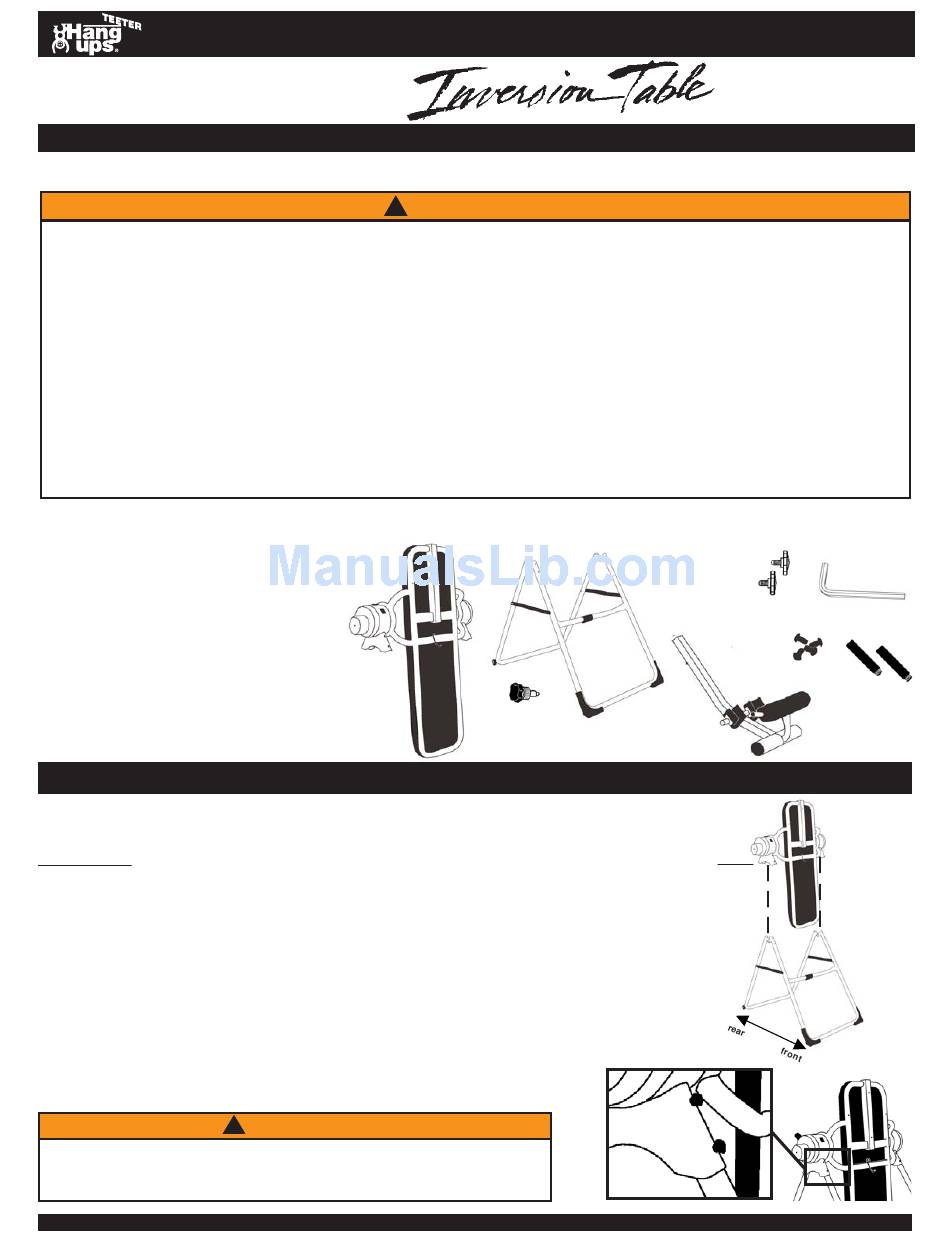

ITEMS FOR ASSEMBLY

Bed Frame
A-Frame
A-Frame Locking Knob
Main Shaft
Locking Knobs (2)
Screws (4)
Wrench
Handles (2)

ASSEMBLY

ASSEMBLY
Note: The Bed Frame arrives rotated into the fully inverted position. This is the
most convenient position from which to begin the assembly process.
STEP ONE
Attach the Bed Frame (P1-6000) to the A-Frame (P1-1005)
• Open the A-frame and make sure that the spreader arms are locked flat.
• Lift the Bed Frame (the bed mat will be facing the rear) and place the
shrouds over the top of the A-Frame legs (See Figure 1).
WARNING: The Bed Frame weighs 50 lbs. If you are unsure of
your ability to comfortably lift this weight, please seek assistance
with assembling this product.
• Make sure the Bed Frame rests evenly on the A-Frame and that the
holes are aligned.
• Insert and tighten the Screws (H1-1603) into the shrouds on both sides
of the Bed Frame using the Wrench provided (See Figure 2).
Ensure the Bed Frame is securely attached to the A-frame and
that the A-frame sits evenly on the floor. Improper assembly
could cause serious injury or death.
TM
!
ITEM #'s
P1-6000
P1-1005
P1-1004
P1-6002
P1-1003
H1-1603 Bed Frame
P1-6000
P1-6005
P1-2003
WARNING
!
DO NOT DISCARD - KEEP FOR FUTURE REFERENCE.
WARNING
A-Frame
P1-1005
A-Frame
Locking Knob
P1-1004
Patent applies.
Locking Knobs
P1-1003
arrive assembled
in the main shaft
Screws
H1-1603
Main Shaft
P1-6002
Shroud
Wrench
P1-6005
Handles
P1-2003
Figure 1
Figure 2
