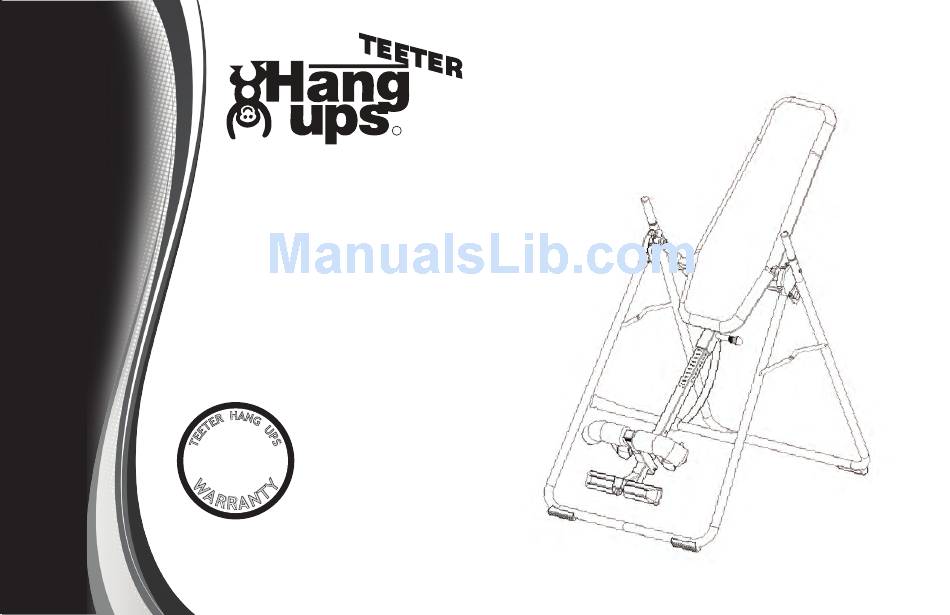

- Page 1 Series ™ Inversion Table Assembly Instructions* for Fit-50 & Fit-60 models YEAR *Inversion Table images may vary slightly from your model; however, all assembly instructions remain the same.
-
Page 2: Important Safety Instructions
BEFORE YOU BEGIN: Review all steps before beginning assembly and read all precautions before using the inversion table. Carefully adhere to the Assembly Instructions and Owner’s Manual to help ensure safety and product integrity. IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE INVERSION TABLE. WARNING WARNING - To reduce the risk of injury to persons: •... -
Page 3: Items For Assembly
ITEMS FOR ASSEMBLY ITEM NUMBER A-Frame Rear Ankle Bar IA-1113 F1-1100 Handles Angle Tether Heel Cups (2) F5-1054 Fit-50 Handles* (2) F5-1007 F1-1550 Fit-60 Support Handles* (2) F1-1500 One pre-assembled, one separate Bolt/Nut Chicago Bolts & Nuts (2) FF-1148 Table Bed Assembly... -
Page 4: Before Beginning
Before Beginning Before reading further, study the drawing below to familiarize yourself with the important components of your new Teeter Hang Ups Inversion Table. ® Table Bed Handles 3-Hole Roller Hinges Hinge Covers Height-Selector Locking Pin Spreader Arms Main Shaft Angle Tether Crossbar T-Pin Ankle Lock System... - Page 5 Step 1 Figure 1 Right Left Open the A-Frame (F1-1100) • Open the A-Frame on the floor and make sure the Spreader Arms are locked open (Figure 1). • Familiarize yourself with the Front, Back, Left and Right of the A-Frame. You may want to refer back to this diagram for reference throughout the assembly process.
- Page 6 Step 3 Figure 6 Depending on the model you have purchased, the item numbers in this step will vary. The model of your product can be found on the Serial Label, located on the back of the Table Bed. Attach the Table Bed to the A-Frame (F1-1100) •...
- Page 7 Step 4 Figure 8 Assemble the T-Pin Ankle Lock System onto the Main Shaft (F1-1600) Install the Ankle Comfort Dial • Slide the Ankle Comfort Dial Bar (IA-1119) with pre-assembled Ankle Comfort Dial into the hole at the front base of the Main Shaft (Figure 8).
- Page 8 Step 4 (continued) Figure 13 Install the Front Ankle Bar • Insert the Front Ankle Bar (EP-1045B) into the Front Ankle Bar Housing (Figure 13). Pull up on the T-Pin Lock to insert the Front Ankle Bar all the way and release in the shortest setting (the hole closest to the Front Ankle Bar). •...
- Page 9 Step 5 Figure 16 Insert the Main Shaft (F1-1600) into the Table Bed • With the Height Adjustment Settings on the Main Shaft facing up, slide the end of the Main Shaft into the Main Shaft Housing (Figure 16) on the Table Bed. •...
- Page 10 Assemble the Handles for your model onto the A-Frame (F1-1100) Bolts/Nuts may come pre-assembled in the Handles. Simply unscrew to remove. Fit-50 will use: Handles (F1-1550) Fit-60 will use: Support Handles (F1-1500) • Insert the Handles into the A-Frame (Figure 18).
- Page 11 Step 8 Figure 21 Attach the Angle Tether (F5-1007) to Limit the Degree of Rotation • The Angle Tether will come pre-assembled to the A-Frame. • Unfold the adjustable Angle Tether and clip it to the U-Bar on the underside of the Table Bed (Figure 21). Figure 22 Before Use •...
- Page 12 WARNING If your Teeter Hang Ups Inversion Table looks like either of these images, your table has been misassembled and is unfit for use. Image A demonstrates that the Roller Hinges have been assembled upside down into the Table Bed and must be corrected. Go back to Step 5 for instruction. Image B demonstrates that the Table Bed has been assembled into the A-Frame backwards and must be corrected.
- Page 13 Adjustments / Maintenance / Storage Figure 23 Adjustments: Changing the Roller Hinge Setting To adjust the Roller Hinge setting, you’ll need to fully remove the Table Bed from the A-Frame. • Pull the Height-Selector Locking Pin and slide the Main Shaft in all the way. •...
- Page 14 If you have any problems assembling the equipment, or questions about its use, please contact customer service at: USA: Teeter International: Inversion International, Ltd. Toll Free (Phone) 800-847-0143 (Phone) +1-242-362-1001 (Fax) 800-847-0188 (Fax) +1-242-362-1002 info@teeter-inversion.com info@InversionInternational.com www.teeter-inversion.com www.InversionInternational.com MDSS GmbH Any modification to Schiffgraben 41 this device will void...
