Fimco LG-25-PM Owner's Manual

Owner's Manual
Model: LG-25-PM
(5301146)

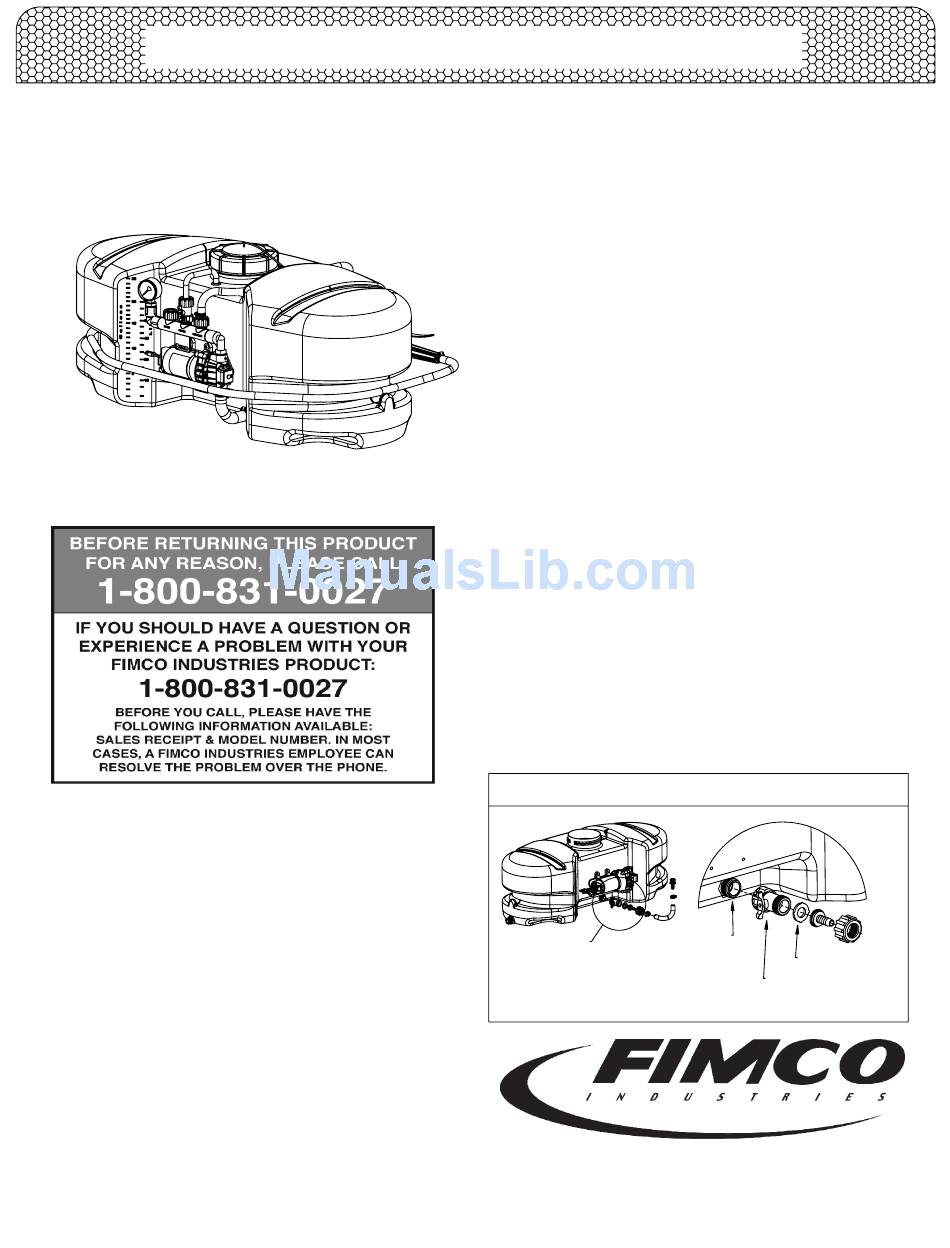

LG-25-PM Shown

General Information

Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden spot sprayer. Please read it carefully, as it furnishes
information which will help you achieve years of trouble-free
operation.
Warranty/Parts/Service
For home usage, products are warranted for one year from date
of purchase against manufacturer or workmanship defects.
Commercial users have a 90 day warranty.
Your authorized dealer is the best source of replacement parts
and service. To obtain prompt, efficient service, always
remember to give the following information...
- Correct Part Description and/or part number.
- Model number/Serial number of your sprayer.
Part descriptions and part numbers can be obtained from the
illustrated parts list section(s) of this manual.
Whenever you need parts or repair service, contact your
distributor/dealer first. For warranty work, always take your
original sales slip, or other evidence of purchase date, to your
distributor/dealer.
(25 Gallon Lawn & Garden Spot Sprayers)
Model: LG-25-SM
(5301147)

Technical Specifications

• 25 Gal. Corrosion-Resistant Polyethylene Tank
• 12 Volt Diaphragm Pump / 2.1 g.p.m. / 60 p.s.i.
• 15 Ft. Handgun Hose
• Pressure Gauge (Adjustable Pressure)
• Bypass (Recirculation) Line
Assembly
Your sprayer has been mostly assembled at the factory. One
requirement will be for you to hook up your battery leads to a
fully charged 12 Volt battery. The red wire must be connected to
the "hot" lead, and the black wire should be connected to the
ground.
Remove the drain plug assembly and handgun clips from the
parts bag and place them onto the tank as shown in the
exploded view drawing.
Remove the pressure gauge from the parts bag and thread it into
the end of the manifold assembly. Use a good grade of thread
sealant, to insure no leaks.
CAUTION: Always check the vehicle load rating before
using this sprayer. Do not exceed the recommended rating.
*** IMPORTANT REMINDER ***
Inlet from Tank
A
This unit comes with an On/Off (shut-off)
valve located at the inlet location of the
tank, towards the underside. (See Detail A).
You must make sure the valve is in the
"open" position before using your unit.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
Form No. 1311 [5004805
Detail A
Filter/Screen
"ON/OFF" Valve
(12/13)] Printed in the U.S.A.
