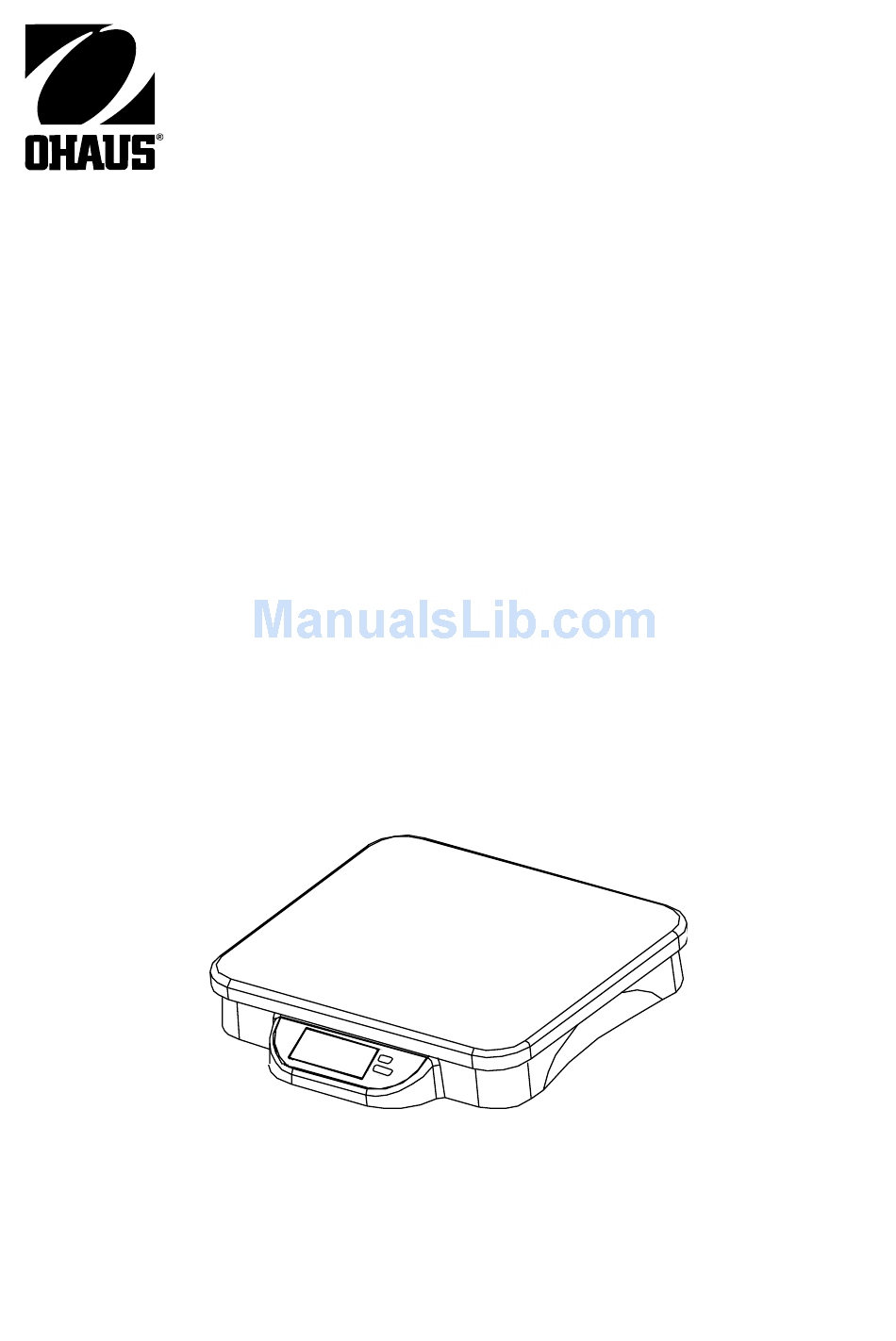

  • Page 1 Catapult 1000 Series Instruction Manual...

  • Page 3: Safety Precautions

    Catapult 1000 Series Scales EN-1 1. INTRODUCTION This manual contains installation, operation and maintenance instructions for the Catapult 1000 Series Scales. Please read the manual completely before using the scale. 1.1 Safety Precautions Please follow these safety precautions: • Verify that the AC Adapter input voltage matches the local AC power supply.
  • Page 4 EN-2 Catapult 1000 Series Scales TABLE 1-1. CONTROL FUNCTIONS. Button Primary Function ON/ZERO UNITS (Short Press) Turns scale ON. Changes the weighing unit. If scale is On: Enters Dynamic Weighing Sets zero. Mode. Simulates a tare operation. Initiates countdown in Dynamic Weighing mode.

  • Page 5: Installation

    Catapult 1000 Series Scales EN-3 2. INSTALLATION 2.1 Package Contents • Scale • Power Adapter • Instruction Manual • Warranty Card 2.2 Location Use the scale on a firm, steady surface. Avoid locations with excessive air current, vibrations, heat sources, or rapid temperature changes.

  • Page 6: Battery Installation (Optional)

    EN-4 Catapult 1000 Series Scales 2.3.2 Battery Installation (Optional) Open the battery cover on the bottom of the scale and install three “C” size (LR14) alkaline or rechargeable batteries into the compartment. Orient the batteries as shown on the inside of the compartment. Close the battery cover.

  • Page 7: Dynamic Weighing

    Catapult 1000 Series Scales EN-5 NET weight. When removing both the sample and container from the scale, a negative value may be displayed. Zero the scale again before subsequent usage. NOTE: The ON/ZERO button will perform a true zero setting function when displayed values are within +2% of full capacity.

  • Page 8: Span Calibration

    EN-6 Catapult 1000 Series Scales 4. CALIBRATION For best results, calibrate the scale at regular intervals. (Calibration weights are not supplied with the scale.) CAUTION USE EXTREME CARE WHEN HANDLING CALIBRATION WEIGHTS AS THEY ARE VERY HEAVY. IMPROPER LIFTING METHODS OR MISUSE OF CALIBRATION WEIGHTS MAY RESULT IN PERSONAL INJURY.
  • Page 9 Catapult 1000 Series Scales EN-7 With the platform empty, press the ON/ZERO button to capture the scale zero. The display will show “-C-”. After the zero is captured, the required span calibration weight in the selected unit is displayed. Place the calibration weight on the platform and press ON/ZERO button.

  • Page 10: Maintenance

    Do not use solvents, chemicals, alcohol, ammonia or abrasives to clean the housing or control panels. 5.2 Troubleshooting The following table lists common problems and possible causes and remedies. If the problem persists, contact Ohaus or your authorized dealer. TABLE 5.1. TROUBLESHOOTING. Symptom Possible Cause(s)

  • Page 11: Service Information

    5.3 Service Information If the troubleshooting section does not resolve or describe your problem, contact your authorized Ohaus service agent. For service assistance or technical support in the United States call toll-free 1-800-526-0659 between 8.00 AM and 5:00 PM EST. An Ohaus product service specialist will be available to provide assistance.

  • Page 12: Drawings And Dimensions

    EN-10 Catapult 1000 Series Scales 6.2. Drawings and Dimensions Figure 6-1. Catapult 1000 Series Overall Dimensions.
  • Page 13 Standard This product conforms to the EMC directive 2004/108/EC and the Low Voltage Directive 2006/95/EC. The complete declaration of Conformity is available from Ohaus Corporation AS/NZS4251.1 Emission; AS/NZS4252.1 Immunity Disposal In conformance with the European Directive 2002/96 EC on Waste Electrical and Electronic Equipment (WEEE) this device may not be disposed of in domestic waste.

  • Page 14: Limited Warranty

    This Class B digital apparatus complies with Canadian ICES-003. ISO 9001 Registration In 1994, Ohaus Corporation, USA, was awarded a certificate of registration to ISO 9001 by Bureau Veritus Quality International (BVQI), confirming that the Ohaus quality management system is compliant with the ISO 9001 standard’s requirements. On May 15, 2003, Ohaus Corporation, USA, was re-registered to the ISO 9001:2000 standard.
