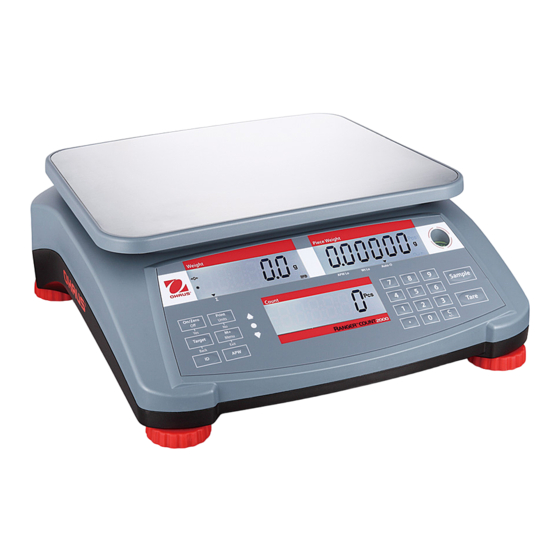

Summary of Contents for OHAUS Ranger Count 2000 Series

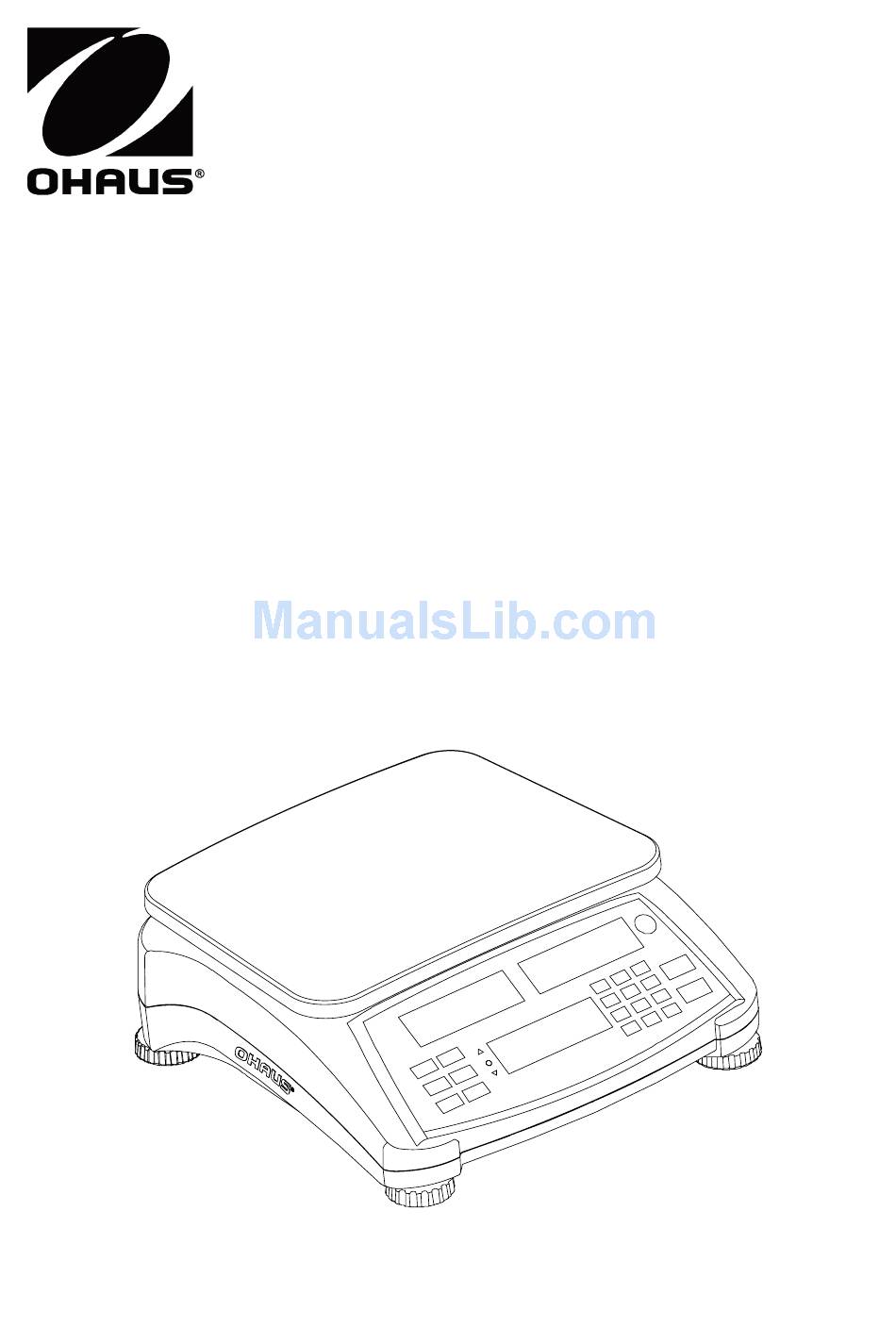

  • Page 1 Ranger™ Count 2000 Series Instruction Manual...

  • Page 3: Installation

    Ranger™ Count 2000 Series EN-1 1. INTRODUCTION This manual contains installation, operation and maintenance instructions for the Ranger™ Count 2000 Series. Please read the manual completely before using the scale. 1.1 Safety Precautions Please follow these safety precautions:  Verify that the AC input voltage printed on the data label matches the local AC power supply.

  • Page 4: Selecting The Location

    Ranger™ Count 2000 Series EN-2 2.3 Selecting the Location Use the scale on a firm, steady surface. Avoid locations with excessive air current, vibrations, heat sources, or rapid temperature changes. Allow sufficient space around the scale. 2.4 Leveling the Equipment The Ranger Count Series has a level indicator as a reminder that the scale should be leveled for accurate weighing.
  • Page 5 Charging the scale must be performed in a dry environment. CAUTION: Battery is to be replaced only by an authorized Ohaus service dealer. Risk of explosion can occur if the rechargeable battery is replaced with the wrong type or if it is not properly connected.

  • Page 6: Operation

    Ranger™ Count 2000 Series EN-4 3. OPERATION 3.1 Displays Figure 3-1. Ranger Count 2000 Control panel with LCD displays TABLE 3-1. Control Functions Button Primary ON/ZERO PRINT Target Function Turn scale Send the Initiate the Accumulate the ID number input Display/ displayed function of the...
  • Page 7 Ranger™ Count 2000 Series EN-5 TABLE 3-1. Cont. Button Primary Tare Sample Function Enter numeric values Enter dot (.) on the Clear the last Perform a tare Display/ on the display. display. character from operation. Start (Short Press) the display. new APW Secondary Function...

  • Page 8: Turning Scale On/Off

    Ranger™ Count 2000 Series EN-6 The colored LED indicators on the left side of the control panel are used in Checkweighing mode (section 3.5) and will light up according to the following rules: (Red) Loads > Upper limit (Green) Loads ≥ Lower limit and ≤ Upper limit (Yellow) Loads <...
  • Page 9 Ranger™ Count 2000 Series EN-7 3.3.2 APW Establishment If there is no APW established, both the piece weight display and the count display will show 0. Positive Sampling: Place the sample on the pan. Input the sample size with the numeric keypad. The value is displayed in the count window.

  • Page 10: Check Weighing

    Ranger™ Count 2000 Series EN-8 3.4 Accumulation and Statistics The Accumulation feature enables manual or automatic totalizing of displayed values. Statistical data is stored in memory for review and printing. Accumulation works together with Check mode. 3.4.1 Accumulating Displayed Values With ACCUMULATE set to MANUAL, place the item on the scale and press the M+ key to add the weight to accumulation data.
  • Page 11 Ranger™ Count 2000 Series EN-9 3.6 Check Counting Press and hold the Target key, [Check] is displayed in the weight window. Release the Target key when [Count] is displayed in the piece weight window. Press the Target key, [Under] is displayed in the weight screen. The previous under limit will is displayed in the piece weight screen.
  • Page 12 Ranger™ Count 2000 Series EN-10 3.7 Library When an item is processed on a regular basis, the item‟s data may be stored in memory for future use. This memory is referred to as the scale‟s Library. Storing a record: 1. Press the ID key, [Store] and [lib] are displayed in the weight and piece weight windows respectively.

  • Page 13: Additional Features

    Ranger™ Count 2000 Series EN-11 Clearing a record: 1. Enter the ID number using the keypad and press the ID key. [reCall] and [lib] are displayed in the weight and piece weight windows respectively. 2. Press the C key, [delete] is displayed in the weight window. Press the Yes key to delete the data.

  • Page 14: Menu Settings

    Ranger™ Count 2000 Series EN-12 4. MENU SETTINGS The User Menu allows the customizing of scale settings. Note: Additional Sub-Menus may be available if Interface Options are installed. See Interface User Manual for the additional setting information. 4.1 Menu Navigation User Menu: Menu: C.A.L...

  • Page 15: Cal Menu

    Ranger™ Count 2000 Series EN-13 Summary of button navigation functions in menu mode: -- Yes Allows entry into the displayed menu. - Accepts the displayed setting and advances to the next item. -- No Skips by the displayed menu. - Rejects the displayed setting or menu item and advances to the next available item.

  • Page 16: Setup Menu

    Ranger™ Count 2000 Series EN-14 Span: Perform Linearity: Perform Geographic Set 0…12…31* Adjustment: End Calibration: Exit menu *Bold always represents factory default value. Span [SpaN] Initiates a span calibration procedure (zero and span). Lin [LIN] Initiates a linearity calibration procedure (zero, mid-point and span). GEO [GEO] Geographical Adjustment Factor (GEO) is used to adjust the calibration based on the current location.
  • Page 17 Ranger™ Count 2000 Series EN-15 Power on unit [pwWr.UN] Set the unit of measure displayed at startup. auto = last unit in use when turned off = kilograms = grams = pounds = ounces lb:oz = pound ounces Zero Range [ZerO] Set the percentage of scale capacity that may be zeroed.

  • Page 18: Readout Menu

    Ranger™ Count 2000 Series EN-16 Accumulation [ACCUmM] Set the accumulation functionality. = accumulation disabled AUTO = automatic accumulation MAN = manual accumulation End Setup [End] Advance to the next menu or return to the top of the current menu. 4.4 Readout Menu Enter this menu to set user preferences.

  • Page 19: Print Menu

    Ranger™ Count 2000 Series EN-17 Light [LIGHt] Sets backlight functionality. = always off. = always on. AUTO = turns on when a button is pressed or the displayed weight changes. Auto off [A.OFF] Set the automatic shut off functionality. = disabled = powers off after 1 minute of no activity = powers off after 5 minute of no activity = powers off after 10 minute of no activity...
  • Page 20 Ranger™ Count 2000 Series EN-18 Stable Only [Stable] Set the printing criteria. = values are printed immediately = values are only printed when the stability criteria are met. Auto Print [A.Print] Set the automatic printing functionality. = disabled ON.STAB = printing occurs each time the stability criteria are met. INTER = printing occurs at the defined interval ACCEPT...
  • Page 21 Ranger™ Count 2000 Series EN-19 Header Set the status. = disabled = the Header is printed Note: See section 7.3.1 for instructions on how to enter Header line. Footer Set the status. = disabled = the Footer is printed Note: See section 7.3.1 for instructions on how to enter Footer line. Mode Set the status.
  • Page 22 PC through the RS232 port, the data will be put into the cell, and the cursor will automatically move to the next vertical cell. Notes: For Windows 7 setup, contact Ohaus. If the weighing value is a negative number, set the target cell in TEXT format.
  • Page 23 Ranger™ Count 2000 Series EN-21 4.7 COM Menu Enter this menu to define communication parameters. Reset: no, yes 300…9600…19200 Baud Rate: Parity: 7 even, 7 odd, 7 none, 8 none Stop bit: 1, 2 Handshake: none, On-Off Print (A…P…Z), Tare (A…T…Z), Zero (A…Z) Alternate command: End COM: Exit menu...

  • Page 24: Lock Menu

    Ranger™ Count 2000 Series EN-22 Alternate command [Alt.CmM] Define command character for the Print, Tare and Zero commands Print Set the alternate command character for Print. A to Z. Tare Set the alternate command character for Tare. A to Z. Zero Set the alternate command character for Zero.
  • Page 25 Ranger™ Count 2000 Series EN-23 Lock Read [l.rEAD] Set the status. = Readout menu is not locked. = Readout menu is locked. Lock Unit [l.Unit] Set the status. = Unit menu is not locked. = Unit menu is locked. Lock Print [l.Print] Set the status.
  • Page 26 Ranger™ Count 2000 Series EN-24 TABLE 4-2. GEO CODES Elevation in meters 1300 1625 1950 2275 2600 2925 3250 1300 1625 1950 2275 2600 2925 3250 3575 Elevation in feet 1060 2130 3200 4260 5330 6400 7460 8530 9600 10660 1060 2130 3200...

  • Page 27: Legal For Trade

    Ranger™ Count 2000 Series EN-25 5. LEGAL FOR TRADE When the scale is used in trade or a legally controlled application it must be set up, verified and sealed in accordance with local weights and measures regulations. It is the responsibility of the purchaser to ensure that all pertinent legal requirements are met.

  • Page 28: Maintenance

    Do not use solvents, chemicals, alcohol, ammonia or abrasives to clean the housing or control panel. 6.2 Troubleshooting The following table lists common problems and possible causes and remedies. If the problem persists, contact OHAUS or your authorized dealer. TABLE 6-1 Symptom Possible Cause...

  • Page 29: Service Information

    United States call toll-free 1-800-526-0659 between 8:00 AM and 5:00 PM EST. An OHAUS product service specialist will be available to provide assistance. Outside the USA, please visit our web site, www.ohaus.com to locate the OHAUS office nearest you.

  • Page 30: Technical Data

    Ranger™ Count 2000 Series EN-28 7. TECHNICAL DATA The technical data is valid under the following ambient conditions: Operating temperature: -10° C to 40° C Relative humidity: 20% to 85% relative humidity, non-condensing Height above sea level: Up to 2000 m Power: AC power 200-240V 50/60 Hz, internal rechargeable sealed lead acid battery Main supply voltage fluctuations: up to ±...
  • Page 31 Ranger™ Count 2000 Series EN-29 7.2 Drawings 117 mm 311 mm / 12.2 in 4.6 in 327 mm / 12.9 in Figure 7-1. Dimensions...
  • Page 32 Ranger™ Count 2000 Series EN-30 7.3 Communication The scale is equipped with an RS232 interface located under the Options Cover. Connecting the scale to a computer enables you to operate the scale from the computer, as well as receive data such as displayed weight. 7.3.1 Interface Commands Communicate to the scale using the command characters listed in Table 7-2.
  • Page 33 Ranger™ Count 2000 Series EN-31 7.4 Printouts The following sample print outs are generated by the Print button, “P” Command or alternate print command. The content of the printout is defined in the Print Content menu item. A maximum of 24 characters can be printed on each line. Description Comment If Printx ...

  • Page 34: Limited Warranty

    During the warranty period OHAUS will repair, or, at its option, replace any component(s) that proves to be defective at no charge, provided that the product is returned, freight prepaid, to OHAUS.
  • Page 36 / Weltweite Geshä ftsstellen / Con uffici in tutto il mondo. www.ohaus.com *30037459* P/N 30037459B © 2012 OHAUS Corporation, all rights reserved / todos los derechos reservados / tous droits réservés / Alle Rechte vorbehalten / tutti i diritti riservati.
