Optex RX-40QZ Installation Instructions

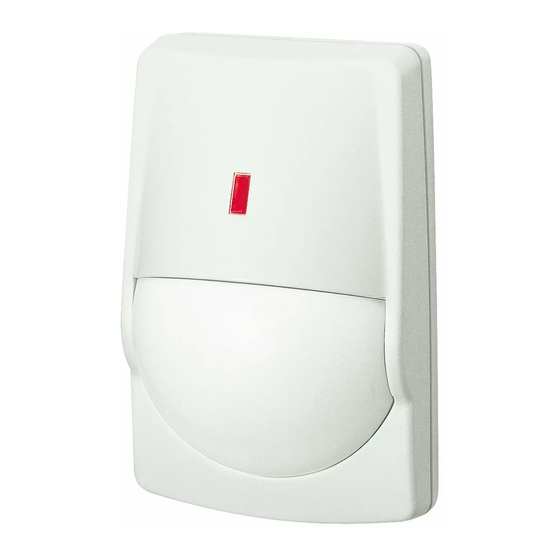

PASSIVE INFRARED DETECTOR
RX-40QZ
FEATURES
- 40ft. - 40ft.(12m - 12m)Wide Angle
- QUAD Zone Logic
- Patented Multi-focus Lens
- Improved Sealed Optics
-Temperature Compensation Logic
1. INSTALLATION HINTS
(1) (2)
Avoid looking directly at air
Avoid direct sunlight.
conditioning or heating vents.
2. DESCRIPTION AND OPERATION
LED Alarm
Indicator
LENS
Cover Fastening Screw
Wiring Guide
3. DETECTION AREA
WIDE ANGLE
TOP VIEW
5 10 15 20 25
6
4
2
0
2
4
6
2 4 6 8
SIDE VIEW
5 10 15 20 25
2.4m
8
2 4 6
EASY INSTALLATION
- Easy Wiring Knockout
- Wiring Guide
- Spare Terminal
- Wide Wiring Space
(3)
Avoid vapor or high humidity
that can cause condensation.
LONG RANGE
30 35 40 ft
20 ft
When selecting the long range
15
detection pattern , always set
10
pulse count selector to "2".
5
0
5
10
15
20 ft
10 12m
30 35 40 ft
8 ft
10 12m
FUNCTION
- Selectable Pulse Count(2 or 4)
- LED ON/OFF
- Tamper Switch
OPTION
-
- FA-3 Wall & Ceiling Mount Bracket
(Horizontally ± 45° & Vertically 0° - +5°)
(4)
Avoid Curtain,Screen,etc.
blocking detection area.
Wiring Knockouts
Tamper Switch
Sensor
(Do not touch)
LED ON/OFF Switch
(OPTIONAL LENS : FL-60N)
IMPORTANT
FL-60N Long Range Curtain Lens(60ft/18m)
(5)
Do not install outdoors.
Mounting Knockout
(Pitch = 2.63inch/66.7mm)
Terminals
Sealed Optics Foam
Pulse Count Selector
( 2 / 4 )
PATTERN AREA SELECTION
Use the optional lens FL-60N
for long range area.
HOW TO REMOVE & FIT LENS
To remove , press both lens hooks
to outside and push to the front.
To fit , press the lens into cover
from the front .
COVER INSIDE
No.59-0757-3 0105-17
FL-60N
Engraved
LONG RANGE
