Optex Boundary Gard BX-80N Installation Instructions Manual

BX-80N
Read instructions completely before beginning installation.
· Optex presents a new concept,
alarmsystem,
· BX-80N is a passive infrared detector which detects the infrared heat energy that is emitted by humans and is designed with this concept.
Features
1.Double output terminals
2.Audible alarm · Area check mode
3.Limited detection range function
4.Size judging function
5.Waterproof
6.Double conductive shielding
1. SAFETY-RELATED PRECAUTIONS
Before installation, make sure to read this instruction manual carefully for safe and effective product operation.
This icon denotes a situation involving the risk of serious
Warning
injury or even death, if the warning given is ignored.
This icon indicates actions to be avoid. Details of the actions to be avoided are written beside or near icon.
( The icon on the left indicates that the product must not be dissembled )
Warning
Never use this product for any applications except as stated
above or unexpected accidents can occur.
Warning
Never attempt to connect the terminals to units which re-
quire higher power supply or current draw than its rating. It
increases the risk of fire or damage to the product.

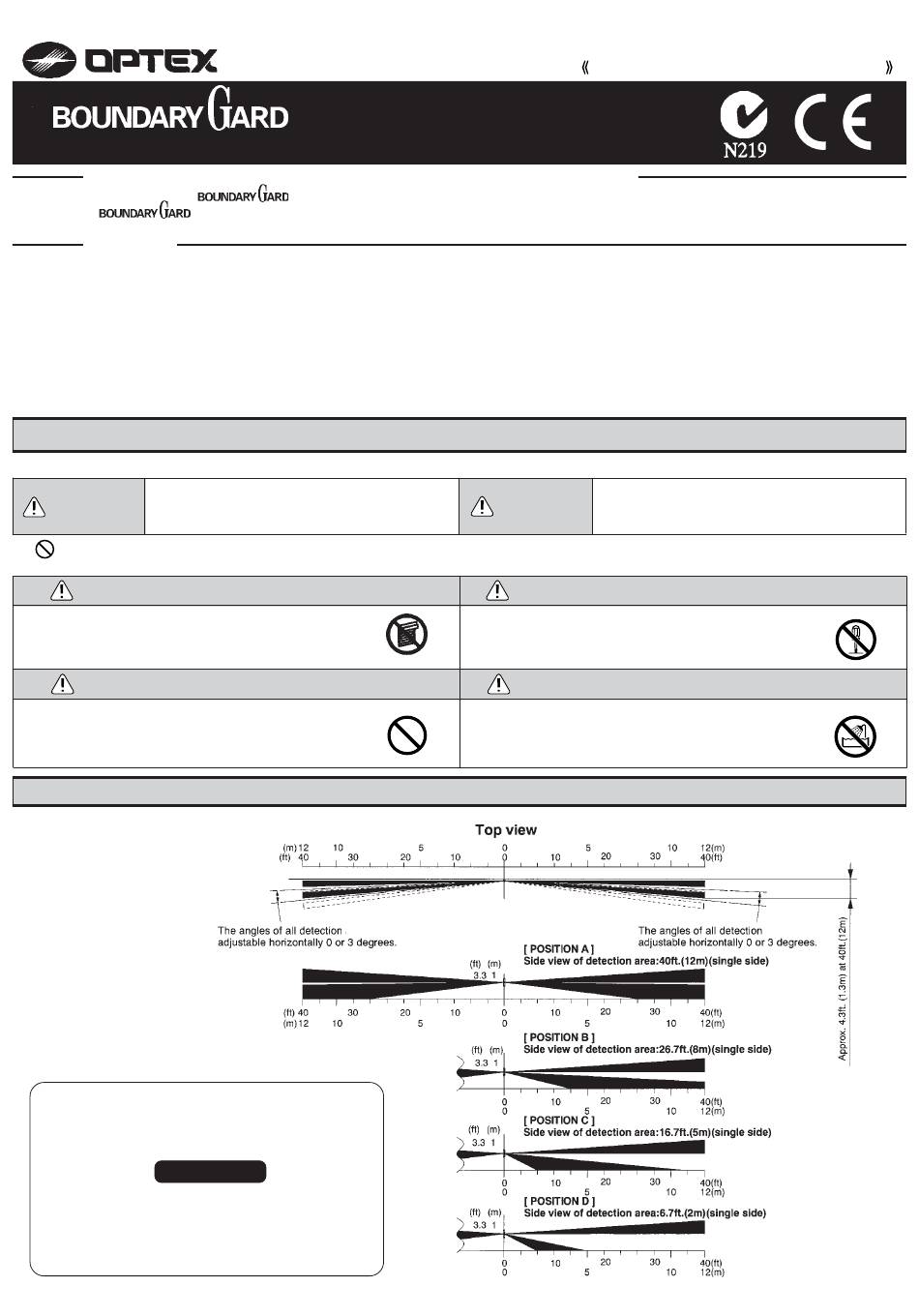

2. DETECTION AREA

The horizontal and vertical angle of detection areas are inde-
pendently adjustable on both the right and left sides of the
detector. (See section 7 Area Setup)
IMPORTANT
This product detects temperature differences between the
moving target and the background temperature of the detec-
tion area. So, if the target does not move, the detector can
not detect it. Additionally, the temperature of the target may
affect the detector's maximum detection range.
TM
, which protects a building's exterior by detecting intruders before an entry is attempted. In addition to signaling an
TM
TM can create an audible local alarm to deter intruders before a break-in occurs.
- Individual N.O.& N.C.outputs.
- BX-80N's built-in buzzer can sound an alarm while an alarm is occurring. This buzzer can also be used to
annunciate detection during area check mode ( See section 8-3 DIP Switch Setup).
- Since both upper and lower fingers have to be blocked at the same time to be activated, the
detection range of the BX-80N can be limited to avoid detecting unwanted object.
- Upper and lower detection fingers must be blocked simultaneously to activate the detector. BX-80N does
not detect objects which do not block the upper fingers.
- IP rating : IP 55
- This patent listed shielding greatly reduces the chance of false alarms due to car headlights, sunlight and
other ambient light sources.
fingers are

INSTALLATION INSTRUCTIONS

This icon denotes a situation involving the risk of serious
Caution
injury or damage to property if the warning given is ignored.
Warning
Never attempt to disassemble or modify the product, which
increases the risk of fire or damage of the product.
Caution
Avoid applying water directly from buckets, houses, or other-
wise splashing water directly onto the product. It increases
the risk of damaging the product.
5908754
fingers are
