CORDLESS
SCREWDRIVER
3.6V Lithium Ion
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage:
3.6V
Chuck Size:
6.35mm Keyless
No Load Speed:
200/min
Torque Settings:
8
Max Torque:
3Nm
Battery:
1.3Ah Li-ion
Charge Time:
3-5 Hours
Weight (tool only):
0.42kg
ozito.com.au
WHAT'S IN THE BOX
Cordless Screwdriver
Docking Station
Driver Bits x 15
Charging Adaptor
SDL-4000
Advertisement
Table of Contents
Related Manuals for Ozito SDL-4000
Summary of Contents for Ozito SDL-4000
- Page 1 3.6V Lithium Ion INSTRUCTION MANUAL SPECIFICATIONS Docking Station Voltage: 3.6V Chuck Size: 6.35mm Keyless No Load Speed: 200/min Torque Settings: Max Torque: Driver Bits x 15 Battery: 1.3Ah Li-ion Charge Time: 3-5 Hours Weight (tool only): 0.42kg ozito.com.au Charging Adaptor SDL-4000...
- Page 2 KNOW YOUR PRODUCT SETUP & PREPARATION CORDLESS SCREWDRIVER 1. CHARGING 1 Bit Holder 6 Charge Check Button 2 Quick Connect Chuck 7 Handle Lock Button To reduce the risk of electric shock, a residual current device (rated 30mA or less) must be used. 3 Torque Collar 8 On/off Trigger 4 LED Worklight...
- Page 3 2. CHANGING DRIVER BITS 3. SWIVEL HANDLE Installing CRV Bits Inline Position 1. Insert the CRV bit directly into the bit holder until it clicks into place. 1. Hold the handle locking button down. 2. Rotate the handle clockwise until it clicks into position. Removing CRV Bits 1.
- Page 4 Note: When using your screwdriver for various driving applications, it becomes necessary to increase and decrease the power and torque in order to prevent the possibility of damaging screw heads, threads or the work piece. SDL-4000...
- Page 5 Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress. Note: Ozito Industries will not be responsible for any damage or An extension cord should not be used unless absolutely necessary. Use of an improper extension cord could injuries caused by repair of the screwdriver by an unauthorised result in the risk of fire, electric shock or electrocution.
- Page 6 Tool: SPARE PARTS Model No. 14 13 The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No. Description Part No. Charging Adaptor SPSDL4000-26 Base Assembly...
- Page 7 Replace the extension lead if damaged or defective. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock.
- Page 8 • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO 0513 Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
Need help?
Do you have a question about the SDL-4000 and is the answer not in the manual?
Questions and answers

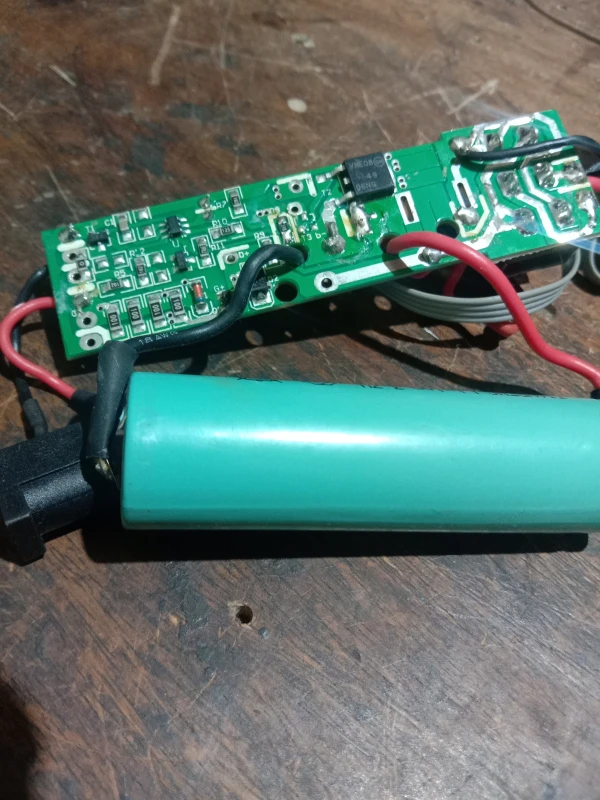

Sir plz send me this circuit diagram plz it's not working
