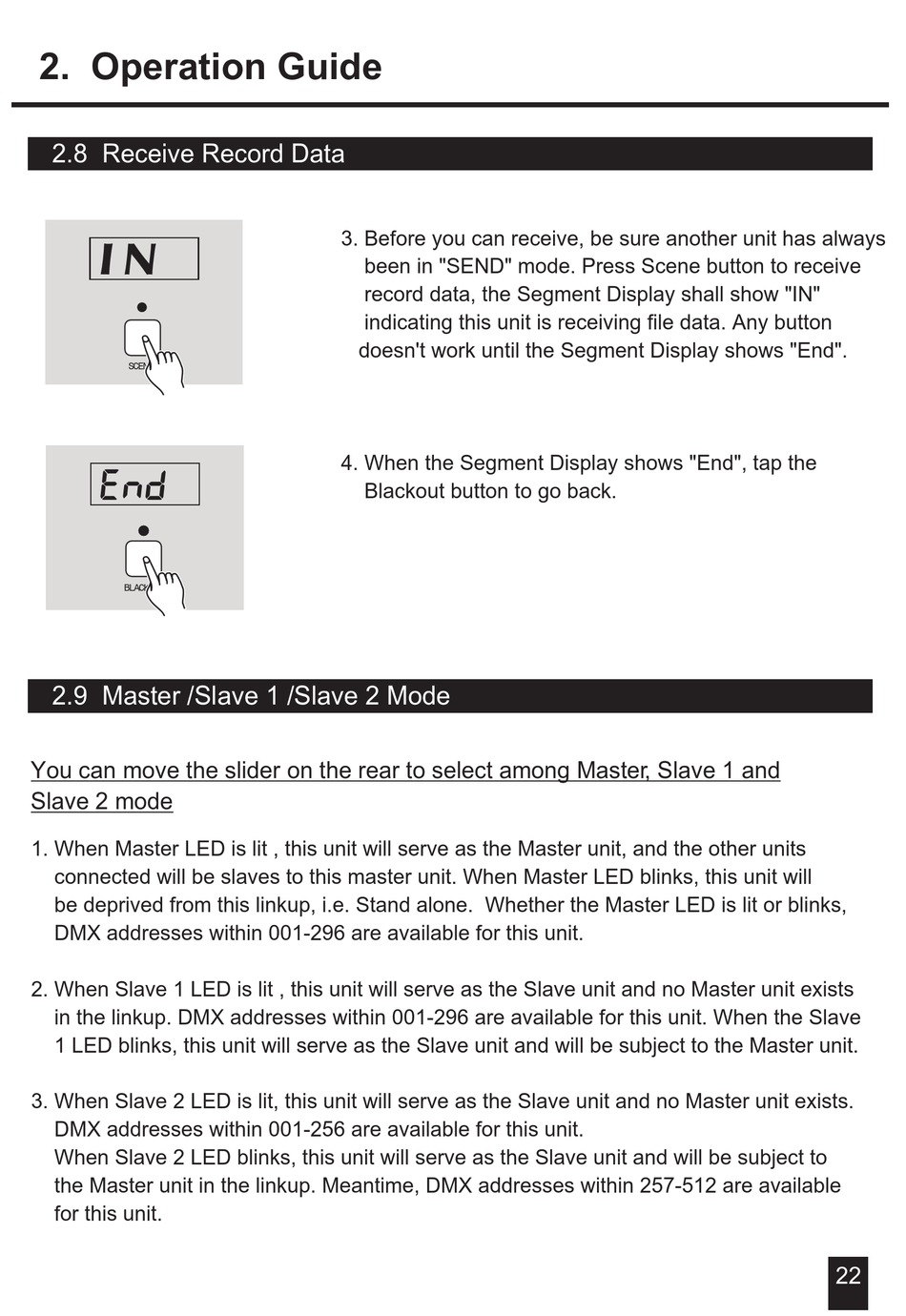

2. Operation Guide
2.8 Receive Record Data
I N
SCENE
END
BLACKOUT
2.9 Master /Slave 1 /Slave 2 Mode
You can move the slider on the rear to select among Master, Slave 1 and
Slave 2 mode
1. When Master LED is lit , this unit will serve as the Master unit, and the other units
connected will be slaves to this master unit. When Master LED blinks, this unit will
be deprived from this linkup, i.e. Stand alone. Whether the Master LED is lit or blinks,
DMX addresses within 001-296 are available for this unit.
2. When Slave 1 LED is lit , this unit will serve as the Slave unit and no Master unit exists
in the linkup. DMX addresses within 001-296 are available for this unit. When the
1 LED blinks, this unit will serve as the Slave unit and will be subject to the Master unit.
3. When Slave 2 LED is lit, this unit will serve as the Slave unit and no Master unit exists.
DMX addresses within 001-256 are available for this unit.
When Slave 2 LED blinks, this unit will serve as the Slave unit and will be subject to
the Master unit in the linkup. Meantime,
for this unit.
3. Before you can receive, be sure another unit has always
been in "SEND" mode. Press Scene button to receive
record data, the Segment Display shall show "IN"
indicating this unit is receiving file data. Any button
doesn't work until the Segment Display shows "End".
4. When the Segment Display shows "End", tap the
Blackout button to go back.
DMX addresses within 257-512 are available
Slave
