Botex DSP-12 Operating Instructions Manual

12 channel digital switch pack
Hide thumbs
Table of Contents

Advertisement

Quick Links

DSP-12
Operating Instructions
POWER
OUTPUT FUSES:
Please read before use
DSP -12
R
1
2
3
4
5
F6.3A 250V 5x20mm
12 CHANNEL DIGITAL SWITCH PACK
12 CHANNEL DIGITAL SWITCH PACK
DMX
8 8 8 8
6
7
8
9
10
11
12
MENU
EDIT
STORE
1
2
3
4
5
6
7
8
9
10
11
12
English
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSP-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Botex DSP-12

Summary of Contents for Botex DSP-12

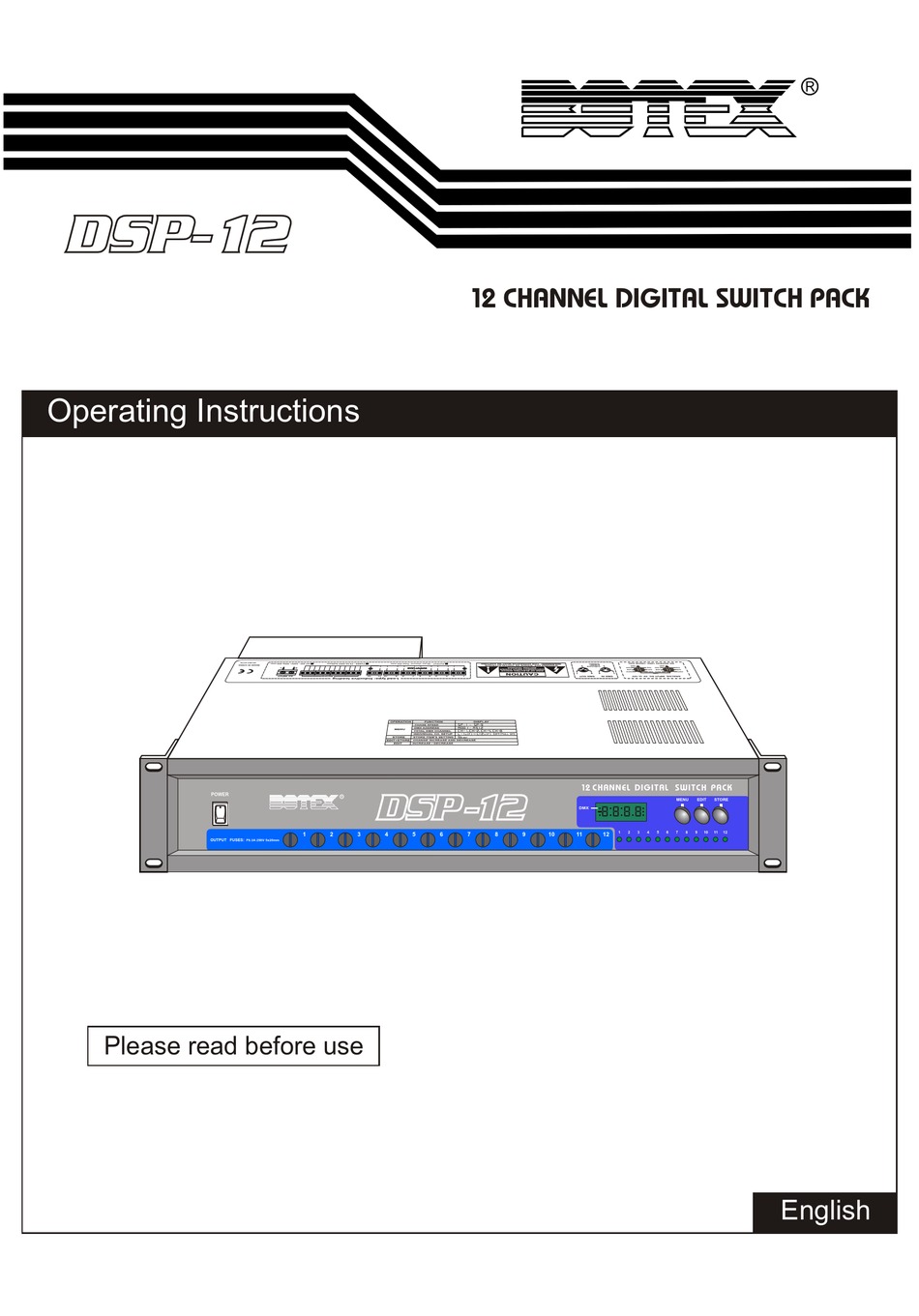

  • Page 1 DSP-12 12 CHANNEL DIGITAL SWITCH PACK Operating Instructions 12 CHANNEL DIGITAL SWITCH PACK DSP -12 POWER MENU EDIT STORE 8 8 8 8 OUTPUT FUSES: F6.3A 250V 5x20mm Please read before use English...

  • Page 3: Table Of Contents

    2.2 Self Test Mode 5 2.3 DMX Address Mode 7 2.4 DMX Channel Mode 8 2.5 Channel Output Mode 9 2.6 Initialization Technical Specifications 11 DSP-12 12 CHANNEL DIGITAL 12 CHANNEL DIGITAL SWITCH PACK SWITCH PACK Improvement and changes to...

  • Page 4: Features

    Features Thank you for purchasing this BOTEX product. DSP-12 This features include: Serves as a 1, 2, 3, 4, 6 or 12 channel switch pack depending upon the DMX channel mode Analogue signal overrides DMX signal "Off" or "Full" output of 12 channels Self test of the 12 lighting effects on 12 channels Power failure memory.

  • Page 5: General Instructions

    General Instructions Please read through this operating instructions before installing or using your new product. After you have finished reading the instructions, put them away in a safe place for future reference. Safe and Efficient Use This product must be earthed. Do not make any inflammable liquids, water or metal objects enter the unit.

  • Page 6: Overview

    1. Overview 1.1 Front Panel 5 6 7 12 CHANNEL DIGITAL SWITCH PACK DSP -12 POWER MENU EDIT STORE 8 8 8 8 OUTPUT FUSES: F6.3A 250V 5x20mm 1. Power Switch: Turn on or off the main power of the unit. 2.

  • Page 7: Rear Panel

    1. Overview 1.2 Rear Panel ANALOG INPUT DC 0V to 10V 1. Analogue Input +20V CH11 CH12 CH10 DC OUTPUT +20V, 140mA max. 2. DMX Input DMX IN DMX OUT 3. DMX Output 4. Terminal Block (See the connecting 1=Ground diagram.) 2=Data- 3=Data+...

  • Page 8: Operation Guide

    2. Operation Guide 2.1 Analogue Mode This unit is initially activated by Analogue signal. Turn main power on, the Segment Display shows "AnAL", indicating only Analogue mode is active. Now the output will be controlled by the analogue signal, the Edit and Store buttons don't work. MENU EDIT STORE...
  • Page 9 2. Operation Guide 2.2 Self Test Mode 3. While pressing and holding down the Edit button, tap the Store button. Now each tap of the Edit button will decrease the speed S P - 1 by one. (If you want to increase the speed, tap the Store button while pressing and holding down MENU EDIT...

  • Page 10: Dmx Address Mode

    2. Operation Guide 2.3 DMX Address Mode 1. Tap the Menu button, the Segment Display shows the DMX address of last change, this a 0 0 1 unit will serve as a DMX pack. This function allows you to turn on and control the intensity of non-DMX with the use of a DMX controller.

  • Page 11: Dmx Channel Mode

    2. Operation Guide 2.4 DMX Channel Mode 1. Tap the Menu button several times until the Segment Display shows "CH" followed by c h - 1 two digits. This function allows you to use your pack as a 1, 2, 3, 4, 6 or 12 channel switch pack.

  • Page 12: Channel Output Mode

    2. Operation Guide 2.5 Channel Output Mode 1. Tap the Menu button several times, the Segment l - 2 f Display shows the current state(Off or Full) of relevant channel. MENU EDIT STORE 2. Tap the Edit button to select channel you wish to l - 3 f assign it's output(Off or Full), the Segment Display indicates your selection with the change of "-1"...

  • Page 13: Initialization

    2. Operation Guide 2.5 Channel Output Mode 4. Tap the Store button to store your setting, the Segment Display shows "Stor". Tap the Menu button, this unit will return to Analogue mode. MENU EDIT STORE 2.6 Initialization When the Segment Display shows "AnAL", press and hold down all three buttons at a time for 5 seconds, the Segment Display MENU...

  • Page 14: Technical Specifications

    Technical Specifications Power Input ............. AC 220-240V~50Hz, 40 A max. Channel Output ..........5 A per channel, Total 40 A max. DMX OUT ................3-pin XLR female DMX IN .................. 3-pin XLR male Channel Fuse ..............F6.3A 250V 5x20mm Dimensions ................482x238x88.5mm Weight ....................
  • Page 16 24-004-0347 Web site: www.botex.com Rev 1.0 Oct., 2000...
