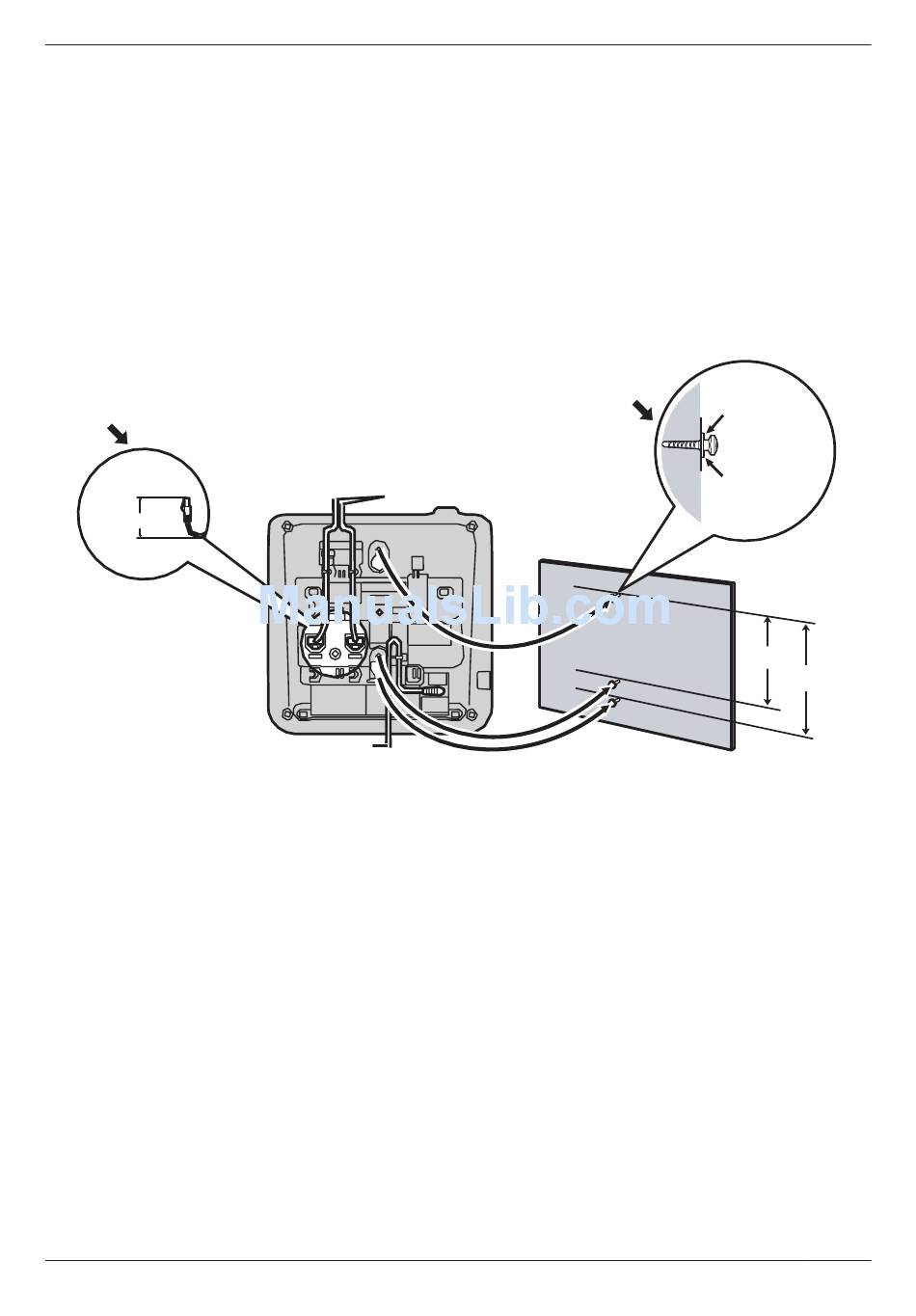

Fasten the wall mounting adaptor(s) to the base with the screw(s).
(Recommended torque: 0.4 N·m [4.08 kgf·cm] to 0.6 N·m
[6.12 kgf·cm])
3
Connect the cables to the unit as shown in the illustration below.
4
Drive the screws into the wall either 83 mm or 100 mm apart, and
mount the unit on the wall.
KX-NT511
3
40 mm or less
Ethernet cables
AC adaptor
Wall Mounting
4
Washer
Drive the screw
to this point.
83 mm
100 mm
27
