Technical Specifications - Reloop RP2000USB Instruction Manual

7. AUDIO OUTPUT VIA USB
The RP-2000 USB disposes of an integrated audio interface which makes it possible to digitize your vinyl in high quality.
Connect the USB Port -20- of the RP-2000 USB to a computer. Start a recording software, for example Audacity (freeware).

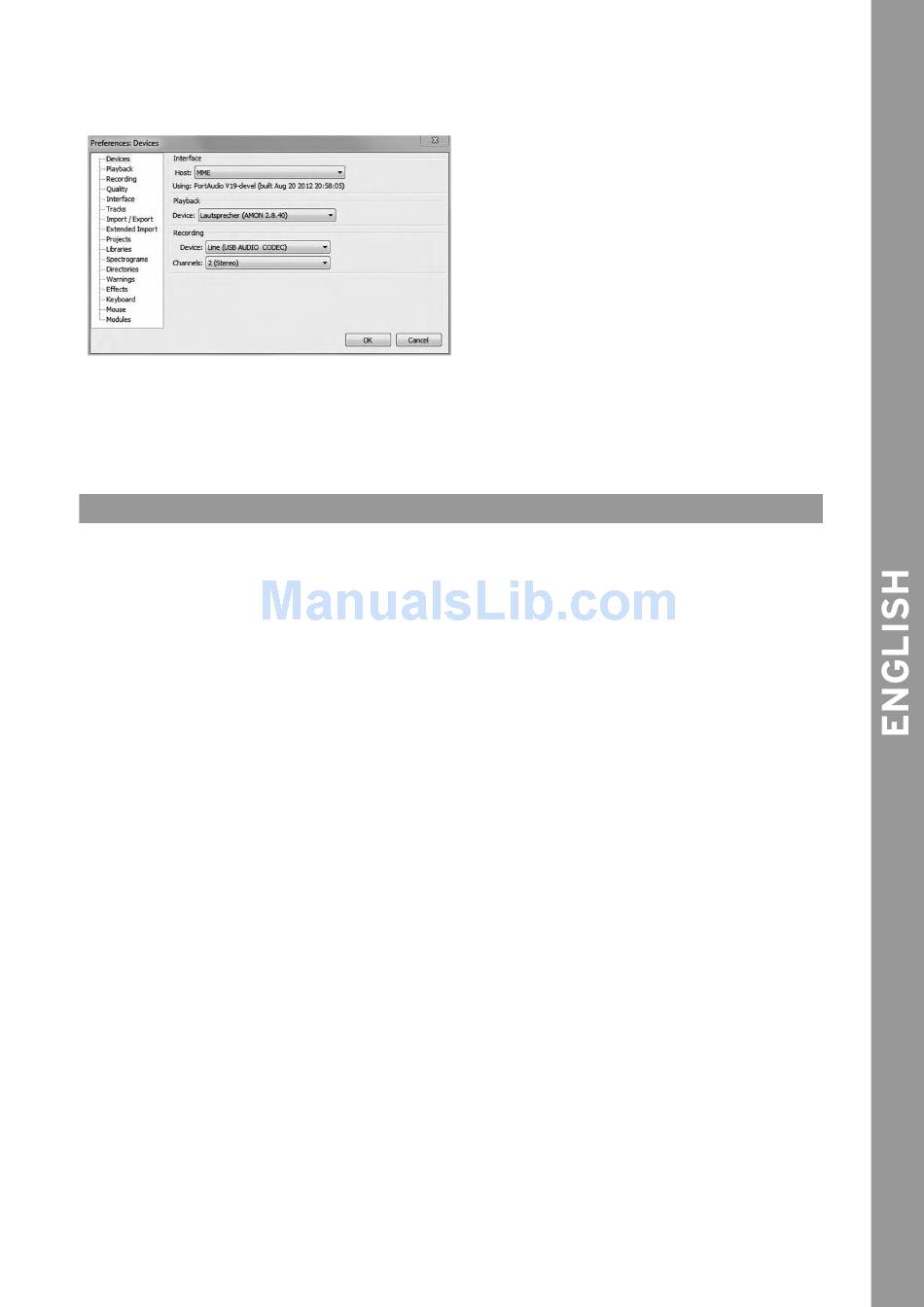

Open the settings and select the RP-2000 USB as device under the option recording (audio input).
The RP-2000 USB is shown as 'LINE (USB Audio Codec)'. Activate recording and then play your desired vinyl.
The RP-2000 USB's output will now be recorded.

TECHNICAL SPECIFICATIONS

Type: .................................................. 2 speeds, fully manual
Drive: ................................................. quarz-controlled direct drive
RPM: .................................................. 33 1/3 and 45 RPM
Start/Stop time: .............................. 1 sec.
Starting torque: ............................... > 1000 g/cm
Flutter: .............................................. < 0.15% WMRS
S/N Ratio: ......................................... > 50 dB (DIN-B)
Dimensions: ...................................... 450 x 352 x 144 mm
Weight: .............................................. 6.76 kg
Output: ............................................. 150 mV +/-4 dB (IN: 2.5 mV, 1 kHz)
RIAA: ................................................ 20 Hz – 20 kHz +1/-3 dB
Phono Output Level: ..................... 1.8 ~ 3.4 mV at 1 kHz 5 cm/sec
Line Output Level: ......................... 108 ~ 204 mV at 1 kHz 5 cm/sec
Power Supply: ................................. 115/230 V, 60/50 Hz
Power Consumption: ..................... 12 Watts
USB Function: ................................. USB rec. function
A/D, D/A: .......................................... 16 bit, 44.1 kHz or 48 kHz USB selectable
Computer Interface: ...................... USB 1.1 compliant Windows XP or Mac OSX
