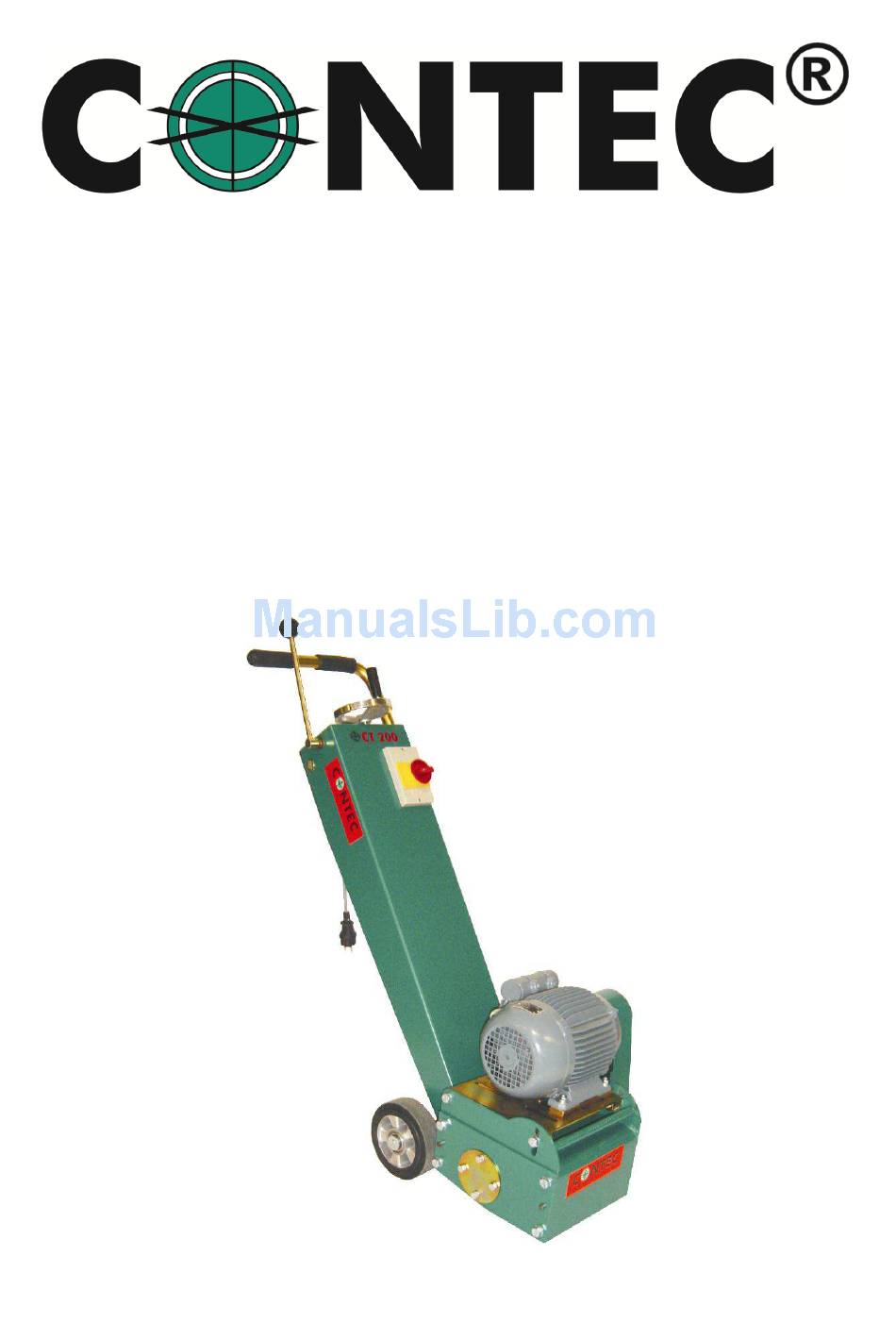

  • Page 1 CT 200 Floor Planer Instruction manual (USA) ________________________________________________________...

  • Page 2: Table Of Contents

    Instruction manual CT 200 - 2 - Index 1. EU-Declaration of Conformity …3 2. Machine applications ...4 3. Technical Data ...4 3.1 Planer ...4 3.2 Tools ...4 4. Applications of the tools ...4 5. Safety rules ...4 6. Operating ...5 7.

  • Page 3: Eu-Declaration Of Conformity

    Instruction manual CT 200 - 3 - Declaration of Conformity according to EN ISO/IEC 17050-1 EC-Declaration of Conformity Month.Year: For the machine described below Product denomination: Floor Planer Model: CT 200 Serial number: Herewith we declare, that the machine is complying with all the essential requirements of the Machine Directive 2006/42/EC of the EUROPEAN PARLIAMENT of the 17th of Mai 2006 The person authorized to compile the relevant technical documentation (According to Appendix II Nr.

  • Page 4: Machine Applications

    Instruction manual CT 200 - 4 - 2. Machine applications Planing of horizontal, dry floors such as concrete and steel surfaces with or without a coating ® and asphalt using CONTEC planing tools. The use of the machine outside is only possible in dry weather.

  • Page 5: Applications Of The Tools

    5. Safety rules Attention ! The CT 200 floor planers are constructed according to existing safety rules and regulations. These technical precautions should not be removed or changed under any circumstances. While operating the machines the following points should also be kept in mind: 1.

  • Page 6: Operating

    Instruction manual CT 200 - 6 - 6. Operating a. After mounting the appropriate tools the operation of the planer can begin. b. Lower the planer with the lever to the operating position. Turn the hand wheel of the height adjustment until the tools are lowered to the floor and until you achieve the required finish.

  • Page 7: Adjusting The Drum

    8. Adjusting the drum During the operation of the CT 200 floor planer or after a drum has been changed or replaced, the drum shaft and the rear wheel axis can fall out of alignment. This results in an uneven track on the floor.

  • Page 8: Maintenance And Cleaning

    Instruction manual CT 200 - 8 - 9. Maintenance and cleaning 9.1 Bearings All bearings are greased for their life time. 9.2 Height adjustment and joints All joints have to be greased periodically with a standard machine grease. 9.3 Belt drive Check the belts after approximately every 30 hours of operation.
  • Page 14 90-24-11-08-Honda Taperlock Motor Honda 5,5 HP CT 200 0,14 55-03-00-20 Motor 2 KVA, 230 Volt, 50 HZ, Elephant 26,00 55-03-00-30 Turbine Motor 3 KW, 400 Volt CT 200/ Tornado/Elephant 27,00 55-03-23-40 Turbine Motor 3 KW, 230 Volt 3-Phase CT200/Tornado/Elephant 27,00...
  • Page 15 Bracket for Rubber Sealing CT200 0,30 17-10-09-01 Level Adjustment Back Wheel CT200 0,80 60-33-12-25 Connecting Pin for lifting Rod CT 200 0,00 30-10-08-05 Axis out of centre Rear Wheel CT 200 0,38 30-10-08-04 Axis Rear Wheel CT200 0,33 80-20-31-60 Rear Wheel CT200/M200 1,14 17-10-08-03...
  • Page 16 Low Voltage Protective 230 Volt CT200 0,00 55-03-00-21 Ventilator Cover for Motor 2 KVA, 230 V Elephant/CT200 420,00 55-03-00-22 Kondenser Motor 2 KW EMG CT 200 0,50 55-03-00-23 Kondenser Motor 2 KW EMG CT 200 0,50 55-03-04-20 Motor 2 KVA, 230 Volt, 50 HZ, Elephant...
