U S E R G U I D E
WINE SP100
D E F Y I N G
C O N V E N T I O N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WINE SP100 and is the answer not in the manual?

Questions and answers

Related Manuals for Wine Corner WINE SP100

Summary of Contents for Wine Corner WINE SP100

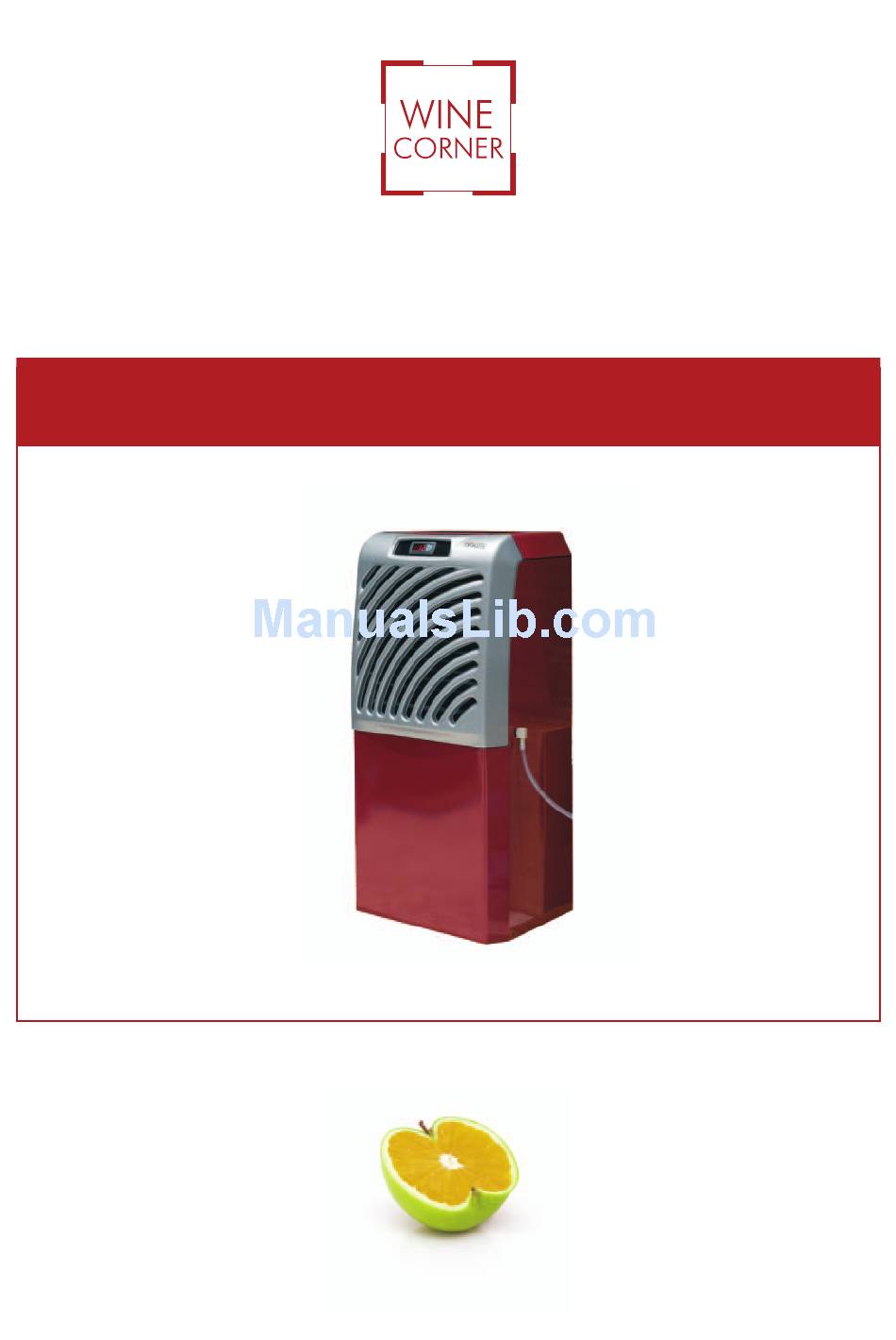

  • Page 1 U S E R G U I D E WINE SP100 D E F Y I N G C O N V E N T I O N...

  • Page 2: Table Of Contents

    CONTENTS CHARACTERISTICS ......................4 DIMENSIONS :........................4 LAYOUT OF PREMISES ....................5 INDOOR UNIT......................... 5 OUTSIDE UNIT ........................5 THE CELLAR .......................... 5 ..........................5 2.3.1 INSULATION ......................6 2.3.2 CHOICE OF INSULATION ..................... 6 2.3.3 WALL AND CEILING INSULATION ........................
  • Page 3 FROM VINEYARD TO WINE In former times, good french cellars were built to maintain a temperature not exceeding 14 to 16°C in all seasons Today, this is rarely the case. Nevertheless, a cellar worthy of the name must be protected against wide variations in temperature, be as damp as necessary and ventilated, dark and free of vibration.

  • Page 4: Characteristics

    CHARACTERISTICS Setting the temperature Preset to 12°C, adjustable between 12 and 25°C* Maximum outdoor temperature 35°C** Cooling power 2500W at 12°C** Heating power 1000W 230-240V 50Hz with earth connection ( supplied Electricity supply with 3m cable ) Electrical power 1250W R407C without CFC Refrigerant gas 1000g...

  • Page 5: Layout Of Premises

    LAYOUT OF PREMISES The air-conditioner is composed by two separate units which are connected by an electric and refrigerant flexible cable of 5 mts. The distance between the two units cannot be more than 5 mts. INDOOR UNIT The indoor unit is entirely installad inside the cellar directly on the floor or fixed on the wall with adapted special brackets.

  • Page 6: Choice Of Insulation

    2.3.2 CHOICE OF INSULATION M I N I M U M T H I C K N E S S O F I N S U L A T I O N ( m m ) f o r 1 2 ° C c e l l a r t e m p e r a t u r e P O L Y U R E T H A N E C E L L A R E X P A N D E D P O L Y S T Y R E N E...

  • Page 7: The Door

    2.3.5 THE DOOR It is part of the continuity of insulation. There are two possible solutions : to insulate the existing door using the same type as insulation as was used for the cellar walls. Insert a seal such a foam, between the door panel and the frame all around the edge. Use a FONDIS isothermal door, lined with polyurethane foam.

  • Page 8: The Fixing Brackets

    3.2.2 THE FIXING BRACKETS Unscrew the 5 screws 1 with a screwdriver PZ2 for unmounting the brackets 2 et 3. 3.2.3 THE REFRIGERANT CONNECTIONS Two wrenches 1 & 2 are supplied with the unit. Maintain the connection with the wrenche 1and unscre with the wrenche 2.

  • Page 9: Electrical Connector

    Attention : don’t stop unscrewing while gas leaks until the 2 elements are separated.The gas leak will stop then ! Before and during remounting operations, protect the end of the flexible connection in order to avoid dust goes out. 3.2.4 ELECTRICAL CONNECTOR The ventilator of the outside unit is connected by an electric cable.
  • Page 10 • Position the outside unit so that the screws and washers 1 are engaged in the slot 2 • To finish, screw the kit screws and washer 1 under the unit.

  • Page 11: Installation Of The Inside Unit

    INSTALLATION OF THE INSIDE UNIT Put the unit on the floor or on his horizontal support, It shouldn’t be any obstacle in front of the ventilation grid to facilitate the air flow The support or floor must be level and not transmit vibrations. RE-CONNECTION OF THE FLEXIBLE Pass the connecting flexible through the hole in the wall and re-connect the refrigerant fittings with the wrenches and the electrical connecting wires to the outside unit.

  • Page 12: Using The Winemaster Sp100

    USING THE WINEMASTER SP100 CONNECTING THE AIR-CONDITIONER Connect the male plug to a 230/16A power socket. Switch on the air-conditioner by pressing the green button on the back of the inside unit.. The fan on the cellar side comes on immediately. The compressor may not come on until 2 minutes later if the temperature in the cellar is higher than the set temperature.

  • Page 13: Changing The Filter

    CHANGING THE FILTER • Unscrew the two plastic screws 1 • Remove the cover 2. • Pull the tab 3 to release the filter Replace it with a FONDIS filter only ! You can then replace the cover.

  • Page 14: Warranty

    WARRANTY YEARS CONTRACTUAL WARRANTY The air-conditioner is guaranteed for two years against manufacturing defects. During the contractual guarantee period, FONDIS will replace any part recognized as defective, following the intervention of a qualified representative. In the event of an electrical breakdown, FONDIS will replace any part recognized as defective following the intervention of a qualified stockist or his representative.
  • Page 15 WineMaster user manual, please complete and return this warranty certificate within 15 days from the date of purchase to the following address: WINE CORNER Unit 6, Harworth Enterprise Park, Brunel Industrial Estate, Harworth, South Yorkshire DN11 8SG...
