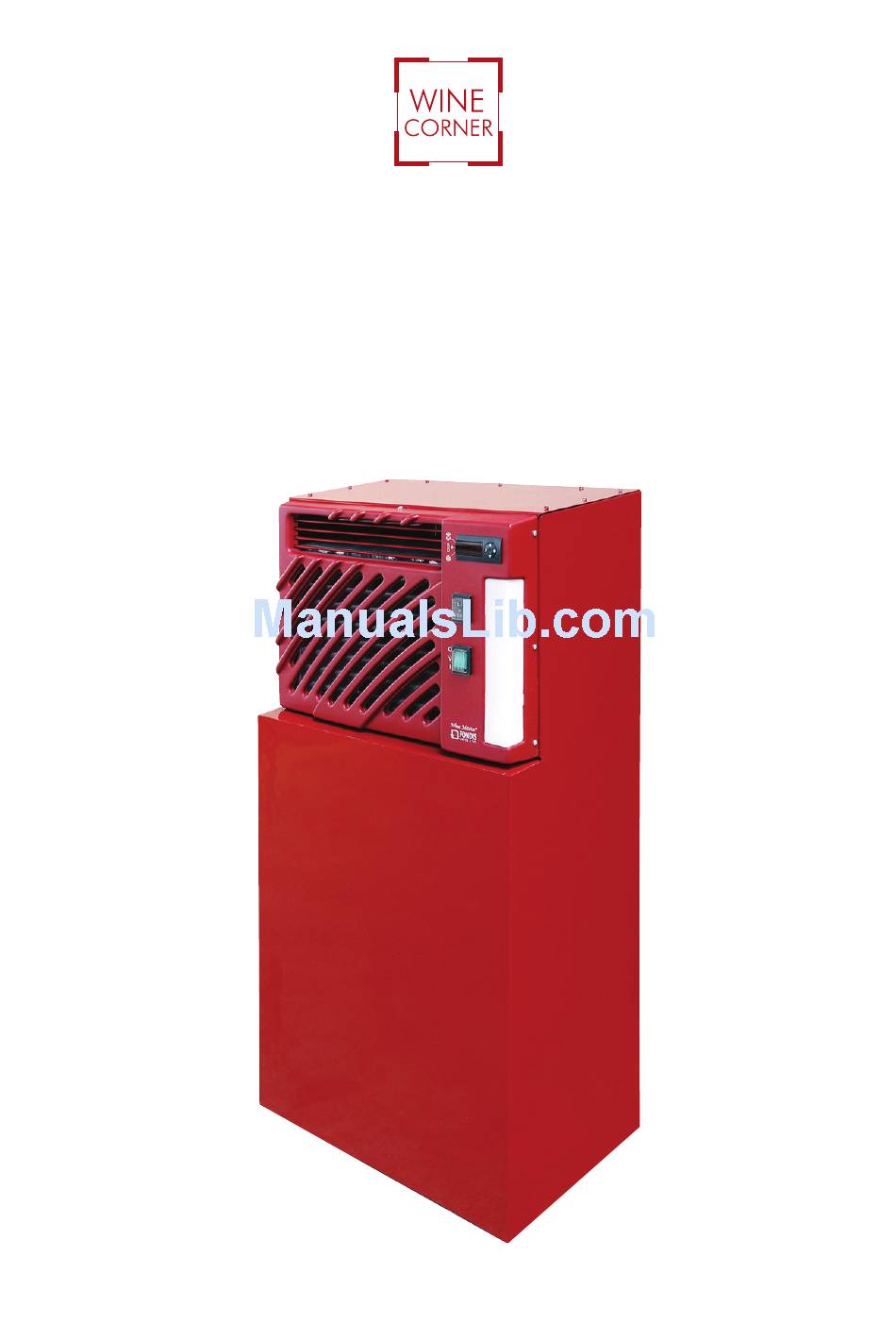

- Page 1 Winemaster C50 IN Instructions for installation and use...
-
Page 2: Table Of Contents
Contents Introduction: From the vine to the wine 1. Layout of premises 4. Servicing 3 - 5 1.1. Hot air outlet 4.1. Changing the filter 1.2. The cellar 5. The guarantee 1.2.1 Insulation 5.1. The legal guarantee 1.2.2 Insulation of walls and ceiling 5.2. -
Page 3: Layout Of Premises
Setting the temperature Preset to 12°C, adjustable between 4 and 25°C* Maximum outdoor temperature 35°C** Cooling power 1 200 W at 15°C ** Electricity supply 230-240 V - 50 Hz - with earth connection (supplied with 3 m cable) Electrical power 950 W Lighting Fluorescent tube and switch built into the device... - Page 4 IMPORTANT The validity of the WINEMASTER guarantee depends on the values in the "Choice of insulation" table being strictly respected, for all the cellar walls, including floor and ceiling + door, as well as perfect continuity of insulation and installation in accordance to the user guide. C50 In insulation MINIMUM THICKNESS OF INSULATION (mm) for 12°C cellar temperature...
-
Page 5: Installing The Wine C50 In
1.2.3 FLOOR INSULATION The cellar floor must be able to support shelves and the wine stored on them. You should therefore choose an insulating material with adequate compression resistance for this part. Manufacturers recommend appropriate insulation or materials designed specifically for floor insulation, in their documentation. -
Page 6: Dimensions
2.2. Dimensions 2.2. Installation examples... -
Page 7: Installing The Ducts
2.4 Installing the ducts The connections must be sealed to prevent condensation forming on the walls of the air-conditioner. 1. Place the inside duct 2. Stick the adhesive tape across 3. Take it round several times on the flue collar the flue collar and the duct. -
Page 8: Using The Wine C50 In
3. Using the Wine C50 IN C50IN must be installed by complying with the national rules of electric installation. 3.1 Connecting the air-conditioner Connect the male plug to a 230V / 16A power socket. Switch on the air-conditioner by pressing button 1 on the diagram below. The fan on the cellar side comes on immediately. The compressor may not come on until 2 minutes later if the temperature in the cellar is higher than the set temperature. -
Page 9: Automatic Defrost
3.3 Automatic defrost The program of the thermostat will run an automatic defrost time several times a day. During this time the compressor cannot sart. Only the fan in the cellar can function. The condensate water produced during this period will be evacuated through the tube. 4. -
Page 10: The Guarantee
5. The guarantee 5.1. The legal guarantee The contractual guarantee is, to the advantage of the buyer, not exclusive of the legal guarantee for hidden mistakes and defects, in accordance with the conditions of art. 1641 ff of the Civil Code. 5.2. - Page 11 © Wne Corner Limited 2008. We reserve the right to change product specifications and prices without prior notice. Wine Corner Limited does not accept any responsibility for any loss, which may arise as a consequence of reliance on information contained in this price list.
