Wine Corner Wine C25 User Manual

Wine cellar cooling unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

U S E R G U I D E
WINE C25
D E F
Y I N G
C O N V E N T I O N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wine C25 and is the answer not in the manual?

Questions and answers

Related Manuals for Wine Corner Wine C25

Summary of Contents for Wine Corner Wine C25

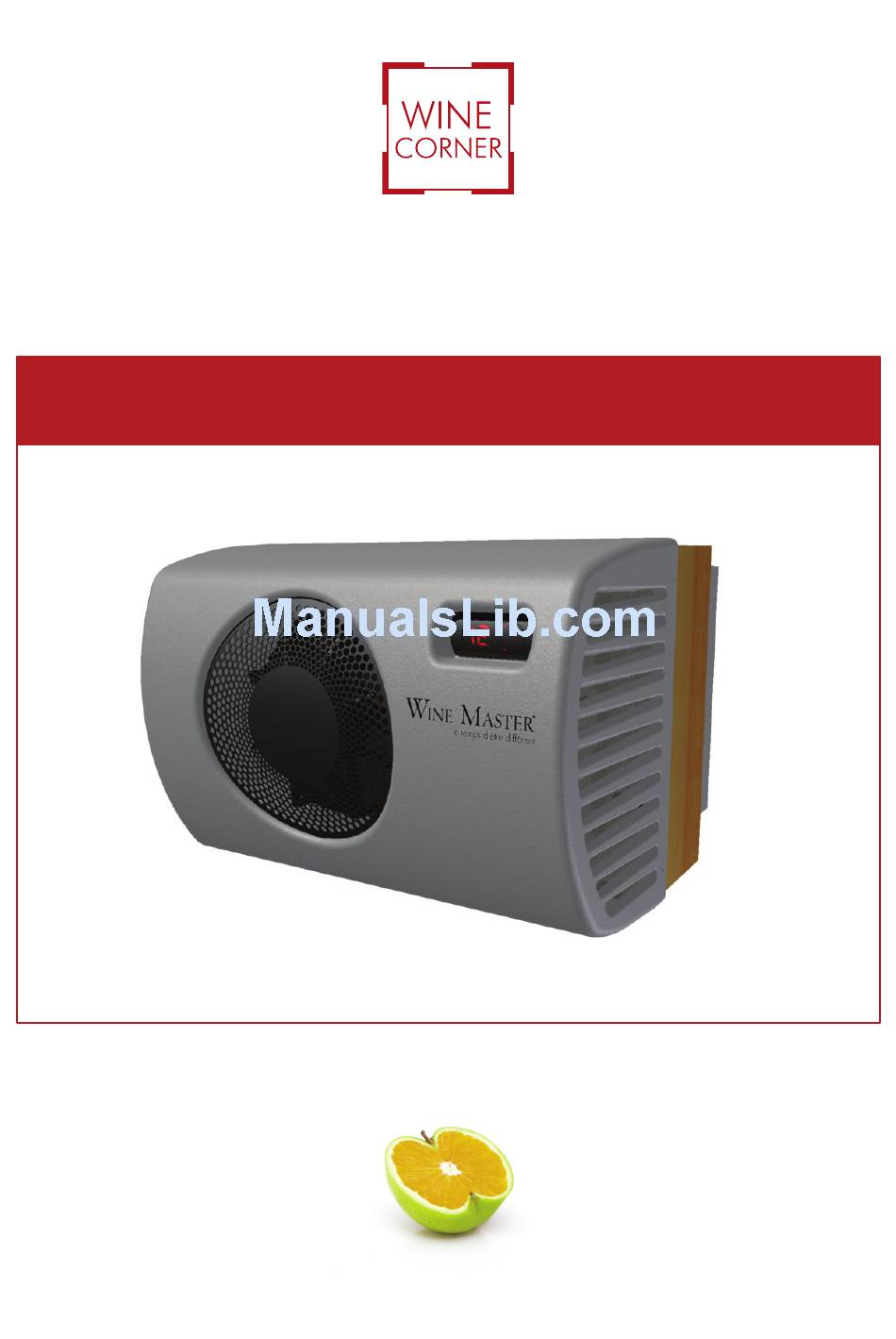

  • Page 1 U S E R G U I D E WINE C25 D E F Y I N G C O N V E N T I O N...

  • Page 2: Table Of Contents

    Page 32 2.3.3. INTALLING THE WATER DRAINAGE SYSTEM ............3. USING THE WINEMASTER AIR-CONDITIONER ..........Page 33 Page 33 3.1. STARTING UP MODEL WINE C25 ................ Page 33 3.1.1. CONNECTING THE AIR-CONDITIONER ..............Page 33 3.1.2. SETTING THE TEMPERATURE ................

  • Page 3: Introduction : "From Vineyard To Wine

    FROM VINEYARD TO WINE In former times, good french cellars were built to maintain a temperature not exceeding 14 to 16°C in all seasons. Today, this is rarely the case. Nevertheless, a cellar worthy of the name must be protected against wide variations in temperature, be as damp as necessary and ventilated, dark and free of vibration.

  • Page 4: Installation Of The Winemaster

    CHARACTERISTICS WINE C25/C25S(R) Setting the temperature Preset to 12°C, adjustable between 4 and 15°C* Maximum outdoor temperature 35°C** Cooling power 550 W at 15°C ** Electricity supply 235 V – 50 Hz Electrical power 400 W Heating power 250 w ( only for C25S(R)) The circuit breaker must be at least 16 Amps.

  • Page 5: Insulation Walls And Celling

    VOLUME = 0.044W/m°C = 0.030W/m°C = 0.025W/m°C WINE C25 / C25 S(R) 1.2.2 INSULATING WALLS AND CEILING The manufacturers propose their insulating panels in several forms: - insulation alone - complexes: the insulation is lined with a facing (plaster, mineral…) - sandwiches: the insulation is lined on each side with a wooden or plaster panel.

  • Page 6: Floor Insulation

    1.2.3 FLOOR INSULATION The cellar floor must be able to support shelves and the wine stored on them. You should therefore choose an insulating material with adequate compression resistance for this part. Manufacturers recommend appropriate insulation or materials designed specifically for floor insulation, in their documentation.

  • Page 7: Sealing And Levelling The Wooden Frame

    2.2 SEALING AND LEVELLING THE WOODEN FRAME Seal the wooden frame so that it is flush with the inside of the cellar wall. If the wall is thicker than the wooden frame, cut a wedge-shape in the wall, as shown in the diagram above. The joint between the wooden frame and the insulation must be filled (with polyurethane foam, for example), to ensure continuity of insulation.

  • Page 8: Intalling The Water Drainage System

    Check the seal between the wooden frame and the Winemaster. The electrical connection cable and the PVC condensate tube are situated inside the cellar. 2.3.3 INSTALLING THE WATER DRAINAGE SYSTEM Flow from the condensate collection Place the collar as close to the pipe Push the PVC pipe on.

  • Page 9: Using The Winemaster Air-Conditioner

    BEFORE MODIFIYING THE TEMPERATURE OF ADJUSTEMENT, TO CHECK IS IT A WINE C25 (3.1) OR A C25S (SR) (3.2). 3.1 STARTING UP MODEL WINE C25 3.1.1. CONNECTING THE AIR-CONDITIONER When you plug it into the electrical socket, the air conditioner starts up immediately.

  • Page 10: Starting Up Model Wine C25S(R) (With Heater)

    3.2 STARTING UP MODEL WINE C18S(R) (WITH HEATER) 3.2.1. CONNECTING THE AIR-CONDITIONER When you plug it into the electrical socket. The fan in the cellar starts up immediately. The compressor may not come on until 2 minutes later if the temperature of the cellar is higher than the set temperature. If the temperature of the cellar is the same as the setting on the thermostat, the compressor will not come 3.2.2 SETTING THE TEMPERATURE The setting of the targeted temperature of the cellar is made on the thermostat .

  • Page 11: Maintaining The Winemaster Air-Conditioner

    4. MAINTAINING THE WINEMASTER AIR-CONDITIONER THE DUST FILTER It is essential to replace the dust filter, which is outside the cellar, as soon as necessary and at least once a year. If it is clogged, the air-conditioner may be seriously damaged. 4.1 CHANGING THE FILTER.

  • Page 12: Exclusions And Limits Of Guarantee

    5.3 EXCLUSIONS AND LIMITS OF GUARANTEE The guarantee is refused in the following cases: - The cellar and installation have not been insulated in accordance with this guide. - The damage is due to negligence, poor maintenance, defective or inappropriate use of the WINEMASTER. - Part exchanges or replacements under guarantee will not have the effect of extending it.
  • Page 13 © Wine Corner Limited 2012. We reserve the right to change product specifications and prices without prior notice. Wine Corner Limited does not accept any responsibility for any loss, which may arise as a consequence of reliance on information contained in this price list.

This manual is also suitable for:

Wine c25sWine c25rWine c25sr
