Exploded Views And Parts Lists - Toshiba RAV-182B-PE Service Manual

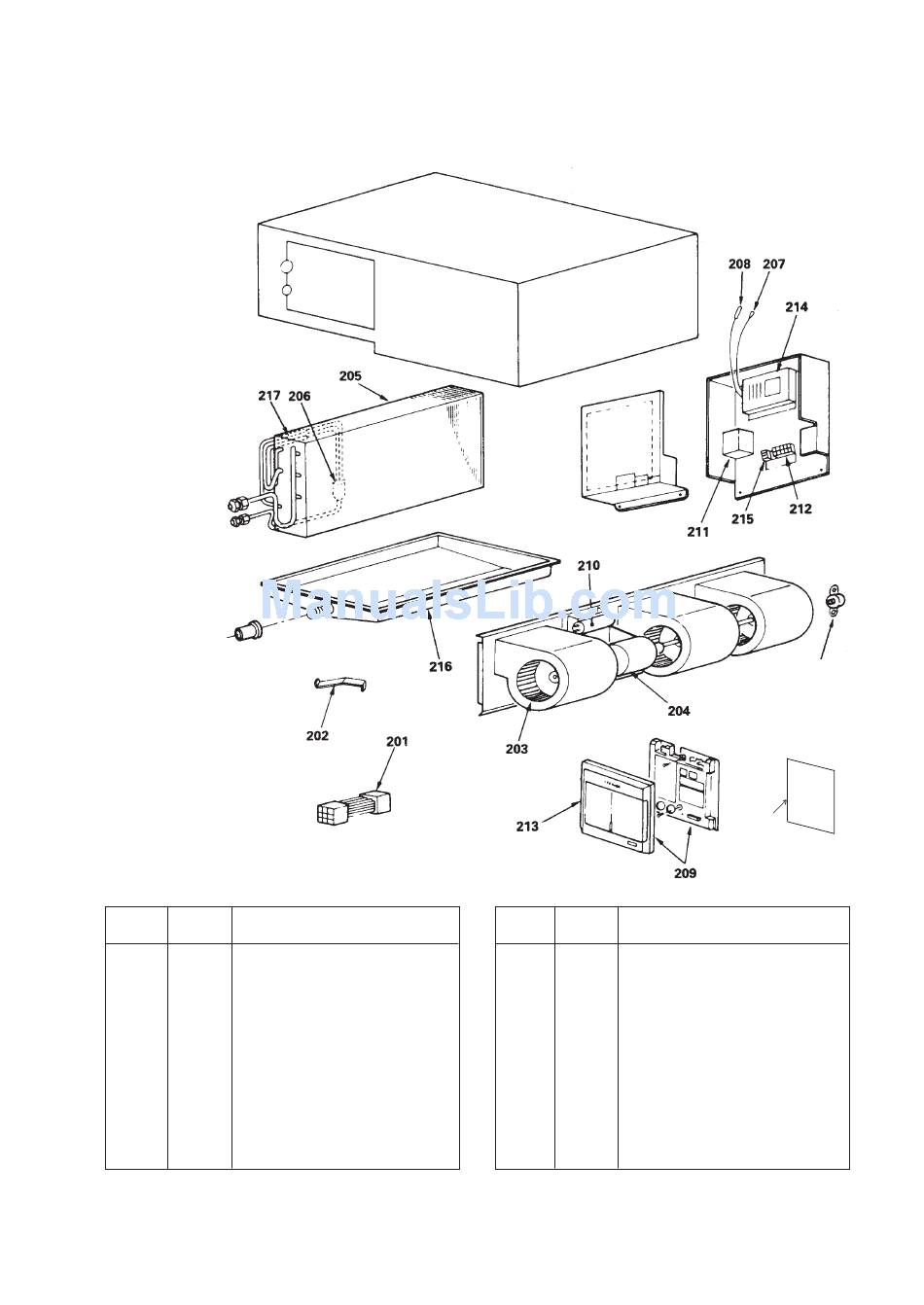

11.1 Indoor Unit
RAV-182B-PE
RAV-242B-PE
RAV-362B-PE
RAV-462B-PE
Location
Part No.
No.
201 43160394 Connector – 9P
202 43019604 Holder, Sensor
203 43120149 Fan, Multi-Blade
204 43A21009 Motor, Fan
43121516 Motor, Fan
43121528 Motor, Fan
43121535 Motor, Fan
205 43A44002 Evaporator
43144679 Evaporator
43144692 Evaporator
43144693 Evaporator
206 43A47001 Distributor (strainer)
43147443 Distributor (strainer)
43147532 Distributor (strainer)
43147533 Distributor (strainer)
207 43050377 Sensor (TA)
208 43150199 Sensor (TC)
Tel: 01823 665660
Heronhill - for all your Toshiba requirements

11. EXPLODED VIEWS AND PARTS LISTS

Description
(RAV-182B-PE)
(RAV-242B-PE)
(RAV-362B-PE)
(RAV-462B-PE)
(RAV-182B-PE)
(RAV-242B-PE)
(RAV-362B-PE)
(RAV-462B-PE)
(RAV-182B-PE)
(RAV-242B-PE)
(RAV-362B-PE)
(RAV-462B-PE)
- 55 -
www.heronhill.co.uk
Location
Part No.
No.
209 43A69004 Remote Controller
210 43155080 Capacitor, Electrolytic (RAV-182B-PE)
43155096 Capacitor, Electrolytic (RAV-242/362B-PE)
43155097 Capacitor, Electrolytic (RAV-462B-PE)
211 43A58002 Transformer, Power
212 43A60001 Terminal, 4P
213 43A62001 Cover, Remocon
214 43A69005 PC, Board
215 43A60002 Terminal, 3P
216 43191304 Drain, Pan
43191305 Drain, Pan
43191310 Drain, Pan
217 43047527 Capillary Tube 2.0Dia (RAV-182/242/362B-PE)
43146432 Capillary Tube
218 42125135 Bearing
219 43125137 Coupling
220 43A88002 Manual
Fax: 01823 665807
218
219
220
Description
(RAV-182B-PE)
(RAV-242B-PE)
(RAV-362/462B-PE)
(RAV-462B-PE)
(RAV-362/462B-PE)
(RAV-462B-PE)
