KTI Networks KSD-541 Specification Sheet

KSD-541
Product Highlights :
Compact switch

SFP fiber options

802.3af PoE

Industrial design

4 PSE 1 Combo
Ports
Panel Mounting
Din-Rail Mounting
Top LED Display

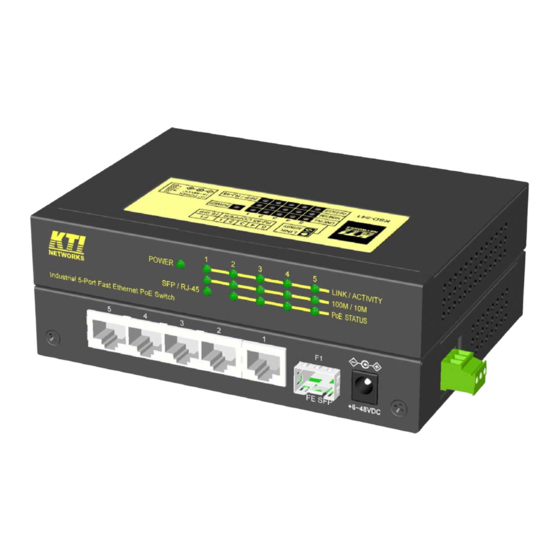

Industrial 5-Port Fast Ethernet Switches
with SFP Slot and 4 PoE PSE Ports
Key Features :
Provides 5 10/100Mbps RJ-45 and one 100Mbps SFP slot

All copper ports support auto-negotiation and auto-MDI/MDI-X detection

Provides full wire speed forwarding

Supports 802.3x flow control for full-duplex and backpressure for half-duplex

Provides SFP for optional optical fiber connection

Provides four 802.3af-compliant PoE-enabled PSE ports

Provides two types of power supply interfaces - Jack and terminal block

Supports stand-alone, wall, Din-Rail, and panel mounting

Industrial-rated emission and immunity performance

Specifications :
Standard IEEE 802.3, 802.u, 802.3x, 802.3af
Network Ports 4 10/100Mbps Fast Ethernet copper ports
1 combo port - 10/100Mbps copper & SFP
Copper Port Shielded RJ-45, 10/100Mbps, auto-negotiation, auto-MDI/MDI-X support
SFP Fast Ethernet 100Base-FX compliant slot for standard SFP transceiver
Network Cables 10/100Mbps copper: Cat.5 up to 100m,
100Base-FX : 62.5/125, 50/125 MM fiber, 9/125 SM fiber
Power over Ethernet IEEE 802.3af compliant, PSE on Port 2 ~ Port 5
Power delivery 48V 15.4W max. per port up to 100 meters
MAC Addresses Table with 1K entries
LED Indication Display on both top and front panels
Per unit : power, Per port : speed, link/activity & PoE status
DC Power Input Screw terminal block :
DC jack :
Operating voltage range :
Power Concumption 4W max. with no PoE support
70W max. for 4 PoE PSE max. output
Housing Enclosed metal with no fan
Dimension 144 x 104.5 x 26 mm (WxDxH)
Mounting Support Wall, Din-rail, panel mounting (optional)
Environment Operating temperature :
Storage temperature :
Humidity :
Approval FCC Class A certificate, CE mark / EMC Class A certificate
EN60950 / IEC60950-1 safety
NEMA TS2-2003 Environment tests
power +/- and PE contact
-D6.3mm / +D2.0mm
+6 ~ +57VDC (+48V up for PoE operation)
-20 O C ~ +60 O C
-20 O C ~ +85 O C
10%~90% non-condensing
080306
