The Web Interface; Status Page - Telos Z/IP ONE User Manual

8

The Web Interface

From any web browser on your network, you can access the internal web pages of the Z/IP ONE. Simply open the browser
window and type the IP address of your Z/IP ONE into the location bar. The main status page can be viewed without a
login, but for any other link, you will be prompted to enter a user name and password. The default user name is "user"
(case sensitive, without quotes), and there is no default password (just leave the password field blank).
You can always check or change the web password from the Settings->System menu of the Z/IP ONE's front panel. You
can also change the web server's port via the front panel. If that is changed, you will need to browse to the web interface
using the Z/IP ONE's IP address, followed by a colon (:), followed by the new port number.
For example, if your Z/IP ONE is at address 192.168.1.140 and the HTTP port is set to 8810, you would enter its address in
your web browser as http://192.168.1.140:8810
From the Z/IP ONE web interface, you can configure all of the options that are available on the front panel, plus a few that
are not. The advantage of the web interface is that your monitor is much larger that the Z/IP ONE's display, and you can
use your mouse and keyboard instead of the control knob and dial pad.

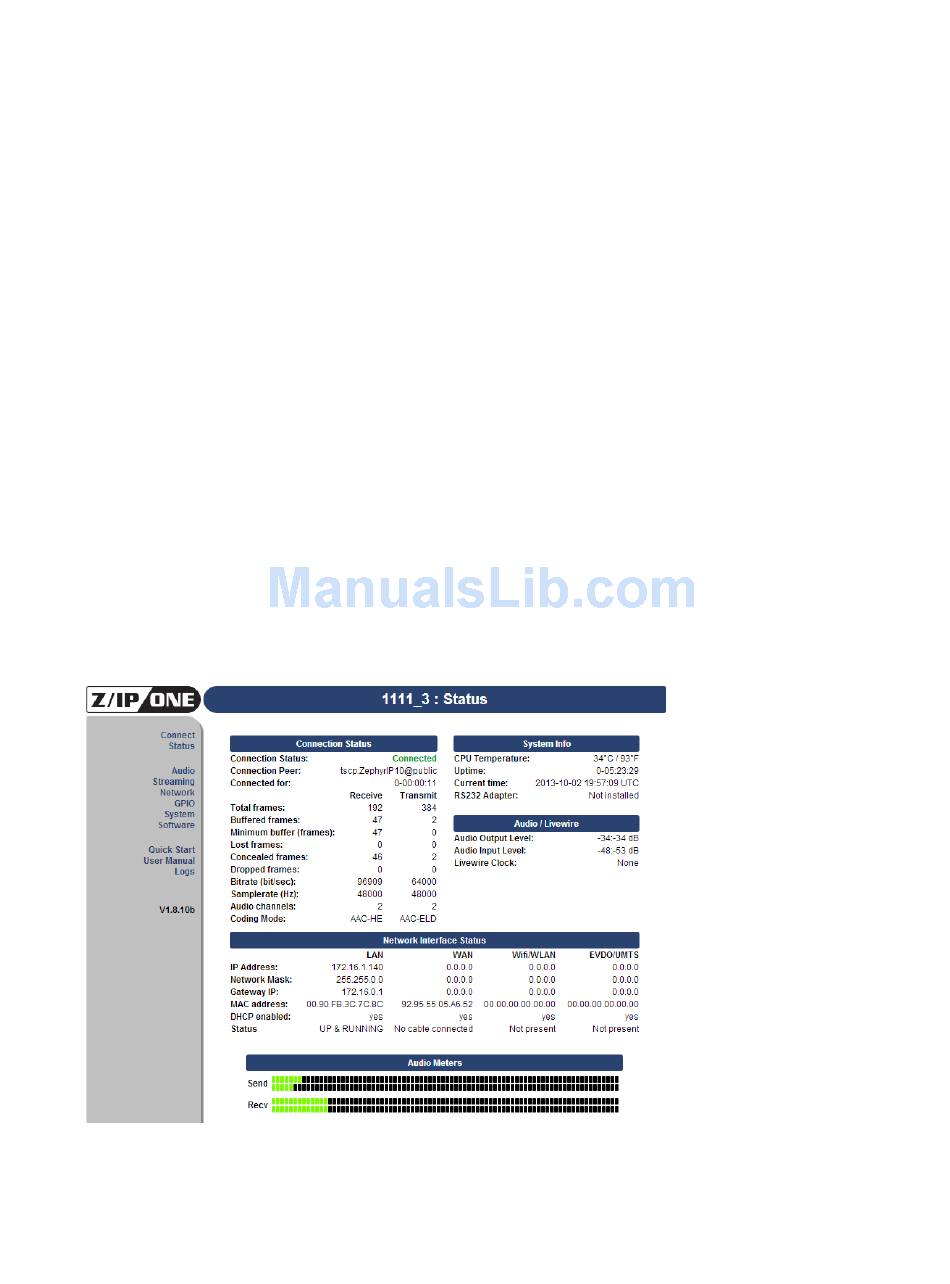

8.1 Status Page

The status page shows a summary of the Z/IP ONE's connection statistics in more detail than the front panel display.
Here, you can find detailed operating statistics and a summary of all four network interfaces' settings. Unlike all the other
pages, the status webpage does not require a login to view.
THE WEB INTERFACE |
33
