The User Interface And Menu System - Telos Z/IP ONE User Manual

17
THE FRONT PANEL INTERFACE |

4.2 The User Interface and Menu System

After a period of inactivity, the Z/IP ONE will time out to a status screen. Pressing the ESC button will exit to
the menu system. Rotating the main control knob moves from option to option, while pressing it will select the
currently highlighted item. While in a menu, pressing ESC will back you up one level. Repeated presses will take
you to the main menu.

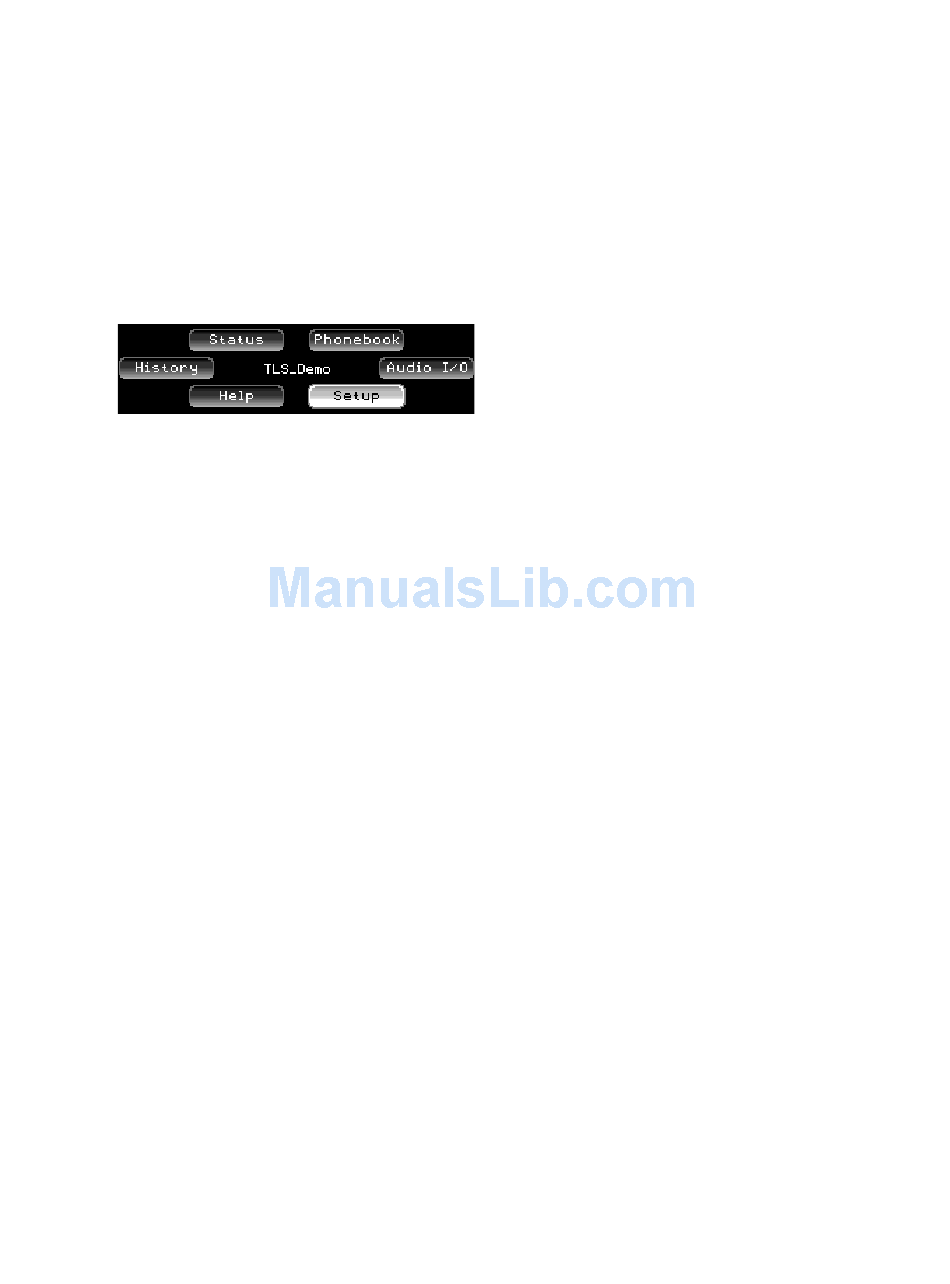

From the main menu, you can access the Status, Phonebook, Audio I/O, Setup, Help, and call History sub-menus.
Getting Help!
Context-sensitive help is available at any time by pressing the 1 button. General help can also be accessed by
choosing Help from the main menu.
Clearing Pop-ups
When a condition exists that requires attention, the Z/IP ONE will display a pop-up box in front of whatever
screen is otherwise active. To close the current pop-up, press the ESC key. To close all pop-ups in the stack, press
the 0 key.
The Z/IP ONE keeps a list of all pop-up screens that have been displayed since the last time it was rebooted.
This list is shown on the Logs web page.
