The Front Panel Interface

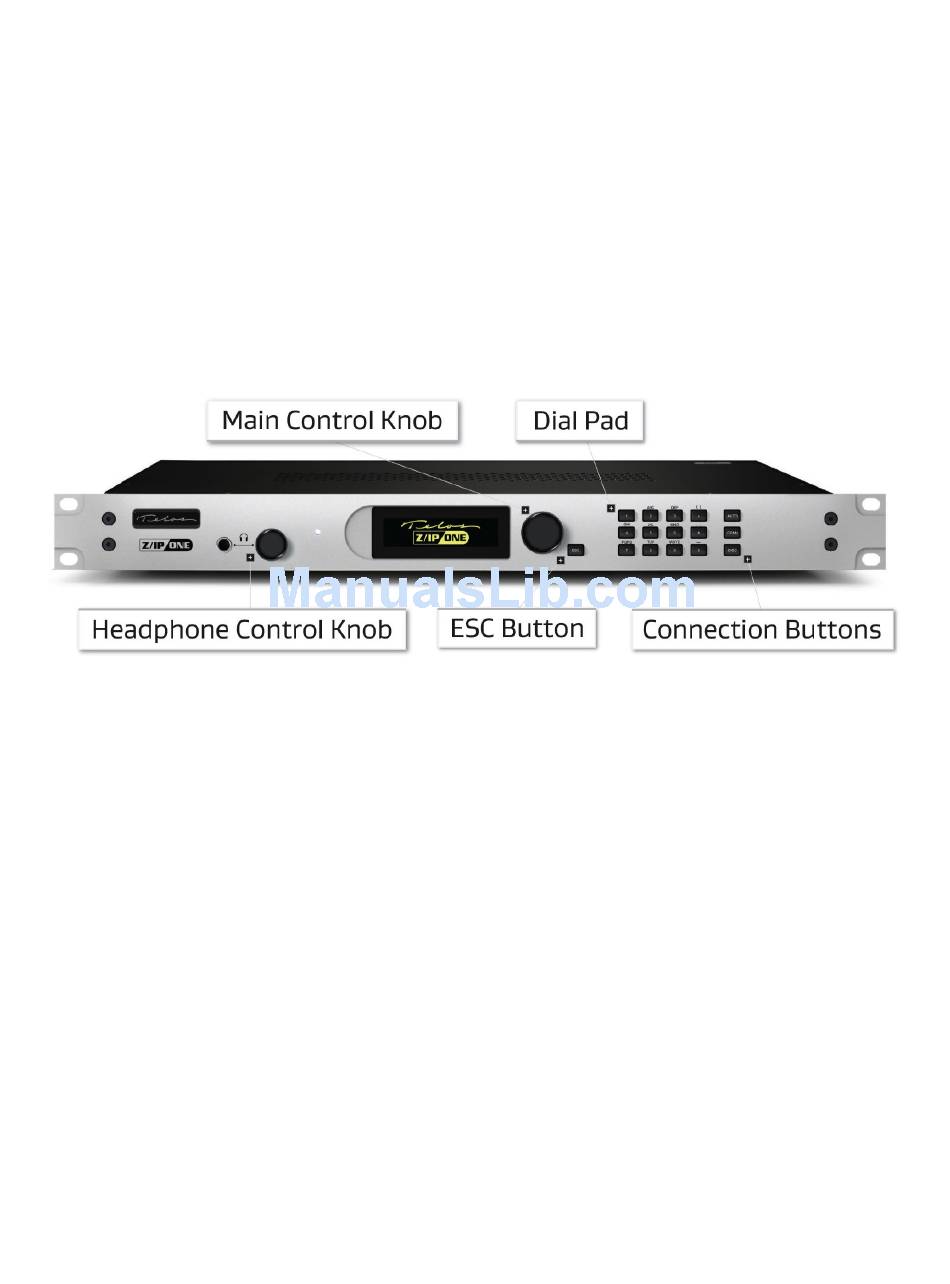

4.1 Front Panel Controls

Headphone Control Knob
This is a volume control and monitor selection button. Turning the knob will change the headphone volume. Pushing this
button will select between the receive audio and the transmit audio. Neither of these function will affect the audio on the
main outputs. While changing the volume, the display will indicate which audio is present on the headphones.
Main Control Knob
Rotating the Z/IP ONE's control knob moves the cursor. It also has a push-to-click function. Pressing the knob selects the
highlighted menu selection, or accepts the current value the setting that is being edited.
ESC Button
This button escapes from the currently selected menu or dialog screen. While editing a setting, pressing the ESC button
cancels any edits and leaves the field unchanged. From the main menu screen, pressing ESC will take you to the status
screens (and vice versa).
