Aquverse B17A Troubleshooting Instructions Supplement

B17A (5H) Aquverse Water Cooler Troubleshooting Instructions Supplement
****Warning do not plug water cooler in until water bottle is in place and dispensing water through the
Parts Extraction:
1. To Remove Front Cabinet Cover
a. Remove drip tray (see figure A and B below)
b. Remove screw at the bottom of the cabinet cover (see figure C and D below)
c. Firmly press where indicated (see figure E and F below) and pulling from the top of the cabinet cover, remove
cabinet cover
2. To Remove Baffle From Top of the Water Cooler
a. Turn the Baffle counter clockwise till the open arrow meets the corresponding arrow on the top of the cooler
body (see figure G and H below)
b. Grip baffle from two opposite sides and pull upwards out of the cooler body (see figure I below)
faucets****

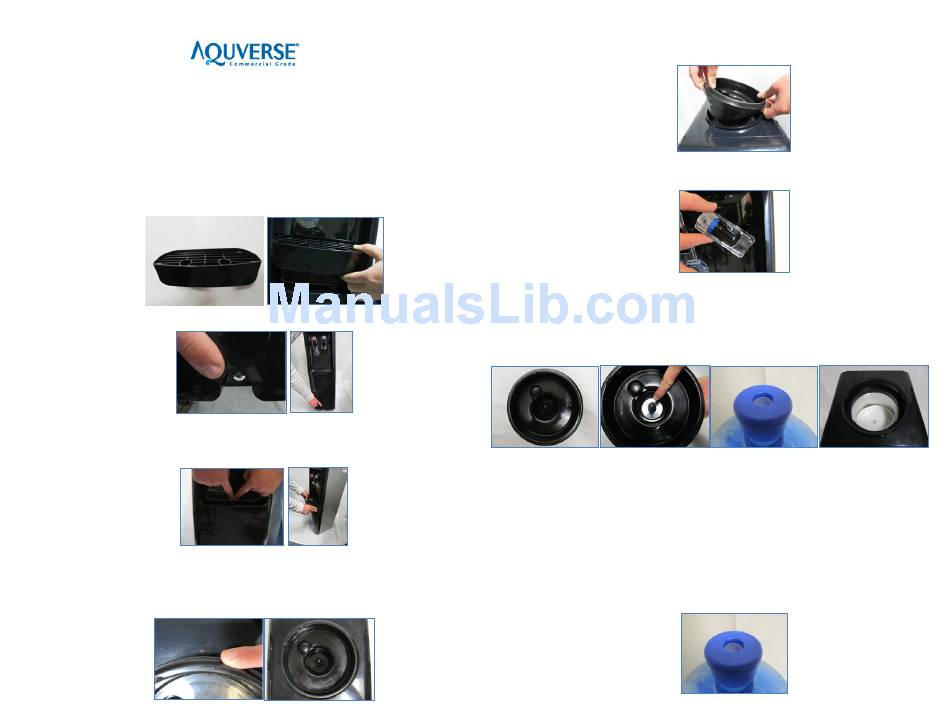

Figure A Figure B
Figure C Figure D
Figure E Figure F
Figure G Figure H
b. Grip baffle from two opposite sides and pull upwards out of the cooler body (see figure I below)
3. To Remove Faucets
a. Grip faucet in hand and unscrew faucet counter clockwise (see figure J below)
General Information Helpful To Trouble Shooting
1. Note that your cooler is built with a no spill kit (see figure K below). This unit is designed to be used with a bottle
that has a cap made to be punctured by our probe (see figure L below). The bottle cap (see figure M below) can be
taken off if you also remove the no spill kit completely (see figure N below)
Figure K Figure L
2.
If cooler is not functioning make sure you are using a working outlet by testing it with a lamp
What To Do If:
1. Cooler Is Not Dispensing Water
a. Make sure water bottle is full
b. Make sure the water bottle is being properly pierced by the probe in the baffle
c. Confirm that cooler is not frozen by:
1. Removing baffle (see above instructions under Parts Removal section 3),
d. Check water bottle to determine if cap is jammed and not dispensing water (see figure O below)
e. Check faucets to determine if water is able to flow through when in on position (see figure P and Q below)
Figure G Figure H
Figure I
Figure J
Figure M
Figure O
Figure N
