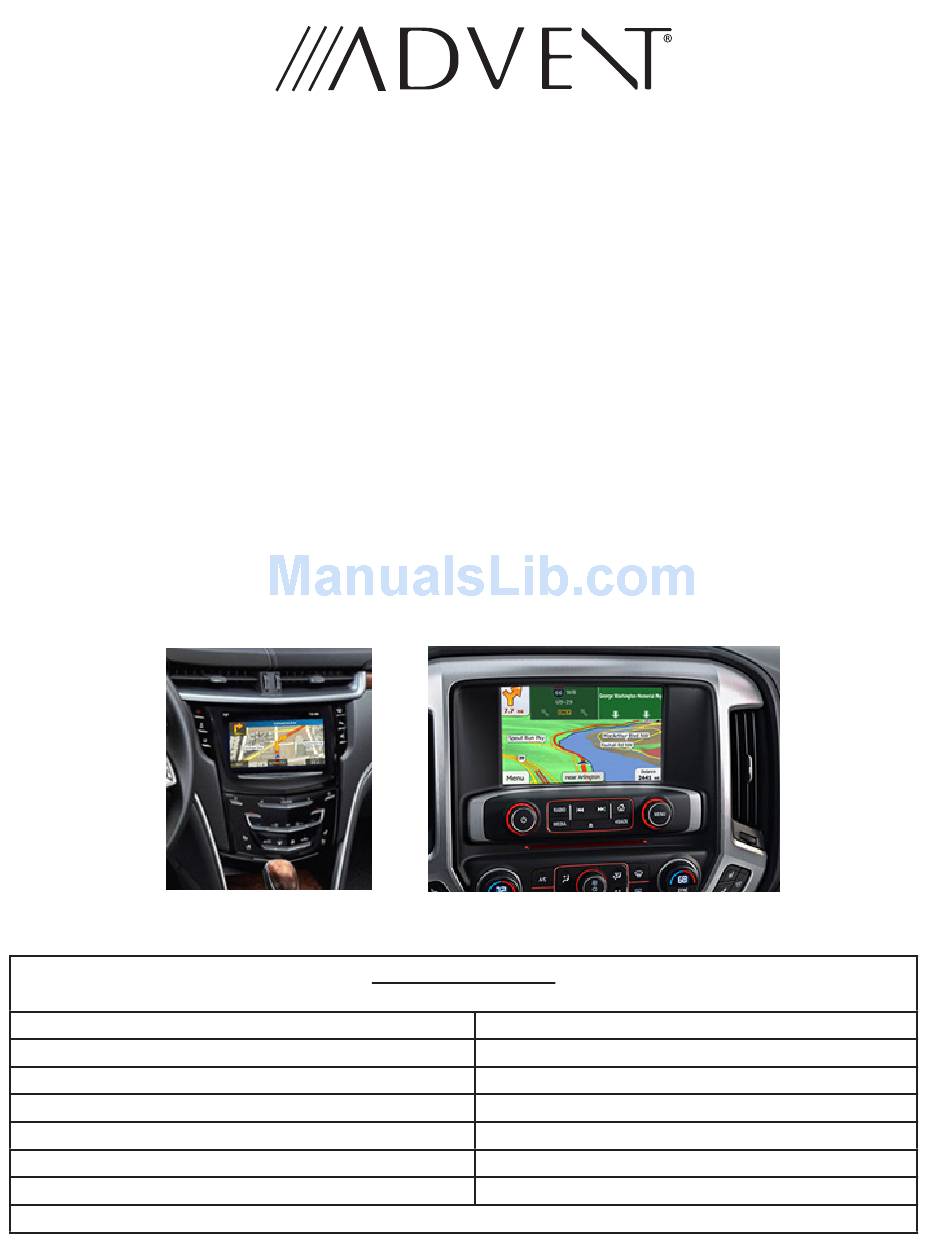

CADNAV1 Advent Integrated Navigation
This interface is designed to integrate Navigation into select
Cadillac CUE, Buick, Chevrolet and GMC MyLink Systems.
This system is NOT applicable to vehicles that do not have
CUE or MyLink/Intelilink and will not operate in those
The following items are supplied with the CADNAV1
•
LVDS Video Cable #31414170
•
CAN Module #33814170
•
CAD Power Harness #37514170
•
Buick Power Harness #37614170
•
CAN to NAV #30314170
•
Switch #34714170
•
Installation Guide
vehicles.
INSTALLATION GUIDE
What's in the Box
NOTE: Not all parts are used in every installation.
•
Aux Audio # 31514170
•
GPS Antenna #34914170
•
USB Update Cable #32714170
•
Map SD Card #35014170
•
Speaker Wire Harness #31914170
•
AUX Video #33914170
•
External Speaker #33514190
Advertisement
Table of Contents
Related Manuals for Advent CADNAV1
Summary of Contents for Advent CADNAV1
-
Page 1: Installation Guide
This system is NOT applicable to vehicles that do not have CUE or MyLink/Intelilink and will not operate in those vehicles. INSTALLATION GUIDE What’s in the Box The following items are supplied with the CADNAV1 • LVDS Video Cable #31414170 • Aux Audio # 31514170 •... - Page 2 Prior to Installation: Care must be taken when installing this accessory to ensure damage does not occur to the vehicle. The installation of this accessory should follow approved guidelines to ensure a quality installation. Read entire instructions thoroughly before starting. This document covers such items as:- •...
- Page 3 Installation: Removal of the Radio control center is required for installation. Vehicle Specific instructions are available on-line at www. voxxuniversity.com. After the components are removed, connect the following: The navigation module can be located behind the radio or to either side. Determine your exact mounting location to insure you route your wires correctly.
- Page 4 USB Update Cable: This is used for map updates. Route the cable from the module to the glove box for future use as needed. Connect to the Nav module. 10. GPS Antenna: The antenna must be mounted in a location where it has a clear view of the sky. Center of the dash by the glass is recommended.
- Page 5 Navigation Interface Operation: CUE Equipped Vehicles: To change the OEM radio to Navigation mode press the Navigation icon on the main screen. Exit Navigation by pressing the home key on the radio face (see circled area). The nav will continue to operate unless you have selected to stop the route or used the Navigation Exit icon in the Nav application.
-
Page 6: Specifications
For Navigation operation see the included quick start guide or download a full user’s manual from WWW.ADVENTPRODUCTS.COM f the picture is not centered or does not fill the screen correctly you can adjust the picture size. Access the settings menu by pressing the Menu button on the side of the Nav Interface Module. - Page 7 Vehicle Specific Instructions, Tech Tips, and Installation notes can be found at WWW.AUDIOVOXUNIVERSITY.COM...
- Page 8 Voxx Electronics Corporation Hauppauge, NY 11788 Technical Assistance: 1-800-323-4815 WWW.ADVENTPRODUCTS.COM © 2014 Printed in China 128-9394...
