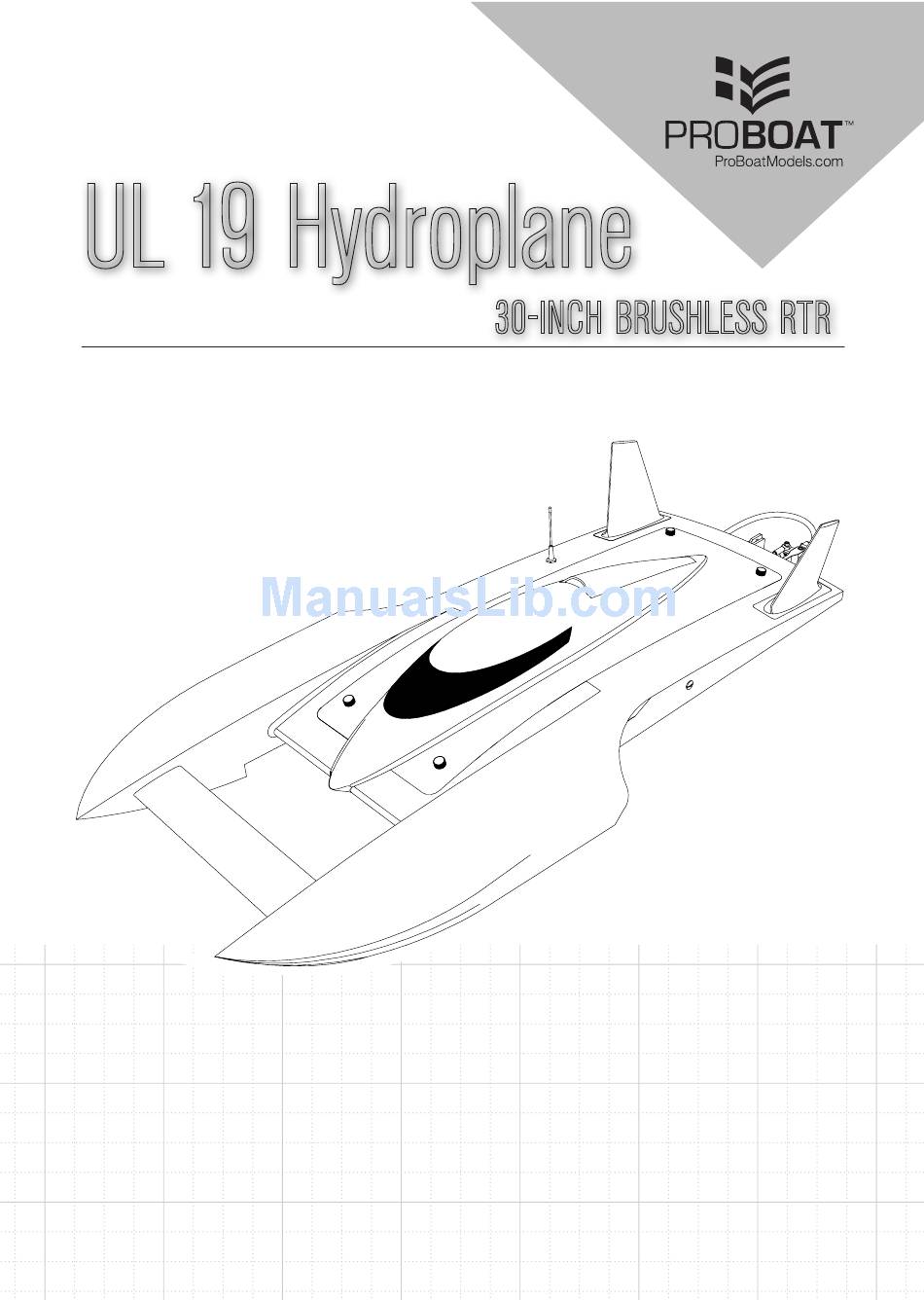

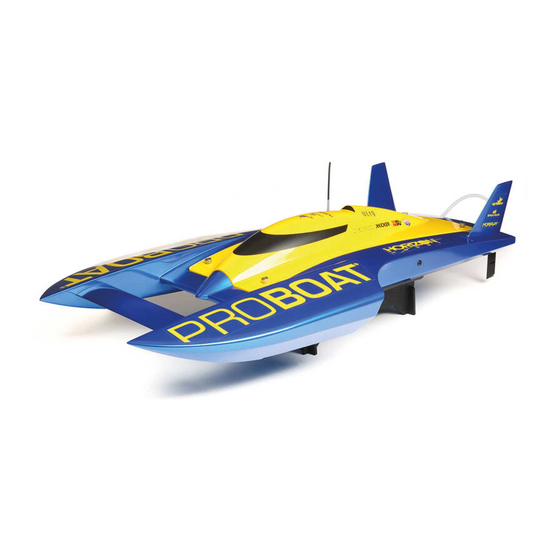

- Page 1 UL 19 Hydroplane 30 - INCH BRUSHLESS RTR PRB08028 Owners Manual • Bedienungsanleitung Manuel de l’utilisateur • Manuale dell’utente...
-
Page 2: Table Of Contents
Instructions for Disposal of WEEE ........ 14 Control Check ..............8 Replacement Parts ............54 Testing Your Boat in the Water ........8 Recommended Parts ............. 54 Boating Tips ..............9 Optional Parts ..............55 Motor Care ..............9 UL 19 Hydroplane... -
Page 3: Water-Resistant Boat With Waterproof Electronics
Water-Resistant Boat with Waterproof Electronics Your new Horizon Hobby boat has been designed and Metal parts, including the bearings, pins, screws and nuts, built with a combination of waterproof and water-resistant propeller, rudder, rudder mounts, prop struts, as well as components to allow you to operate the product in calm, the contacts in the electrical cables, will be susceptible fresh water conditions. -
Page 4: Recommended Tools And Materials
The antenna must be installed above the boat's waterline to get the best reception of your transmitter's signal. NOTICE: Do not cut or kink the receiver antenna or damage may result. UL 19 Hydroplane... -
Page 5: Canopy Removal
Canopy Removal 1. Loosen the 4 screws located at each corner of the canopy. 2. Remove the canopy from the hull starting with the 2 rear screws. Ensure that the 4 screws have disengaged from their bases before carefully lifting the canopy. -
Page 6: Spektrum Dx2E Radio System
2. Install the batteries as shown. 3. Install the battery cover. CAUTION: If using rechargeable batteries, charge only rechargeable batteries. Charging non- rechargeable batteries may cause the batteries to burst, resulting in injury to persons and/or damage to property. UL 19 Hydroplane... -
Page 7: Binding
Binding If you encounter problems, obey binding instructions The included transmitter and receiver are bound at the factory. If you need to rebind, follow the instructions and refer to the troubleshooting guide for other below. instructions. If needed, contact the appropriate Horizon Product Support office. -
Page 8: Control Check
1.5mm hex driver to loosen the set screw holding the push rod to the servo. Adjust the linkage in or out of the brass barrel until the rudder is centered. Tighten the set screw using a 1.5mm hex driver. UL 19 Hydroplane... -
Page 9: Boating Tips
Boating Tips When running your boat for the first time, we If the propeller and rudder are blocked with debris or recommend calm wind and water conditions so that you vegetation, remove the boat from the water and remove can learn how the boat responds to your control. the debris before continuing operation. -
Page 10: After Boating And Maintenance
To secure the propeller while loosening the nut, hold the propeller. 2. Remove the nut and propeller from the driveshaft. 3. Assemble in reverse order. Correctly align the propeller with the drive dog on the driveshaft. UL 19 Hydroplane... -
Page 11: Propeller Strut Depth Adjustment
Propeller Strut Depth Adjustment Raising the propeller strut increases speed but decreases handling. Lowering the propeller strut increases stability but decreases speed. 1. Use a 3 mm hex driver and 7mm open-end wrench to loosen the propeller strut bolt. 2. Slide the strut up or down to change the angle of the propeller in relation to the hull. -
Page 12: Troubleshooting Guide
Contact Horizon Product Support ESC failed Contact Horizon Product Support No throttle or lack of throttle Motor failed Contact Horizon Product Support ESC emits a continues Throttle trim not centered Center throttle trim on transmitter tone when powered on UL 19 Hydroplane... -
Page 13: Limited Warranty
Limited Warranty distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, What this Warranty Covers please visit our website at www.horizonhobby.com, submit a Horizon Hobby, LLC, (Horizon) warrants to the original Product Support Inquiry, or call the toll free telephone number purchaser that the product purchased (the “Product”) will be... -
Page 14: Warranty And Service Contact Information
For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product. UL 19 Hydroplane... -
Page 15: Replacement Parts
Transparentes, flexibles Adhésif Marin transparent Nastro marino flessibile DYNM0102 (18M) Marine Tape (18 m) flexible (18M) trasparente (18 m.) Dynamite LED Program Carte de programmation à Scheda di programmazione DYNS3005 Dynamite LED-Programmkarte Card DELs pour bateau LED Dynamite UL 19 Hydroplane... -
Page 16: Optional Parts
DYNE4201 Marine Grease 5 oz Marine Grease 142 g (5 oz) Graisse marine 140g Grasso marino 5 oz Anfänger-Werkzeugsatz: Pro Proboat - Set d’outils de DYNT0502 Start Up Tool Set: Pro Boat Set attrezzi: Pro Boat Boat démarrage Left Propeller: Zelos... - Page 17 53738 Created: 02/2017 ©2017 Horizon Hobby LLC. Pro Boat, the Pro Boat logo, DSMR, EC5, Dynamite, Reaction, Passport and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
