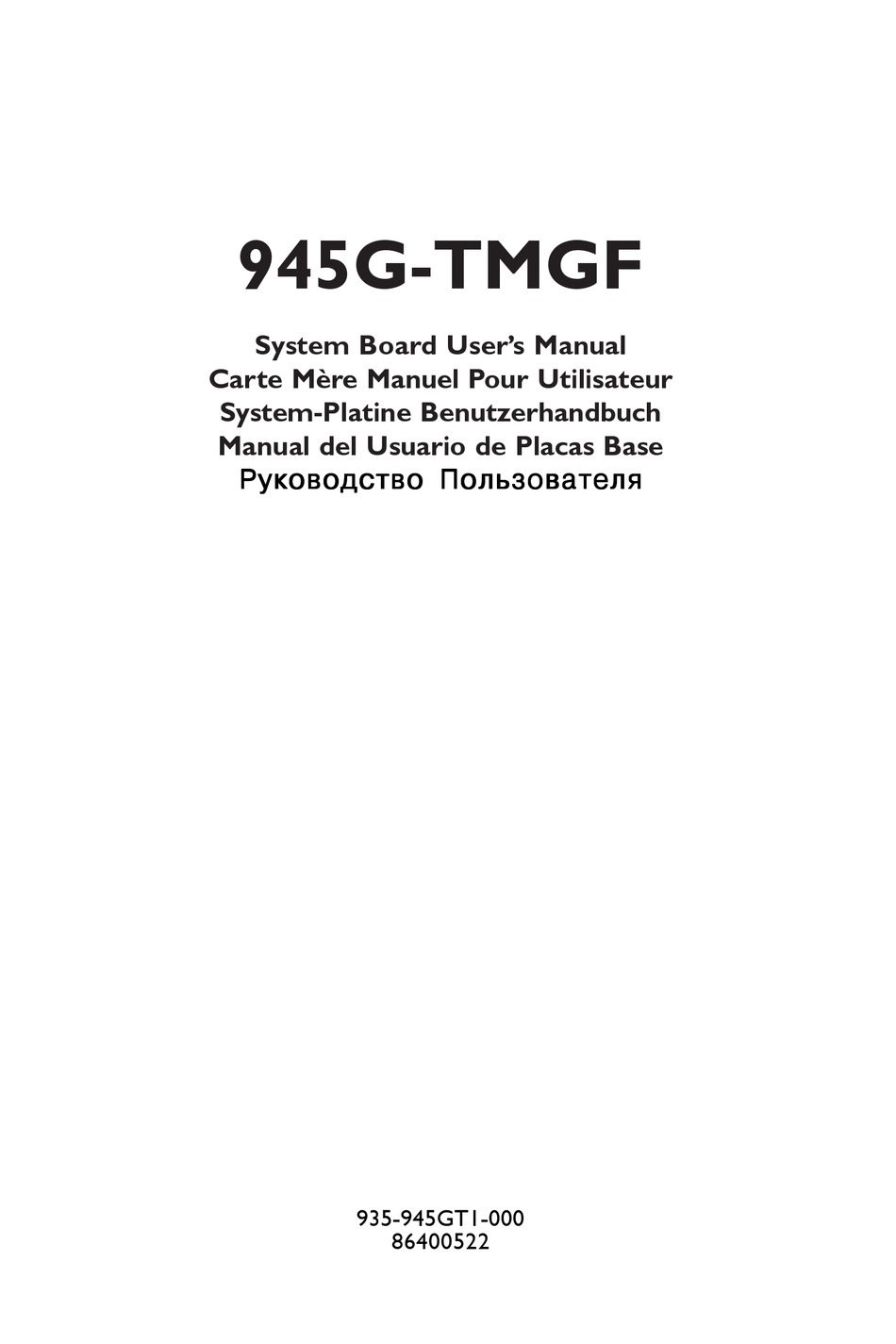

- Page 1 945G-TMGF System Board User’s Manual Carte Mère Manuel Pour Utilisateur System-Platine Benutzerhandbuch Manual del Usuario de Placas Base Ðóêîâîäñòâî Ïîëüçîâàòåëÿ Ðóêîâîäñòâî Ïîëüçîâàòåëÿ Ðóêîâîäñòâî Ïîëüçîâàòåëÿ Ðóêîâîäñòâî Ïîëüçîâàòåëÿ Ðóêîâîäñòâî Ïîëüçîâàòåëÿ 935-945GT1-000 86400522...
-
Page 2: Quick Setup Guide
Quick Setup Guide Copyright This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders. -
Page 3: Table Of Contents
Quick Setup Guide Table of Contents Chapter 1 Quick Setup Guide..........Chapter 2 English..............Chapter 3 Français..............Chapter 4 Deutsch................Chapter 5 Español................Chapter 6 Ðóññêèé............... The user’s manual in the provided CD contains detailed information about the system board. If, in some cases, some information doesn’t match those shown in this manual, this manual should always be re- garded as the most updated version. -
Page 4: Chapter 1 Quick Setup Guide
Quick Setup Guide Chapter 1 - Quick Setup Guide System Board Layout... -
Page 5: System Memory
Quick Setup Guide System Memory DDR2_1 DDR2_2 DDR2_3 DDR2_4 Channel A - DDR2_1 and DDR2_2 Channel B - DDR2_3 and DDR2_4 Single Channel DIMMs are on the same channel. DIMMs in a channel can be identical or completely different. Not all slots need to be populated. Virtual Single DIMMs of different memory configurations Channel... -
Page 6: Clear Cmos Data
Quick Setup Guide Jumpers Clear CMOS Data 1-2 On: Normal (default) 2-3 On: Clear CMOS Data PS/2 Power Select 1-2 On: 5V 2-3 On: 5VSB (default) Important: The 5VSB power source of your power supply must support ≥ 720mA. -
Page 7: Usb Power Select
Quick Setup Guide USB Power Select USB 1-4 (JP2) 2-3 On: 5VSB 1-2 On: 5V (default) USB 5-8 1-2 On: 5V 2-3 On: 5VSB (JP1) (default) Important: If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5VSB power source of your power supply must support ≥... -
Page 8: I/O Connectors
Quick Setup Guide I/O Connectors IEEE 1394 1394_1 1394_2 USB Ports USB 2 USB 1 USB 4 USB 3 USB 5-6 USB 7-8... -
Page 9: Audio (Rear Audio And Front Audio)
Quick Setup Guide Audio (Rear Audio and Front Audio) Line-in Line-out Rear Audio Mic-in Front audio 2-channel 4-channel 6-channel Light Blue Line-in Line-in Center/Subwoofer Lime Line-out Front R/L Front R/L Mic-in Rear R/L Rear R/L Pink CD-in Internal Audio Connector Ground Ground Right audio... - Page 10 Quick Setup Guide S/PDIF SPDIF out SPDIF in Floppy Disk Drive Connector...
- Page 11 Quick Setup Guide Serial ATA Connectors SATA 4 SATA 3 SATA 2 SATA 1 IDE Disk Drive Connector...
-
Page 12: Irda Connector
Quick Setup Guide IrDA Connector N. C. IRRX Ground IRTX Note: The sequence of the pin functions on some IR cable may be reversed from the pin function defined on the system board. Make sure to connect the cable connector to the IR connector according to their pin functions. -
Page 13: Power Connectors
Quick Setup Guide Power Connectors +12V +12V Ground Ground 1 2 2 4 +3.3VDC +12VDC +5VDC +12VDC +5VDC +5VDC +5VSB PWR_OK +5VDC PS_ON# +5VDC -12VDC +3.3VDC +3.3VDC +3.3VDC Important: To ensure that adequate power is provided, we strongly recommend that you use a minimum of 400 Watt (or greater) power supply. PCI Express x16 and x1 Slots PCI Express x16 PCI Express x1... -
Page 14: Front Panel Connectors
Quick Setup Guide Front Panel Connectors 2 01 9 SPEAKER RESET ATX-SW HD-LED PWR-LED Pin Assignment HD-LED HDD LED Power (Primary/Secondary IDE LED) Reserved N. C. N. C. ATX-SW PWRBT+ (ATX power switch) PWRBT- Reserved N. C. N. C. RESET Ground (Reset switch) H/W Reset... -
Page 15: Chapter 2 English
English Chapter 2 - English Features and Specifications Processor ® ® • Intel Pentium 4 Prescott processor Hyper-Threading Technology 533MT/s, 800MT/s (200MHz) and 1066MT/s (266MHz) system bus interface • Socket LGA 775 (LAN Grid Array) Chipset • Intel chipset ® North bridge: Intel 945G Express chipset ®... - Page 16 English Hardware Monitor • Monitors CPU/system temperature and overheat alarm • Monitors Vcore/V3SB/Vcc3/Vcc5/12V/V5SB/VBAT voltages • Monitors the speed of the CPU/system fan • CPU Overheat Protection function monitors CPU temperature and fan during system boot-up - automatic shutdown upon system overheat Onboard VGA Features •...
- Page 17 English Rear Panel I/O Ports • 1 mini-DIN-6 PS/2 mouse port • 1 mini-DIN-6 PS/2 keyboard port • 1 DB-9 serial port • 1 DB-25 parallel port • 1 DB-15 VGA port • 1 IEEE 1394 port • 1 RJ45 LAN port •...
-
Page 18: Package Checklist
English Package Checklist The system board package contains the following items: One system board One IDE cable One floppy cable Two Serial ATA data cables One Serial ATA power cable One I/O shield One “Mainboard Utility” CD One user’s manual If any of these items are missing or damaged, please contact your dealer or sales representative for assistance. -
Page 19: Chapter 3 Français
Français Chapter 3 - Français Caractéristiques et Spécifications Processeur ® ® • Les processeurs Intel Pentium 4 Prescott Intel Hyper-Threading Technologie Interface du bus système 533MT/s, 800MT/s (200MHz) et 1066MT/s (266MHz) • Socket LGA 775 (LAN Grid Array) Chipset • Intel chipset ®... - Page 20 Français • Protection du CPU - supporte la mise hors circuit automatique en cas de surchauffage du système Fonctionnalités Graphiques Intégrées • Intel Graphics Media Accelerator 900 intégrées Fonctionnalités Audio Intégrées • 6-canaux audio CODEC • Codec full-duplex avec fréquence d’échantillonnage variable indépendante •...
- Page 21 Français Connecteurs Entrée/Sortie • 2 connecteurs pour 4 ports USB 2.0/1.1 supplémentaires • 1 connecteur pour 1 IEEE 1394 • 1 connecteur audio de l’avant pour la sortie ligne/l’entrée micro • 1 connecteur CD-in audio internes • 1 S/PDIF l’assemblage pour l’adjonction de câble optique •...
-
Page 22: Chapter 4 Deutsch
Deutsch Chapter 4 - Deutsch Leistungsmerkmale und Technische Daten Prozessor ® ® • Intel Pentium 4 Prescott Prozessor Intel Hyper-Threading Technologie Interface des Systemreifens 533MT/s, 800MT/s (200MHz) und 1066MT/s (266MHz) • Prozessor Socket LGA 775 (LAN Grid Array) Chipset • Intel chipset ®... - Page 23 Deutsch System Health Monitor Funktions • Überwachung der Temperatur des CPU/Systems sowie Warnsignal bei Überhitzung • Überwachung der Spannungen des Vcore/V3SB/Vcc3/Vcc5/12V/ V5SB/VBAT • Überwachung der Geschwindigkeit des CPU-Ventilators und Systems-Ventilators • Prozessor-Shutz - Die Ausschaltung bei der Überhitzung – die automatische Ausschaltung des Computers bei der Überhitzung Die Eingebauten Graphischen Möglichkeiten •...
- Page 24 Deutsch Ein-/Ausgabe-Porte an der Rückwand • 1 Mini-DIN-6-Anschluß für eine PS/2-Maus • 1 Mini-DIN-6-Anschluß für eine PS/2-Tastatur • 1 serieller DB-9-Anschlüsse • 1 DB-25-Parallelanschluß • 1 VGA DB-15-Anschlüsse • 1 IEEE 1394-Anschlüsse • 1 RJ45 LAN-Anschlüsse • 4 USB 2.0/1.1-Anschlüsse •...
- Page 25 Deutsch Verpackungsliste In der Verpackung der Systemplatine sind folgende Artikel enthalten: 1 Systemplatine 1 IDE-Kabel 1 FDD-Kabel 2 SATA-Kabel 1 SATA-Energiekabel-Kabel 1 I/O-Shutzdeckel 1 CD mit “Mainboard Utility” 1 Benutzerhandbuch Fehlt einer dieser Ar tikel oder weist einer dieser Ar tikel Beschädigungen auf, wenden Sie sich an Ihren Händler oder Vertreter.
-
Page 26: Chapter 5 Español
Español Chapter 5 - Español Características y Especificaciones Procesador ® ® • Procesador Intel Pentium 4 Prescott Intel Hyper-Threading Tecnología Interface de la barra sistémica 533MT/s, 800MT/s (200MHz) y 1066MT/s (266MHz) • Zócalo LGA 775 (LAN Grid Array) Chipset • Intel chipset ®... -
Page 27: Ieee
Español • Protección del procesador - Desconección en caso de recalentamiento –el ordenador se desconecta automáticamente en caso de recalentamiento Recursos Gráficos Integrados • Intel Graphics Media Accelerator 900 integrado Recursos Audio Integrados • Audio CODEC de 6-canal • Codec dúplex completo con independiente frecuencia de muestreo variable •... - Page 28 Español I/O Conectores • 2 conectors para 4 puertos de USB 2.0/1.1 externo adicional • 1 conector para un puerto de IEEE 1394 • 1 conectador audio delantero para la salida extrema de linea y el micro • 1 conector de CD-in audio interno •...
-
Page 29: Chapter 6 Ðóññêèé
Ðóññêèé Ãëàâà Ãëàâà Ãëàâà 6 6 6 6 6 - - - - - Ðóññêèé ÿçûê Ðóññêèé ÿçûê Ðóññêèé ÿçûê Ðóññêèé ÿçûê Ãëàâà Ãëàâà Ðóññêèé ÿçûê Õàðàêòåðèñòèêè è ñâîéñòâà Õàðàêòåðèñòèêè è ñâîéñòâà Õàðàêòåðèñòèêè è ñâîéñòâà Õàðàêòåðèñòèêè è ñâîéñòâà Õàðàêòåðèñòèêè è ñâîéñòâà Ïðîöåññîð... - Page 30 Ðóññêèé Ôóíêöèè Ìîíèòîðèíãà Ñîñòîÿíèÿ Ñèñòåìû Ôóíêöèè Ìîíèòîðèíãà Ñîñòîÿíèÿ Ñèñòåìû Ôóíêöèè Ìîíèòîðèíãà Ñîñòîÿíèÿ Ñèñòåìû Ôóíêöèè Ìîíèòîðèíãà Ñîñòîÿíèÿ Ñèñòåìû Ôóíêöèè Ìîíèòîðèíãà Ñîñòîÿíèÿ Ñèñòåìû • Mîíèòîðèíã òåìïåðàòóðû ïðîöåññîðà/ñèñòåìû • Mîíèòîðèíã íàïðÿæåíèé Vcore/V3SB/Vcc3/Vcc5/12V/ V5SB/VBAT • Mîíèòîðèíã ñêîðîñòè âðàùåíèÿ âåíòèëÿòîðà ïðîöåññîðà/ñèñòåìû • Çàùèòà ïðîöåññîðà - Âûêëþ÷åíèå ïðè ïåðåãðåâå – àâòîìàòè÷åñêîå...
- Page 31 Ðóññêèé Ïîðòû Ââîäà/Âûâîäà (I/O) çàäíåé ïàíåëè Ïîðòû Ââîäà/Âûâîäà (I/O) çàäíåé ïàíåëè Ïîðòû Ââîäà/Âûâîäà (I/O) çàäíåé ïàíåëè Ïîðòû Ââîäà/Âûâîäà (I/O) çàäíåé ïàíåëè Ïîðòû Ââîäà/Âûâîäà (I/O) çàäíåé ïàíåëè • 1 ìèíè-DIN-6 PS/2 ïîðò äëÿ ìûøè • 1 ìèíè-DIN-6 PS/2 ïîðò äëÿ êëàâèàòóðû •...
- Page 32 Ðóññêèé Êîìïëåêòàöèÿ Êîìïëåêòàöèÿ Êîìïëåêòàöèÿ Êîìïëåêòàöèÿ Êîìïëåêòàöèÿ Êîìïëåêòàöèÿ ïîñòàâêè ìàòåðèíñêîé ïëàòû: 1 Ñèñòåìíàÿ ïëàòà 1 êàáåëü IDE 1 êàáåëü FDD 2 êàáåëü Serial ATA 1 øëåéô øíóðîì ïèòàíèÿ Serial ATA 1 çàùèòíàÿ êðûøêà I/O Îäèí CD ñ “Mainboard Utility” 1 Ðóêîâîäñòâî ïîëüçîâàòåëÿ Åñëè...
