915GM-MGF

System Board User's Manual

Carte Mère Manuel Pour Utilisateur

System-Platine Benutzerhandbuch

Manual del Usuario de Placas Base

Ð ó ê î â î ä ñ ò â î Ï î ë ü ç î â à ò å ë ÿ

935-915GM2-000(G)

日本語

88710547

Table of Contents

Summary of Contents for DFI 915GM-MGF

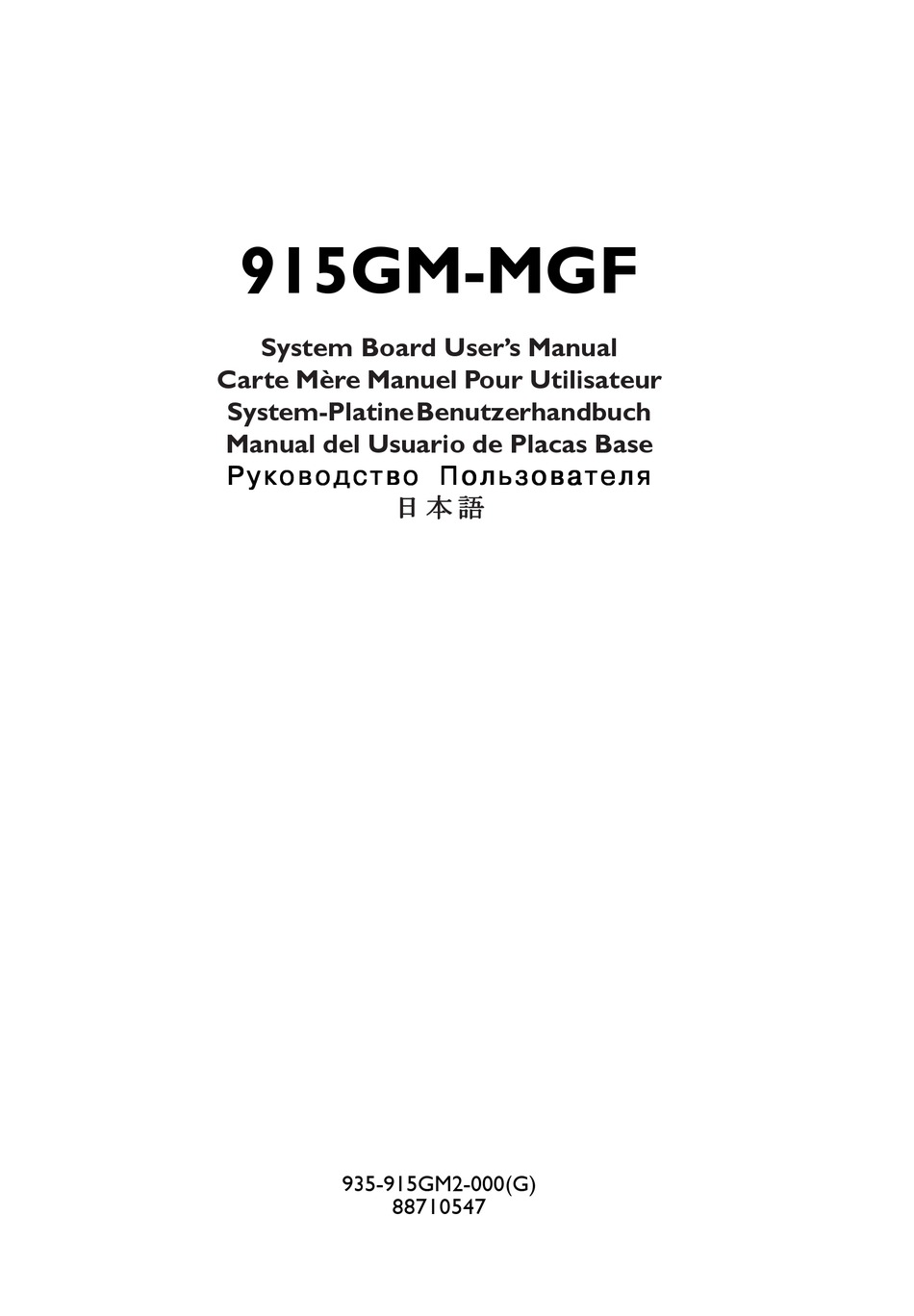

Page 1 915GM-MGF System Board User’s Manual Carte Mère Manuel Pour Utilisateur System-Platine Benutzerhandbuch Manual del Usuario de Placas Base Ð ó ê î â î ä ñ ò â î Ï î ë ü ç î â à ò å ë ÿ...
Page 2: Quick Setup Guide
Quick Setup Guide Copyright This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.
Page 3: Table Of Contents
Quick Setup Guide Table of Contents Chapter 1 Quick Setup Guide..........Chapter 2 English..............Chapter 3 Français..............Chapter 4 Deutsch................Chapter 5 Español................Chapter 6 Ðóññêèé............... Chapter 7 Japanese................ The user’s manual in the provided CD contains detailed information about the system board. If, in some cases, some information doesn’t match those shown in this manual, this manual should always be re- garded as the most updated version.
Page 4: Chapter 1 Quick Setup Guide
Quick Setup Guide Chapter 1 - Quick Setup Guide System Board Layout...
Page 5 Quick Setup Guide System Memory DDR 2 DDR 1 Jumpers Power-on Select 2-3 On: 1-2 On: Power-on via Power-on via power button AC power (default) Important: 1. Set JP8 pins 1 and 2 to On. 2. The PWRON After PWR-Fail field must be set to "On". (Integrated Peripherals submenu, Super I/O Device section of the BIOS).
Page 6 Quick Setup Guide PS/2 Power Select 1-2 On: 5V 2-3 On: 5VSB (default) Important: The 5VSB power source of your power supply must support ≥ 720mA. COM 2 RS232/AUX Select 1-3, 2-4 On: 3-5 (5V), RS232 4-6 (12V) On: (default) Auxiliary power...
Page 7: Usb Power Select
Quick Setup Guide USB Power Select USB 1-4 (JP2) 1-2 On: 5V 2-3 On: 5VSB (default) USB 5-8 1-2 On: 5V 2-3 On: 5VSB (JP5) (default) Important: If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5VSB power source of your power supply must support ≥...
Page 8 Quick Setup Guide Pentium M Processor FSB Select 4-6 On: 3-5, 4-6 On: 1-3, 2-4 On: Dothan-A step Dothan-A step Dothan-B step FSB400 FSB533 Important: Overclocking may result to the CPU’s or system’s instability and are not guaranteed to provide better system performance. If you are unable to boot your system due to overclocking, make sure to set this jumper back to its default settings.
Page 9 Quick Setup Guide Rear Panel I/O Ports PS/2 Mouse Parallel 1394_1 Mic-in Line-in Line-out PS/2 KB COM 1 USB 1-2 USB 3-4 Internal I/O Connectors COM 2...
Page 10 Quick Setup Guide IEEE 1394_2 USB Connectors USB 5-6 USB 7-8...
Page 11: Front Audio
Quick Setup Guide Front Audio 2-channel 4-channel 6-channel Line-in Rear R/L Rear R/L Light Blue Lime Line-out Front R/L Front R/L Mic-in Mic-in Center/Subwoofer Pink CD-in Internal Audio Connector Ground Ground Left audio Right audio channel channel...
Page 12: Floppy Disk Drive Connector
Quick Setup Guide S/PDIF Connector SPDIF out SPDIF in Floppy Disk Drive Connector...
Page 13 Quick Setup Guide Serial ATA Connectors SATA 2 SATA 1 IDE Disk Drive Connector...
Page 14: Irda Connector
Quick Setup Guide IrDA Connector IRRX N. C. Ground IRTX Note: The sequence of the pin functions on some IR cable may be reversed from the pin function defined on the system board. Make sure to connect the cable connector to the IR connector according to their pin functions.
Page 15: Power Connector
Quick Setup Guide Chassis Open Connector Chassis Ground signal Power Connector 3.3V 3.3V -12V 3.3V Ground Ground PS-ON Ground Ground Ground Ground Ground PW-OK 5VSB +12V Important: To ensure that adequate power is provided, we strongly recommend that you use a minimum of 400 Watt (or greater) power supply.
Page 16: Front Panel Connectors
Quick Setup Guide DIMM and PCI Standby Power LEDs DIMM Standby Power LED PCI Standby Power LED Important: If the DIMM Standby Power LED or PCI Standby Power LED is lighted, you must power-off the system then turn off the power supply’s switch or unplug the power cord prior to installing any memory modules or add-in cards.
Page 17 Quick Setup Guide PCI Express x16 and x1 Slots PCI Express x16 PCI Express x1...
Page 18: Chapter 2 English
English Chapter 2 - English Processor Intel Pentium M Dothan processor ® ® - 533MHz/400MHz system data bus Intel Celeron M processor ® ® - 400MHz system data bus Processor socket: mPGA479M Chipset Intel chipset ® - North bridge: Intel 915GM Express chipset ®...
Page 19 English RTL8110SB Gigabit ethernet controller Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE- TX) and 802.3ab (1000BASE-T) standards Supports up to UltraDMA 100Mbps hard drives Serial ATA Supports two Serial ATA ports SATA speed up to 1.5Gb/s IEEE 1394 VIA VT6307 Supports two 100/200/400 Mb/sec ports Rear Panel I/O 1 mini-DIN-6 PS/2 mouse port...
Page 20: Chapter 3 Français
Français Chapter 3 - Français Processeur Les processeurs Intel Pentium M Dothan ® ® - Interface du bus système 533MHz/400MHz Les processeurs Intel Celeron ® ® - Interface du bus système 400MHz Processeur socket: mPGA479M Chipset Intel chipset ® - Pont nord: Intel 915GM Express chipset ®...
Page 21: Français
Français RTL8110SB Gigabit ethernet controleur Entièrement conforme IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) et 802.3ab (1000BASE-T) standard Supporte des disques durs jusqu’à UltraDMA 100Mbps Serial ATA Supporte 2 interface Serial ATA SATA vitesse jusqu’à 1.5Gb/s IEEE 1394 VIA VT6307 Supporte 2 100/200/400 Mb/sec ports Panneau Arrière I/O 1 port souris PS/2 1 port clavier PS/2...
Page 22: Chapter 4 Deutsch
Deutsch Chapter 4 - Deutsch Prozessor Intel Pentium M Dothan prozessor ® ® - Interface des Systemreifens 533MHz/400MHz Intel Celeron M prozessor ® ® - Interface des Systemreifens 400MHz Prozessor socket: mPGA479M Chipset Intel chipset ® - Nordbrücke: Intel 915GM Express chipset ®...
Page 23 Deutsch Audio Realtek ALC655 5.1-Kanal-audio-CODEC Naturgetreue Stereo-Leitungspegel-Ausgabe S/PDIF-In/Aus-Schnittstelle RTL8110SB Gigabit ethernet kontroller Völlig gefällig zu IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) und 802.3ab (1000BASE-T) standards Unterstützung der Festplatten bis zum UltraDMA 100Mbps Serial ATA Unterstützt 2 Serial ATA-porte 1.5Gb/s SATA-Geschwindigkeit IEEE 1394 VIA VT6307 Supports 2 100/200/400 Mb/sec porte Porte an der...
Page 24 Deutsch Verpackungsliste In der Verpackung der Systemplatine sind folgende Artikel enthalten: 1 Systemplatine 1 Benutzerhandbuch 1 IDE-Kabel 1 FDD-Kabel 1 SATA-Kabel 1 SATA-Energiekabel-Kabel 1 I/O-Shutzdeckel 1 CD mit “Mainboard Utility” Fehlt einer dieser Artikel oder weist einer dieser Artikel Beschädigungen auf, wenden Sie sich an Ihren Händler oder Vertreter.
Page 25: Chapter 5 Español
Español Chapter 5 - Español Procesador Procesador Intel Pentium M Dothan ® ® - Interface de la barra sistémica 533MHz/400MHz Procesador Intel Celeron ® ® - Interface de la barra sistémica 400MHz Zócalo socket: mPGA479M Chipset Intel chipset ® - Puente norte: Intel 915GM Express chipset ®...
Page 26: Español
Español RTL8110SB Gigabit ethernet controller Completamente a IEEE 802.3 (10BASE-T), 802.3u (100BASE- TX) y 802.3ab (1000BASE-T) estándar Soporta las unidades duras hasta de UltraDMA 100Mbps Serial ATA Soporta 2 interfaz Serial ATA Velocidad de SATA a 1.5Gb/s IEEE 1394 VIA VT6307 Soporta 2 por ts 100/200/400 Mb/sec Panel Trasero I/O 1 puerto de ratón mini-DIN-6 PS/2...
Page 27: Chapter 6 Ðóññêèé
Ðóññêèé Ãëàâà Ãëàâà Ãëàâà 6 6 6 6 6 - - - - - Ðóññêèé ÿçûê Ðóññêèé ÿçûê Ðóññêèé ÿçûê Ãëàâà Ãëàâà Ðóññêèé ÿçûê Ðóññêèé ÿçûê Ïðîöåññîð Ïðîöåññîð Ïðîöåññîð Ïðîöåññîð Ïðîöåññîð Ïðîöåññîð Intel Pentium M Dothan ® ® - Èíòåðôåéñ ñèñòåìíîé øèíû 533MHz/400MHz Ïðîöåññîð...
Page 28 Ðóññêèé L A N L A N L A N L A N L A N RTL8110SB Gigabit ethernet êîíòðîëëåð Ïîääåðæèâàåò IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) è 802.3ab (1000BASE-T) Ïîääåðæèâàåò æåñòêèå äèñêè äî UltraDMA 100Mbps Serial A Serial AT T T T T A A A A A Serial A Serial A Serial A...
Page 29 Ðóññêèé Ê î ì ï ë å ê ò à ö è ÿ Ê î ì ï ë å ê ò à ö è ÿ Ê î ì ï ë å ê ò à ö è ÿ Ê î ì ï ë å ê ò à ö è ÿ Ê...
Page 30: Chapter 7 Japanese
日本語第第第第第 7 7 7 7 7 章章章章章 - - - - - 日日日日日本本本本本語語語語語プロセッサ Intel ｮ Pentiumｮ Dothan プロセッサ...
Page 31 日本語 RTL8110SB ギガビットイーサネットコントローラ IEEE 802.3 (10BASE-T)、802.3u (100BASE-TX)および 802.3ab (1000BASE-T)基準に完全準拠 UltraDMA 100MbpsまでのハードドライブをサポートシリアルA T A 2つのSATAポートをサポート（SATA) SATA速度は最大1.5Gb/s IEEE 1394 VIA VT6307 2つの100/200/400 Mb/秒ポートをサポートリアパネルI / O mini-DIN-6 PS/2マウスポート x 1 mini-DIN-6 PS/2キーボードポート x 1 DB-25パラレルポート x 1 DB-9シリアルポート x 1 DB-15 VGAポート...
