Intellian Satellite TV Antenna Systems
Antenna Control Unit (ACU)
Antenna Control Unit (ACU) provides the power to the antenna and con-
trols the various settings of the antenna. Additionally, Vacuum Fluores-
cent Display (VFD) allows for you to operate the ACU in the dark.
The functions of ACU are as follows:
• Provide power for the antenna unit
• Monitor the antenna status
• Change the target satellite
• Set up the user environment
• Set the current GPS information
• Set satellite information
• Move antenna manually
• Perform self-diagnosis of the antenna
• Set up the interface with a PC
8
Front
Rear
FG - +
DC 9 ~ 30 V FUSE

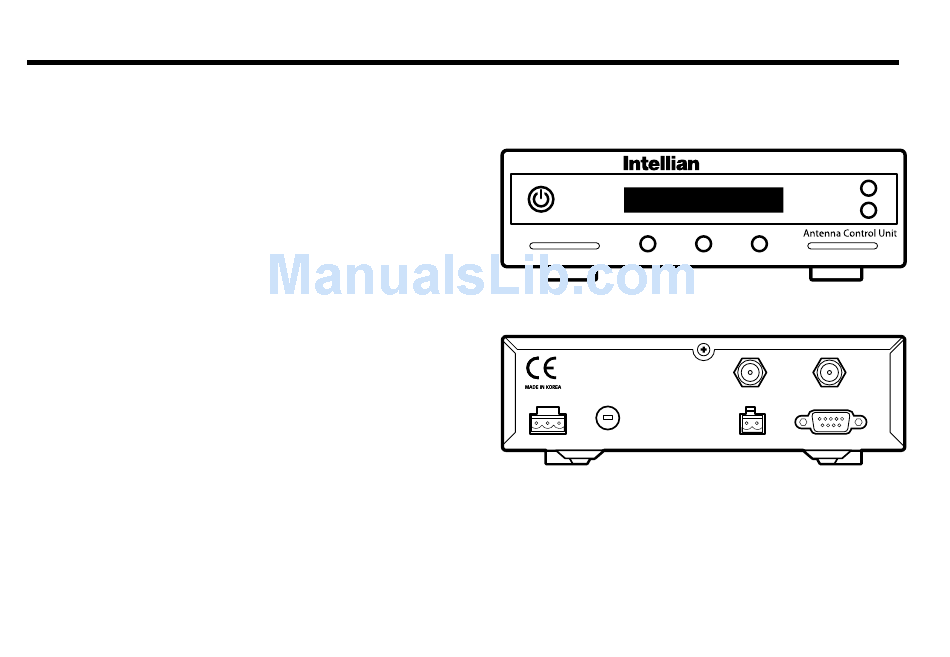

Figure 03 : Antenna Control Unit (ACU)
ANT RF1 RECEIVER
-
+
NMEA PC INTERFACE
