Controller Menus

Set Antenna GPS and Find Antenna Angle
Antenna makes use of GPS information to search satellite faster. More
precise the GPS information is, quicker the antenna is able to search
for a satellite. The method to input information into GPS is to push "Set
GPS" button after keying in the latitude and longitude information on "City
GPS". Pushing "Add City" button stores the GPS information. By selecting
the stored region in the list box, the GPS information of each region is
displayed. The Intellian i6/i6P/i6PE satellite TV antenna system utilizes GPS
data to locate the satellite faster.

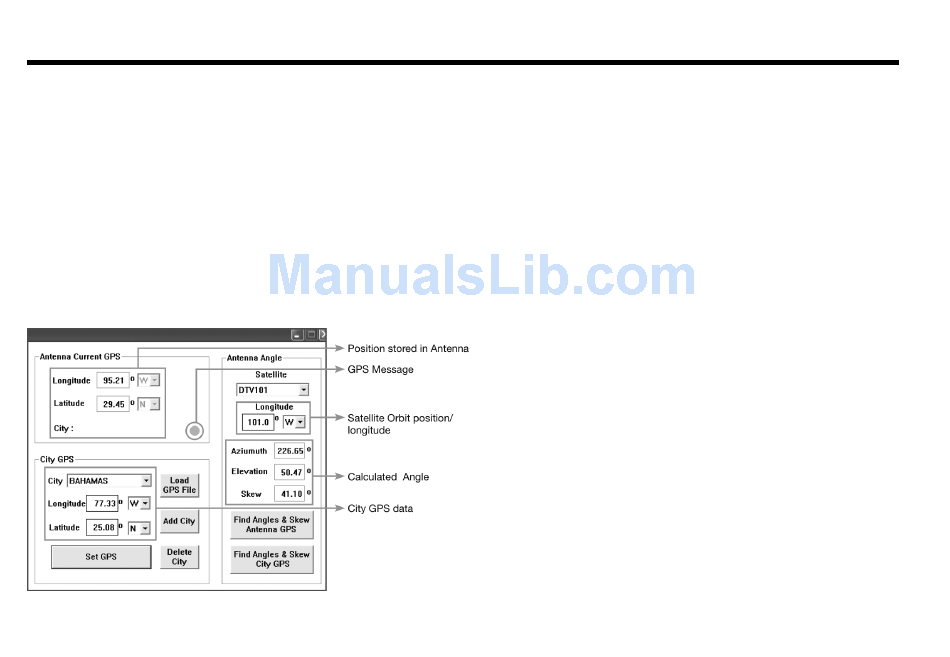

Figure 29 : Antenna Angle and GPS Information
54
Command Buttons
• Load GPS Files – Reads various city information from the GPS files.
• Add City – Adds the name of city and its GPS information to GPS files.
• Delete City – Deletes the name of city and its GPS information from the GPS files.
• Set GPS – Inputs the indicated GPS information on display to antenna.
• Find Angles & Skew Antenna GPS – Finds the current antenna angle and skew
angle in relation to the longitude (orbit position) of satellite and antenna current
GPS.
• Find Angles & Skew City GPS – Finds the current antenna angle and skew angle in
relation to the longitude (orbit position) of satellite and city GPS.
