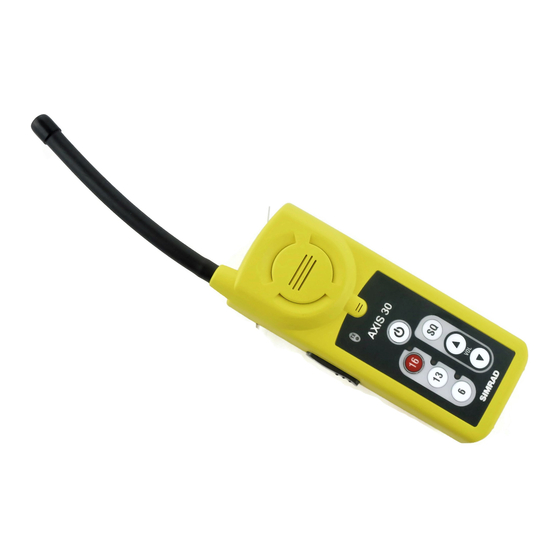

Simrad Axis30 User Manual

GMDSS SAFETY RADIO

1. Remove label from battery pack contacts and insert battery into back of radio until it clicks
into place (refer to instructions on reverse of this card).
2. Press key to switch radio on. The radio switches on with Channel 16 selected, at mid
volume. The squelch is automatically selected after 2 seconds (background noise will be
muted if there is no signal received).
3. Press and
4. Press to select / deselect squelch operation.
SQ
5. Press the PTT (Press To Talk) button on the side of the case to transmit, release to receive.
A green LED illuminates to confirm that transmission is taking place.
6. Press or
13
6
Press for reselection of channel 16, confirmed by a flashing red LED.
16
7. Press key for 2 seconds to switch radio off. All channel LEDs illuminate to confirm.
SPEAKER
TX
16
13
6
keys to increase or decrease audio volume.
to select alternative channel, indicated by flashing orange LED.
MICROPHONE
SQ
VOL
PTT Key
Press & hold to transmit
Release to receive.
Tx LED
TX
Illuminates green when transmitting.
On/Off
Press to switch radio on.
Radio switches on with Channel 16 selected.
Press & hold for 2 seconds to turn radio off.
Channel Select
16
Press to select channel.
LED flashes next to selected channel.
13
16 (emergency channel) - Red LED
13 - Orange LED
6
06 - Orange LED
SQ Squelch
Press to filter out background interference.
Volume
Press to increase or decrease speaker volume.
