Amano TCX-22 Operation Manual

Electronic time clock
Hide thumbs Also See for TCX-22:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
AMANO
Š
TCX-22
Electronic Time Clock
Operation Manual
n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCX-22 and is the answer not in the manual?

Questions and answers

Related Manuals for Amano TCX-22

Summary of Contents for Amano TCX-22

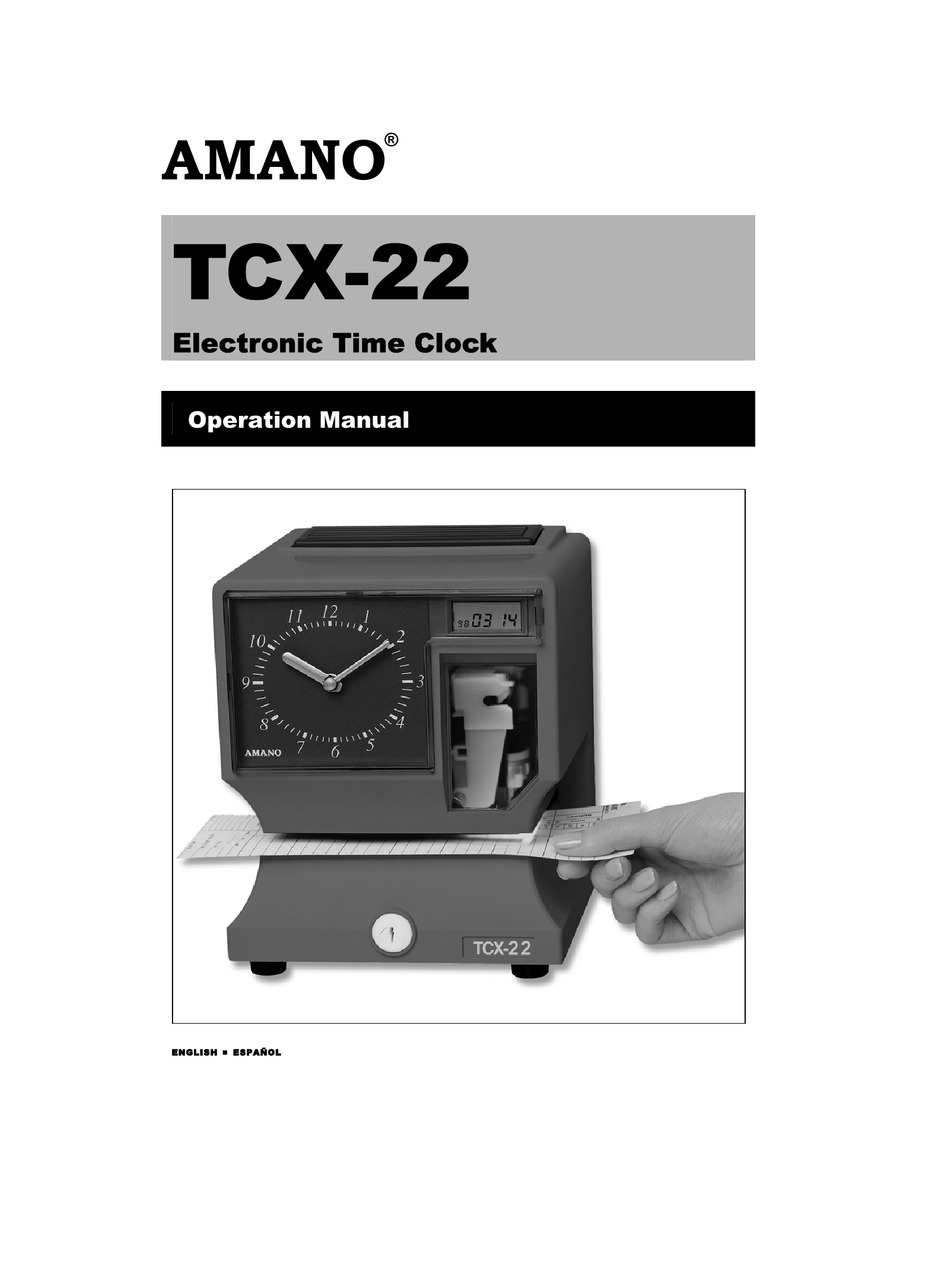

  • Page 1 AMANO Š TCX-22 Electronic Time Clock Operation Manual...

  • Page 2: Proprietary Notice

    This document contains proprietary information and such information may not be reproduced in whole or part without the written permission from Amano Cincinnati, Inc. 140 Harrison Ave., Roseland, New Jersey 07068. Amano Cincinnati, Inc. reserves the right to make equipment changes and improvements which may not be reflected in this document.

  • Page 3: Specifications

    6 1/4” (159 mm) deep Weight: Approximately 5.9 Kg (13 lbs.) Environment: Indoor use only; dust-free environment. Keep out of direct sunlight. External View Print Button Analog Clock LCD Display Print Window Printer Platen and Margin Cover Lock Adjustment TCX-22 Amano Cincinnati, Inc.

  • Page 4: Removing The Cover & Packing Material

    4. Remove the spacer between the Ribbon Cartridge and the Printer Carriage Tab. Reinstall the cover of your unit. Internal View Program Buttons LCD Display Analog Clock Reset Button Ribbon Cartridge Card Stopper Card Stopper Adjustment Screw Printer Platen Battery Compartment TCX-22 Amano Cincinnati, Inc.

  • Page 5: Power Options

    Page 3 Power Options The TCX-22 can be powered by either an AC Adapter or a 12 volt Sealed Rechargeable battery. The Battery Power Switch on the base enables you to turn the Battery Power ON or OFF. The battery is equipped to maintain normal operations for 1 week and/or 5000 prints in the event of an A/C power failure.

  • Page 6: Make A Test Print

    1. Make sure that there is power to the TCX-22 (Refer to Page 3). 2. Insert a piece of paper or time card into the TCX-22. The clock will automatically print YEAR, MONTH, DATE and TIME with AM or PM.
  • Page 7 Page 5 Illuminated Print Option The TCX-22 is equipped with a feature that allows the print area to illuminate. The switch is located on the back panel. When connected to an AC adapter the unit will stay illuminated. When used with a battery, it illuminates for about 20 minutes every time the LED switch is pressed.

  • Page 8: Entering The Program Mode

    ENTER button. 5. When the display flashes the correct year, month and date, press the ENTER button. 6. When the display flashes P1 dA E, press the CHANGE button to move to Setting the Clock Time. TCX-22 Amano Cincinnati, Inc.

  • Page 9: Setting The Clock Time

    2. Press the CHANGE button to alternate between On and Off. 3. When the display flashes the correct setting, press the ENTER button. 4. When the display flashes P3 dLS , press the CHANGE button to move to the Quick Set-Up Code setting. TCX-22 Amano Cincinnati, Inc.
  • Page 10 Disable, enable, or configure the Auto print option Diable/enable Leading Zero in print out 2Er0 Set the date that Daylight Saving Time begins Set the date that Daylight Saving Time ends Accesses the Diagnostic Rountine dIA9 TCX-22 Amano Cincinnati, Inc.
  • Page 11 Press the ENTER button. 6. When the display flashes all four correct numbers, press the ENTER button. 7. When the display flashes 11 Prn , press the CHANGE button to move to the Language Setting. TCX-22 Amano Cincinnati, Inc.
  • Page 12 Left Side Printing 5070 YEAR, MONTH, DATE, FILE Left Side Printing If you cannot locate the desired print style from the above list, refer to the instructions on the next page for programming the print style using symbols. TCX-22 Amano Cincinnati, Inc.
  • Page 13 YEAr SPCE mon h SPCE dA E SPCE SY-2 YEAR,MONTH, DATE,SYMBOL3 95 APR13 FAX’D YEAr SPCE mon h SPCE dA E SPCE SY-3 YEAR,MONTH, DATE,SYMBOL4 95 APR13 PAID YEAr SPCE mon h SPCE dA E SPCE SY-4 TCX-22 Amano Cincinnati, Inc.

  • Page 14: Setting The Language

    3. When the display flashes I2 LAn9, press the CHANGE button to move to the Print Direction. Please refer to the table below for Language selections. English Spanish French Portuguese LI En9 L2 SPn L3 Frn L4 P 9 TCX-22 Amano Cincinnati, Inc.

  • Page 15: Setting The Auto Print

    2. When the display flashes OFF or on, press the CHANGE button to toggle between off and on. Press the ENTER button to select. 3. When the display flashes I5 2ErO, press the CHANGE button to move to the Begin Daylight Saving Time setting. TCX-22 Amano Cincinnati, Inc.

  • Page 16: Begin Daylight Saving Time

    ENTER button. 5. When the display flashes the correct year, month and date, press the ENTER button. 6. When the display flashes17 EdL , press the CHANGE button to move to the Diagnostics Mode. TCX-22 Amano Cincinnati, Inc.

  • Page 17: Exit Program Mode

    8. When the display flashes 32, press the ENTER button. Exit Program Mode Press and hold the PROGRAM button until the display shows the current date. The clock hands will reset to the current time. TCX-22 Amano Cincinnati, Inc.

  • Page 18: Replacing The Ribbon

    Also, check to see that the ribbon cables are in good condition. After clearing any jams, restore the power and press the RESET button. Contact your Amano Cincinnati representative for assistance.
