English version

Introduction

Thank you for buying this Sweex Wireless LAN USB 2.0 Adapter 54 Mbps. This USB adapter allows you to set up a wireless network easily and in
no time at all. The USB adapter complies with all international standards for wireless communication such as IEEE 802.11b, IEEE 802.11g and CE.
It is compatible with all major operating systems and has a maximum data transfer speed of 54 Mbps, which is more than sufficient for wireless
communication with the Internet, for example. Thanks to the USB interface, the adapter is easy to use with portable or notebook computers.
Depending on conditions, the USB adapter has a range of up to 30 metres indoors and up to 75 metres outdoors. For security reasons, the USB
adapter is compatible with the WEP 64/128/256-bit protocol, which means that data is encrypted before it is transmitted. The compact design
of this USB adapter makes it easy to carry around and ideal for use while travelling, in the office or at home.
We advise you to first read this manual carefully to ensure the correct operation of this product. If, after reading this manual, you still encounter
problems while installing or operating the product, you can find more information on our website at: www.sweex.com.

Contents of the package

Before starting the installation, first check that all necessary parts are present. The box should contain the following parts:

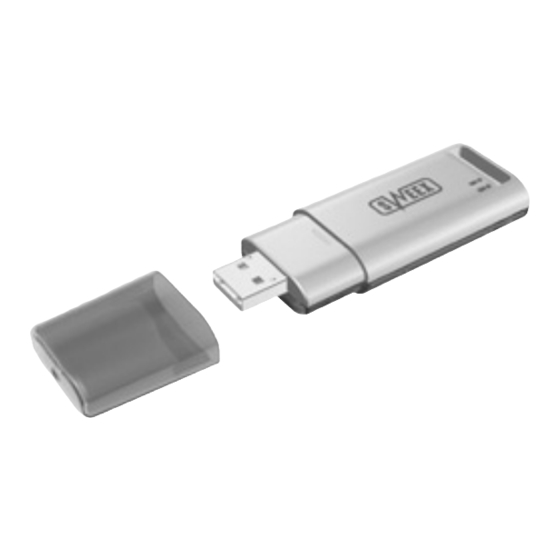

Sweex Wireless LAN USB 2.0 Adapter 54 Mbps
•
A CD-ROM containing drivers and a comprehensive English-language manual
•
This manual
•
Should any of the above parts be missing, please contact your supplier.
2
LC100060 Sweex Wireless LAN USB 2.0 Adapter 54 Mbps
W W W . S W E E X . C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC100060 and is the answer not in the manual?

Questions and answers

Related Manuals for SWEEX LC100060

Summary of Contents for SWEEX LC100060

  • Page 1: Contents Of The Package

    Introduction Thank you for buying this Sweex Wireless LAN USB 2.0 Adapter 54 Mbps. This USB adapter allows you to set up a wireless network easily and in no time at all. The USB adapter complies with all international standards for wireless communication such as IEEE 802.11b, IEEE 802.11g and CE.

  • Page 2: Specifications

    English version Specifications Supports: IEEE 802.11g and IEEE 802.11b • Maximum data transfer speed: 54 Mbps • Auto fallback • Interface: USB 2.0, downward compatible with USB 1.1 • Ralink chipset • Security: 64/128/256-bit WEP encryption, WPA and IEEE 802.1x •...

  • Page 3: Installation Procedure

    English version Installation procedure We recommend you install the software and drivers first before connecting the hardware. Insert the supplied CD-ROM into the CD-ROM drive. An options screen will start automatically. In this menu, select the first option “Install software” and click on “Open”. If the start screen does not appear automatically, click the “Start” button and then select “Run”. Type “X:\setup.exe”...
  • Page 4 English version The following screen will appear: Select the correct country code and click on "Next". Click on “Finish” to complete the installation procedure. “Utility Selection” will now appear. Here you can opt to carry out the configuration procedure via the supplied software or the XP configuration software. The configuration procedure is described in greater detail in the comprehensive English-language manual on the CD-ROM.
  • Page 5 English version Security Security can be set at 64 or 128-bit encryption. We advise you to use 128-bit encryption. The use of WEP (Wireless Encryption Protocol) requires extra computing power, so performance will be a little lower than without WEP. However, in practice this will be barely noticeable. N.B.! Before the encryption codes are configured, the new encryption codes must be set in the router first.
  • Page 6 Warranty All articles that are carried under the name Sweex Essentials have a 3-year term of guarantee. Only the Sweex Digital photo and video cameras have a 2-year term of guarantee. We do not provide support or warranty for the supplied software or (rechargeable) batteries.
