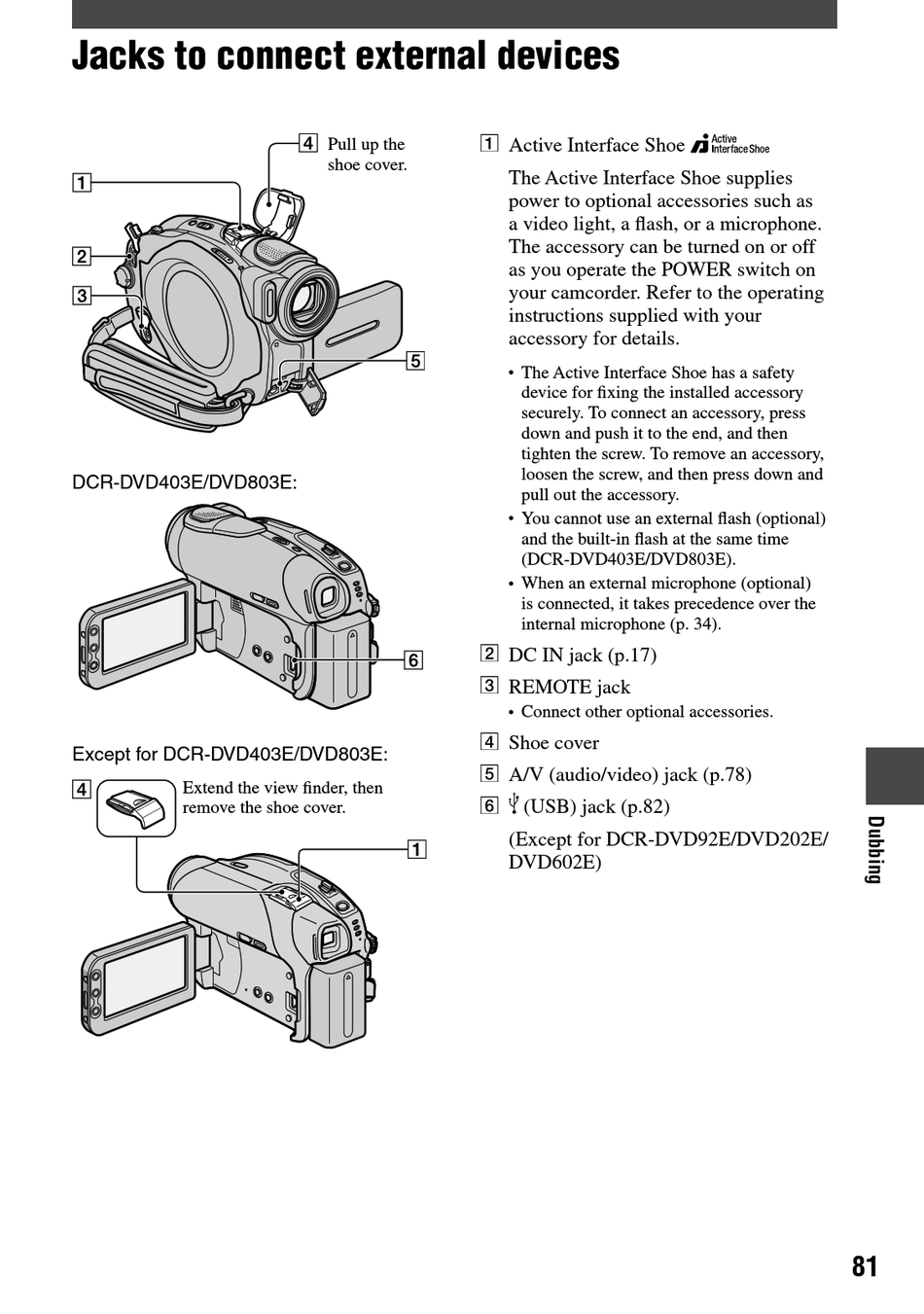

Jacks to connect external devices

DCR-DVD403E/DVD803E:
Except for DCR-DVD403E/DVD803E:
Extend the view finder, then
remove the shoe cover.

Pull up the
shoe cover.





Active Interface Shoe
The Active Interface Shoe supplies
power to optional accessories such as
a video light, a flash, or a microphone.
The accessory can be turned on or off
as you operate the POWER switch on
your camcorder. Refer to the operating
instructions supplied with your
accessory for details.
The Active Interface Shoe has a safety
•
device for fixing the installed accessory
securely. To connect an accessory, press
down and push it to the end, and then
tighten the screw. To remove an accessory,
loosen the screw, and then press down and
pull out the accessory.
You cannot use an external flash (optional)
•
and the built-in flash at the same time
(DCR-DVD403E/DVD803E).
When an external microphone (optional)
•
is connected, it takes precedence over the
internal microphone (p. 34).
DC IN jack (p.17)
REMOTE jack
Connect other optional accessories.
•
Shoe cover
A/V (audio/video) jack (p.78)
(USB) jack (p.82)
(Except for DCR-DVD92E/DVD202E/
DVD602E)
81
