INTRODUCTION
Congratulations on your purchase of a Renkus-Heinz RHAON Empowered digitally steered Iconyx ( IC Squared) loudspeaker system We hope
you enjoy it.
Your Iconyx IC Squared loudspeaker was carefully tested and inspected before leaving our
factory and should have arrived in perfect condition. Please carefully inspect the shipping
carton(s) and loudspeaker(s) for any noticeable damage, and if any damage is found, im-
mediately notify the shipping company. Only you, the consignee, may institute a claim with the
carrier for any damage incurred during shipping. Be sure to save the carton(s) and all packing
material for the carrier's inspection. It is also a good idea to save the carton and packing mate-
rial even though the loudspeaker arrived in good condition. If you should ever need to ship the
loudspeaker, it should be shipped in its original factory packaging.
TECHNICAL SUPPORT
If you have any questions about IC Squared loudspeakers or encounter a problem designing,
installing, setting up or operating a RHAON system, please call our technical support staff at
949-588-9997 and ask the operator for technical support on RHAON. Call Monday through
Friday from 8:00 AM to 5:00 PM Pacifi c Time.
The latest information on RHAON Technical Support is always available online at http://w
http://w
ww.renkus-heinz.com/support/software-support/rhaon/e-mail.html.
ww.renkus-heinz.com/support/software-support/rhaon/e-mail.html. You will also fi nd a support
request form at http://www.renkus-heinz.com/support/request-info/tech-info/index.html.
IC Squared Digitally Steerable Loudspeaker Systems
Your IC Squared loudspeaker system is a unique device that combines the advantages of point
source design with the control and fl exibility of digitally steerable line array technology.
Unlike traditional vertical line arrays that need to be curved to steer the sound, IC Squared ar-
rays use digital control to steer the sound while the array remains a straight vertical line.
Individual transducer control maximizes the acoustical advantages of the design and producing
unsurpassed vertical pattern control. Individual sonic beams can be shaped and steered up or
down and their acoustical center placed anywhere within the array.
IC Squared loudspeakers are powerful and versatile. They can be used as a stand alone high

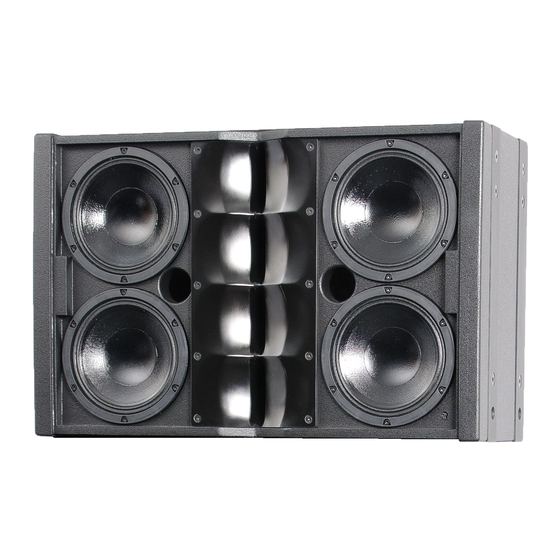

IC2 Array
performance loudspeaker, in a small stack when additional control and output are needed or
fl own in large multi cabinet arrays when even more p@ower is needed.

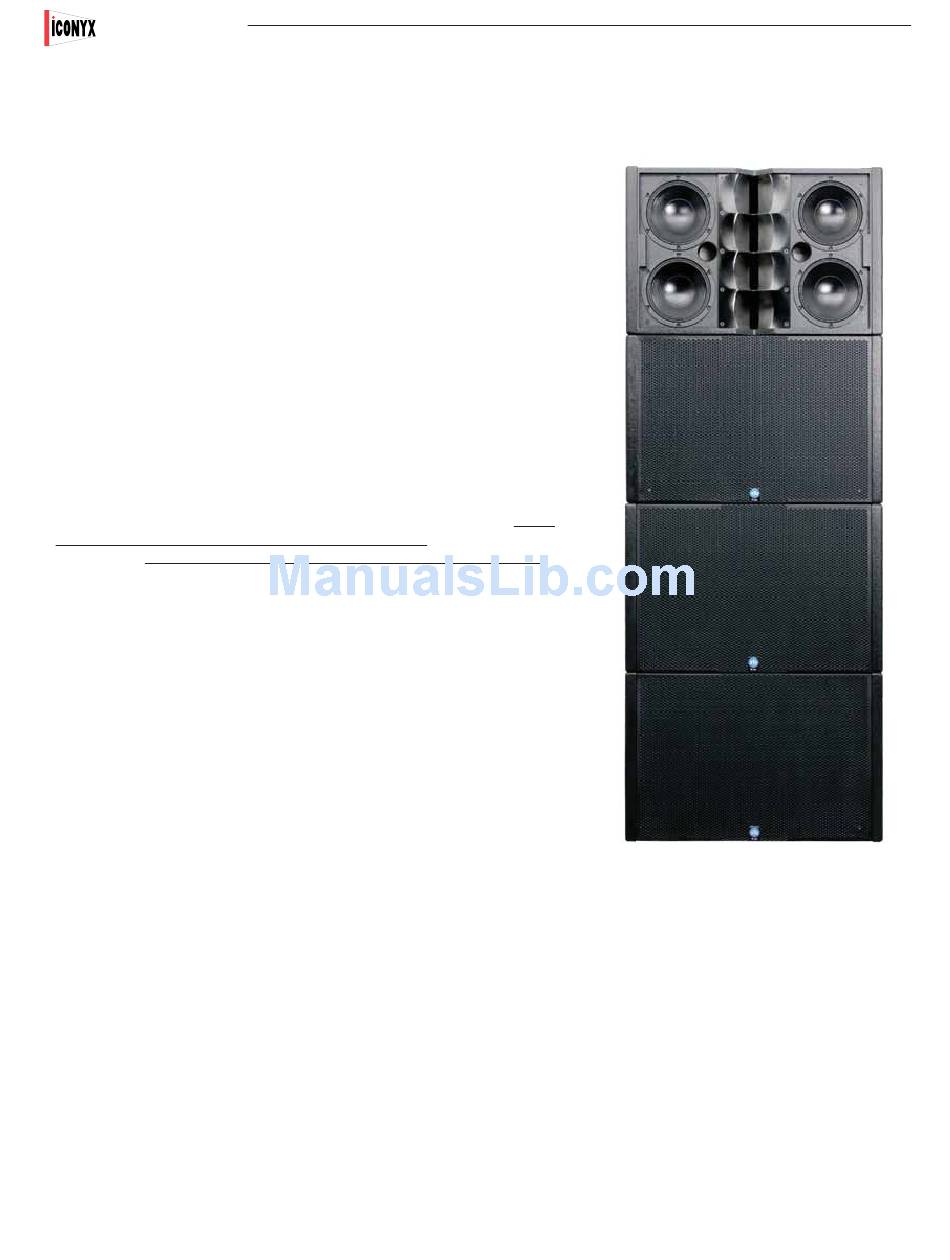

Matching IC212S-R and IC118-R subwoofers can be used as a base for the array modules or used as a
suspension platform when the array modules and subwoofers are fl own.
Installation.
Your IC Squared system was designed to be easy to fl oor stack or to be suspended from a ceiling. Note that it was not designed to be mounted
directly on a wall. The amplifi ers are convection cooled and their heat sinks require at least several inches of separation from the nearest
surface.
The actual installation should be made either by or under the close supervision of someone experienced in installation techniques and rigging.
4
