Summary of Contents for Horizon Fitness Adventure 2 Plus

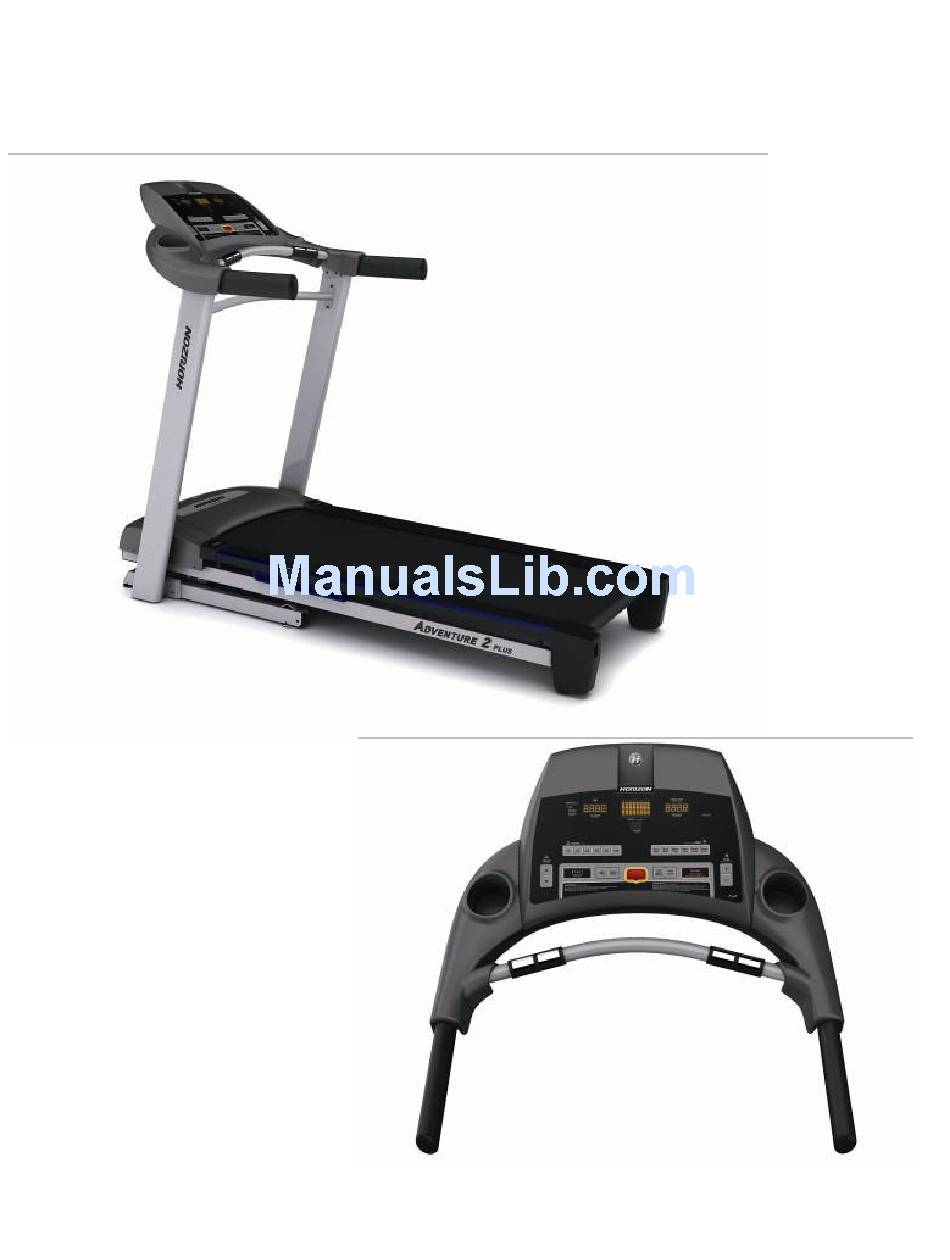

- Page 1 Adventure 2 Plus Service Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS CHAPTER 1: SERIAL NUMBER LOCATION……………………………………………..………….3 CHAPTER 2: PREVENTATIVE MAINTENANCE 2.1 Preventative Maintenance……………………………………………………………….…………………4 2.2 Tension and Centering the Running Belt…………………………………………………….…………...6 CHAPTER 3: CONSOLE OVERLAY AND WORKOUT DESCRIPTION 3.1 Console Description…………………………………………………………………………………..…….7 3.2 Display Window Descriptions……………………………………………………………………………….8 3.3 Getting Started & Selecting a Workout.……………………………………………………………..…….9 3.4 Program Information…………………………………………………………………………………..……11 CHAPTER 4: ENGINEERING MODE 4.1 Engineering Mode…………………………………….………………………………………….….……..12... -
Page 3: Chapter 1: Serial Number Location
CHAPTER 1: Serial Number Location 1-1 Serial Number Location... -
Page 4: Chapter 2: Preventative Maintenance
CHAPTER 2: Preventative Maintenance 2.1 PREVENTATIVE MAINTENANCE Preventative maintenance is the key to smoothly operating equipment, as well as keeping the user’s liability to a minimum. Equipment needs to be inspected at regular intervals. Defective components must be replaced immediately. Improperly working equipment must be kept out of use until it is repaired. - Page 5 CHAPTER 2: Preventative Maintenance 2.1 PREVENTATIVE MAINTENANCE-CONTINUED EVERY 6 MONTHS OR 150 MILES It is necessary to lubricate your treadmill running deck every six months or 150 miles (240 kilometers) to maintain optimal performance. Once the treadmill reaches 150 miles (240 kilometers), the console will display the message “LUBE”...
-
Page 6: Tension And Centering The Running Belt
CHAPTER 2: Preventative Maintenance 2.2 TENSIONING & CENTERING THE RUNNING BELT If you can feel a slipping sensation when running on the treadmill, the running belt must be tightened. In most cases, the belt has stretched from use, causing the belt to slip. This is a normal and common adjustment. To eliminate this slipping, turn the treadmill off and tension both the rear roller bolts using the supplied Allen wrench, turning them ¼... -
Page 7: Chapter 3: Console Overlay And Workout Description
CHAPTER 3: Console Overlay and Workout Description 3.1 CONSOLE DESCRIPTION Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use. A) LED DISPLAY WINDOWS: time, distance, calories, heart rate, speed, incline and workout profiles. B) TARGET LED INDICATORS : indicate what target (if any) is set for the current program. -
Page 8: Display Window Descriptions
CHAPTER 3: Console Overlay and Workout Description 3.1 CONSOLE DESCRIPTION-CONTINUED N) AUDIO IN JACK (ADVENTURE 3 PLUS ONLY): plug your CD / mp 3 player into the console using the included audio adaptor cable. O) AUDIO OUT / HEADPHONE JACK (ADVENTURE 3 PLUS ONLY): plug your headphones into this jack to listen to your music through the headphones. -
Page 9: Getting Started & Selecting A Workout
CHAPTER 3: Console Overlay and Workout Description 3.3 GETTING STARTED & SELECTING A WORKOUT 1) Check to make sure nothing is on or will hinder the movement of the treadmill. 2) Plug in the power cord and turn the treadmill ON. 3) Stand on the side rails of the treadmill. - Page 10 CHAPTER 3: Console Overlay and Workout Description 3.3 GETTING STARTED & SELECTING A WORKOUT-CONTINUED TARGET PROFILES TARGET 1 – TIME: Allows user to set a target based on how long they would like to workout. Time targets can range from 15:00 – 99:00. TIME will count down. DISTANCE and CALORIES will count up from zero. TARGET 2 –...
-
Page 11: Program Information
CHAPTER 3: Console Overlay and Workout Description 3.4 PROGRAM INFORMATION PROGRAM INFORMATION 1. MANUAL (P1): Allows ‘on the fly’ manual speed and incline changes. 2. INTERVALS (P2): Improve your strength, speed and endurance by increasing and decreasing the speed throughout your workout to involve your heart and other muscles. Speed changes; time defaults to 30 minutes. 3. -
Page 12: Chapter 4: Engineering Mode
CHAPTER 4: Engineering Mode 4.1 ENGINEERING MODE 1) To enter Engineering Mode, press & hold the “－ － － － ” INCLINE UP “▲” and SPEED DOWN keys at the same time for 3-5 seconds until Engineering Menu appears on the display. 2) Use the INCLINE and SPEED UP and DOWN keys to select a parameter. -
Page 13: Engineering Mode Overview
CHAPTER 4: Engineering Mode 4.2 ENGINEERING MODE OVERVIEW MODE FUNCTION DESCRIPTION ENG 0 Display Test Start Key – LCD/LED on Stop Key – LCD/LED off Any Other Key - Will show on the display window. Hold the STOP key for 3 seconds to return to the Engineering Menu. ENG 1 Hardware Test Motor &...
