   Summary of Contents for Casio EXILIM CA003

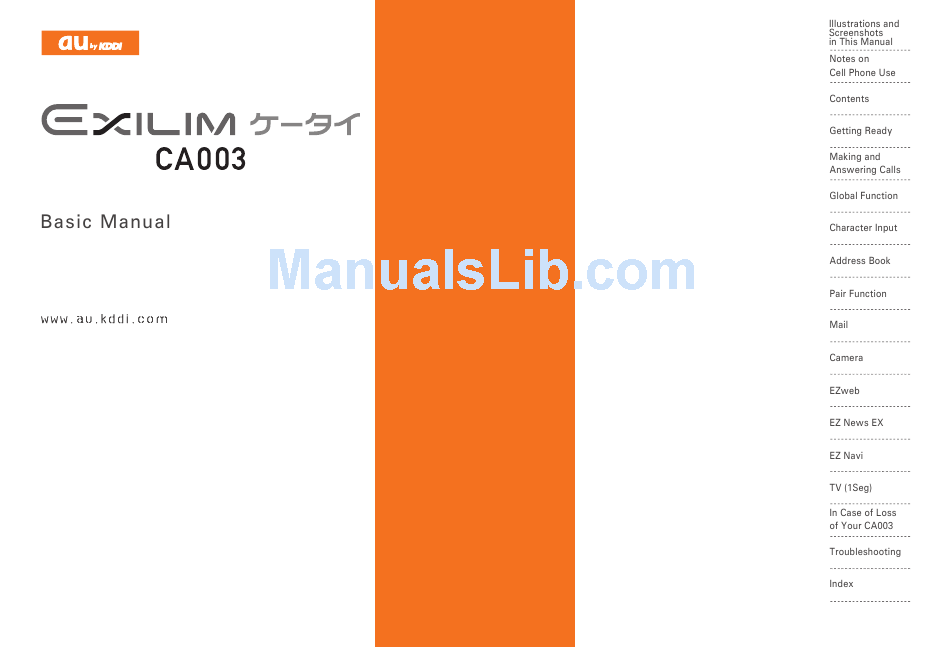

  • Page 1

    Read this manual To master the cellular phone...

  • Page 2

    Introduction Thank you for purchasing the CA003. Before using your CA003, be sure to read the CA003 Basic Manual (this PDF manual) to ensure correct usage. After you have finished reading this manual, store this PDF manual and the printed manuals in safe places so you can retrieve them whenever you need them.

  • Page 3: Illustrations And Screenshots In This Manual

    Illustrations and Screenshots in This Manual Note on Illustrations The illustrations in this manual may look different from the actual cell phone in shape, color and typeface. The key illustrations are also simplified as shown below. Key Illustration Key Illustration &...

  • Page 4: Notes On Cell Phone Use

    Notes on Cell Phone Use • Refrain from talking in a loud voice. • Obtain the permission of other people before you take their photos with the cell phone's camera. Cell Phone Etiquette • Do not record information with the cell phone's camera The cell phone always emits weak radio waves when power in bookstores and other locations where taking photos is on.

  • Page 5: Disaster Message Board Service

    Disaster Message Board Service • The maximum storage period of the registered information is 72 hours. When a large scale disaster occurs, you can register • The maximum available number of registrations is 10 your safety information from EZweb. The registered per phone number.

  • Page 6: Table Of Contents

    Making and Answering Calls Contents Making a Call …………………………………………… 18 Making an International Call …………………………… 18 Introduction Answering a Call ……………………………………… 19 Illustrations and Screenshots in This Manual Returning a Call (Outgoing History/Incoming History) … 19 One-ring Calls …………………………………………… 19 Notes on Cell Phone Use Adjusting the Earpiece Volume during a Call ………...

  • Page 7

    Pair Function Downloading Chaku-Uta-Full-Plus™/Chaku-Uta-Full ® Chaku-Uta ® ……………………………………………… 41 Registering a Pair Partner …………………………… 30 EZ News EX Making a Call to a Pair Partner ……………………… 30 Sending Mail to a Pair Partner ………………………… 30 Basic Operations ……………………………………… 42 Setting EZ News EX …………………………………… 42 Mail EZ Navi Using E-mail ……………………………………………...

  • Page 8: Getting Ready

    Getting Ready Checking the Contents of the Box The box contains the cell phone and accessories. • Cell phone • Battery pack • CD-ROM • CD-ROM Booklet (Japanese) • Instruction Manual (Japanese) • Warranty (Japanese) • Safety Precautions (Japanese) • Global Passport CDMA Owner's Guide (Japanese) •...

  • Page 9: Names Of Parts

    Names of Parts From the Front From the Back From the Sides Optical sensor Optical sensor Manner key Manner key Up key (side) Up key (side) Quick key Quick key Down key (side) Down key (side) Earpiece Earpiece Charge Charge indicator (LED) indicator (LED) Center key (side)

  • Page 10: Position Of Ca003

    Position of CA003 • When the cell phone is in the position that Illustration 1-2 shows, do not operate the CA003 or open/close CA003 can not only be opened with the display facing the display with force. inside, but also it can be used in Viewfinder position or Self- •...

  • Page 11: Charging The Battery Pack

    Charging the Battery Pack • Be sure to close the external connection jack cover when charging is finished. The battery pack is not fully charged at the time of purchase. • Do not pull or twist the external connection jack cover Be sure to charge the battery pack before using the cell forcibly.

  • Page 12: Learning The Basics

    Learning the Basics Key Assignments : Display the ticker field and info pane. : Display the ticker field and info pane. : Display Incoming History. : Display Incoming History. : Display Outgoing History. : Display Outgoing History. : Display Notification window/ : Display Notification window/ : Display Main menu.

  • Page 13: Turning On Power

    Use j to select Notification Notification Hiding/Redisplaying the (Screen Display) and window window then press c ( [Select]). Notification Window Use j to select Set Language and then press When the Notification window is [Select]). displayed on the standby screen, you can temporarily hide it by pressing &...

  • Page 14: Display Indicators

    Display Indicators Display indicators inform you of mail arrival, current settings, etc. Display Indicator Description Signal strength Battery level A microSD memory card (commercially available) inserted During a call au Media Tuner activated EZapps activated Connecting to EZweb Receiving EZ News EX information Missed calls New or unread e-mail/C-mail Current date and time...

  • Page 15: Using Main Menu

    Using Main Menu You can access various functions from the Main menu. The Main menu patterns vary by model color. The screenshots for the Dark Purple models are used in this manual. Model Color Main Menu Pattern Dark Purple Standard Turquoise Green Photo Champagne Gold...

  • Page 16

    Each Main menu pattern has a different set of items. Standard Photo Adelie Penguin Simple microSD Function Camera Camera Data Folder Bluetooth/IrComm Data Folder PC Site Viewer QuickPhotoViewer LISMO microSD Function Dynamic Photo PC Site Viewer LISMO Movie Bluetooth/IrComm Camera Photo Function JIBUN BANK...

  • Page 17: Changing Your E-mail Address

    Use j to select (Accept) and then Changing Your E-mail Address press c (Select). You can change the account E-mail address E-mail address Use j to select the entry box, press c (Input), name of your e-mail address. enter an e-mail address using single-byte @ezweb.ne.jp @ezweb.ne.jp alphanumeric characters, and then press...

  • Page 18: Security Code And Passwords

    EZ Password Security Code and Passwords Usage Subscribing or canceling subscriptions to You can use a security code and other passwords Example EZweb fee-based contents described below. Take care not to forget your security code and passwords, The four-digit number you wrote on your Initial Setting because they are required for performing various subscription form...

  • Page 19: Using Ca003 In Viewfinder Position

    Using CA003 in Viewfinder Position • When the standby screen is displayed, press this key to display the main menu. You can operate CA003 by side keys when CA003 is in • When the standby screen is displayed, hold Viewfinder position. Press gf instead of pressing j. down this key for at least one second to Press b instead of pressing c.

  • Page 20: Making And Answering Calls

    Making an International Call Making and Answering Calls 001 International Call Service Making a Call Available without any additional application Example: To call 212-123- in the USA When the standby screen is displayed, use 0 to 9 to enter a phone number. Enter the access code, a country code, area code and phone number, and then press N.

  • Page 21: Answering A Call

    Answering a Call Returning a Call (Outgoing History/ Incoming History) To answer a call, press N. To end the call, press F. • Example: Returning a call to a phone number in the incoming history • During a call in Viewfinder position, check the When the standby screen is displayed, press l.

  • Page 22: Adjusting The Earpiece Volume During A Call

    One-ring Indicator • Even in manner mode, the cell phone still emits a (red) indicator on the Incoming History screen indicates sound when autofocusing, a shutter sound when you you have received a one-ring call (a call rang for three take a photo.

  • Page 23: Adjusting The Incoming Ring Tone Volume

    Adjusting the Incoming Ring Turning On the Answer Memo Tone Volume When the standby screen is displayed, hold down C for at least one second. When the standby screen is displayed, press c. is displayed on the standby screen. Use a to select Function and then press c (Select).

  • Page 24

    Deleting a Message When the standby screen is displayed, press C. Use j to select Answer Memo and then press c (Select). Use j to select Answer Memo List and then press c (Select). Use j to select the message you want to delete and then press % (SubMenu).

  • Page 25: Global Function

    Obtaining the Latest PRL Global Function (Preferred Roaming List) The CA003 supports Global Passport CDMA services. Manually update and set the PRL (preferred roaming list) You can use your CA003 overseas without any additional before traveling abroad. application. When the standby screen is displayed, press c. Setting the Area Use a to select Accessories and then press c (Select).

  • Page 26: Calling Japan From Overseas

    Calling Japan from Overseas When the standby screen is displayed, use 0 to 9 to enter a phone number. Press c (Call). Use j to select Voice Call and then press c (OK). Use j to select Call to Japan and then press c (OK).

  • Page 27: Character Input

    Character Input Number of Times to Press the Key 10 11 12 Character Entry Modes When a character entry screen is displayed, you can select a character entry mode if you press & (Char.Type). Menu Items : Kanji conversion mode : Double-byte katakana mode : Single-byte katakana mode : Double-byte alphanumeric mode...

  • Page 28: Entering E-mail Addresses

    Entering Two or More Characters Entering E-mail Addresses Assigned to the Same Key E-mail Address Compatible Characters After you enter the first character, press r and then enter • Before you enter an e-mail address, switch to the the next character. lowercase alphanumeric (single-byte) mode.

  • Page 29: Entering Pictograms

    Press % (SubMenu). Use j to select Phrase and then press c (OK). Use % (Category) to select Internet. Use j to select .co.jp and then press c (Select). ".co.jp" is entered. Entering Pictograms When a character entry screen is displayed, press Use a to select the pictogram you want to enter and then press c (Select).

  • Page 30: Address Book

    Address Book • The address book can store up to 1,000 entries. • The cell phone automatically saves an entry to the lowest available memory number from 000 to 999. Saving an Address Book Entry • You can save three phone numbers and three e-mail addresses for each address book entry.

  • Page 31: Saving A Phone Number From The Incoming Or Outgoing History

    Saving a Phone Number from the Incoming or Outgoing History Example: Saving a phone number from the incoming history to the address book When the standby screen is displayed, press l and use j to select the phone number you want to save.

  • Page 32: Pair Function

    Making a Call to a Pair Partner Pair Function When the standby screen is displayed, press N. You can register a maximum of five pair partners you contact often to easily call or send mail. Use s to select the person you want to call. Use j to select Call and then press c (Select).

  • Page 33: Mail

    Creating and Sending E-mail Messages Mail When the standby screen is displayed, press L. Using E-mail Use j to select Create New and then press To use e-mail, you need to apply for an EZweb subscription. c (Select). If you did not apply for an EZweb subscription at the time of Use j to select Address and then press purchase, contact an au shop or the au Customer Service c (Select) twice.

  • Page 34: Reading Received E-mail Messages

    Use j to select the file name and then press Reading Received E-mail Messages c (Receive). When you receive an e-mail message, E-mail Press c (Play). appears on the standby screen. • Selecting the file name or pressing (Receive) Use s to select E-mail and then press may be unnecessary for some files to be displayed, c (Select).

  • Page 35: Rejecting Spam

    Rejecting Spam (Simple Settings) Setting mail filters to reject spam is recommended. Set the filter by answering (Supportive Settings) helps you to set questions mail filters easily by answering questions that appear on the This is recommended for users (Supportive Settings) screen.

  • Page 36: Using C-mail

    Use a to select an address book entry and Using C-mail then press c (Detail). C-mail is a service that uses phone numbers as addresses Use j to select a phone number and then to exchange messages between au cell phones that press c (Select).

  • Page 37: Camera

    About Photo Modes Camera The following modes are available for taking photos. Your cell phone has a CMOS camera with 12.17 effective W.paper (F.Wide) is set for W.paper mode and 12M is set megapixels for shooting photos and movies. You can use for DSC mode at the time of purchase.

  • Page 38: Taking A Photo

    Saving a Photo Taking a Photo Press ) on the preview screen. When the standby screen is displayed, hold down ) for at least one second. • If you do not want to save the photo, press on the preview screen. The monitor screen appears.

  • Page 39: Using The Exilim Menu

    Using the EXILIM Menu By default, the EXILIM menu is displayed for approximately 60 seconds by setting CA003 to Viewfinder position when the standby screen or the main menu is displayed. Key Operation Description Activates photo shooting. Activates QuickPhotoViewer. Returns to the standby screen. •...

  • Page 40: Ezweb

    EZweb EZweb Subscription Required EZweb Subscription Required EZweb is an information service that allows you to enjoy browsing the Internet on your cell phone. You can also download Chaku-Uta-Full-Plus™, Chaku-Uta-Full ® , Chaku- ® , news, and other contents from web pages. To use EZweb, you need to apply for an EZweb subscription.

  • Page 41: Accessing Sites

    Accessing Sites Viewing the au one Top You can access EZweb from the au one Top. A variety of useful and fun sites are available on EZweb. When the standby screen is displayed, press R, use j to select Top Menu/Search and then press c (Select). (Search by Keyword) (Community) au one Top...

  • Page 42: Bookmarking Frequently Accessed

    Basic Operations Bookmarking Frequently Use j to select the site you want to access and then Accessed Pages press c (OK). Press L or C to return to the previous screen. Hold When the page you want to bookmark is down either key for at least one second to return to the au displayed, press % (BrowserMenu).

  • Page 43: Checking Charges

    Use j to select (Chaku-Uta- Checking Charges Full-Plus™), When the standby screen is displayed, press c. (Chaku-Uta-Full ® Video Clip) or ) and then press c (Select). Use a to select Function and then press (Chaku-Uta ® c (Select). Use j to select the site you want to access and then press c (Select).

  • Page 44: Ez News Ex

    Setting EZ News EX EZ News EX EZweb Subscription Required EZweb Subscription Required The EZ News EX is available free of charge. You have only Use the EZ News EX to display on the standby screen the to make a few simple settings. After following the procedure latest news, weather forecast, horoscope and others that are in "Initial Setup of E-mail and EZweb"...

  • Page 45

    Changing the Reception Settings for EZ News EX Information You can change the ring tone, vibrator and LED settings under M216 NewsFlash Receive for reception of EZ News EX information. If you do not want the ring tone to sound when receiving EZ News EX information, set the volume to OFF.

  • Page 46: Ez Navi

    Security Navi to Check Where EZ Navi EZweb Subscription Required EZweb Subscription Required Your Kids Are Using GPS (Global Positioning System), EZ Navi provides The Security Navi application is made up of the following useful positional information services. three functions: When the standby screen is displayed, press R (Auto Position Search [monthly charge]), and then use s to select the EZnavi.

  • Page 47: Ez Navi Walk For When You Go Out

    EZ Navi Walk for When You Go Out Configure various settings, sign (Setting/Membership up as a member or check out Displays various useful menu items for when you are out. Registration/Information) various useful information. There are two menu modes: the Full Mode menu for those who want to use all the convenient functions including the •...

  • Page 48: Evacuate Navi To Guide You Home Or To Nearby Evacuation Areas During Disasters

    Evacuate Navi to Guide You Home or to Nearby Evacuation Areas during Disasters Nearby public evacuation areas or the direction to your home can be determined using the map data pre-installed on the CA003 ( [Evacuate Area Map] ). Other useful contents can be downloaded from the (Evacuate Navi) section of the EZweb site.

  • Page 49: Tv (1seg)

    TV (1Seg) • The continuous viewing times of TV (1Seg) are as EZweb Subscription Required EZweb Subscription Required follows. The figures vary according to the usage of "1Seg", a mobile terrestrial digital television service in data broadcasts. Japan, is available on the CA003. DBEX ON: Using Approx.

  • Page 50: Initial Setup Of Au Media Tuner

    Initial Setup of au Media Tuner Watching TV (1Seg) To watch TV (1Seg) using the au Media Tuner, you need to When the standby screen is displayed, hold down configure initial settings. f for at least one second. When the standby screen is displayed, hold down f for at least one second.

  • Page 51: Basic Operations

    Basic Operations Watching TV (1Seg) in Viewfinder Position Launch TV (1Seg) to start receiving data broadcasts. When the standby screen is displayed, hold down The data operation screen appears when a data broadcast f for at least one second. is received. Press & (Vol/Ch) on the data operation screen Set CA003 to Viewfinder position.

  • Page 52: In Case Of Loss Of Your Ca003

    Use j to select Direct Input, press c (OK), In Case of Loss of Your CA003 enter a phone number, and then press c (OK). The Remote Ctrl Lock allows you to remotely activate Press % (Comp). the Auto Lock, FeliCa Lock, and Address Book Lock, Use j to select Duration (min) and then press preventing others from using your cell phone.

  • Page 53: Activating The Remote Ctrl Lock By The Security Lock Service

    Activating the Remote Ctrl Lock • You must fill out an application to use au Customer Support (the application can be filled out even after by the Security Lock Service your cell phone is lost). Even if the Remote Ctrl Lock is not set in advance, the Remote Ctrl Lock can be activated by calling au Customer Service Center or completing the application process on au Customer Support from a PC.

  • Page 54: Troubleshooting

    Troubleshooting Symptom Possible Cause Remedy Page Is the battery pack charged? Charge the battery pack. Cannot turn on Did you hold down F for at least a Hold down F for at least a few seconds. power. few seconds? Hold down F for at least a few seconds. Is power turned on? Move to a location where (out of range...

  • Page 55

    Symptom Possible Cause Remedy Page Press u during a call to increase the Cannot hear the Is the earpiece volume too low? other party. earpiece volume. When making a call, (out of range indicator) displayed? Move to a location where (out of range a beeping sound 11, 23...

  • Page 56: Index

    Deleting characters Index Entering characters from the same key Starting a new line Numeric Charging the battery pack Checking charges 1Seg C-mail C-mail safety block Creating and sending Accessories Reading received mail Address book Contents Dialing Editing Saving Disaster Message Board Service Saving a phone number from the incoming or outgoing history Display 7,12...

  • Page 57

    Entering pictograms TV (1Seg) Evacuate Navi International Call EXILIM menu Internet EZ Navi Sites 39,40 EZ Navi Walk EZ News EX Canceling Key assignments Changing the Reception Settings Info pane Setting Ticker field Language EZ password Learning the basics EZweb Lock No.

  • Page 58

    Pair Function Security code Making a call to a pair partner Security Lock Service Registering a pair partner Security Navi Sending mail to a pair partner Signal strength Passenger Seat Navi Simple menu Passwords Sites Phone (call) Bookmarking 184/186 Viewing from bookmarks Answering Spam International Call...
