jbc AL250-B Manual
Auto-feed iron
Hide thumbs
Also See for AL250-B:
- Manual (9 pages) ,
- Installations (12 pages) ,
- Instruction manual (9 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for jbc AL250-B
Summary of Contents for jbc AL250-B

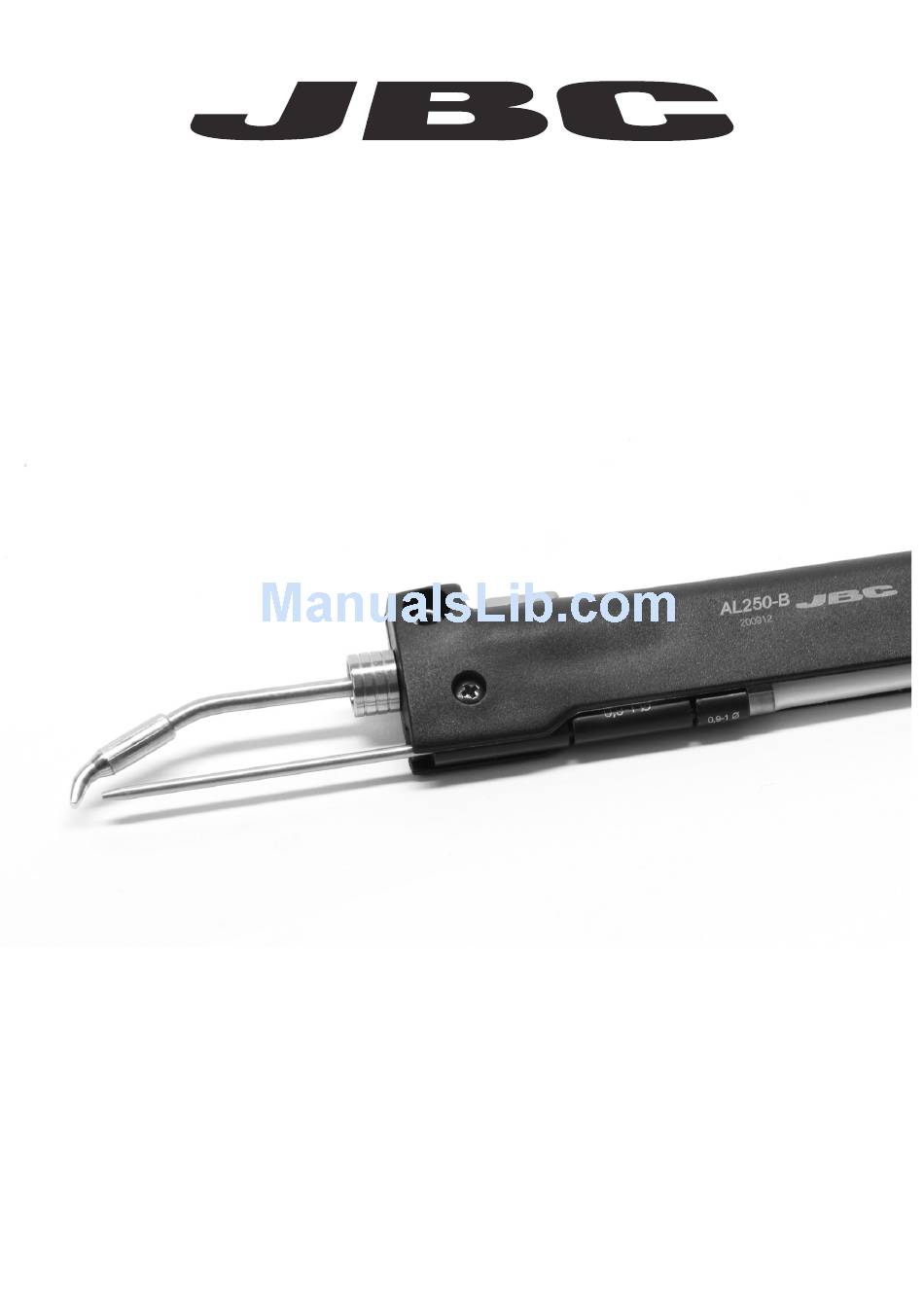

- Page 1 Auto-Feed Iron Ref. AL250-B...
-
Page 3: Packing List
Packing List The following items should be included: Auto-feed Iron .......... 1 unit Ref. AL250-B Allen Key 2,5mm ........1 unit Manual Ref. 0780493 w w w.jbctools.com Auto-Feed Iron Ref. AL250-B... - Page 4 Features The AL250-B Auto-feed Iron is compatible only with Auto-feed Soldering station Power Socket Equipotential connection Pedal connection (optional) Stand Ref. AL-SD Auto-feed Iron Ref. AL250-B...
- Page 5 w w w.jbctools.com Changing cartridge For a safe cartridge change, unplug the tool or turn the station off before following these guidelines: 1. Loosen the cartridge screw to release it. Place the new cartridge in the Auto-feed iron. Alignment Guide tube Ref .
- Page 6 Compatible Cartridges The AL250-B Auto-feed Iron works with C250 cartridge range. Find the model that best suits your soldering needs in www.jbctools.com ø 0,8 ø 1,7 ø 2,2 ø 0,6 ø 1 ø 0,4 C250-420 C250-401 C250-402 C250-403 C250-409 C250-410...
- Page 7 w w w.jbctools.com Accessories Fume Extractor Ref. F4468 Support Optional Guide set Ref. AL-IA Ref. 0002399 - Ø 0,4 - 0,5 mm 0002402 - Ø 0,6 - 0,8 mm 0002843 - Ø 1,1 - 1,5 mm 0013915 - Ø 1,6 - 1,8 mm...
-
Page 8: Specifications
Diameter of solder wire: Ø 0,4 - 1,8 mm / 0.02 - 0.07 in Complies with CE standards ESD protected housing “skin effect” Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use.
