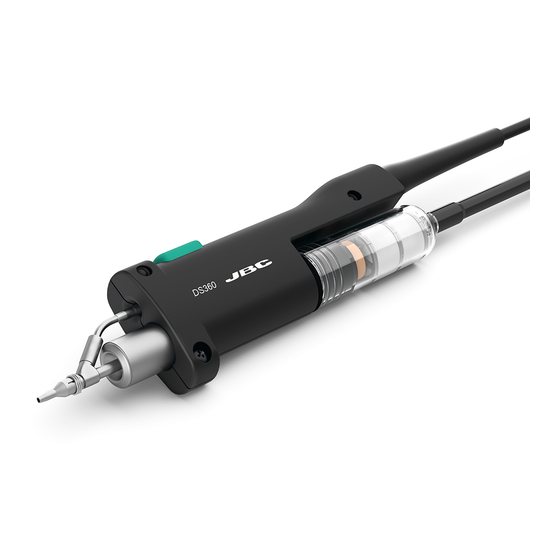

jbc DS360 Instruction Manual

Micro desoldering iron
Hide thumbs Also See for DS360:

Advertisement

Quick Links

Download this manual

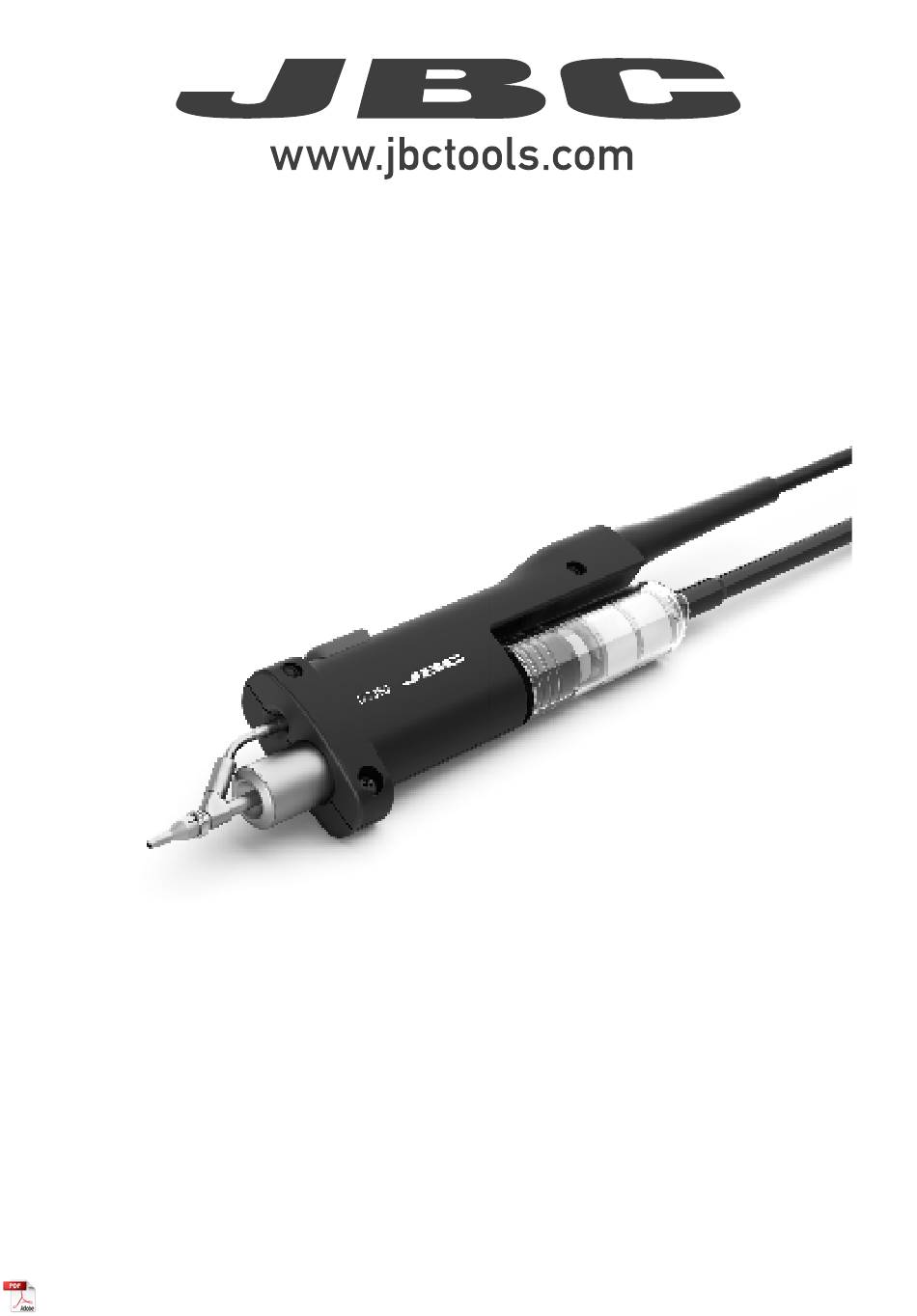

INSTRUCTION MANUAL
DS360
Micro Desoldering Iron

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS360 and is the answer not in the manual?

Questions and answers

Related Manuals for jbc DS360

Summary of Contents for jbc DS360

  • Page 1 INSTRUCTION MANUAL DS360 Micro Desoldering Iron...

  • Page 2: Table Of Contents

    This manual corresponds to the following reference: - DS360-A Packing List The following items are included: Ref. C360004 Through-Hole Desoldering Ø 1.2 Micro Desoldering Iron ............1 unit Manual ......1 unit Ref. 0028149 Tip Ref. C360004 already inserted DS360 Accessories Ref.

  • Page 3: Micro Desoldering Iron

    Connection Micro Desoldering Iron Ref. DS360-A to Desoldering Module to Stand Suction Filter Ref. 0821830 Supplied with Desoldering Module Desoldering process When desoldering, use a tip with a diameter larger than the pad being desoldered. This will achieve maximum suction and thermal efficiency.
  • Page 4 Desoldering Iron Maintenance Note: For the following operations, turn off the station or disconnect the tool and wait until the tool temperature drops to room temperature. Changing Heating Element 1. Remove the filter before changing the heating 2. Remove the fixing screw and take out the element.
  • Page 5 Changing Iron Filter 1. Remove the tube from the filter. 2. Remove the filter form the tool. Tube Filter Filter 3. Insert a new filter (ref. 0008473) into the tool and mount the tube onto the filter. Tube Filter...

  • Page 6: Cleaning Brush

    Cleaning Solder Collector Note: For this operations, turn off the station or disconnect the tool and wait until the tool temperature drops to room temperature. 1. Remove the filter before cleaning the solder 2. Take out the solder collector with the metal collector.

  • Page 7: Cleaning Rods

    Put the rod at the tip, gently move it back and forth while turning it slightly. Compatible Tips Through-Hole Pad Cleaning Desoldering DS360 uses C360 tips. Different sizes are available for through-hole desoldering and for pad cleaning. Find the model that best suits your soldering needs at: www.jbctools.com...
  • Page 8 Rusty and dirty surfaces reduce heat transfer to the solder joint. - Periodically check all cables and tubes. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 9 Safety It is imperative to follow safety guidelines to protect health and prevent electric shock, injury, fire or explosions. - Do not use the tool for any purpose other than soldering or rework. Incorrect use may cause fire. - Do not work on electrically live parts. - The tool should be placed in the stand when not in use in order to activate the sleep mode.
  • Page 10 Notes...
  • Page 11 Notes...
  • Page 12 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
