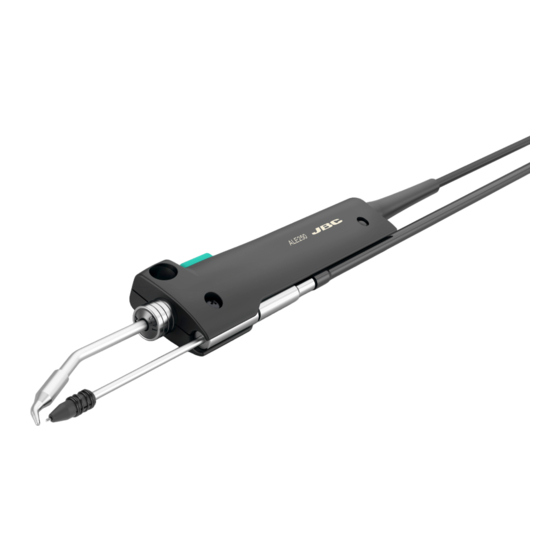

Auto feed iron
Hide thumbs Also See for ALE250:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
ALE250
Auto Feed Iron

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALE250 and is the answer not in the manual?

Questions and answers

Related Manuals for jbc ALE250

Summary of Contents for jbc ALE250

  • Page 1 INSTRUCTION MANUAL ALE250 Auto Feed Iron...

  • Page 2: Packing List

    This manual corresponds to the following reference: - ALE250-A Packing List The following items are included: Auto Feed Iron ............................1 unit Manual ................................. 1 unit Ref. 0028271...

  • Page 3: Features And Connections

    40 mm availabe for different solder Main Switch wire diameters Compatible Cartridges ALE250 Auto Feed Iron works with C250 cartridges. Find the model that best suits your soldering needs in www.jbctools.com 2,2 x 1 ø 3,8 3,2x1,5 ø 0,6 Conical Bent...

  • Page 4: Tool Assembly

    Press ok to exit Ø 1.00 mm Ø 1.00 mm Ø 1.00 mm Ø 1.0 Ø 1.00 mm Ø 1.00 mm Ø 1.00 mm 19:29 Language Edit program Edit program º º º Mode Program º 19:29 Program #1 Program #4 Sta�on se�ngs Edit program Language...
  • Page 5 para manuales - color gris 200 mm Edit pro Mode Program º Edit program Intermediate Wire Guide Set default programs Inlet Nozzle Tube Sel. temp. 325ºC Nozzle Off Feeder parameters lock Programs loaded Power Power Con�nuous Tin reload process 24.0 mm/s Wire diameter Main Menu Screen...

  • Page 6: Changing Cartridges

    Important: It is essential to insert the cartridge till the end for a good connection. Use the mark as reference (3). Align the tip of the cartridge with the guide nozzle (4) and tighten the cartridge screw (1) ALE250 Auto-Feed Iron Mark...
  • Page 7 para manuales - color gris 200 mm Accesories 130 mm 130 mm GALE Guide Kits 100 mm References for GALE Guide Kits without Solder Wire Perforation 80 mm Guide Kit Guide Set Outlet Nozzle Traction Support Inlet nozzle Interm. Counter Screw Headless Ref.

  • Page 8: Maintenance

    Use a damp cloth or alcohol. - Periodically check all cables and tubes connections. - Replace any defective or damaged pieces. Use original JBC spare parts only. Repairs should only be performed by a JBC authorized technical service.
  • Page 9 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the tool for any purpose other than soldering or rework. - The power cord must be plugged into approved bases.
  • Page 10 Notes...
  • Page 11 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...

  • Page 12: Specifications

    In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
