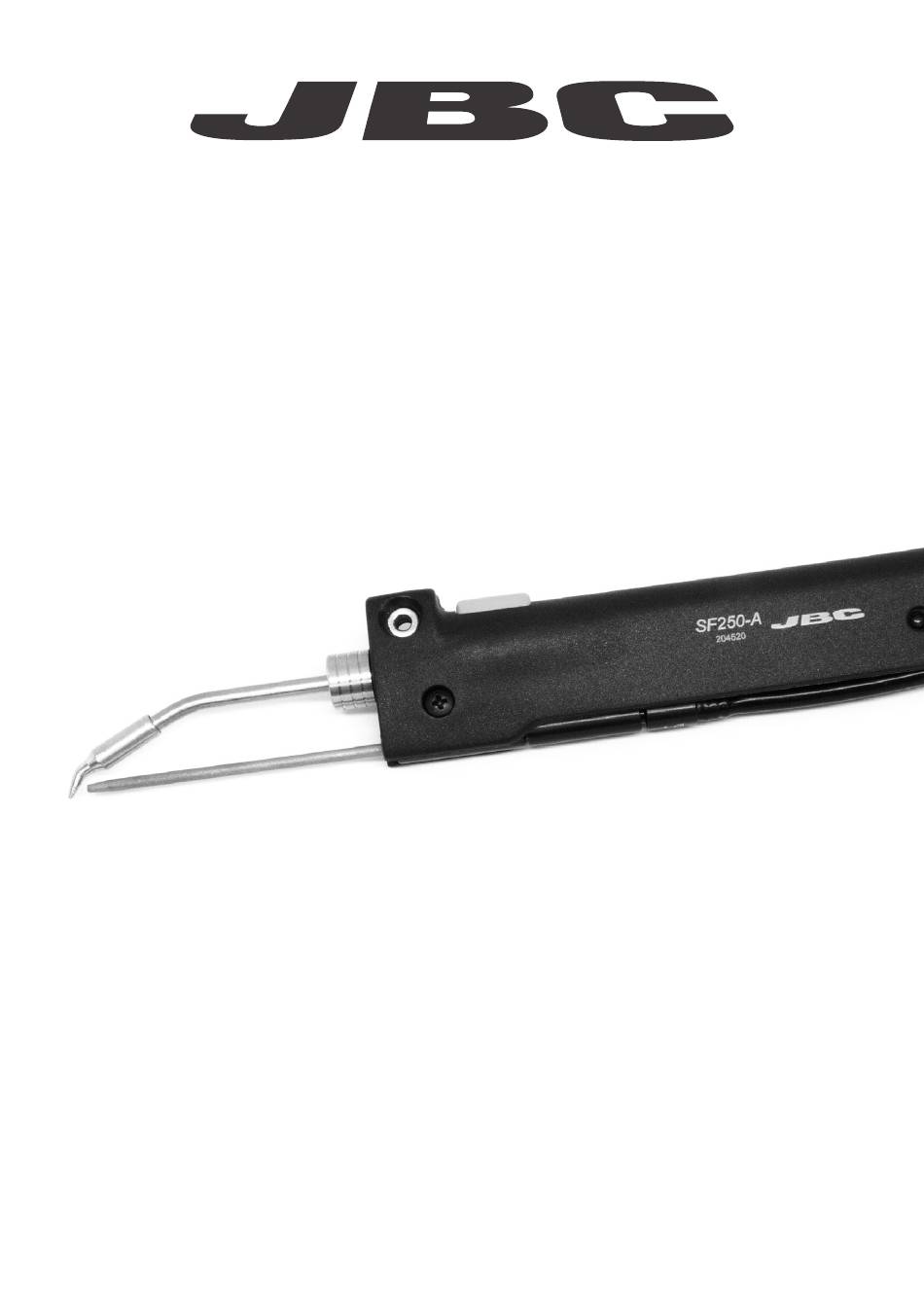

- Page 1 Auto-Feed Iron Ref. SF250-A...
- Page 2 The following items should be included: Auto-feed Iron ............................1 unit Ref. SF250-B Includes: C250403 Cartridge C250403 Allen Key 2,5mm ..1 unit Stand ....... 1 unit Manual ......1 unit Ref. 0780493 Ref. 0004960 Ref. 0021941 w w w.jbctools.com Auto-Feed Iron Ref. SF250-A...
- Page 3 The Solder Feed Iron is connectable to the Solder Feeder SF and a Soldering Station at the same time, be it a Modular Station or a Compact Station. Solder Feeder Control Unit Ref. SF-B Stand Cable Ref. 0011283 Stand Ref. SF250-SE Auto-feed Iron Ref. SF250-A...
- Page 4 Changing cartridge For a safe cartridge change, unplug the tool or turn the station off before following these guidelines: 1. Loosen the cartridge screw to release it. Place the new cartridge in the Auto-feed iron. Mark 2. Align the tip of the cartridge with the solder Guide tube. Important: It is essential to insert the cartridge till the end for a good connection.
- Page 5 Compatible Cartridges The SF250-A Auto-feed Iron works with C250 cartridge range. Find the model that best suits your soldering needs in www.jbctools.com ø 0,8 ø 1,7 ø 2,2 ø 0,4 ø 0,6 C250-420 C250-401 C250-402 C250-403 C250-409...
- Page 6 Accessories Fume Extractor Ref. F4468 - 2 m (78.74 ft) lenght. The fume extractor for AL250 is an easy & safe solution to suck the fume generated at the solder joint. Support Ref. AL-IA...
- Page 7 Use a damp cloth or alcohol. - Periodically check all cables and tubes connections. - Replace any defective or damaged pieces. Use original JBC spare parts only. Repairs should only be performed by a JBC authorized technical service.
-
Page 8: Specifications
- Diameter of solder wire: Ø 0,5 - 1,5 mm (0.02 - 0.059 in) Complies with CE standards. ESD protected. Warranty JBC’s two-year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
