Reinstalling the front panel assembly
and side cover

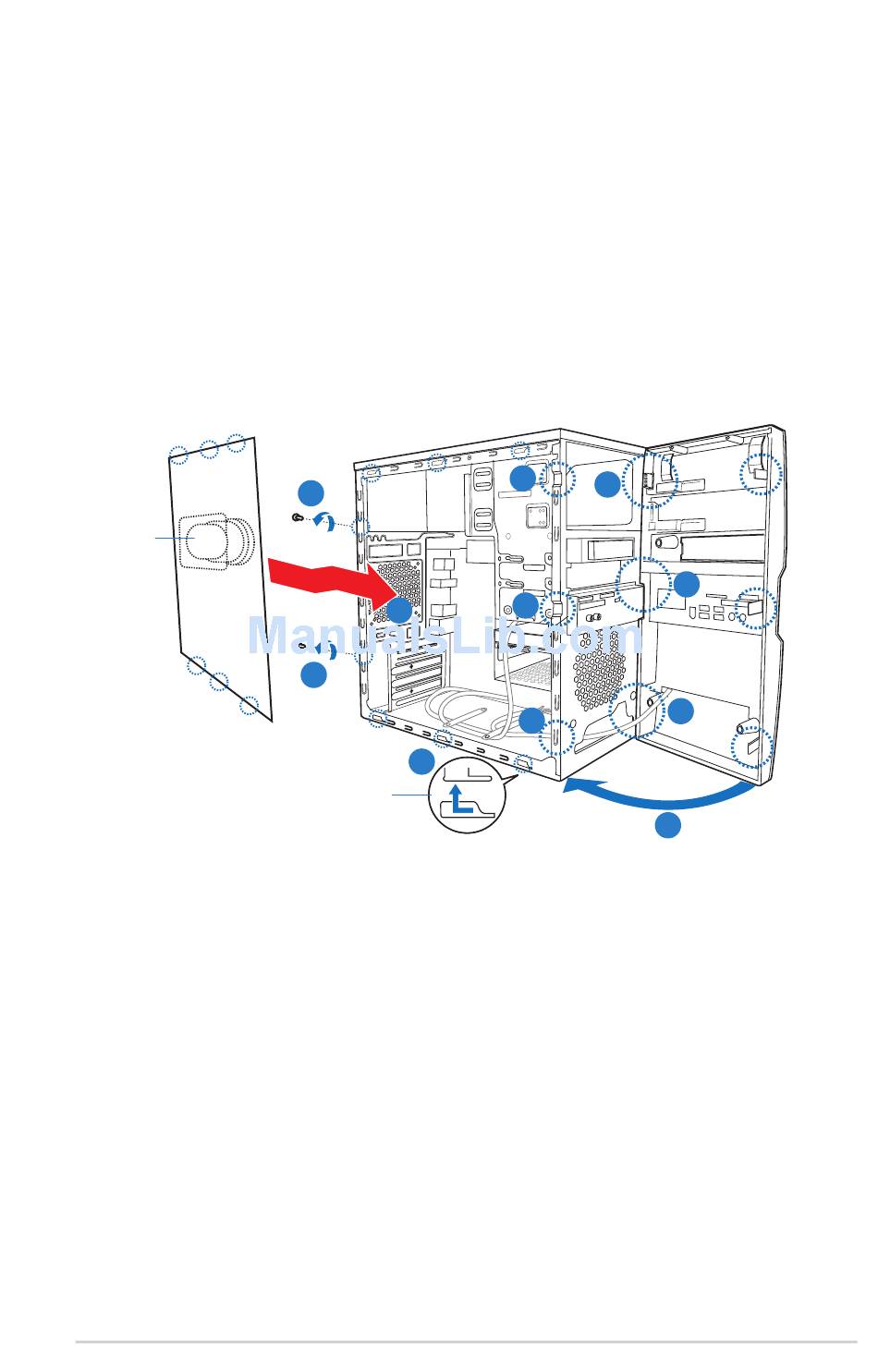

To reinstall the front panel assembly and side cover:
1.
Insert the front panel assembly hinge-like tabs to the holes on the right side
of the chassis.
2.
Swing the front panel assembly to the left, then insert the hooks to the
chassis until the front panel assembly fits in place.
3.
Insert the six side cover hooks into the chassis tab holes .
4.
Push the side cover to the direction of the front panel until it fits in place.
5.
Secure the cover with two screws you removed earlier.
Air duct
ASUS V4-M3A3200
5
4
5
Chassis tab holes
2
2
2
3
1
1
1
2
2-21
