3.
USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports
USB 2.0 ports 3 and 4.
are available for connecting USB 2.0 devices.
4.
LAN (RJ-45) port. Supported by Gigabit LAN controller, this port allows
Gigabit connection to a Local Area Network (LAN) through a network hub.

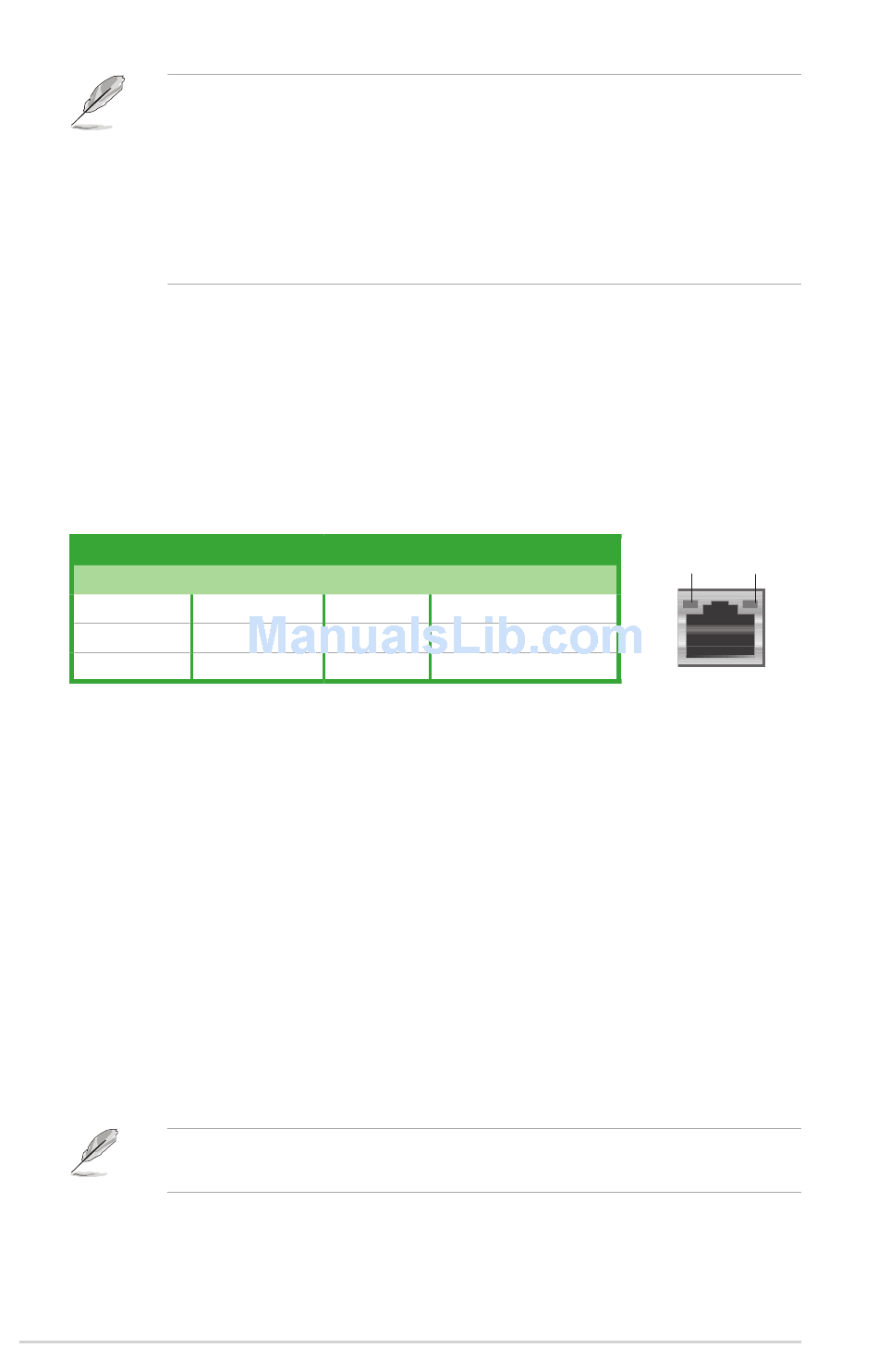

Refer to the table below for the LAN port LED indications.
LAN port LED indications
Activity/Link Speed LED
Status
OFF
ORANGE
BLINKING
5.
Rear Speaker Out port (black). This port connects the rear speakers in a
4-channel, 6-channel, or 8-channel audio configuration.
6.
Center/Subwoofer port (orange). This port connects the center/subwoofer
speakers.
7.
Line In port (light blue). This port connects the tape, CD, DVD player, or
other audio sources.
8.
Line Out port (lime). This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel configuration, the function of this port
becomes Front Speaker Out.
9.
Microphone port (pink). This port connects a microphone.
10. Side Speaker Out port (gray). This port connects the side speakers in an
8-channel audio configuration.
Refer to the audio configuration table below for the function of the audio ports in
2, 4, 6, or 8-channel configuration.
1-4
This motherboard comes with dual-VGA output that features different
display on 2 monitors at the same time if you connect 2 monitors to both
the onboard VGA and DVI-D/HDMI out ports.
DVI-D can't be converted to output RGB Signal to CRT and isn't compatible
with DVI-I.
To play HD DVD or Blu-Ray Disc, make sure to use an HDCP compliant
monitor.
Description
Status
No link
OFF
Linked
ORANGE
Data activity
GREEN
Description
10 Mbps connection
100 Mbps connection
1 Gbps connection
Chapter 1: System introduction
ACT/LINK
SPEED
LED
LED
LAN port
