XX. Unified Wire Manager (UM)

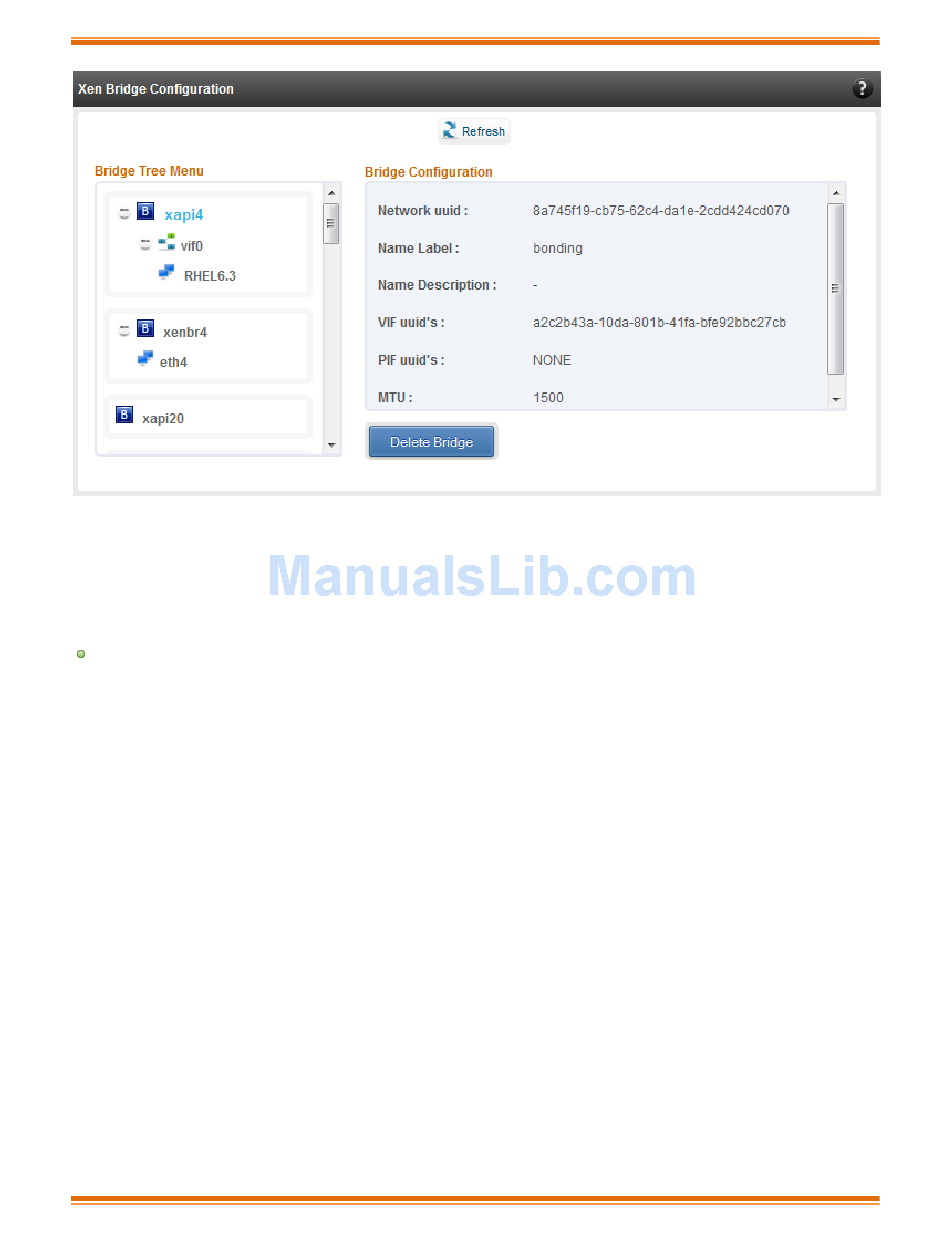

Figure 7.6.3.1 (a) – Xen Bridge Configuration module
Bridge Configuration (Linux)
The Bridge Configuration module allows you to view and manage network bridges, virtual
network interface (vnets) and virtual machines to which those virtual network interfaces are
assigned. The left pane displays a list of different bridges created. Clicking on a bridge name
will display related properties on the right.
If a virtual network interface is attached to a particular bridge, a "+" link appears for that bridge
name. Expanding the "+" link will display the virtual network interface and expanding the "+" link
for that virtual network interface displays the virtual machine to which it is assigned. Click on the
virtual machine names to view their properties on the right. Only bridge properties are editable.
To detach a virtual network interface from a bridge, select it and click "Delete VIF/VNET" Restart
the guest machine for changes to take effect.
To delete a bridge, click on the bridge name and then click "Delete Bridge". If there are virtual
network interfaces attached, you will have to detach them first.
