Glow-worm Climapro2 RF Installation Manual

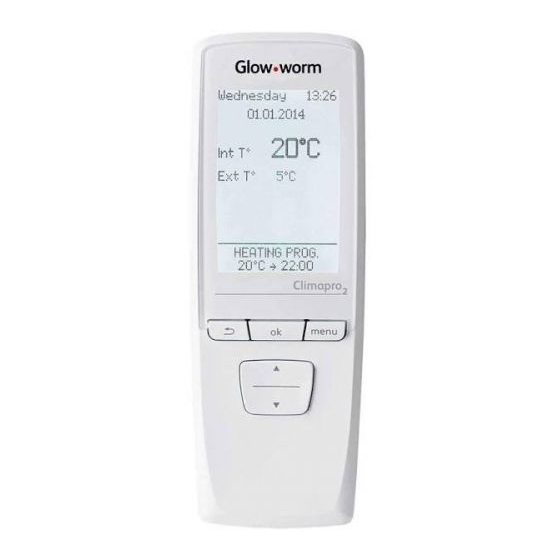

Wireless room thermostat with receiver
Hide thumbs
Also See for Climapro2 RF:
- Installation manual (16 pages) ,
- Instructions for use manual (12 pages)
Related Manuals for Glow-worm Climapro2 RF
Summary of Contents for Glow-worm Climapro2 RF

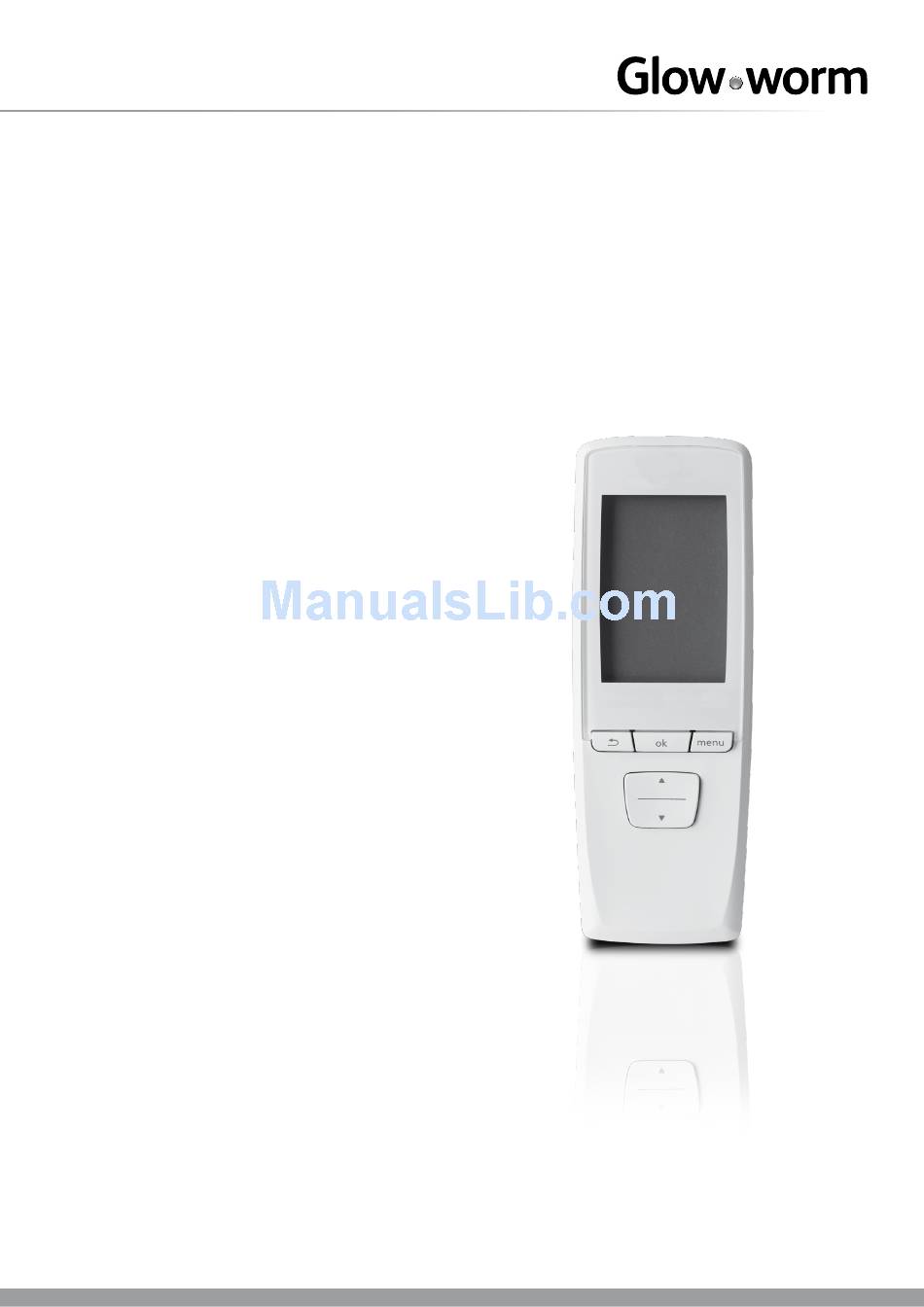

- Page 1 Climapro Installation Wireless room thermostat with receiver www.glow-worm.co.uk...
-
Page 3: Table Of Contents
TAbLe Of CONTeNTS I NT R O D U C T IO N Instructions guidance .........................3 1.1 Product documentation................... 3 1.2 Associated documents ................... 3 1.3 Explanation of symbols................... 3 Climapro RF description ........................3 2.1 Regulation and statutory requirements ..............3 2.2 Operational Diagram ....................3 Safety instructions and regulations ....................3 3.1 Safety regulations ....................3 3.2 Regulations......................4 Recycling ............................4 4.1 Climapro RF ......................4 4.2... - Page 4 TAbLe Of CONTeNTS MA IN T e N A N C e Fault diagnosis ..........................16 Te C h N IC A L D ATA Climapro RF ...........................17 Radio receiver ..........................17 - 2 -...
-
Page 5: Introduction
Room thermostat batteries ATTENTION: Risk of damage to the Climapro or to its vicinity. Safety instructions and regulations Safety regulations IMPORTANT: Useful information. All work inside Climapro RF must be carried out by a qualified professional or Glow-worm’s After-Sales Service. Climapro Rf description Climapro RF must only be installed by a qualified and responsible professional, so as to respect the applicable regulations and rules Regulation and statutory requirements Respect the basic safety instructions: CE Mark • Stop the appliance. -
Page 6: Regulations
Climapro Most of the appliance is made of recyclable materials. This symbol indicates that this unit must not be disposed of with household waste. It should be selectively collected for energy recovery, reuse or recycling. • Take the unit to an appropriate collection point for processing, energy recovery and recycling of waste. By complying with this directive, you will contribute to the preservation of natural resources and the protection of human health. 0020094586_01 - 08/10 - Glow-worm - 4 -... -
Page 7: Installation
In this case, the radio receiver can be Dimensions fixed to the wall. Inside the appliance: 6.1.1 Room thermostat • Install the radio receiver in the appliance in the location provided (see the appliance installation manual). 6 2 . Outside the appliance: • Install the radio receiver near the appliance at approximately 1.8 metres from the ground. • Keep the radio receiver away from all metallic parts (cables, electrical circuit boxes, metal walls) so as not to disturb the radio transmission. 1 7 3 0020094586_01 - 08/10 - Glow-worm - 5 -... -
Page 8: List Of Contents
- Climapro RF programmable room thermostat Legend - Wall support for the Climapro Drilling fixing screw - Radio receiver fixing holes Room thermostat support - Packet containing 2 fixing screws with rawlplugs Plugs Room thermostat - 4 “AA LR6 " alkaline batteries • Position the room thermostat support (4) on a wall. - EBUS cable for radio receiver • Drill (A) the screw holes (1) in accordance with 2 mounting holes (3) in the wall support (4). • Insert the rawlplugs (5) in the holes (1). • Secure (B) the room thermostat support (4) with screws (2). • Slide the room thermostat (6) into its support (4). 0020094586_01 - 08/10 - Glow-worm - 6 -... -
Page 9: Installing The Radio Receiver
• Insert the rawlplug (4) in the drilled hole(5). • Fix the radio receiver with the fixing screw (2). • Respect the standards for electrical installations in force for connecting the ebus cable between the radio receiver and the appliance. Legend Control box unit Radio receiver The receiver should be installed outside the appliance if the appliance control box does not have a location for the radio receiver. 0020094586_01 - 08/10 - Glow-worm - 7 -... -
Page 10: Electrical Connections
• Pass (D) the EBUS cable (1) through the cable passage created by removing the pre-cut part (6). • Cut the EBUS connection cable to the length necessary for your installation. • Connect (E and F) the EBUS cable (1) to the radio receiver's connector (5) and to the EBUS terminal block on the main Case n°1 - radio receiver on the control box board (3). There is no polarity that must be respected. • Connect the EBUS cable, following the order of operations from (A) to (F). Legend Access for 24 V connection Control box Pre-cut part of control box unit 0020094586_01 - 08/10 - Glow-worm - 8 -... -
Page 11: Pairing (Recognition)
Radio receiver connector • Do not remove the link from the terminal block (2) connecting the room thermostat to the main board. • Connect (A and B) the EBUS cable (1) to the radio receiver's connector (5) and to the EBUS terminal block on the main board (3). There is no polarity that must be respected. Case n°3 - radio receiver outside the appliance Legend ebus and 0V connection Cable strain relief Connector for the radio receiver • Do not remove the link from the terminal block for connecting the main board’s room thermostat. • Connect the EBUS cable to the radio receiver connector and the EBUS and 0V connection in the electrical cartridge. Polarity is not important. 0020094586_01 - 08/10 - Glow-worm - 9 -... -
Page 12: Commissioning
(factory setting: 0 °C). Choosing the Choose a value between 0.2 and Adjustment heating profile 4. (factory setting: 2). possible only See the instructions for the if an outdoor outdoor sensor connected to sensor is the appliance to carry out this connected adjustment. Note : the settings for the outdoor sensor made on the appliance will no longer be active. Legend battery cover batteries Insulating strip battery compartment Room thermostat • Remove the insulating strip (3) located in the battery compartment, respecting the order of operations (A) to (C). • Perform the pairing of the room thermostat based on your installation (see Chapter pairing). 0020094586_01 - 08/10 - Glow-worm - 10 -... -
Page 13: Access To The Installer Menu
Showing, enabling and disabling of functions is reflected in the user menu. 10.4 heating function Menu This menu lets you: Set the maximum adjustable room temperature. Correct the measurement of the room temperature. • Increase or reduce with the buttons to display the desired correction and validate with button Activate or deactivate the modulating control for the hot water temperature. 10.4.3 Activating or deactivating the modulating control This function lets you adapt the flow temperature in the heating system. (*) automatic adjustment of the heating water temperature 0020094586_01 - 08/10 - Glow-worm - 11 -... -
Page 14: Domestic Hot Water Function
• From the installer menu (see access to the installer menu) > for the user. select on the screen > hot water > enable program If the function is deactivated, the domestic hot water settings are adjusted via the appliance. • From the installer menu (see access to the installer menu) > select on the screen > hot water > on/off • Press to highlight your choice (enable or disable) and press the button to confirm. • Press to highlight your choice (activate or deactivate) and press the button to confirm. 0020094586_01 - 08/10 - Glow-worm - 12 -... -
Page 15: Cooling Function
The cooling function must be activated before it can be programmed. • Increase or reduce with the buttons to display the This function makes it possible to allow the user to program desired correction and validate with button cooling. Choosing the heating curve (gradient) • From the installer menu (see access to the installer menu) > select on the screen > cooling > enable program This function lets you choose the heating profile (value adjustable between 0.2 and 4 - factory setting: 1.6). • See the installation manual for the outdoor sensor. • From the installer menu (see access to the installer menu) > select on the screen > settings > outdoor sensor settings > select heating curve • Press to highlight your choice (enable or disable) and press the button to confirm. 0020094586_01 - 08/10 - Glow-worm - 13 -... - Page 16 Setting the current time • From the installer menu (see access to the installer menu) > select on the screen > settings > language • Display the desired number with the buttons and validate with the button. • Validate the dashes following the telephone number with the button. • Set the time by pressing and pressing the button to confirm. 10.7.6 General information on Climapro 10.7.4 Choose the language for the menus This feature allows you to display the following information: area, software type and version. • From the installer menu (see access to the installer menu) > select on the screen > settings > language • From the installer menu (see access to the installer menu) > select on the screen > settings > about 0020094586_01 - 08/10 - Glow-worm - 14 -...
-
Page 17: Radio
Normal functioning Average Poor Operating limit* Null Inoperative* (*) Check the room thermostat’s batteries (see the instructions). If the signal quality does not improve. Change the location of the appliances, reducing distances and removing obstacles. • From the installer menu (see access to the installer menu) > select on the screen > Rf > test 0020094586_01 - 08/10 - Glow-worm - 15 -... -
Page 18: Fault Diagnosis
- The batteries are not exhausted. If so, replace with new batteries. • Check the electrical connection between the receiver and the appliance. • Check the radio communication between the thermostat and the receiver. Legend Radio receiver Cover for radio receiver Red LeD Radio receiver circuit board Green LeD In the event of a problem: • Check the error messages in the room temperature thermostat's display zone • Remove the cover (2) from the radio receiver (1) to see the 2 LEDs. • Check the state of the 2 LEDs (green (5) and red (3) located on the electronic board (4) in the radio receiver. 0020094586_01 - 08/10 - Glow-worm - 16 -... - Page 19 Height in the room where the control is installed Width Depth Maximum authorised °C temperature of domestic water Power-supply voltage EBUS Dimensions: Electrical connection cable mm² 2 x 0.75 section Height Max. length of electric Width 62,5 connection cables Depth Supply: 4 “AA LR6 " alkaline 4 x 1.5 batteries Battery life (**) month (**) Under normal conditions of use Room thermostat support Dimensions : Height Width Depth Spacing between the room thermostat (in support) and the wall 0020094586_01 - 08/10 - Glow-worm - 17 -...
