Summary of Contents for Pride QUANTUM 610

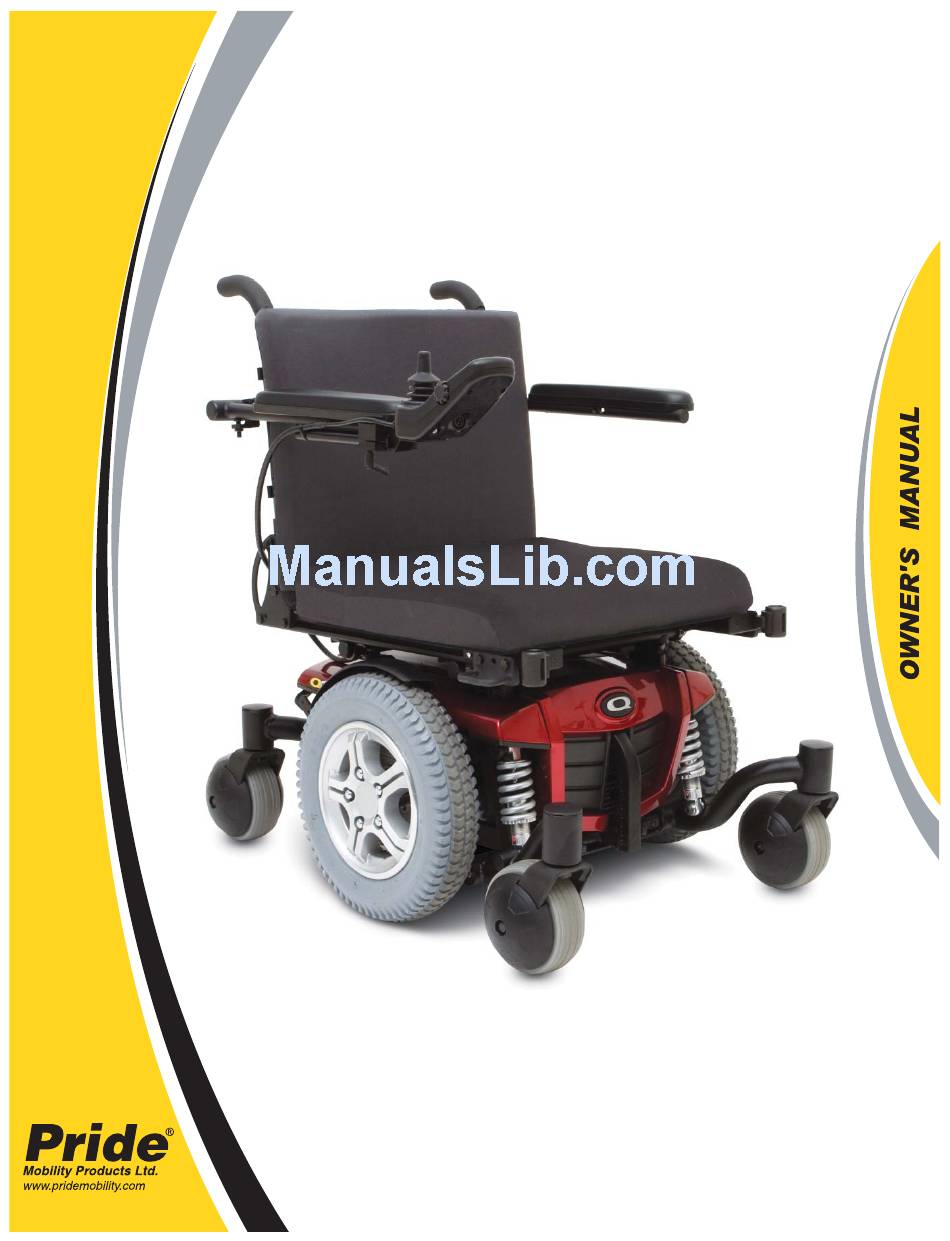

  • Page 1 QUANTUM...
  • Page 2 On the product, this icon is represented as a black symbol with a red circle and red slash. NTENDED The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated position that have the capability of operating a powered wheelchair. Quick Reference Information:...

  • Page 3: Table Of Contents

    C O N T E N T S C O N T E N T S INTRODUCTION ...........................4 SAFETY ..............................5 III. YOUR POWER CHAIR ........................7 ASSEMBLY ............................11 COMFORT ADJUSTMENTS ......................14 BATTERIES AND CHARGING ......................20 VII. CARE AND MAINTENANCE ......................24 Quantum 610 www.pridemobility.com...

  • Page 4: I . I N T R O D U C T I O N

    Where damage has occurred during transport, either to the packaging or content, please contact the delivery com- pany responsible. United Kingdom Pride Mobility Products Ltd 32 Wedgwood Road Bicester, Oxfordshire OX26 4UL NOTE: If you ever lose or misplace your copy of this manual, contact us and we will be glad to send you a new one immediately.
  • Page 5 Indicates that power chair, with similarly labeled seating system, conforms to ISO 7176-19 for transport of an occupied power chair in a motor vehicle. Indicates that power chair with a similar label is not rated for occupied transit. Class II Equipment Manufactured in Power chair information label Quantum 610 www.pridemobility.com...
  • Page 6 ■ Check battery charge. See VI. “Batteries and Charging.” ■ Ensure the manual freewheel levers are in drive mode before sitting on the power chair. NOTE: If you discover a problem, contact your Quantum Rehab Dealer for assistance. www.pridemobility.com Quantum 610...

  • Page 7: Assembly

    I I I . Y O U R P O W E R C H A I R THE QUANTUM 610 The Quantum 610 has two main assemblies: the seat assembly and the power base assembly. See fi gure 1. Typically, the seat assembly includes the armrests, seatback and seat base. The power base assembly includes two motor/brake assemblies, two drive wheels, four castor wheels, two batteries and wiring harnesses.
  • Page 8 REAR SHROUD FASTENER FRONT COVER MOTOR/BRAKE ASSEMBLY Figure 2. The Quantum 610 Series Power Base Electrical Components The electrical components are located inside the power base. The main circuit breaker is located on the front of the battery tray. The controller connector(s) are located inside the power base. See fi gure 3.
  • Page 9 Next, push in the circuit breaker button, turn on the controller, and continue normal operation. If the main circuit breaker continues to trip repeatedly, contact your Quantum Rehab Dealer. POWER MODULE BATTERY CONNECTOR MOTOR CONNECTORS MAIN CIRCUIT BREAKER Figure 3. Quantum 610 Series Electrical Components Quantum 610 www.pridemobility.com...
  • Page 10 WARNING! Do not use the freewheel lever handles as tie-down points to secure this product. MANUAL FREEWHEEL MANUAL FREEWHEEL LEVER LEVER Figure 4. Drive Mode (Drive Engaged) Figure 5. Freewheel Mode (Drive Disengaged) www.pridemobility.com Quantum 610...
  • Page 11 fi t. Replacement nylon insert lock nuts are available at local hardware stores or through your Quantum Rehab Dealer. ARMREST ANGLE ADJUSTMENT SEAT INSTALLATION SEAT HEIGHT/ANGLE ADJUSTMENT CONTROLLER POSITION FOOT PLATFORM ANGLE ADJUSTMENT FOOT PLATFORM HEIGHT/DEPTH ADJUSTMENT Figure 6. Quantum 610 Series Assembly View (Universal Mounting System Shown) Quantum 610 www.pridemobility.com...
  • Page 12 9. Secure the controller harness to the armrest receiver with wire ties. See fi gure 9. Figure 8. Controller Routed on a Synergy Seat www.pridemobility.com Quantum 610...
  • Page 13 7. Install the controller. Figure 9. Controller Routed on a Contour Seat NOTE: Refer to V. “Comfort Adjustments” for more information on controller installation and adjustment. FRICTION LOCK POWER SEAT LEVER ACTUATOR Figure 10. Power Seat Actuator Quantum 610 www.pridemobility.com...

  • Page 14: Comfort Adjustments

    13. Reinstall the seat and fl ip down the seat latch safety. 14. Reconnect the controller connector(s) to the power base. Figure 12. Seat Height Adjustment - Trapeze Bars 15. Reinstall the rear shroud and tighten the fasteners. www.pridemobility.com Quantum 610...
  • Page 15 3. Reinstall the adjusting screws to each seat hinge and tighten. Figure 14. Seatback Angle Adjustment Armrest Width Adjustment You can change each armrest’s width independently of the other. NOTE: Changing the armrest width may increase the overall width of your power chair. Quantum 610 www.pridemobility.com...
  • Page 16 13. Secure the controller harness to the armrest with wire ties. See fi gure 9. NOTE: If your power chair is equipped with a Synergy Seat or TRU-Balance Power Positioning System, refer to the information provided in supplemental manuals provided with your seating system. www.pridemobility.com Quantum 610...
  • Page 17 1. Flip up the foot platform and locate the screw. See fi gure 16. 2. Turn the screw to raise or lower the front of the foot platform. FOOT PLATFORM BRACKET HARDWARE SCREW Figure 16. Foot Platform Adjustment Quantum 610 www.pridemobility.com...
  • Page 18 MANDATORY! Inspect the positioning belt for loose parts or damage, including tears, worn spots, bent hardware, damaged latch mechanisms, dirt and debris, before each use of the power chair. If you discover a problem, contact your Quantum Rehab Dealer for maintenance and repair. www.pridemobility.com Quantum 610...
  • Page 19 NOTE: The power elevating seat option is equipped with a system that reduces the speed of the power chair by one half when the seat is elevated more than 2.54-5.08 cm (1-2 inches). Always check to be sure this system is operating properly before using your power chair. Quantum 610 www.pridemobility.com...

  • Page 20: Batteries And Charging

    V I . B A T T E R I E S A N D C H A R G I N G BATTERIES AND CHARGING The Quantum 610 uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance free. Since they are sealed, there is no need to check the electrolyte (fl uid) level. Deep-cycle batteries are designed to handle a longer and deeper discharge.
  • Page 21 We do not recommend using other types of chargers (e.g., an automotive battery charger). NOTE: Your power chair’s charger will not operate after the batteries have been discharged to nearly zero voltage. If this happens, call your Quantum Rehab Dealer for assistance. Quantum 610 www.pridemobility.com...
  • Page 22  Limit baggage weight to essential items.  Try to maintain an even speed and avoid stop-and-go driving.  Pride recommends charging your batteries for at least 48 continuous hours once per month to improve battery performance and battery life.
  • Page 23 What about shipping? If you wish to use a freight company to ship your power chair to your fi nal destination, repack your power chair in the original shipping container and ship the batteries in separate boxes. Quantum 610 www.pridemobility.com...

  • Page 24: Care And Maintenance

    V I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your Quantum 610 is a sophisticated power chair. Like any motorised vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from your Quantum Rehab Dealer.
  • Page 25 Take your power chair to your Quantum Rehab Dealer for yearly maintenance, especially if you use your power chair on a daily basis. This helps ensure that your power chair is functioning properly and helps prevent future complications. Quantum 610 www.pridemobility.com...
  • Page 26 WARNING! When changing a tyre, remove only the centre lug nut and washer, then remove the wheel. If any further disassembly is required, defl ate the tyre completely or it may explode. www.pridemobility.com Quantum 610...
  • Page 27 WASHERS WASHER Figure 20. Quantum 610 Drive Wheel Figure 21. Quantum 610 Drive Wheel Disassmebled Follow these easy steps for a quick and safe repair for both pneumatic and solid tyres: 1. Turn off the power to the controller. 2. Set the power chair up on blocks.
  • Page 28 Disconnect both batteries before load testing and follow the directions that come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair still does not power up, contact your Quantum Rehab Dealer. www.pridemobility.com Quantum 610...
  • Page 29 - = Negative (Black) Terminal Post Connect Red wires to Red Positive (+) Terminal Posts. Connect Black wires to Black Negative (–) Terminal Posts. REAR SHROUD FASTENERS REAR SHROUD BATTERY WIRING DIAGRAM LABEL FRONT BATTERY REAR BATTERY Figure 22. Battery Installation Quantum 610 www.pridemobility.com...
  • Page 31 Quantum 610 Serial #...
