Dolby DP600 Program
®
Optimizer Manual
Issue 7
Part Number 91963

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dolby Laboratories DP600

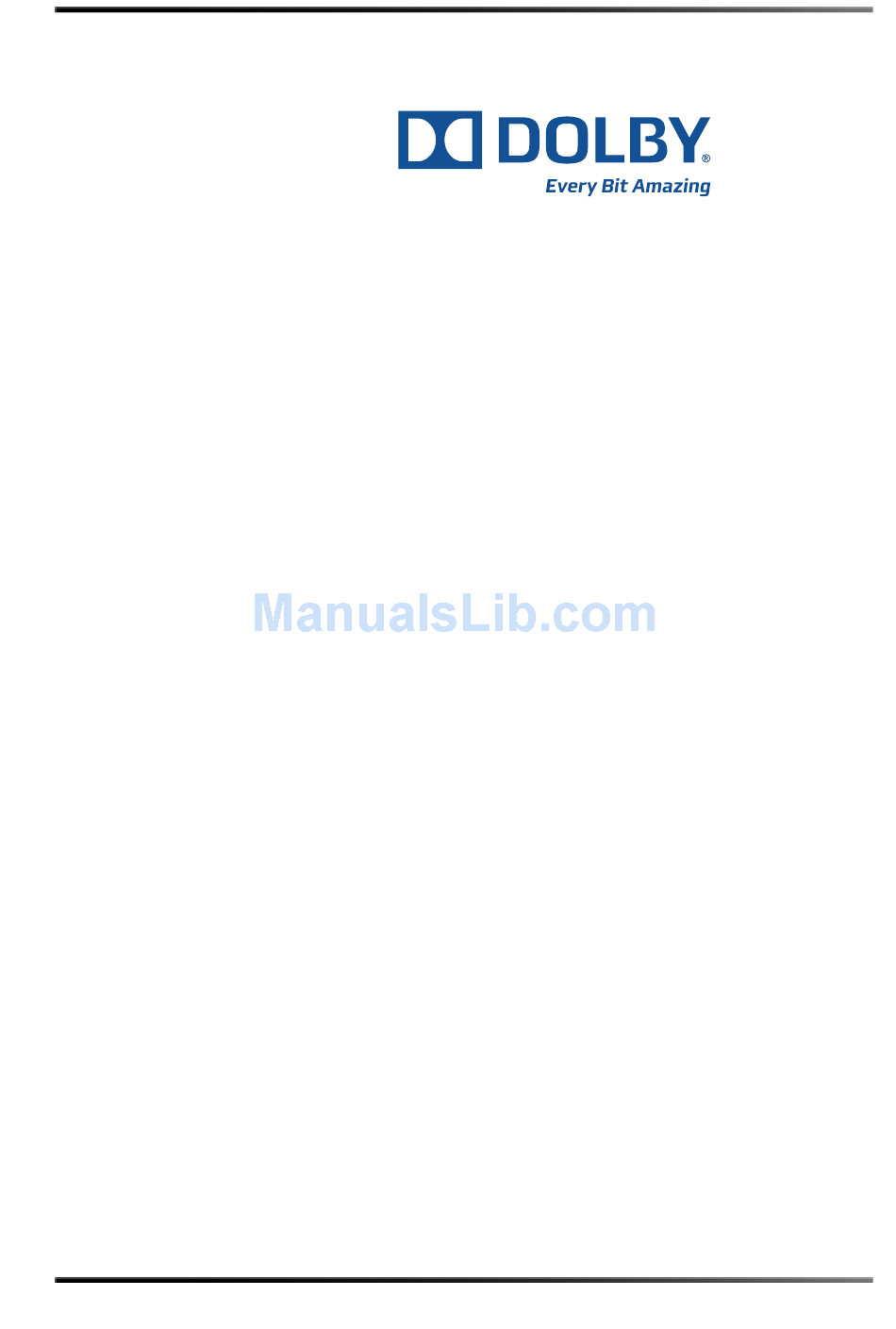

  • Page 1   Dolby DP600 Program ® Optimizer Manual Issue 7 Part Number 91963...
  • Page 2 European Headquarters Dolby Laboratories, Inc. Wootton Bassett Wiltshire SN4 8QJ England Telephone 44‐1793‐842100 Fax 44‐1793‐842101 DISCLAIMER OF WARRANTIES: EQUIPMENT MANUFACTURED BY DOLBY LABORATORIES IS WARRANTED AGAINST DEFECTS  IN MATERIALS AND WORKMANSHIP FOR A PERIOD OF ONE YEAR FROM THE DATE OF  PURCHASE. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES AND NO WARRANTY  OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OF NONINFRINGEMENT  OF THIRD‐PARTY RIGHTS (INCLUDING, BUT NOT LIMITED TO, COPYRIGHT AND PATENT  RIGHTS). LIMITATION OF LIABILITY:  IT IS UNDERSTOOD AND AGREED THAT DOLBY LABORATORIES’ LIABILITY, WHETHER IN  CONTRACT, IN TORT, UNDER ANY WARRANTY, IN NEGLIGENCE, OR OTHERWISE, SHALL NOT  EXCEED THE COST OF REPAIR OR REPLACEMENT OF THE DEFECTIVE COMPONENTS OR  ACCUSED INFRINGING DEVICES, AND UNDER NO CIRCUMSTANCES SHALL DOLBY  LABORATORIES BE LIABLE FOR INCIDENTAL, SPECIAL, DIRECT, INDIRECT, OR  CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, DAMAGE TO SOFTWARE OR  RECORDED AUDIO OR VISUAL MATERIAL), COST OF DEFENSE, OR LOSS OF USE, REVENUE, OR  PROFIT, EVEN IF DOLBY LABORATORIES OR ITS AGENTS HAVE BEEN ADVISED, ORALLY OR IN  WRITING, OF THE POSSIBILITY OF SUCH DAMAGES. .  Dolby, Pro Logic, and the double‐D symbol are registered trademarks of Dolby Laboratories.  Dialogue Intelligence is a trademark of Dolby Laboratories. Part Number 91963 All other trademarks remain the property of their respective owners. Issue 7 © 2010 Dolby Laboratories. All rights reserved. S10/22153/23705 ® Dolby DP600 Program Optimizer Manual...
  • Page 3: Regulatory Notices

    Important Safety Instructions 1. CAUTION: Troubleshooting must be performed by a trained technician. To reduce the  risk of electric shock, do not attempt to service this equipment unless you are  qualified to do so. 2. Do not defeat the safety purpose of the polarized or grounding‐type plug. A polarized  plug has two blades with one wider than the other. A grounding‐type plug has two  blades and a third grounding prong. The wide blade or the third prong is provided  for your safety. If the provided plug does not fit into your outlet, consult an electrician  for replacement of the obsolete outlet. 3. This apparatus must be earthed (grounded) by connecting to a correctly wired and  earthed power outlet. 4. Ensure that your mains supply is in the correct range for the input power requirement  of the unit. 5. In order to reduce the risk of electrical shock, the power cord must be disconnected  when the power supply assembly is removed. 6. This equipment is designed to mount in a suitably ventilated 19” rack; ensure that any  ventilation slots in the unit are not blocked or covered. 7. CAUTION: This equipment contains a lithium battery. Danger of explosion if the  battery is incorrectly replaced. Replace only with the same or equivalent type. Do not  disassemble, crush, puncture, short external contacts, or dispose of in fire or water.  Dispose of the used battery in accordance with local law. 8. The mains power disconnect device for this unit is the plug‐in mains cord rather than  a power switch. The mains cord must remain readily accessible for disconnecting  mains power. ® Dolby DP600 Program Optimizer Manual...
  • Page 4 Regulatory Notices 9. To avoid exposure to dangerous voltages and to avoid damage to the unit, do not  connect the rear panel Ethernet port to telephone circuits. 10. As the colours of the cores in the mains lead may not correspond with the coloured  markings identifying the terminals in your plug, proceed as follows: • The green and yellow core must be connected to the terminal in the plug  identified by the letter E, or by the earth symbol  , or coloured green, or green  and yellow. • The blue core must be connected to the terminal marked with the letter N or  coloured black. • The brown core must be connected to the terminal marked with the letter L or  coloured red. 11. This apparatus must be earthed. WEEE PRODUCT END‐OF‐LIFE INFORMATION This product was designed and built by Dolby Laboratories to provide many years of service, and is backed  by our commitment to provide high‐quality support. When it eventually reaches the end of its serviceable  life, it should be disposed of in accordance with local or national legislation. www.dolby.com/environment. For current information, please visit our website at:      ® Dolby DP600 Program Optimizer Manual...
  • Page 5 Gebruik alleen zekeringen van de aangegeven typen en waarden. Aansluiting van de unit alleen aan een geaarde wandcontactdoos. De netkabel die met de unit wordt geleverd, moet als volgt worden aangesloten: Fase—Bruin Nul—Blauw Aarde—Groen/Geel ® Dolby DP600 Program Optimizer Manual...
  • Page 7: Table Of Contents

    2.2 Starting the System for the First Time ................12 2.2.1 DP600 Home Screen .....................24 2.2.2 Using the System Screen ..................25 2.3 Using the DP600 Remote Client Software................27 2.3.1 Understanding Work Orders ..................27 2.3.2 Running the DP600 Client ..................29 2.3.3 DP600 Client Home Screen...................30 2.4 Creating a Work Order .....................31...
  • Page 8 A.3.3 Selecting a Bookmark to Specify a Path..............70 A.3.4 Entering a Path for Work Orders with Multiple Files ..........71 A.4 Entering a Destination Path ....................73 Appendix B DP600 Program Optimizer Detailed Profile Descriptions B.1 Understanding DP600 Profiles ..................75 Appendix C System Administrator Functions C.1 Access Levels........................79...
  • Page 9 Figure 2-26 Status Screen ........................26 Figure 2-27 Volumes Screen ........................26 Figure 2-28 Disks Screen ........................27 Figure 2-29 DP600 Program Optimizer Splash Screen ................29 Figure 2-30 DP600 Client Home Screen ....................30 Figure 2-31 Displaying the Work Orders Screen ..................31 Figure 2-32 Adding a Work Order......................
  • Page 10 Figure 3-10 Reinstall Front-Panel Drive Cover ..................55 Figure 3-11 DP600 Front-Panel Power Supply Indicator................ 57 Figure 3-12 DP600 Failed Power Supply (Top Unit in Figure)..............57 Figure 3-13 Loosen Thumbscrew on Failed Power Supply ..............58 Figure 3-14 Press on Tab and Pull Handle to Remove Failed Power Supply ........58 Figure 3-15 Remove Failed Power Supply .....................
  • Page 11 Figure C-24 Loudness Log Export Screen ....................93 Figure C-25 Power Screen ........................94 Figure C-26 Reboot DP600 Confirmation Prompt ................... 94 Figure C-27 OK to Shut Down when This Screen Appears (And the Drive LEDs Are Not Active)..94 ®...
  • Page 13: Chapter 1 Introduction

    1‐1).  For audio formats that do not include metadata, the DP600 can automatically set or correct  the   parameter by referencing a user‐defined target level (see Figure 1‐2).  dialnorm Content producers and broadcasters can reduce loudness complaints by using the DP600  to provide viewers with a consistent audio experience across programs, channels, and  networks. Expanding upon the unique Dialogue Intelligence ™  technology developed for  the Dolby LM100 Broadcast Loudness Meter, the DP600 normalizes the loudness of audio  programs while preserving their original dynamic range.  The DP600 analyzes the  loudness of file‐based audio bitstreams coded in Dolby Digital, Dolby Digital Plus, and  Dolby E, and validates and corrects the   parameter without the need for decoding  dialnorm and reencoding the original audio bitstream. The DP600 also provides intelligent  speech‐based loudness normalization for both PCM audio and MPEG‐1 LII audio. The DP600‐C provides faster‐than‐real‐time file‐based encoding, decoding, and conversion  between all of Dolby’s audio formats (Dolby Digital, Dolby Digital Plus, and Dolby E),  PCM, and MPEG‐1 LII, while preserving the audio metadata. In addition, it offers a unique,  high‐quality, single‐step Dolby Digital to Dolby Digital Plus converter that preserves the  metadata and minimizes tandem coding losses. This allows the audio from existing media  archives to be converted to next‐generation broadcast formats. The DP600 also supports  Dolby Pro Logic ®  II encoding for two‐channel matrix‐encoded content derived from  multichannel source files. In very rare cases involving extreme loudness corrections that require gain, soft limiting will occur only  during program peak levels that would exceed clipping after applying this type of loudness correction. ® Dolby DP600 Program Optimizer Manual...
  • Page 14: Figure 1-1 Coded Audio With Metadata Analysis And Correction

    Customers interested in enhancing two‐channel audio for use in 5.1‐channel applications  can purchase an optional DP600 software upgrade that adds an intelligent file‐based  upmixing capability. This unique process is based on a newly developed Dolby algorithm  that creates a wider, natural‐sounding sweet spot. It also ensures that subsequent  downmixing is free from artifacts typically found with other solutions. The upmixing  process can be adaptively integrated into the same DP600 work‐flow profiles utilized for  file‐based loudness correction, encoding, decoding, conversion, and transcoding. Figure 1‐1   Dolby DP600 Program Optimizer Uncorrected File Analyzed and Corrected File Broadcast Media File with Broadcast Media File with Analyze Audio Dolby E, Dolby Digital, or Dolby E, Dolby Digital, or Dolby Digital Plus...
  • Page 15: Work-Flow Integration

    Work-Flow Flexibility and Ease of Use The Dolby DP600 platform supports several types of applications, including archiving,  automated QC, content conversion, and media asset management; it offers considerable  potential for integration with third‐party systems through an open application  programming interface (API). To meet specific user requirements, you can control the DP600 and its processing engines  in three ways: • Manual control: Users can set up and initiate work orders on an individual or batch  basis from a simple‐to‐use interface.  • Third‐party control via Web services: To enable system integration at any level, the  DP600’s processing engines are also available as a set of Web services. This allows  manufacturers to integrate these engines directly into their work flow to create a  seamless user experience without impacting day‐to‐day operations.  • Automatic hot folder ingest process: Users can create hot folders and predefine a  work order profile for each one. The profile governs the DP600’s behavior with  specific broadcast media types. All media files moved to a hot folder are  automatically processed based on the folder’s profile and delivered to a user‐defined  folder upon completion. Hot folders are easy to set up and use and can greatly speed  integration time within some facilities. ® Dolby DP600 Program Optimizer Manual...
  • Page 16: Applications

    Automated broadcast media file audio transcoding and conversion • Automated broadcast media file QC and loudness correction IPTV Applications • Automated VOD file analysis andloudness correction • Automated VOD file transcoding and conversion • Automated broadcast media file audio transcoding and conversion • Automated broadcast media file QC and loudness correction Terrestrial Applications (Networks/Affiliates/Independent Stations) •  Broadcast media file QC and loudness correction  •  Broadcast media file (GXF, MXF, others) audio transcoding and conversion Postproduction Applications • Automated loudness analysis, setting and correction of   metadata for  dialnorm programming destined for broadcast  • Automated normalization of content without metadata (to meet your customer’s  delivery specifications) • Faster‐than‐real‐time automated transcoding and conversion of broadcast media files ® Dolby DP600 Program Optimizer Manual...
  • Page 17: Supported Media Formats And Audio Types

    Supported Media Formats and Audio Types The DP600 supports many media formats and audio types, including media file formats  and linear and coded audio types. Media File Formats GXF (SMPTE 360M);MXF operational patterns per SMPTE 390M (OP‐Atom); SMPTE 378M (OP‐1a); SMPTE 391M (OP‐1b with internal essence file formats only); MXF  container (essence) support per SMPTE 379M (GC); SMPTE 381M (GC‐MPEG); SMPTE  383M (GC‐DV minus support for audio essence interleaved in DV);  SMPTE 382M (GSC‐AESBWF); SMPTE 386M (IMX with D10 Audio); MPEG‐2 program  stream; MPEG‐2 single program transport stream; MP4 Linear Audio Types • ,  , and multichannel .  files with or without a Dolby  .wav audio metadata .  chunk  • , including multichannel  .aiff • 16‐, 20‐, and 24‐bit PCM (within any of the aforementioned media file formats) Coded Audio Types Dolby Digital (AC‐3), Dolby Digital Plus (E‐AC‐3), Dolby E, MPEG‐1 LII ® Dolby DP600 Program Optimizer Manual...
  • Page 18: Dp600 Front Panel

    Touch-Screen User Interface The LCD touch screen provides user controls for the initial configuration; rescheduling,  canceling, and pausing work orders and reports; and checking the system status. You  simply touch the icon that represents the desired function, and the DP600 responds  accordingly. To add and configure work orders and export reports, you need to use the  DP600 Client, as described in Section 2.3. For a complete description of all work order  functions, see Section 2.3.1.  1.5.2 CD/DVD-ROM Drive The CD/DVD‐ROM drive is located behind the touch‐screen door. With this drive, you can  perform DP600 software upgrades. Figure 1‐4   System Reset and Display buttons CD/DVD-ROM drive Figure 1-4 DP600 CD/DVD-ROM Drive (Behind Touch-Screen Door) Note: You cannot play commercial CDs or DVDs in the DP600 CD/DVD‐ROM drive. ® Dolby DP600 Program Optimizer Manual...
  • Page 19: System Reset And Display Controls

    Power supply failure: This red LED is off during normal operation. It lights or  flashes red if either of the redundant power supplies fails. Temperature: This tricolor LED glows green when the temperature of the unit is   cool, yellow if the temperature is warm, and red if the temperature is hot. If this  LED is yellow or red, the operating environment may be warmer than expected  and in need of modification. In such a case, call your Dolby authorized technical  representative immediately. 1.5.5 Internal Drive Indicators The DP600 has five physical internal hard drives. Drives 1 and 2 are arranged in a  RAID 1 configuration to provide protection for the operating system as well as  local storage. The remaining three hard drives are configured as separate drives to  provide local storage. This configuration of one RAID pair and three separate  drives represents four logical drives.  There are four bicolor LEDs on the front panel, labeled  ,  ,  , and  . These LEDs indicate  the status of the DP600’s four logical internal hard drives. The drive LEDs function as  follows: • Off (nonilluminated): Indicates a functional drive with no current disk access activity • Green: Indicates normal drive activity • Red: Indicates a drive failure LED  shows the status of the two‐drive RAID 1 configuration. The operating system is  installed on these mirrored drives to prevent a physical drive failure, resulting in an  inoperable system. If either of the mirrored drives fails, the other RAID drive enables the  system to operate normally until the failed drive is replaced. ® Dolby DP600 Program Optimizer Manual...
  • Page 20: Usb 2.0 Port

    If you replace both RAID drives, you also need to reinstall the DP600 software. In such a  case, follow the instructions for a clean installation in Section 3.3. When you reinstall the  software, the system automatically synchronizes the two RAID drives, re‐creating the  original mirrored RAID array (manual rebuild not required). For instructions on replacing a drive, see Section 3.1.1. Table 1-1 Local Storage LED Conditions Front-Panel LED Condition Failed Physical Drive Solid red Blinks in red in  two‐second intervals Blinks in red in  Rebuilding RAID half‐second intervals Solid red Solid red Solid red 1.5.6 USB 2.0 Port The front‐panel USB 2.0 port is provided for license loading from a USB flash drive or  to connect the provided USB keyboard. ® Dolby DP600 Program Optimizer Manual...
  • Page 21: Dp600 Rear Panel

    • Three empty PCI slots (for future use) Figure 1‐5 shows the currently active components on the DP600 rear panel. Figure 1‐5   Fans Red alarm reset button Monitor port Power supplies Ethernet port PS/2 ports USB 2.0 ports Figure 1‐6   Figure 1-5 DP600 Rear Panel Send Us Your Feedback If you have a question or a comment regarding this chapter, send us an email. ® Dolby DP600 Program Optimizer Manual...
  • Page 23: Chapter 2 Using The Dp600

    Connect DP600 to Network Note: Some early models have two Ethernet ports. The lower Ethernet port is  nonfunctional on these units. Connect the provided USB keyboard to the DP600 front‐panel USB port or one of the  rear‐panel USB ports. Typically, when initially configuring the system, you use the  touch screen, as explained in Section 2.2, but you can also use the keyboard. Figure 2-2 DP600 Program Optimizer DP600 Program Optimizer Connect provided USB keyboard here or in rear panel Figure 2-2 Connect DP600 Keyboard (Front-Panel Connection) ® Dolby DP600 Program Optimizer Manual...
  • Page 24: Starting The System For The First Time

    Using the DP600 Starting the System for the First Time Note: Before starting the system, be sure it’s connected to an active network. To download your license and enable the DP600, you also need a PC with Internet  access and an available USB port, and the USB device provided with your unit. The DP600 touch screen provides a user‐friendly interface where you perform actions by  pressing the respective screen area. The touch screen is calibrated during the  manufacturing process. When you start the DP600 for the first time, the DP600   screen appears, which  Welcome! provides a checklist of things you need before you can set up the system, as shown in  Figure 2‐3. Figure 2-3 Figure 2-3 DP600 Welcome! Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 25: Figure 2-4 Network Information Dialog Box

    Network Information Dialog Box Press the   button on the right side of the screen. config The     dialog box appears, as shown in the example in Figure 2‐5.  Network Configuration Before you set up the system, the IP address appears only if you enter a static IP  address (DHCP unchecked). If you’re using DHCP, the IP address does not appear  until you complete the system setup. Note: In this dialog box, and in all the following DP600 setup screens, you  enter information to configure your system. If you press the    cancel button at the bottom left corner of any of the following setup screens,  the system cancels all of your entries (in all the setup screens, in  addition to the currently displayed setup screen). A cancel confirm  prompt appears. If you confirm, the unit cancels your entries and  automatically reboots, and then the   screen reappears. At  Welcome! this point, you can reenter your settings. Figure 2-5 Figure 2-5 Network Configuration Dialog Box ® Dolby DP600 Program Optimizer Manual...
  • Page 26: Figure 2-6 Hostname Keypad

    Press on the desired keys to enter a host name, then select  Be sure to enter a unique name using only alphanumeric characters, hyphens, and  periods (for example, dp600‐unit‐1).  In the   box, press on the  field. General Configuration Gateway  number pad appears, as shown in Figure 2‐7. Enter Gateway Address Figure 2-7 Figure 2-7 Enter Gateway Address Number Pad Screen Press on the desired numbers to enter an optional gateway address, then select  In the  box, press the   box (if it is unchecked) for dynamic  IP Address Use DHCP addressing or uncheck this box (by pressing on it) if you want to enter a static IP  address.  ® Dolby DP600 Program Optimizer Manual...
  • Page 27: Figure 2-8 Network Tools Dialog Box

    10. Press   to save your network configuration. The   dialog box (shown in Figure 2‐4) reappears with your network  Network Information settings, except for your unique host name. You need to reboot the system to display  the new host name. 11. Press   in the   screen. Tools Network Information The   dialog box appears, as shown in Figure 2‐8. In this screen, you can  Network Tools enter a remote host and perform ping or trace route operations by pressing the  respective button (see Figure 2‐9 and Figure 2‐10). Figure 2-8 Figure 2-8 Network Tools Dialog Box ® Dolby DP600 Program Optimizer Manual...
  • Page 28: Figure 2-9 Network Tools Ping

    Using the DP600 Figure 2-9 Figure 2-9 Network Tools Ping Figure 2-10 Figure 2-10 Network Tools Trace Route 12. Press  in the   dialog box Network Tools ® Dolby DP600 Program Optimizer Manual...
  • Page 29: Figure 2-11 Date And Time Information Screen

    Date & Time Information displays the current date and time settings. Figure 2-11 Figure 2-11 Date and Time Information Screen 14. Press   in the  screen. config Date & Time Information The   dialog box appears, as shown in Figure 2‐12. In this screen, you  Time Configuration can set up an NTP configuration or enter the date and time manually. Figure 2-12 Figure 2-12 Time Configuration ® Dolby DP600 Program Optimizer Manual...
  • Page 30: Figure 2-13 Ntp Settings Fields

    Your NTP settings appear in the   screen (shown in  Date and Time Information Figure 2‐11). 17. After setting up NTP, follow steps 20–22 to enter your time zone. 18. To set the date and time manually, press the  field. Date & Time The   screen appears, as shown in Figure 2‐14. Set Server Date/Time Figure 2-14 Figure 2-14 Set Server Date/Time Screen 19. Press the up and down arrows above and below each field to set the server date and  time, then press  ® Dolby DP600 Program Optimizer Manual...
  • Page 31: Figure 2-15 Select Region Screen

    Zone The   screen appears, as shown in Figure 2‐15. Select Region Figure 2-15 Figure 2-15 Select Region Screen 21. Press on your region, then press the right arrow. The       screen appears for your region, as shown in Figure 2‐16. Select City Zone You need to select your closest city to ensure that submitted work orders run at the  scheduled time. Figure 2-16 Figure 2-16 Select City or Zone Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 32: Figure 2-17 License Screen

    Using the DP600 22. Press on your closest city, then press  finish The   screen appears. This screen displays the unit’s   and user  License Serial Number personal identification number ( ). Note these two numbers—you’ll need them to  license your unit for operation.  Figure 2-17 Figure 2-17 License Screen 23. Locate the USB flash device in the DP600 packing kit, and insert it into a PC with  Internet access.  24. Open a Web browser and go to  www.dolbysupport.com. 25. If you have previously registered, simply log in. 26. If you are a new user, please take a few moments to register. ® Dolby DP600 Program Optimizer Manual...
  • Page 33: Figure 2-18 Select Product Licensing On Dolby Support Home Page

    Figure 2-18 Select Product Registration Figure 2-18 Select Product Licensing on Dolby Support Home Page The  page appears, as shown in Figure 2‐19. Product Registration Figure 2-19 Select Register a   New Product Figure 2-19 Get New License File Page ® Dolby DP600 Program Optimizer Manual...
  • Page 34: Figure 2-20 Registered Products Page

    2‐17). Fields marked with an asterisk (*) are required.  30. Select   at the bottom of the page to display the licensing  Update download upgrade link 31. Click on the licensing   link. download upgrade 32. Download your license file to the USB flash device inserted in your PC.  This file is the license for your DP600 system (including any upgrades). 33. Remove the USB flash device from your PC, and insert it into one of the DP600 USB  ports.  It will take a few seconds for the DP600 to recognize the license. 34. Press the   button in the   screen. license License A confirmation prompt informs you that the license installed successfully.  Note: If the system does not install the license, press the   button  license again. The system may take a few seconds to recognize the inserted  USB flash device containing the license file. ® Dolby DP600 Program Optimizer Manual...
  • Page 35: Figure 2-21 License Confirmation Prompt

    Starting the System for the First Time Figure 2-21 Figure 2-21 License Confirmation Prompt 35. Press  The   screen appears. Finished! Figure 2-22 Figure 2-22 Finished! Screen 36. Press  finish The DP600 setup is now completed, and the system automatically reboots. During the  reboot process, remove any discs in the CD/DVD‐ROM drive, as the system attempts  to boot from any inserted disc. If an installation disc is inserted, the system begins a  new installation. You can repeat the previous steps for each license you want to download and each  upgrade you want to apply to your license. Note: If you are a DP600 system administrator, go to Appendix C for instructions on  setting up user IDs and access levels and performing other administrative tasks. ® Dolby DP600 Program Optimizer Manual...
  • Page 36: Dp600 Home Screen

    2.4.  Note the lock icon next to the date and time. When this icon is in the locked  position, the  system is in view‐only mode. In this mode, you can display some information and check  the system status, but cannot operate the system or perform administrative functions. To  operate the system, obtain a   level ID from your DP600 system administrator. System  USER administrators can also perform all   level functions. USER To gain access to specific functions, press the lock icon to log in with the appropriate  user‐level ID and password. When you log in, the lock icon changes to the unlocked  position and your ID appears below the time and date, as shown in Figure 2‐42. After 30 minutes of idle time, the system returns to the locked position, but you should log  out by pressing the lock icon and pressing  —to lock the system—whenever you’re  logout done working in the unlocked mode. Figure 2-23 Lock icon Figure 2-23 DP600 Front-Panel Home Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 37: Using The System Screen

    C. The   and   functions do not require a password.  info status Figure 2-24 Figure 2-24 System Screen Press     in the   screen. info system The   screen appears, as shown in Figure 2‐25. This screen displays the current  info    and the  Software Information Licensed Configurations Figure 2-25 Figure 2-25 Info Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 38: Figure 2-26 Status Screen

    2‐26. In this screen, you can check the  status  and   status by pressing the respective icons. volumes disks Figure 2-26 Figure 2-26 Status Screen Press     in the   screen. volumes status The   screen appears, as shown in Figure 2‐27, which displays the storage status  volumes for each disk volume. When any volume exceeds 90% capacity, the disk happy face on  the   screen turns to a sad face. In addition to the system’s internal storage, this  Home screen displays the status of your work order source and destination external storage.  (For more information on source and destination, see page 35 and page 36.)  Figure 2-27 Figure 2-27 Volumes Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 39: Using The Dp600 Remote Client Software

    Using the DP600 Remote Client Software Press     in the   screen. disks status The   screen appears, which displays the status for each RAID drive, as shown in  disks Figure 2‐28. Figure 2-28 Figure 2-28 Disks Screen Using the DP600 Remote Client Software To process audio using the DP600, you need to use the Dolby DP600 Remote Client  software (also referred to as “DP600 Client“ or “Client”). With this application, you can  define and run an operation we call a work order. The DP600 Client runs on your  Microsoft ® Windows ® PC. This application looks similar to the front‐panel touch screen,  but provides more user control functions. For example, with the Client, you can: • Add and configure work orders •...
  • Page 40 Mono-Only Standard This type of work order processes audio in mono on a file‐by‐file basis. Each file represents  a single channel of a multichannel program. You specify the path to the source files on your  PC or anywhere on the network. You also specify a destination where you want to save the  processed file. Hot Folder Work Order With this type of work order, you specify the path to a source folder on your PC or network  where the audio files you want to process are located. The DP600 periodically looks for files  of a specific type in this folder, which is controlled by the work order profile. The work  order profile associated with your hot folder also determines how the DP600 processes the  files. In addition, you specify the destination where you want to save the processed files.  When the DP600 sees the specified file type in the source directory, it processes those files  according to the current profile, and then saves the processed files in the destination folder.  Note: You can link only one work order profile with a single hot folder. However, you can  create multiple hot folders, each with a different profile. Pinnacle Hot Folder Work Order This type of hot folder is designed specifically for Pinnacle MediaStream server files. Omneon Hot Folder Work Order This type of hot folder is designed specifically for Omneon server files and is incompatible  with other formats. ® Dolby DP600 Program Optimizer Manual...
  • Page 41: Running The Dp600 Client

    Dolby Laboratories ® ® Currently we support Windows XP, using Internet Explorer  6 or later, Firefox  2 or  ® later, Opera 9 or later, and Safari  3 or later. Other browsers and operating systems are  untested or unsupported. The  splash screen appears, as shown in Figure 2‐29. DP600 Program Optimizer Figure 2-29 Download manual Download Java Click launch client Figure 2-29 DP600 Program Optimizer Splash Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 42: Dp600 Client Home Screen

    If the current version of Client software is not already installed on the Client PC, the  correct version automatically downloads directly from the DP600 (no Internet access  required). You can install and run the Client from multiple computers simultaneously. Client  updates automatically occur each time the Client runs on a specific PC. For this reason,  the Client isnʹt really installed as such. You simply run the application from the DP600,  which automatically downloads any necessary files and updates as required. 2.3.3 DP600 Client Home Screen After launching the DP600 Client, as described in Section 2.3.2, the DP600 Client    home screen appears on your PC. This screen looks similar to the   screen on the front‐panel  home touch screen and you can perform many of the same functions using the Client. You can  also perform some additional functions. The Client functions are described on the  following pages. When a procedure says “click” something, this means that you can  perform the respective function only with the Client. If it says “press or click,” this means  you can perform the respective function using the touch screen or the Client. However, to  access any of their respective locked areas, you must log in separately on the touch screen  and the Client. Figure 2-30 Figure 2-30 DP600 Client Home Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 43: Creating A Work Order

    Figure 2-31 {Click work orders   Figure 2-31 Displaying the Work Orders Screen The   screen appears, as shown in Figure 2‐32. In this screen, you can add  work orders and configure a work order and perform other related functions.  Click   at the right side of the   screen. work orders Figure 2-32 Click add Figure 2-32 Adding a Work Order ® Dolby DP600 Program Optimizer Manual...
  • Page 44: Figure 2-33 Login Screen

    2‐35. In this menu, you can enter information in the displayed fields to configure your work  orders. You can also click the  icon to enter notes and configure  Additional Settings additional settings for hot folders. Figure 2-34 Click here to enter related text or additional settings for hot folders Figure 2-34 Add Workorder Screen (All Work Orders Except Grass Valley Hot Folder) ® Dolby DP600 Program Optimizer Manual...
  • Page 45: Figure 2-35 Add Workorder Screen (Grass Valley Hot Folder)

    Pinnacle Hot Folder Omneon Hot Folder, Grass Valley Hot Folder or Mono-only ).  Hot Folder Note:  and   work orders are licensed only for  Omneon Standard Omneon Hot Folder Omneon servers and are incompatible with other platforms. Figure 2-36 Figure 2-36 Select a Work Order Type Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 46: Figure 2-37 Selecting A Work Order Profile (Default Profiles Displayed)

    2‐37. When you click a profile, a short description of the selected profile appears (for  example,  .  Dolby Digital (.ac3) to Dolby Digital Plus (.ec3) Profiles that perform loudness correction require a standard DP600, while profiles that  perform encoding, decoding, transcoding, and conversion require the enhanced  DP600‐C. Profiles that perform upmixing, require the DP600 upmixing upgrade. Note: For detailed descriptions of all the DP600 profiles, see Appendix B. In  addition, check the DP600 area of   for periodic  www.dolbysupport.com profile updates.  Figure 2-37 Figure 2-37 Selecting a Work Order Profile (Default Profiles Displayed) ® Dolby DP600 Program Optimizer Manual...
  • Page 47: Figure 2-38 Enter Path Screen

    FTP or SFTP necessary) enter a  ,  , and  (SMB only) in the    Username Password Domain Enter User  screen. Click the right arrow and enter a path in the  Credentials Enter Server  screen. Then click   to display the   screen, click on the  Details finish Select File desired file or folder and click  . If you want to create a bookmark, click on the  desired file or folder in the   screen, click  , then click  . If you click  Select File and the   field is not blank, the system attempts to browse to the  browse entered URL. ® Dolby DP600 Program Optimizer Manual...
  • Page 48: Figure 2-39 Additional Settings Screens

    Multi-File Standard, Mono-only Standard, Standard, Pinnacle Standard and Omneon Standard work orders and all types of Hot Folder work orders Figure 2-39 Additional Settings Screens 11. Enter the   for your work order by typing a numeric value.  Priority If you want the system to process a work order first in the queue, enter  . For numerous  work orders with the same priority, the system sets the queue using the  entries,  Start At as explained in step 12. ® Dolby DP600 Program Optimizer Manual...
  • Page 49: Figure 2-40 Entering The Work Order Start Time

    End At If you want to specify a time when the DP600 stops looking for multiple files to process,  click the   field to display the screen (see Figure 2‐41). End At End At 15. Use the up and down arrows to specify a day, month, year, and time when you want  to end the multiple file work order, then click  . Click   to return to the default  reset Indefinitely Figure 2-41 Figure 2-41 Entering the Work Order End Time (For Work Orders with Multiple Files Only) ® Dolby DP600 Program Optimizer Manual...
  • Page 50  screen appears where you can enter a  Enter Path directory where the system copies an uncorrected file. This screen is identical to  the   screen described earlier for the source path. Uncorrected files  Enter Path appear as  in the status area in work order report and log  Quarantine Failed screens. Note: If you enable   in the  screen (see Figure 2‐34 and  Delete Source File Add Workorder Figure 2‐35), the   destination options allow you to move  Additional Settings (instead of copy) the corrected or uncorrected files to the specified work order  directory or the quarantine directory. • Notes Allows you to enter any related text for the corresponding work order. ® Dolby DP600 Program Optimizer Manual...
  • Page 51: Figure 2-42 Work Order Running As Displayed In Home Screen

    Creating a Work Order 16. If applicable, enter any other   for the respective hot folder. Additional Settings After you add a work order, it runs as specified in the   menu. When a  Add Workorder work order is running, the   screen displays the progress, as shown in Figure 2‐42. home Figure 2-42 Figure 2-42 Work Order Running as Displayed in Home Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 52: Figure 2-43 Work Orders Screen Displays Database

    Figure 2-43 Work Orders Screen Displays Database When you click the filter criteria icon   at the bottom of the  screen (shown in  work orders Figure 2‐42), the   options appear, as shown in Figure 2‐44.  Workorder Filter Criteria Figure 2-44 Figure 2-44 Workorder Filter Criteria Screen Note: For the   criteria,   is for corrected files and  Include Status QUARANTINE_FINISHED  is for uncorrected files. QUARANTINE_FAILED ® Dolby DP600 Program Optimizer Manual...
  • Page 53: Figure 2-45 Date Created Options

    This option specifies that the   screen displays only work orders run during a certain  info period. When you click in this field, you can select the desired option from the drop‐down  menu. The default is  , which specifies that all work orders appear. If you select  Custom , the     appear. When you click in the  or  All Dates Date Created Values Created Since  fields, you can enter an exact after or before date and time using the displayed  Created Until controls. The default is  , which specifies that all work orders appear. Figure 2‐45  Include All shows all the options. Figure 2-45 Figure 2-45 Date Created Options ® Dolby DP600 Program Optimizer Manual...
  • Page 54: Figure 2-46 Set Priority Values

    Include Status When you check or uncheck these boxes, the system filters the status information  accordingly. In addition to adding work orders and displaying work order information, the   work orders screen displays other icons, which enable you to display more information, as well as  pause, edit, cancel, and delete a selected work order. Following is a description of each of  these icons: When you select a work order in the database, and then press or click the    info icon, profile, schedule, and reports information appears in the   screen, as  info shown in Figure 2‐47. Figure 2-47 Click to display info shown in Figure 2-48 Figure 2-47 Work Orders Info Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 55: Figure 2-48 Info Reports Screen

     screen, the corresponding report  reports info information appears for the selected work order, as shown in Figure 2‐48. This screen  displays the following information for each work order: • Date  • Severity  • Description  • Name of work order Figure 2-48 Figure 2-48 Info Reports Screen On the right side of the    screen, five icons appear. When you click any of these  info reports icons, the screen responds accordingly. Following is a description of each of these icons. When you press or click on a work order report to select it, and then press or  click this icon, the corresponding detailed report appears in the   reports info screen, as shown in the example in Figure 2‐49. ® Dolby DP600 Program Optimizer Manual...
  • Page 56: Figure 2-49 Detailed Report Displayed In Reports Info Screen

    Using the DP600 Figure 2-49 Figure 2-49 Detailed Report Displayed in Reports Info Screen When you press or click any of the lower four icons, only work order reports associated  with that icon appear. When you press or click again on the same icon, this type of report  no longer appears. If you click more than one icon, the respective reports appear,  corresponding to all the selected icons. Following is a description of each of these icons. Selecting this icon displays any work order reports that contain information,  but no warnings or errors. Selecting this icon displays any work order reports that contain warnings. Selecting this icon displays any work order reports that contain errors. When you click on a work order report, and then click this icon (displayed  only in the DP600 Client), the system saves a text file of the report to the  desired location on your PC. A confirmation dialog box appears where you  enter the desired name and path, and then click  , as shown in Figure 2‐50. ® Dolby DP600 Program Optimizer Manual...
  • Page 57: Figure 2-50 Export Report Confirmation

    Figure 2-51 Figure 2-51 Edit Selected Workorder Screen When you click this icon, the     screen appears, as shown in  Workorder Figure 2‐34. In this menu, you can set up your work orders, as described in  Section 2.4. One of these icons is displayed, depending on the state of the selected  work order. If the selected work order is running or scheduled, the   icon  cancel appears and you can press or click this icon to cancel the selected work order. If the  selected work order is not scheduled or running, the   icon appears, and you  delete can delete the work order from the database. In either case, a prompt appears,  which asks you to confirm your action (cancel or delete). Select   or   at the  cancel confirmation prompt. ® Dolby DP600 Program Optimizer Manual...
  • Page 58: Figure 2-52 Click Reports In Home Screen

    Press or click the   icon in the   screen, as shown in Figure 2‐52. reports home Figure 2-52 Click reports Figure 2-52 Click Reports in Home Screen The home   screen appears, as shown in Figure 2‐53. reports Figure 2-53 Click info Figure 2-53 Click Info in Home Reports Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 59: Figure 2-54 Display Report In Home Reports Info Screen

    Creating a Work Order Press or click the desired work order report, then click  info. The respective work order report appears, as shown in Figure 2‐54. Figure 2-54 Figure 2-54 Display Report in Home Reports Info Screen Send Us Your Feedback If you have a question or a comment regarding this chapter, send us an email. ® Dolby DP600 Program Optimizer Manual...
  • Page 61: Chapter 3 System Maintenance

    Chapter 3 System Maintenance This chapter explains how to maintain the Dolby ®  DP600. The sections that follow show  you how to diagnose and repair hard drives and power supplies. Maintaining the DP600 Hard Drives The DP600 has five physical internal hard drives. Drives 1 and 2 are arranged in a RAID 1  configuration to provide protection for the operating system as well as local storage. The  remaining three hard drives are configured as separate drives to provide local storage. This  configuration of one RAID pair and three separate drives represents four logical drives.  There are four bicolor LEDs on the front panel, labeled  ,  ,  , and  . These LEDs indicate  the status of the DP600’s four logical internal hard drives. The drive LEDs function as  follows: • Off (nonilluminated): Indicates a functional drive with no current disk access activity • Green: Indicates normal drive activity • Red: Indicates a drive failure LED  shows the status of the two‐drive RAID 1 configuration. The operating system is  installed on these mirrored drives to prevent a physical drive failure, resulting in an  inoperable system. If either of the mirrored drives fails, the other RAID drive enables the  system to operate normally until the failed drive is replaced. LEDs  ,  , and   indicate the status of the other three physical disks. These disks are  configured as separate drives and do not have RAID backup capability. If any of these ...
  • Page 62: Replacing A Drive

    Local Storage LED Conditions Front-Panel LED Condition Failed Physical Drive Solid red Blinks in red in  two‐second intervals Blinks in red in  Rebuilding RAID half‐second intervals Solid red Solid red Solid red 3.1.1 Replacing a Drive To replace a DP600 hard drive: Look at the front‐panel drive LEDs, then refer to Table 3‐1 to determine which drive  has failed. Figure 3‐1   Figure 3-1 Red LED Indicates Failed Disk Drive ® Dolby DP600 Program Optimizer Manual...
  • Page 63: Figure 3-2 Swing Out Touch-Screen Panel

    Maintaining the DP600 Hard Drives Swing the touch‐screen panel out to the left. Figure 3‐2   Figure 3-2 Swing Out Touch-Screen Panel Locate the small pry areas on the left side of the front‐panel drive cover. Figure 3‐3   Figure 3-3 Locate Pry Areas Behind Drive Cover ® Dolby DP600 Program Optimizer Manual...
  • Page 64: Figure 3-4 Remove The Dp600 Drive Cover

    System Maintenance Using your fingers or a cushioned screwdriver, gently pry off the drive cover from its  left side (the other side is a slotted lock), and remove it from the unit. Be careful not to drop it, as the panel is deceptively heavy and will come off suddenly  once the locking mechanism disengages. Figure 3‐4   Figure 3-4 Remove the DP600 Drive Cover Use a Phillips screwdriver to loosen the four screws that secure the drive retaining  bracket, then slide the screws toward the center of the bracket, and remove the bracket  as shown in Figure 3‐5. As viewed left to right, the first two screws move to the right and the second two  screws move to the left. Caution: When loosening the screws, be sure not to remove them completely from the  bracket. Figure 3‐5   Figure 3-5 Remove the Drive Retaining Bracket ® Dolby DP600 Program Optimizer Manual...
  • Page 65: Figure 3-6 Physical Drive Numbers

    Maintaining the DP600 Hard Drives Starting from the left side of the drive cage, the first slot contains physical drive 1  (RAID drive 1). The second slot contains physical drive 2 (RAID drive 2). Starting with  the third slot, physical drives 3, 4, and 5 are installed next, in that order. In this  example, RAID drive 1 is the failed drive that requires replacement. Figure 3‐6 shows  how the drives are numbered from left to right (numbers do not appear on the actual  unit). Figure 3‐6   Figure 3-6 Physical Drive Numbers Match the failed drive’s number (determined in step 1) with the corresponding  physical drive, then grasp the drive’s finger tab and slide it out of its slot, as shown in  the example in Figure 3‐7.  Figure 3‐7   Figure 3-7 Remove Failed Drive from DP600 ® Dolby DP600 Program Optimizer Manual...
  • Page 66: Figure 3-8 Insert Replacement Drive In Dp600

    System Maintenance Be sure that no work order is running, then grasp the replacement drive’s finger tab,  and firmly but gently slide the drive into its slot (see Figure 3‐8) until you feel  resistance, which indicates that the drive is seated in its socket.  You can replace a drive with a higher capacity unit but not with a lower capacity unit. Figure 3‐8   Figure 3-8 Insert Replacement Drive in DP600 Position the retaining bracket in front of the hard drives, lining it up with the screw  holes, slide the screws outward to their original position, then use a Phillips  screwdriver to tighten its four screws and secure the drives, as shown in Figure 3‐9.  Figure 3‐9   Figure 3-9 Reinstall Retaining Bracket ® Dolby DP600 Program Optimizer Manual...
  • Page 67: Rebuilding Dp600 Drives

    Maintaining the DP600 Hard Drives Reinstall the drive cover by positioning it so that the mounting tang on the right side  of the RAID bay inserts in the mounting slot on the rear of the drive cover. To do this,  hold the drive cover so that there is an approximately 10‐degree angle between the  cover and the front of the unit, as shown in Figure 3‐10. Figure 3‐10   Figure 3-10 Reinstall Front-Panel Drive Cover 10. Slide the drive cover over the mounting tang and move it to the left until the  mounting stud on the left rear side of the cover engages the hole in the front of the  unit.  If you replaced one RAID drive and did not shut down the system, the RAID array  rebuilds automatically. However, if you are not running multiple work orders, we  recommend shutting down the system, rebooting, and manually rebuilding the RAID  array, as described in Section 3.1.2. If you replaced a non‐RAID drive, rebooting and manual rebuilding is required, as  described in Section 3.1.2. If you replaced both RAID drives (drives 1 and 2), you need to use the DP600 software  DVD to reinstall the software, as described in Section 3.3. In such a case, you perform  a clean installation and the system automatically synchronizes the two RAID drives,  re‐creating the original mirrored RAID array (manual rebuilding not required). 3.1.2 Rebuilding DP600 Drives To manually rebuild DP600 hard drives: Place the DP600 in an idle state by halting all work orders being processed.
  • Page 68 If you replaced a single non‐RAID drive (physical drives 3, 4, or 5):  • Use the arrow keys to highlight the new drive that appears in the    Available Drives area, then press the space bar to select it.  • Press the <Tab> key to move to the menu buttons at the bottom of the screen, then  use the arrow keys to select the   button, and press <Enter>.  Create Unit The available unit should now appear in the  Create a disk array from these drives box. • Use the arrow keys to select the   button, then press <Enter>.  • Type  to enable the write cache on the new drive. The 3ware BIOS Manager  main screen reappears.  • Press <F8> to exit, then type   to accept your entries and reboot the unit.  When you replace a single drive, no rebuild time is required. The new drive  appears immediately. ® Dolby DP600 Program Optimizer Manual...
  • Page 69: Replacing A Dp600 Power Supply

    3‐11) and a warning alarm sounds. The Dolby catalog  number for each of your DP600’s power supplies is identified by a label affixed to the right  side of each unit. Figure 3‐11   Failed power supply red LED Figure 3-11 DP600 Front-Panel Power Supply Indicator To replace a DP600 power supply: Identify the failed unit in the rear panel by its nonilluminated LED, as shown in the  example in Figure 3‐12.  Figure 3‐12   Figure 3-12 DP600 Failed Power Supply (Top Unit in Figure) ® Dolby DP600 Program Optimizer Manual...
  • Page 70: Figure 3-13 Loosen Thumbscrew On Failed Power Supply

    This equipment must be earthed/grounded. 3.0–1.25A 50/60Hz Figure 3-13 Loosen Thumbscrew on Failed Power Supply Press the failed power supply’s tab to the left while grasping its handle and pulling  the unit out of its slot (see Figure 3‐14 and Figure 3‐15). Figure 3‐14   Figure 3-14 Press on Tab and Pull Handle to Remove Failed Power Supply ® Dolby DP600 Program Optimizer Manual...
  • Page 71: Figure 3-15 Remove Failed Power Supply

    Replacing a DP600 Power Supply Figure 3‐15   Figure 3-15 Remove Failed Power Supply Position the replacement unit squarely within its slot and push it along the guiding  surface until it snaps into place, as shown in Figure 3‐16. Figure 3‐16   Figure 3-16 Install New Power Supply ® Dolby DP600 Program Optimizer Manual...
  • Page 72: Upgrading/Installing The Dp600 Software

    System Maintenance Tighten the thumbscrew by turning it clockwise, and reconnect power, as shown in  Figure 3‐17. The replacement unit LED turns green and the front‐panel red LED turns off, verifying  that the new unit is functioning correctly. Figure 3‐17   Tighten thumbscrew and reconnect power Figure 3-17 New Power Supply Installed and AC Cable Reconnected Upgrading/Installing the DP600 Software The DP600 packing kit includes a DP600 Installation Software DVD. With this disc, you can  perform a clean installation or an upgrade of the DP600 software (if required). A clean  installation restores the DP600 to the factory settings, deleting all your network settings,  custom profiles, work orders and reports, bookmarks, and user login information. An  upgrade retains all your files and settings. To perform an upgrade or a clean installation of the DP600 software: Be sure the provided keyboard is connected to one of the unit’s USB ports. Insert the DP600 Installation Software DVD in the CD/DVD drive, and reboot the  system. A message says that the software is already installed and displays the currently  installed version and the version on the DVD. It prompts you to either type  to ...
  • Page 73: Upgrading Licenses

    Press the next target until it changes to a cross. Continue this procedure for the additional targets. When the calibration is complete, if you performed an upgrade, simply page  through the setup screens to display the DP600   screen. If you performed a  Home clean installation, the DP600 Welcome! screen appears, providing a checklist of  things you need before you can configure the system, as shown in Figure 2‐3.  For clean installations, you must follow the instructions in Section 2.2 to configure  the system. Upgrading Licenses If you have an   ID and you need to upgrade your system for encoding, decoding,  ADMIN transcoding and conversion or upmixing, see Upgrading Your License on page 87. Rebooting and Shutting Down If you have an   ID and you need to reboot or shut down the system, see Rebooting  ADMIN and Shutting Down the System on page 94. Send Us Your Feedback If you have a question or a comment regarding this chapter, send us an email. ® Dolby DP600 Program Optimizer Manual...
  • Page 75: Appendix A Setting Up A Shared Folder And Entering A Path

    13. Click the   button. 14. Select the   tab at the top of the window. Security 15. Click the   button. 16. Be sure the   is the local computer. Location 17. Enter   in the text field. dp600 18. Click the   button to verify that the account exists on your system. Check Names 19. Click the   button. 20. Be sure permissions for the added user is set to  Full Control 21. Click the   button. The share should now be set up correctly. ® Dolby DP600 Program Optimizer Manual...
  • Page 76: Entering A Path

    Note: Supported file system protocols include FTP, SAMBA/CIFS, and SFTP. Entering a Source Path To enter a source path: Select  > > home work orders The   screen appears. Add Workorder In this example we’ll select a   as the  , as shown in Figure A‐1. Hot Folder Type Figure A‐1   Click Source field Figure A-1 Add Workorder Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 77: Entering A Url To Specify A Path

    Entering a URL to Specify a Path To enter a URL: In the  screen, type the desired URL in the   field. If required, you can  Enter Path enter a  ,  , and  , in the corresponding fields, as  Username Password Domain (SMB only) shown in Figure A‐3. Note: Supported file system protocols include FTP, SAMBA/CIFS, and SFTP. Figure A‐3   Figure A-3 Type URL in Enter Path Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 78: Figure A-4 Url Entered In Add Workorder Screen

    Click here to delete source file after work order is processed Click here to overwrite destination file Click here for Additional Settings described in Chapter 2 Figure A-4 URL Entered in Add Workorder Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 79: Browsing To A Location To Specify A Path

    Click Browse in the Enter Path Screen The   screen appears, as shown in Figure A‐6. Select Protocol Figure A‐6   Figure A-6 Select Protocol Screen Select either   or  , then click the right arrow at the  Windows Share/SMB FTP or SFTP bottom of the screen. The     screen appears, as shown in the example in Figure A‐7 (for  Enter User Credentials a Windows Share/SMB path). ® Dolby DP600 Program Optimizer Manual...
  • Page 80: Figure A-7 Enter User Credentials Screen

    (for a Windows Share/SMB path), then click  finish. Figure A‐8  E Figure A-8 Enter Server Details Screen The   screen appears, as shown in the example in Figure A‐9 (for a Windows  Select File Share/SMB path). In this screen, you can select the file or folder you want to specify as  the path to your source files.  You can also bookmark a path by clicking a , remove an existing bookmark  dd bookmark by clicking    , move up one level in the file hierarchy by clicking  remove bookmark , refresh the displayed path by clicking  , and connect to another server  directory refresh by clicking    server connect ® Dolby DP600 Program Optimizer Manual...
  • Page 81: Figure A-9 Select File Screen

    The   screen appears with the bookmark’s file/folder name and URL  Add Bookmark displayed. Enter a unique name for your bookmark in the   field, as shown in the example in  Name Figure A‐10, then click  Your bookmark appears in the   pane at the left side of the   screen,  Bookmarks Select File It also appears in the   drop‐down menu (in the   Choose a bookmark Select Source Path screen), where you can select it to specify a path, as shown in Figure A‐10. Figure A‐10   Figure A-10 Add Bookmark Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 82: Selecting A Bookmark To Specify A Path

    Select File Choose  drop‐down menu. a bookmark Select the desired bookmark in the drop‐down menu to specify a path, then click  ,  as shown in Figure A‐11. Figure A‐11   Figure A-11 Selecting a Bookmark The selected bookmark’s path appears in the   field in the  screen,  Source Add Workorder as shown in the example in Figure A‐12. Figure A‐12   Figure A-12 Bookmark Entered in Source Field ® Dolby DP600 Program Optimizer Manual...
  • Page 83: Entering A Path For Work Orders With Multiple Files

    Figure A-13 Enter Path Screen for Multi-File Standard Work Order Entering a Path for a Mono-Only Standard Work Order This type of work order processes audio in mono on a file‐by‐file basis. Each file represents  a single channel of a multichannel program. Enter the path to the source directory in the   field, click in the   field for each file in your work order, click  , and then  Files browse select each file from that directory. You cannot select files from more than one directory.  You also need to select the channel configuration, and specify a channel for every file in  each program. Figure A‐14   Figure A-14 Enter Path Screen for Mono-Only Standard Work Order ® Dolby DP600 Program Optimizer Manual...
  • Page 84: Figure A-15 Enter Path Screen For Mono-Only Hot Folder Work Order

    Figure A-15 Enter Path Screen for Mono-Only Hot Folder Work Order The system groups the required number of files together for processing, based on a file  pattern with a common base name and syntax. The  field in the   screen  Basename Enter Path is not a data‐entry field, but is displayed only to show how the system associates the  required files. The fields following   are data‐entry fields where you set up the  Basename syntax pattern for all the files with a common base name. The system can then process the  files with the same syntax pattern and the same base name for the specified channel  configuration. Be sure you store only the required number of files in the hot folder that use  the same base name. If not, the system may output a multichannel program using the  wrong files. Figure A‐16 shows the   data‐entry fields, and Figure A‐17 shows an  File Pattern example configuration. Figure A‐16   Figure A-16 Simple Configuration File Pattern Data-Entry Fields ® Dolby DP600 Program Optimizer Manual...
  • Page 85: Entering A Destination Path

    Figure A-17 Simple Configuration File Pattern Example For information on the   Mono‐Only hot folder option, contact your authorized  Advanced Dolby technical representative. Entering a Destination Path To enter a destination path: Click the   field in the   screen. Destination Add Workorder The  screen appears. This screen is identical to the  screen shown  Enter Path Enter Path in Figure A‐2.  Use any of the methods described for entering a source path to enter the destination  path, then click   (see Section A.3). Send Us Your Feedback If you have a question or a comment regarding this appendix, send us an email. ® Dolby DP600 Program Optimizer Manual...
  • Page 87: Appendix B Dp600 Program Optimizer Detailed Profile Descriptions

     or    .wav .aiff files that do represent a complete audio program.  For any DP600 profiles that expect a PCM   source file, the Dolby metadata  .wav ®   chunk  is optional. In cases where the metadata chunk is not present, the DP600  processes utilize a default set of metadata parameters, except where noted in the  profile descriptions provided on the following pages in this appendix. For this reason,  the Dolby metadata chunk is required to obtain full control over any or all Dolby  metadata parameters (on a file‐by‐file basis). All decoder‐related profiles that output PCM   files default to 16‐bit sample depths  .wav (unless noted otherwise), except for Dolby E decoding, which defaults to 24‐bit  sample depths. Unless otherwise noted, many files processed by the DP600 (that is, the output files)  contain the text string  , which is appended to the input file name. For  -corrected example, a source file name such as   results in a processed file named  DP600_test.mpg  in your destination directory.  DP600_test-corrected.mpg  The Dolby metadata chunk specification is available upon request. ® Dolby DP600 Program Optimizer Manual...
  • Page 88 DP600 Program Optimizer Detailed Profile Descriptions Profiles that are capable of processing source files into multiple output files (for  example, a 5.1+2–channel Dolby E decode) name each program as follows: Program 1:  source_filename-sequence[1]-program[1]-corrected.wav Program 2:  source_filename-sequence[1]-program[2]-corrected.wav Note:  suffix appears if a loudness correction step was performed. -corrected All profiles referencing MPEG‐2 transport streams assume that only a single program  is present. For   files larger than 4 GB, the DP600 supports only the European Broadcasting  .wav Union (EBU) RF64 BWF‐compatible multichannel file format. (An RF64 format file  may also be termed as a Multichannel Broadcast WAV Format, or MBWF, file). All 20‐bit Dolby E data must be formatted per SMPTE 337M and wrapped in a 24‐bit   file container before transferring it to the DP600 for processing (this excludes any  .wav Dolby E data contained within an MPEG transport stream, MPEG program stream, or  GXF file). 10. All 16‐bit Dolby E data must be formatted per SMPTE 337M and wrapped in a 16‐bit   file container before transferring it to the DP600 for processing (this excludes any  .wav Dolby E data contained within an MPEG transport stream, MPEG program stream, or  GXF file). Note: 16‐bit Dolby E data is supported only when used with specific profiles. For more  information, see the profile descriptions in Table B‐1. Note: The   file format does not support audio data (file) lengths greater than ...
  • Page 89 Understanding DP600 Profiles Table B-1 DP600 Default Profiles (continued) DP600 Profile Description MONO‐WAV_MONO‐WA 8 × mono PCM ( ) loudness correction (–24 LKFS) as 5.1+2, output 8 × mono PCM  .wav V‐1 .wav MONO‐WAV_MONO‐WA 8 × mono PCM ( )  loudness correction (–24 LKFS) as 5.1+2, output as interleaved 5.1  .wav V‐2 and stereo PCM ( .wav MONO‐WAV_MONO‐WA 6 × mono PCM ( ) loudness correction (–24 LKFS) as 5.1, output as interleaved 5.1 PCM  .wav V‐3 .wav MONO‐WAV_WAV‐E‐1 8 × mono PCM ( ) loudness correction (–24 LKFS), encode to 5.1+2 Dolby E @ 29.97 fps  .wav .wav337M MONO‐WAV_WAV‐E‐2 8 × mono PCM ( ) loudness correction (–24 LKFS), encode to 2+2+2+2 Dolby E @ 29.97  .wav fps (...
  • Page 90 DP600 Program Optimizer Detailed Profile Descriptions Table B-1 DP600 Default Profiles (continued) DP600 Profile Description WAV/E_STITCH_AC3‐2 Dolby E (16‐bit ) frame align, stitch to Dolby Digital ( .wav337M .ac3 WAV/E_WAV‐1 Dolby E ( ) loudness correction (–24 LKFS) to PCM ( .wav337M .wav WAV/E_WAV‐2 Dolby E ( ) loudness correction (–24 LKFS) to PCM ( .wav337M .wav WAV/E_WAV/AC3‐1 Dolby E ( ) to Dolby Digital ( ), 16‐bit output .wav337M .wav337M WAV/E_WAV/AC3‐2 Dolby E ( ) to Dolby Digital ( ), 24‐bit output .wav337M...
  • Page 91: Appendix C System Administrator Functions

    USER ADMIN Changing the Default Access Level on page 83. C.1.1 Admin Level The   level is intended only for system administrators. With this level of access, a  ADMIN system administrator can perform all DP600 functions.  C.1.2 User Level The   level is intended for DP600 operators. Users can view information and system  USER status, and set up work orders and generate reports, but cannot cancel or edit work orders  or use the  ,  ,  , and   functions. config upgrade maintenance power C.1.3 Viewer Level At the   level, a user can view information and system status, but cannot operate the  VIEWER system. This is the default level of access and does not require a password. ® Dolby DP600 Program Optimizer Manual...
  • Page 92: Setting Up An Admin Level Password

    To set up your   ID: ADMIN Press or click the lock icon at the upper right side of the   screen (next to the time  home and date), as shown in Figure C‐1. Figure C‐1   Press or click lock icon to display login user screen Figure C-1 Press or Click the Lock Icon to Display the Login Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 93: Figure C-2 Login User Screen

    The lock icon  changes to the unlocked position  . This indicates that the system is  now accessible at the   level. You also see your ID displayed below the time and  ADMIN date. After ten minutes of idle time, the system returns to the locked position, but you  should press   to lock the system whenever you’re done working in the unlocked  logout mode. Press or click system  , below the lock icon. The   screen appears, as shown in Figure C‐3. system Figure C‐3   Press or click config Figure C-3 Press or Click Config in System Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 94: Figure C-4 Press Or Click Users In Config Screen

    )   screen appears, as shown in Figure C‐5. users Figure C‐5   Press or click + to add Figure C-5 Press or Click + in Add and Remove Users Screen Press or click  to add a new   level ID and password. ADMIN The   screen appears, as shown in Figure C‐6. Enter New User ® Dolby DP600 Program Optimizer Manual...
  • Page 95: Adding Users

    ADMIN USER Role Deleting IDs and Passwords To delete a  ID or  ID, select the desired ID in the   screen, then press or  USER ADMIN users click remove ( Changing the Default Access Level To change the default  access level to a   or  access level (or to change any  Viewer USER ADMIN other default access level), select the desired   ID in the   screen, then press or click  USER users .  default ® Dolby DP600 Program Optimizer Manual...
  • Page 96: Reconfiguring The System

     screen. system system Figure C‐7   Figure C-7 System Screen Press   to display the   screen. config config The  ,  , and   settings are accessible only from the  network date & time touchscreen touch‐screen interface. The   setting is accessible from either the touch‐screen  users interface or the DP600 Client. Figure C‐8   Figure C-8 Config Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 97: Figure C-9 Date & Time Reboot Screen

     settings, if required.  date & time Press  in the  screen.  date & time config A prompt appears, informing you that the system needs to reboot and return to the  commissioning application (similar to the prompt in Figure C‐9). Press   to return to the commissioning application, then page through the screens  until you display the  settings. date & time This screen is similar to the  screen in Figure 2‐12.  date & time Change the date and time settings, then page through the screens and press the    finish button. The system automatically reboots with your new settings. ® Dolby DP600 Program Optimizer Manual...
  • Page 98: Figure C-10 Calibrate Button

    Figure C‐10   Figure C-10 Calibrate Button Press the   button. calibrate The calibration setup appears with a small target at one corner of the screen, as shown  in Figure C‐11. To calibrate the touch screen, proceed as follows within approximately  thirty seconds from the time it appears. If you do not proceed within this time period,  the calibration screen disappears. • Press the first target for a couple of seconds until it changes to a cross.  • Press the next target until it changes to a cross. • Continue the above procedure for the additional targets. When the calibration is complete, the   button reappears, and you can now  calibrate move on to any other screen, as required. Figure C‐11   Press target Figure C-11 Calibration Setup Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 99: Figure C-12 Upgrade Screen

    The   screen appears, as shown in Figure C‐12. Currently, you can upgrade only  upgrade your license from this screen, but not the DP600 software.  Figure C‐12   Figure C-12 Upgrade Screen Press the    button in the   screen. license upgrade The  screen appears, as shown in Figure C‐13. This screen looks similar  License Upgrade to the   screen in Figure 2‐17 that you used to install your original license. You  License follow the same procedure (beginning on page 20) to upgrade your license. Figure C‐13   Figure C-13 License Upgrade Screen ® Dolby DP600 Program Optimizer Manual...
  • Page 100: Figure C-14 Maintenance Screen

     screen, shown earlier in Figure 2‐44. In this case, you  Filter Workorder Criteria specify which report files to archive, based on your archiving criteria. In addition, this  screen provides the following options: •  functions in the same way as entering a path for work order files,  Archive location described earlier on page 35 (and in greater detail in Section A.2 and Section A.3). In  this case, you specify the path where you want to archive your report files.  • allows you to archive by work order or report type. Group Results By • allows you to archive your reports in a   file. Zip Archive .zip • allows you to delete the reports after archiving. Delete After •  allows you to archive only loudness reports. Loudness Only ® Dolby DP600 Program Optimizer Manual...
  • Page 101: Figure C-15 Report Archive Criteria Screen

     screen. delete maintenance The   screen appears, as shown in Figure C‐16. This screen  Workorder Deletion Criteria functions in the same way as the     screen, shown in Figure 2‐44. Workorder Filter Criteria In this case, you specify which work order files to delete, based on your deletion criteria.  Figure C‐16   Figure C-16 Workorder Deletion Criteria Screen Note: For the   criteria,   is for corrected files and  Include Status QUARANTINE_FINISHED  is for uncorrected files. QUARANTINE_FAILED ® Dolby DP600 Program Optimizer Manual...
  • Page 102: Figure C-17 Automation Screen

    ,  Location Workorder Name Contains Profile Date Created Priority Include Status Group ,  compresses archived report files ,  , and  Results By Zip Archive ( Delete After Loudness Only Note: For the   criteria,   is for corrected files and  Include Status QUARANTINE_FINISHED  is for uncorrected files. QUARANTINE_FAILED ® Dolby DP600 Program Optimizer Manual...
  • Page 103: Figure C-18 Enter New Automation Criteria Screen

    Reconfiguring the System Figure C‐18   Figure C-18 Enter New Automation Criteria Screen Enter the desired automation criteria, then click  Your specified automation jobs appear in the   window, as shown in the  automation example in Figure C‐19. Figure C‐19   Figure C-19 Automation Screen After Setting Up Criteria ® Dolby DP600 Program Optimizer Manual...
  • Page 104: Figure C-20 Logs Screen (Success)

     screen for the selected automation  • edit Update Automation Criteria job. In this screen you can edit the respective job’s automation criteria, as shown in  the examples in Figure C‐22. : Deletes the selected automation job. • delete Figure C‐20   Figure C-20 Logs Screen (Success) Figure C‐21   Figure C-21 Logs Screen (Failure) Figure C‐22   Figure C-22 Update Automation Criteria Screens ® Dolby DP600 Program Optimizer Manual...
  • Page 105: Figure C-23 Select System Log Output Directory Screen

    Figure C-23 Select System Log Output Directory Screen Archiving Loudness Logs To archive loudness logs, press or click   in the   screen. loudness log maintenance The  screen appears, as shown in Figure C‐24. In this screen, select an  Loudness Log Export export location using the same procedure that is described for entering a path for work  order files on page 35 (and described in greater detail in Section A.2 and Section A.3). In  this case, you specify a directory where you want to save the DP600 loudness logs (in  addition to entering the export criteria). Figure C‐24   Figure C-24 Loudness Log Export Screen The loudness log export function allows you to export loudness correction and work order  status information for the specified time period. Each export provides a log file for each day  in that time period.  Optionally, you can delete the logs after exporting. ® Dolby DP600 Program Optimizer Manual...
  • Page 106: Figure C-25 Power Screen

    Figure C‐25   Figure C-25 Power Screen To reboot or shut down the system, press or click  or  , respectively reboot shutdown A confirmation prompt asks if you’re sure you want to reboot (or shut down) the  DP600, as shown in the example in Figure C‐26 for a reboot. Figure C‐26   Figure C-26 Reboot DP600 Confirmation Prompt Press or click   at the prompt to reboot (or shut down) the system. If pressing or clicking the   button does not work, you can press  reboot <Ctrl>+<Alt>+<Delete> on the provided keyboard.  When you shut down, the   screen appears, as shown in  Dolby DP600 Program Optimizer Figure C‐27. When you see this screen (and the drive LEDs are not blinking),  disconnect the power cables to shut down completely. Figure C‐27  ...
  • Page 107: Index

    ................9 reconfiguring ............85 filter criteria ...............41 default access level formats changing ............... 83 media file ..............5 deleting ids and passwords ........83 front panel deleting work order reports, manually....88 components ............6 DHCP ................. 14 gateway address............14 display control button ..........7 general configuration ..........13 Grass Valley hot folder described ...............29 selecting..............33 Dolby ® DP600 Program Optimizer Manual...
  • Page 108 – mono‐only standard work order replacing ............. 57 described .............. 28 LEDs ................7 selecting..............33 power supply indicator multi‐file standard work order front panel...............6 described ............28 profile descriptions selecting..............33 details ..............75 netmask..............14 program ingest ............3 PS/2 port ...............9 quality control .............3 rear panel components ............9 Dolby ® DP600 Program Optimizer Manual...
  • Page 109 ........28 user level access selecting .............33 defined............32 profile ..............3 logging in ............. 32 described ............29 setting up.............. 83 selecting .............39 video‐on‐demand ............3 reports ............42 – viewer level reports, automatically archiving ....90 defined..............79 retry count ............38 Dolby ® DP600 Program Optimizer Manual...
  • Page 110 Index retry delay ............38 scan interval............38 source............35 stable period ............38 standard described............. 28 selecting ............33 start at ..............36 type................ 33 work‐flow integration.............. 3 Dolby ® DP600 Program Optimizer Manual...

Table of Contents
