7 6 5

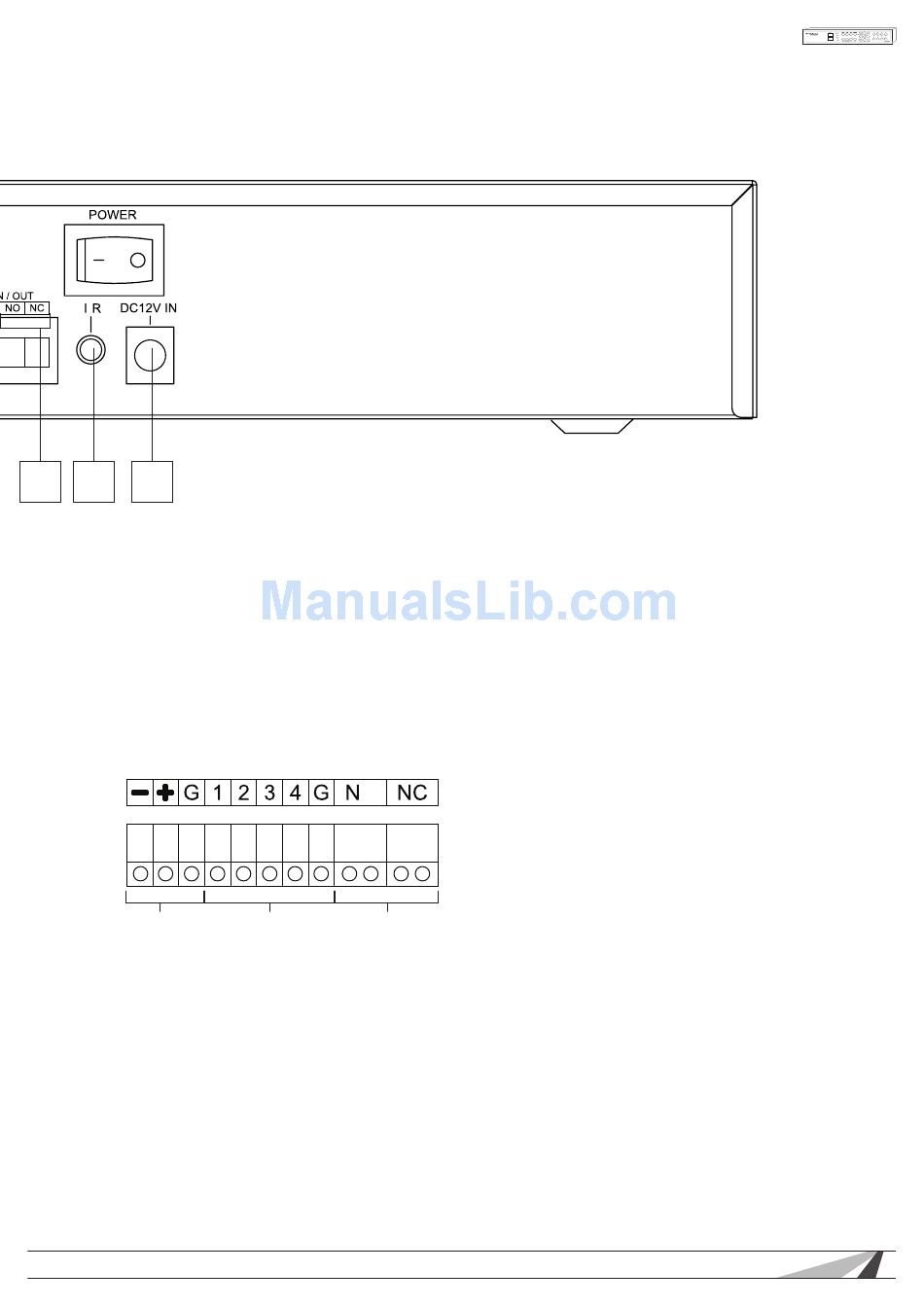

8. Alarm Input Connectors (ALARM IN 1-4)
Connect to external devices such as motion sensors or door contacts to trigger events.
9. RS-485 Connector
Connect to RS-485 compatible PTZ camera(s) or keyboard. Please refer to the manuals supplied
with the RS-485 compatible device for correct settings.
RS485
10. Ethernet Connector
Connect to a 10/100Base-TEthernet network for remote access and integrated control and video streaming
to Automation Systems.
11. Main Monitor Output Connector (MAIN OUT)
Connect a display monitor to the BNC connector for main monitor display.
© 2012 Wirepath Surveillance
O
Alarm Input Alarm Output
