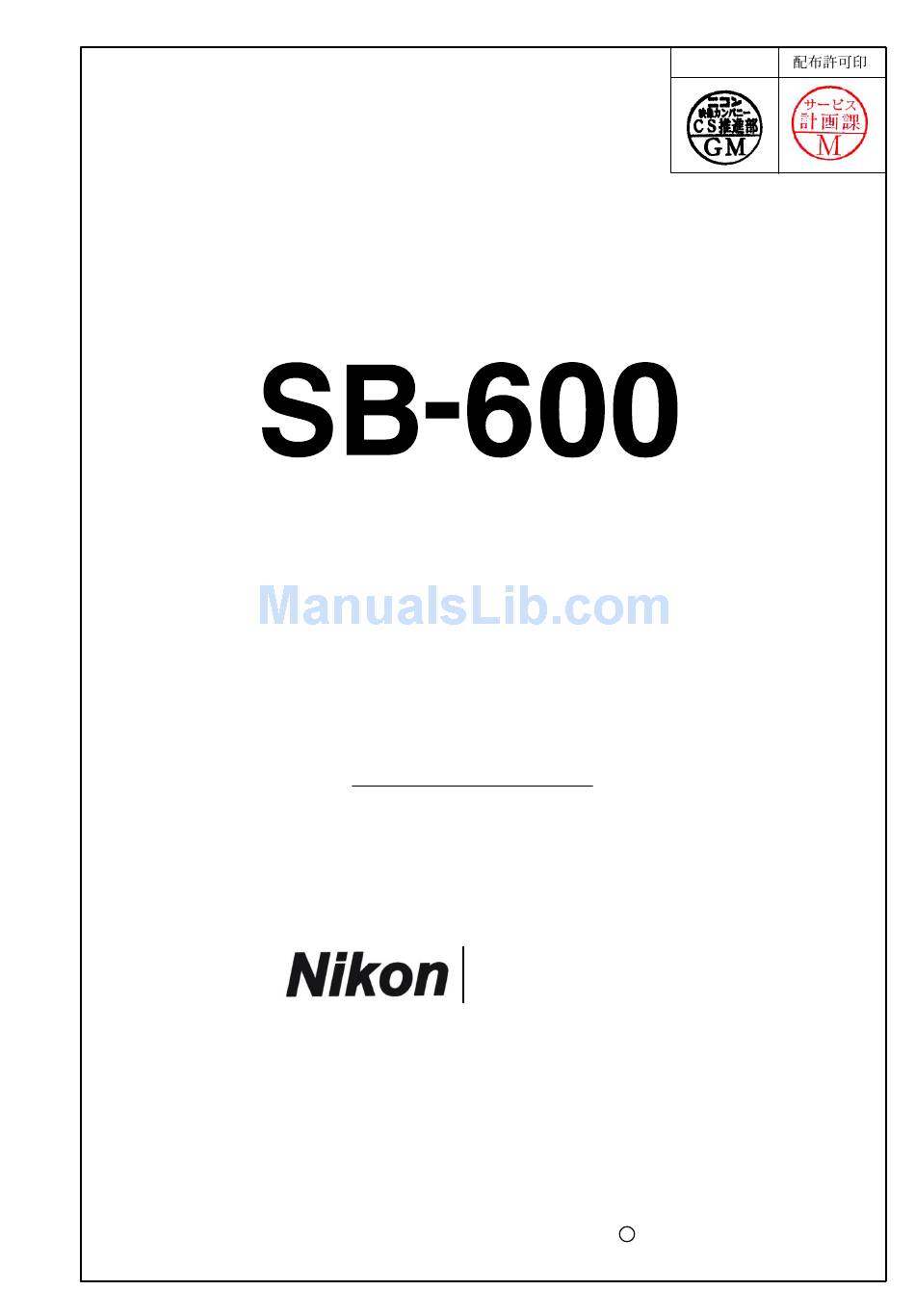

FSA03601-R.3629.A
作成承認印
FSA03601
REPAIR MANUAL
NIKON CORPORATION
Tokyo, Japan
Copyright ｃ 2004 by Nikon Corporation.
All Rights Reserved.
Printed in Japan November 2004

Advertisement

Table of Contents
loading

Related Manuals for Nikon SB-600 FSA03601

Summary of Contents for Nikon SB-600 FSA03601

  • Page 1 FSA03601-R.3629.A 作成承認印 FSA03601 REPAIR MANUAL NIKON CORPORATION Tokyo, Japan Copyright ｃ 2004 by Nikon Corporation. All Rights Reserved. Printed in Japan November 2004...

  • Page 2: Table Of Contents

    FSA03601-R.3629.A 目　次 / CONTENTS 仕様 / Specifications 仕様 / Specifications ------------------------------------------------------------- M1-M2 カスタムファンクション / Custom Function ----------------------------------------- M3-M4 分解編 / Disassembly サイドゴム、脚部 / Side rubber,Leg unit ------------------------------------------- D1　 　　 Ｆケース部組 / Ｆ case unit ------------------------------------------------------- 　　 ヘッド部の分離 / Separate Head unit ----------------------------------------------- 　　...
  • Page 3 FSA03601-R.3629.A 調整編 /Adjustment　 　　　　　 使用機材・点検調整項目 / Equipment required,Inspections-Adjustments ------------------------- A18 光量点検、調整時の注意点 / Points to notice for Inspection & Adjustment of fl ash ------------- A19 調整時の PC と SB の接続 / How to connect PC and SB when adjustments are made ---------------- A20-A22 調整ソフト...

  • Page 4: Specifications

    FSA03601-R.3629.A Specifications Electronic construction　Automatic Insulated Gate Bipolar Transistor(IGBT) and series circuitry Guide number 　　 30/98 (ISO 100.m/ft). 42/138(ISO 200.m/ft) (at 35mm zoom-head position, 20° C/68° F) Flash shooting distance 0.6m to 20m(2 to 66ft.) (varies depending on the ISO sensitivity, zoom-head (in TTL auto flash) position and lens aperture in use)　　　　　　...
  • Page 5 FSA03601-R.3629.A Baunce Flash head tilts from 0° to 90° with click-stops at 0° ,45° ,60° ,75° ,90° ; capability flash head rotates horizontally 180° to the left or 90° to the right with click-stops at 0° ,30° ,60° ,90° ,120° ,150° ,180 ・Press the button for approx.

  • Page 6: Custom Functions

    FSA03601-R.3629.A Custom Functions Details on Custom settings 　 Details on Custom settings 　 Default setting 　① Wireless remote flash mode 　　　ＯＦＦ 　② Sound monitor in the wireless remote flash mode 　　 　ＯＮ 　③ Auxiliary ready-light 　ＯＮ 　④ Wide-Area AF-Assist Illuminator　 　ＯＮ...
  • Page 7 FSA03601-R.3629.A Details on Custom Settings Wireless remote flash mode Activating or canceling the wireless remote flash function in wireless multiple flash photography. 　　　　　　　　OFF:Remote flash function canceled. ON:Remote flash function activated Sound monitor in the wireless remote flash mode When the SB-600 is used as a wireless remote flash unit in wireless multiple flash photography. you can activate or cancel the sound monitor function.
  • Page 8 FSA03601-R.3629.A Disassembly WARNING Due to an internal high voltage area, be sure to discharge the main condenser ●　 before removing covers according to the instructions of the repair manuals. Note) Lead-free solder is used all for this product. Side rubber ・Remove right-and-left side rubbers.
  • Page 9 FSA03601-R.3629.A F case unit ・ Take out 2 screws (#224). (ref. Fig.1) ・ Open the battery lid. ・ Remove the F case unit, then the battery lid comes off, too. ・ Disconnect 2 connectors to detach the F case unit. (ref. Fig.2) #224×2 Battery lid Fig.1...

  • Page 10: ヘッド部の分離 / Separate Head Unit

    FSA03601-R.3629.A Separate Head unit Attaching part for Fiber optics Head unit Connector R case unit Fiber optics Fig.1 ・ Remove 4 connectors that are connected from the head unit. Insert the screw- (ref. Fig.1) driver here to lift ・ Remove the fiber optics. (ref. Fig. 2) in the direction of ・...
  • Page 11 FSA03601-R.3629.A Battery case unit Battery case unit Connector Connector R case unit ・ Remove the insulating plate. ・ Disconnect 2 connectors and separate the battery case unit from the R case unit. Insulating plate F-PCB, L-PCB ・ Take out 7 screws (#226) and unsolder the L-PCB (to remove the red and black wires). (ref. Fig. 1) ・...

  • Page 12: Battery-Pcb, Thermal Fuse

    FSA03601-R.3629.A ・ Remove 3 soldering bridges and 6 soldering parts, and separate the F-PCB and L-PCB. Soldering bridges Orange Black Yellow White Brown Battery-PCB, Thermal fuse Thermal fuse #226×3 ・ Take out 5 screws (#226), and unsolder 2 parts of the thermal fuse. Then detach the battery-PCB from the battery box.
  • Page 13 FSA03601-R.3629.A L-case - D6 ・SB-600 -...
  • Page 14 FSA03601-R.3629.A ・ Detach the bounce case R from the U-case U-case. Bounce case R ・ Take out 4 screws (#221). #221×2 #221×2 ・ By removing the main condenser, the parts can be disassembled as follows: Bounce case R Main condenser - D7 ・SB-600 -...

  • Page 15: モーター部、Zoom 基板 / Motor Unit,Zoom-Pcb

    FSA03601-R.3629.A Motor unit, ZOOM-PCB ・ Move the lighting unit to the left picture’s position. Wire retainer ・ Remove the wires from the wire retainer. ・ Take out 2 screws (#226), 2 screws (#230) and 2 screws (#255). #230×2 #226×2 #255×2 Lighting unit Motor unit ・...
  • Page 16 FSA03601-R.3629.A - D9 ・SB-600 -...
  • Page 17 FSA03601-R.3629.A ・ Remove the ① Xe-A side of the Xe-band ① (#54). ・ Pull out the Xe-tube a little in the direction of ③ the arrow ( ② ), and remove the Xe-K PCB by pulling it in the direction of ③ . Xe-K PCB ②...
  • Page 18 FSA03601-R.3629.A Assembly Lighting unit ・ Attach the conductive tape (#97) on the reflector (#57). ・ Solder the wire (#WTRG2). ・ Attach the zoom brush (#71) on the reflector holder (#56). ・ Attach the reflector (#57). ＊ Note: Check that the below 2 parts are hooked tightly. ・...
  • Page 19 FSA03601-R.3629.A Solder trigger coil Xe-K PCB ・ Attach the Xe-A PCB to the Xe-tube. 2 WHITE wires ・ Solder the Xe-A PCB, Xe-K PCB, and Xe-tube. ・ Solder 2 (white) wires of the trigger coil. Xe-A PCB - A2 ・SB-600 -...

  • Page 20: モーター部 / Motor Unit

    FSA03601-R.3629.A Motor unit Grease: G7100 ・ First, put the A part of the zoom shaft (#67) BLUE into the hole of the motor holder (#69), #MT1 then push the B part of it into #69. PURPLE ・ Solder 2 wires on the ZOOM motor. #222×2 #227×2 Ａ...
  • Page 21 FSA03601-R.3629.A ZOOM PCB ・ Solder wires on both sides of the ZOOM PCB. ZOOM PCB GREEN BROWN BLUE BLACK ORANGE PURPLE ORANGE GRAY GRAY GRAY WHITE BLUE U case Adhesive: C8008B ＃ 223 #SW601 #50×2 Adhesive: EDA1021 #202×2 - A4 ・SB-600 -...

  • Page 22: メインコンデンサ / Main Condenser

    FSA03601-R.3629.A Main condenser ・ Solder 4 wires on the main condenser. ・ Solder 2 wires on the ZOOM PCB. ・ Fix the 4 wires that are connected from the main condenser Motor unit with the tape (TA-0002). ZOOM PCB PURPLE BLUE BLACK Tape：TA-0002...

  • Page 23: バウンスケースＲ / Bounce Case R

    FSA03601-R.3629.A Bounce case R Concave part ・ Assemble so that A’ fi ts in the " " " " hole and B’ fi ts in the groove. " " " " Bounce case R #52×2 Ｂ Ａ #221×4 Ｂ ’ Ａ...
  • Page 24 FSA03601-R.3629.A Concave part Tape: #87 2 screws (#231) 2 screws (#231) ・ Assemble the main condenser. ＊ Note: Assemble so that the convex parts of the bounce case R enters in the concave parts of the main condenser PCB. Main condenser PCB Convex parts of Main condenser Bounce case R...
  • Page 25 FSA03601-R.3629.A L case - A8 ・SB-600 -...

  • Page 26: Ｒケース部組 / R Case Unit

    FSA03601-R.3629.A R case unit ・ Assemble each part into the R case unit. #106 #120 #107 #102 Convex parts #108×2 #109 #224×2 #138×2 #114 #115 #117 #113 #116 #112×2 #139×2 #111×2 - A9 ・SB-600 -...
  • Page 27 FSA03601-R.3629.A R PCB ・ Attach the R-PCB with 8 screws (#226). #226×4 R-PCB #226×4 Battery case unit ・ Assemble the battery case unit. ＋ #143 ＋ #145×2 － #144 #146×2 － #121 - A10・SB-600 -...

  • Page 28: 温度ヒューズ、バッテリー基板 / Thermal Fuse,Battery-Pcb

    FSA03601-R.3629.A Thermal fuse, Battery PCB Adhesive:TSE3941 Thermal fuse ・ Attach the battery PCB with 5 screws (#226) on the battery case. ・ Apply the adhesive (TSE3941) on the battery case, and fit the thermal fuse as shown left (by putting the terminals of Terminals the thermal fuse into the holes of the battery PCB.)
  • Page 29 FSA03601-R.3629.A F-PCB, L-PCB ・ Solder 6 wires on the F-PCB and L-PCB. ・ Assemble the F-PCB and L-PCB into the battery case. (At this stage, do NOT make soldering bridges of the F-PCB and L-PCB.) 　ORANGE 　BLACK 　　RED 　WHITE 　YELLOW 　BROWN 　ORANGE 　BLACK...

  • Page 30: 電池ケース部とＲケース部組の組立 / Assemble Battery Case Unit And R Case Unit

    FSA03601-R.3629.A Assemble Battery case unit and R case unit ・ Connect 2 connectors and assemble the battery case unit into the R case unit. ・ Mount the insulating plate. R case unit Battery case unit Connector Connector Insulating plate Position for attaching insulating plate - A13・SB-600 -...
  • Page 31 FSA03601-R.3629.A Connect connectors of the head unit to the R case unit ・ Attach 4 connectors (A-D) to the right posi- tion (A’-D’)which are connected from the head unit. ・ Insert the fi ber optics into the attaching part. Fiber optics Head unit Attaching part of fi ber optics...

  • Page 32: Assemble Head Unit Ｆ Case Unit And R Case Unit

    FSA03601-R.3629.A Assemble Head unit, F case unit, and R case unit ・ Connect 2 connectors. Head unit ・ Put the head unit in the right position of the R case unit by following the red arrow. F case unit Connector R case unit ・...

  • Page 33: 脚部 / Leg Unit

    FSA03601-R.3629.A ・ With the battery lid being attached, combine the F case unit and R case unit with 2 screws (#224). R case unit #224×2 Battery lid F case unit Leg unit #170 #176 #232 #171 Grease: G7100 #172 Grease: G7100 ・...

  • Page 34: サイドゴム / Side Rubber

    FSA03601-R.3629.A Side rubber ・ Attach the right and left side rubbers. ＊ Note: In case it is necessary to adjust by PC, make the adjustment before attaching the below side rubbers. (ref. "Adjustment" section) PUSH Adhesive: J67017 - A17・SB-600 -...
  • Page 35 FSA03601-R.3629.A Adjustment Equipment required:　 1. Adjustment software (J18365) 2. Personal computer 3. NEW high-speed communication tool (J15405)　 4. Flash meter 5. Stabilized power supply (possible to output 0-6V, 3A) 6. Chart of inspecting focusing light (Copy and magnify the Page A25 of the Repair Manual and use it.) Inspections/adjustments: 1.

  • Page 36: 光量点検、調整時の注意点 / Points To Notice For Inspection & Adjustment Of Fl Ash

    FSA03601-R.3629.A Points to notice for Inspection & Adjustment of Flash 3. Quantity of light adjustment When the adjustment item is made, be careful of the following: *Be sure to make the adjustment in a dark place (e.g. photo darkroom, etc) without influence of outside light. *If there is some reflector (e.g.

  • Page 37: 調整時の Pc と Sb の接続 / How To Connect Pc And Sb When Adjustments Are Made

    FSA03601-R.3629.A How to connect PC and SB when adjustments are made * Serial communications 1. Setup of the NEW high-speed communication tool (J15405) ・Set "RS232C ⇔ USB change-SW" to "RS232C". ・Remove 4 screws of the bottom-cover and insert 4 AA-type alkaline batteries. RC232C connector J15405 RS232C ⇔...
  • Page 38 FSA03601-R.3629.A * USB communications 1. Setup of NEW communication tool (J15405) ・Set "RS232C ⇔ USB change-SW" to "USB". ・In case 4 AA-type alkaline batteries are in the tool, remove 4 screws of the bottom-cover to take out the batteries. Note: For USB communications, batteries are NOT necessary because power is provided by PC. Although there is no operational problem with batteries being inserted, they should be taken out in order to prevent liquid leakage.
  • Page 39 FSA03601-R.3629.A 3. Setup of USB driver 　　Install a decompression tool on PC beforehand to decompress ZIP files. 　① Via website (of the below address) for FTDI on the Internet, download a compressed file to PC that includes virtual COM port driver. 　　　　"http://www.ftdichip.com/Files/P8002104.ZIP"...

  • Page 40: 調整ソフト (J18365)/ Inspection & Adjustment Software(J18365)

    FSA03601-R.3629.A Inspection & adjustment software (J18365) <Operating environment> The following operating environment is required for installing this program on PC. PC: IBM PC/AT compatible OS: Windows XP (Pro/Home), Windows 2000, Windows Millennium Edition (Me), Windows 98 Second Edi- tion (SE) CPU: Pentium Ⅱ...

  • Page 41: フォーカシングライト点検・調整 / Inspection & Adjustment Of Focusing Light

    FSA03601-R.3629.A Inspection & adjustment of Focusing light Preparations 1. Camera (F5) 2. AF lens (of any type) with lens cap 3. Tripod 4. Chart of inspecting FL * Note: Copy and magnify the next page to A3 size, and use it. 1.5 ｍ...
  • Page 42 FSA03601-R.3629.A Chart of inspecting FL for SB-600 * Attention: Magnify this page from printed A4 to A3-size, and use it. Frame within the allowable limits Reference frame Center of lens - A25 ･ SB-600 -...
  • Page 43 FSA03601-R.3629.A Electricity Circuitry SB-600 consists of the Custom IC, 8-bit CPU, EEPROM and other peripheral circuitry . (ref. "Block diagram" on Page E4.) ・Battery: 4 size-AA batteries can be inserted internally in SB-600. Available types are alkaline manganese battery, NiCd battery, nickel-hydrogen battery, lithium battery, nickel manganese battery.
  • Page 44 FSA03601-R.3629.A ・Metering circuit: This decides flash output based on the number of times, calculated by decreasing the preset constant electric current, each time the electric charge, of which the light volume is integrated by the photo cell in the integral condensr of the integration circuit, exceeds the threshold voltage.
  • Page 45 FSA03601-R.3629.A ・LCD: This indicates the flash control mode, TTL exposure compensation value, TTL underexposure ratio, zoom value, manual flash output, etc. This is a segment type of TN type. ・LED: This is a backlight that illuminates LCD. This automatically lights up when any switch of SB-600 is turned on, and it goes out after a given time.

  • Page 46: ブロック図 / Block Diagram

    FSA03601-R.3629.A Block Diagram Pressurization circuit Voltage detection Flash control cir- 4 size AA batteries Safety circuit circuit cuit Custom IC Voltage monitor circuit AF LED AF-assist illuminator TG circuit STP circuit circuit with SC-29 SC-29 conversion circuit Metering circuit Buzzer drive circuit Buzzer Decoder circuit Camera interface...

  • Page 47: Ｅｅｐｒｏｍ　Ｄａｔａ

    FSA03601-R.3629.A EEPROM DATA SB-600 ADDRESS DATA ADDRESS DATA 制御用データ 制御用データ 0 ～ 15 208 ～ 253 Control data Control data 本発光回数 チェックサム補助データ 16 ～ 18 No.of times for Main Flash Check sum support data 制御用データ チェックサム Control data Check sum モニター発光回数...
  • Page 48 FSA03601-R.3629.A Ｒ基板（１） R-PCB(1) Ｒ基板（２） R-PCB(2) - E6･ SB-600 -...
  • Page 49 FSA03601-R.3629.A Ｆ基板 F-PCB Ｌ基板 L-PCB - E7･ SB-600 -...
  • Page 50 FSA03601-R.3629.A Ｃ基板 C-PCB ズーム基板 ZOOM-PCB 脚基板 FOOT-PCB バウンス基板 BOUNCE-PCB ＸＥーＡ基板 XE-A-PCB ＸＥーＫ基板 XE-K-PCB - E8･ SB-600 -...

  • Page 52: Ｒ基板 R-Pcb

    FSA03601-R.3629.A C基板 AF-LED 紫　PURPLE L501 ズーム基板 C-PCB 灰 GRAY XE-A WPｽｲｯﾁ Zoom-PCB XE-K WP-SWITCH 橙 黒　BLACK ORANGE TRG1 P300K 24mm TRG2 28mm Motor Bounce基板 黒 BLACK 35mm Bounce-PCB XE-K2 50mm 発光部から 70mm 灰 GRAY 光ファイバー Ｆケース部組 青 BLUE 85mm 緑 GREEN F-CASE UNIT 青...

  • Page 53: 工具 / Tools

    FSA03601-R.3629.A 工　具・TOOLS　 ★：新規設定工具・NEW　TOOL 工具番号 名　称 備　考 Tool No. Name of tool Others J15405 新高速通信工具 For　SB-800 New high speed I/O tool J18365 点検、調整ソフト IBM 3.5 inches ★ Inspection and adjustment software AF 補助光用チャート 修理指針Ａ 25 ページ使用 Chart for AF Assist light Use the page Ａ...

  • Page 54: その他 / Others

    FSA03601-R.3629.A その他・Others 工具番号 名　称 備　考 Tool No. Name of tool Others EBB0061 グリース　G7100 NET = 100g Grease　G7100 TA-0002 テープ　Ｗ＝ 20mm 　 TSE3941 シリコン　TSE3941 温度ヒューズ用接着剤 　SILICONE　TSE3941 Glue　For　Thermal　fuse ★ NET = 150g EDA1021 　セメダインハイスーパー エポキシ樹脂系接着剤 　CEMEDINE　Hi-SUPER Epoxy　glue EDB0011 　ネジロック ( 赤） 　Screw　Lock　 （RED） J67017 　セメダイン...
  • Page 55 FSA03601-R.3629.A 作成承認印 FSA03601 P A R T S L I S T 修　理　部　品　表 NIKON CORPORATION Tokyo, Japan Copyright ｃ 2004 by Nikon Corporation. All Rights Reserved. Recycled paper 無断転載を禁ず !! 再生紙を使用しています Printed in Japan November 2004...
  • Page 56 2004 年 1 月 30 日 ＣＤ－ＲＯＭ版部品表配布にあたって ＊ 先行部品表（Ｅメール版）の作成後、変更となった部品を展開図及びパーツ リストに△印にて明記しました。 （展開図のみ△印を赤字としました） ＊ 作成年月日を各ページ左下に挿入しました。これにより、印刷した場合の最 新ページ管理をし易くすることが出来ます。 January 30, 2004 Distribution of Parts list (CD-ROM version) ＊ The parts that were changed after creating the temporary parts list (E-mail version) are shown by “△”-marks in the technical drawings and parts list. （Note: △-marks are in red only for the technical drawings）...
  • Page 57 � � ����������������� ������������� ��������������� ��������������� ��������� � ������������� ������������� ������������� ������������� ��������������� ���������������� ��������������� ��������������� ������������� ���� ������������� ����������� ������������ � ������������� ������������� ������� ����� ��������������� ������������� ������������� ���� ������������ ��������������� ���� ��������������� ������������ ������������� ���������� ������������� � ������������� �����...
  • Page 58 � � ���������������� ������� ������������� ��������������� ������������� ������������� ������� ������������� � ��������� ��������������� ��������������� ������ ��� ������������� ������������� ������������� ������� ��������������� ������������� ���� ������������ ��������������� � ������� ������� ������������� ������������� ������������� ��������������� ���� ������������ � ������������� ������������� ��������������� ���� � ���...
  • Page 59 � � ����������������� ������������� ��������������� ���� ������������ ������������� � ������������� ������������ ������������� ��������������� ��������������� △ ����� ������� ������� ��������������� � ��������������� ��������������� �������� ������������� �������� ������������� ������������� �������� ���������������� ������������� ������������� ������������� ���������� ���������������� ������������� � ������������� ���������������� ���� � ���...
  • Page 60 � � ����������������� ���� ������������ ��������������� ��������������� ���������������� ������������� � ������������� △ ������������� ����������� △ ������������� ������ ������������� ������������� ������������� ������������� ��������������� ������� △ ��������������� ��������� ������������� ������� ��������������� ����� ���� ����� ��������������� ������������ ������������� ������������� ������������� � �������� ���� ������������...
  • Page 61 � � ����������������� ��������������� � ������������� ������������� ������������� ��������������� ��������������� ������������ ������������� � �������� ��� �������� ������ �△����������� ����������� ���� ������ ������������ ��� ������������ ������������������ IT201(5) ����� ������� � ��� ������ ���� ������ ��� ������� ��� ��� ��� ������ ����� ���...

  • Page 62: Parts List

    Parts List SB-600 FSA03601-R.3629.A Pcs, Q'ty/ Term of Part Number Part Code Part Name 名　　称 Main Assembly Remarks /Unit Delivery Order 1B150-104 (1B150-104) AFﾓｼﾞｭｰﾙ部組 AF MODULE UNIT ○ △ 1C999-279 (1C999-279) ﾊﾞｳﾝｽ検出ﾌﾞﾗｼ部組 DETECTION BRUSH UNIT ○ 1C999-280 (1C999-280) Ｆｹｰｽ部組 CASE F UNIT ○...
  • Page 63 Parts List SB-600 FSA03601-R.3629.A Pcs, Q'ty/ Term of Part Number Part Code Part Name 名　　称 Main Assembly Remarks /Unit Delivery Order 1K103-250 (1K103-250) 両面ﾃｰﾌﾟ DOUBLE SIDE ADHESIVE TAPE ○ 1K103-251 (1K103-251) 両面ﾃｰﾌﾟ DOUBLE SIDE ADHESIVE TAPE ○ 1K103-252 (1K103-252) 両面ﾃｰﾌﾟ DOUBLE SIDE ADHESIVE TAPE ○...
  • Page 64 Parts List SB-600 FSA03601-R.3629.A Pcs, Q'ty/ Term of Part Number Part Code Part Name 名　　称 Main Assembly Remarks /Unit Delivery Order * 1K119-505 (1K119-505) 鋼球 STEEL BALL 1C999-286 ○△ * 1K201-281 (1K201-281) ﾛｯｸﾉﾌﾞ LOCK KNOB 1C999-286 ○△ 1K201-284 (1K201-284) ｷｰﾄｯﾌﾟ (左右) KEY TOP (L/R) ○...
  • Page 65 Parts List SB-600 FSA03601-R.3629.A Pcs, Q'ty/ Term of Part Number Part Code Part Name 名　　称 Main Assembly Remarks /Unit Delivery Order 1K310-169-1 (1K310-169-1) ｸﾘｯｸ操作板 CLICK PLATE ○ 1K360-261 (1K360-261) ｽﾞｰﾑｼｬﾌﾄ加圧軸 ZOOM SHAFT ○ 1K360-262-1 (1K360-262-1) ｶﾞｲﾄﾞ軸 GUIDE SHAFT ○ 1K360-263 (1K360-263) 左右ﾊﾞｳﾝｽｽﾄｯﾌﾟ軸...
  • Page 66 Parts List SB-600 FSA03601-R.3629.A Pcs, Q'ty/ Term of Part Number Part Code Part Name 名　　称 Main Assembly Remarks /Unit Delivery Order 1K660-238-1 (1K660-238-1) ｹｰｽＬ CASE L ○ 1K660-239 (1K660-239) WPｶﾊﾞｰ WP COVER ○ 1K660-240-1 (1K660-240-1) ﾊﾞｳﾝｽ軸ｹｰｽR BOUNCE SHAFT CASE R ○...
  • Page 67 Parts List SB-600 FSA03601-R.3629.A Pcs, Q'ty/ Term of Part Number Part Code Part Name 名　　称 Main Assembly Remarks /Unit Delivery Order 1K682-882-1 (1K682-882-1) 電池ｹｰｽA BATTERY CASE A ○ 1K682-885-1 (1K682-885-1) 電池ｹｰｽB BATTERY CASE B ○ 1K682-886 (1K682-886) 電池ｹｰｽC BATTERY CASE C ○...
  • Page 68 Parts List SB-600 FSA03601-R.3629.A Pcs, Q'ty/ Term of Part Number Part Code Part Name 名　　称 Main Assembly Remarks /Unit Delivery Order W-BAT2 (FSA03601-W-BAT2ﾘｰﾄﾞ線　BAT2 (-) LEAD WIRE BAT2 (-) ○ W-DCDC (FSA03601-W-DCDCﾘｰﾄﾞ線　DCDC LEAD WIRE DCDC ○ (FSA03601-WF1) ｺﾈｸﾀ　WF1 CONNECTOR WIRE WF1 ○...
  • Page 69 Parts List SB-600 FSA03601-R.3629.A Pcs, Q'ty/ Term of Part Number Part Code Part Name 名　　称 Main Assembly Remarks /Unit Delivery Order (FSA03601-Z) Zoom基板部組 ZOOM PCB UNIT ○ * B1-14040FA (B1-14040FA) ＳＣＲＥＷ SCREW ○ * B1-20040FA (B1-20040FA) ＳＣＲＥＷ SCREW 1C999-286 ○△ B1-20050FD (B1-20050FD) ＳＣＲＥＷ...
